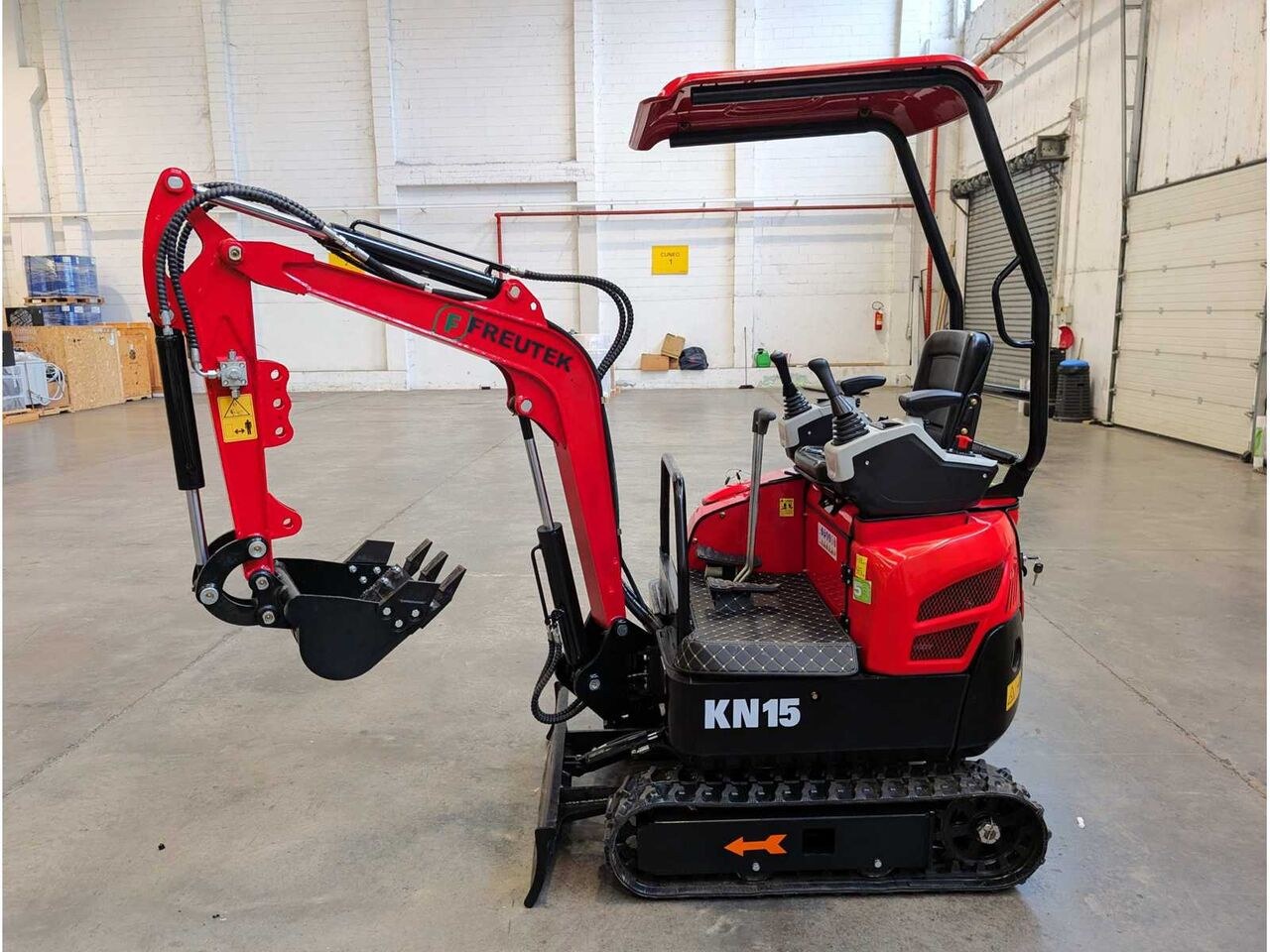

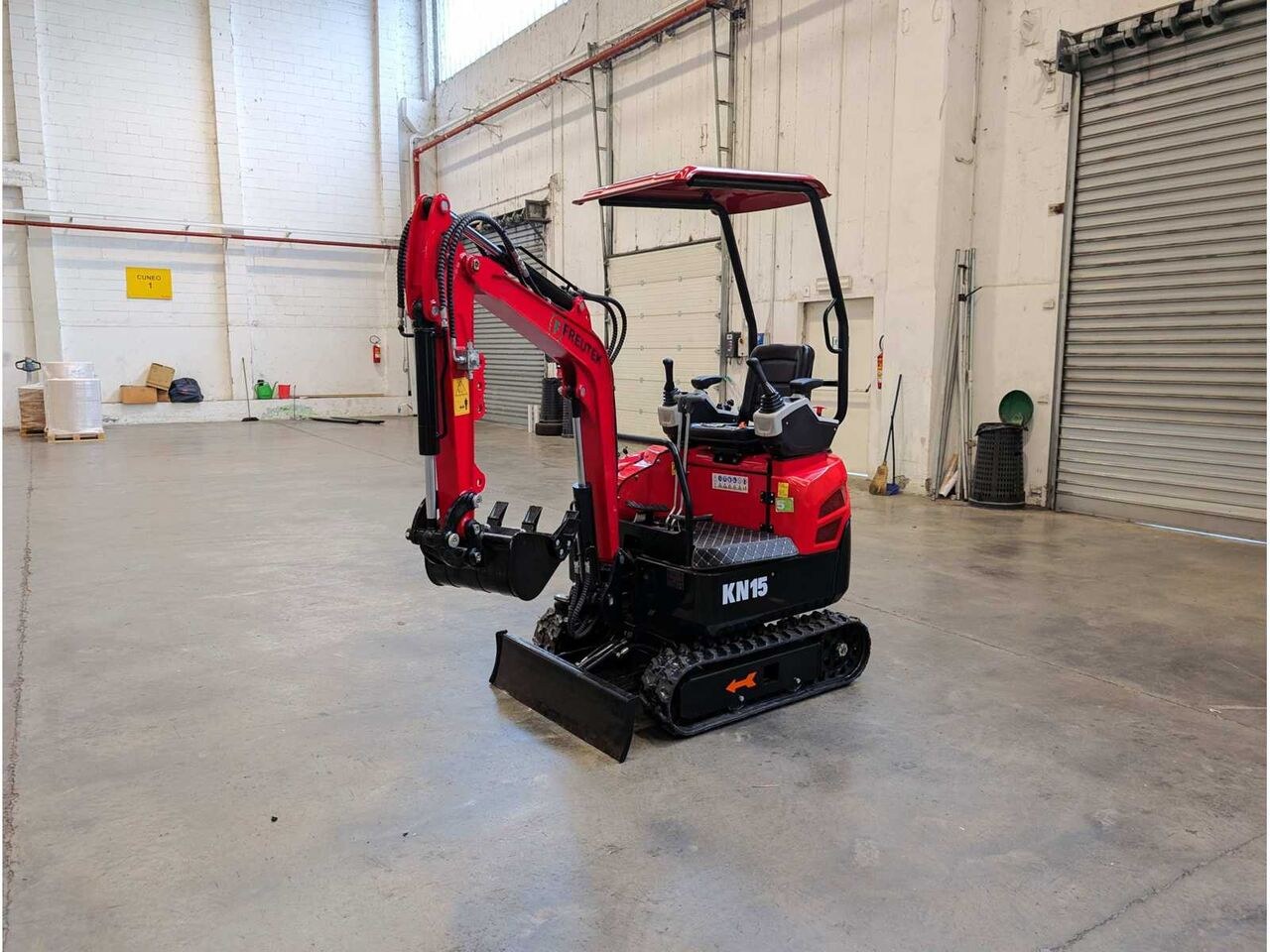

2025 Freutek EKN0015 Mini Excavator

Freutek EKN0015 | 2 units available
Location: Italy | Availability: 2 units available

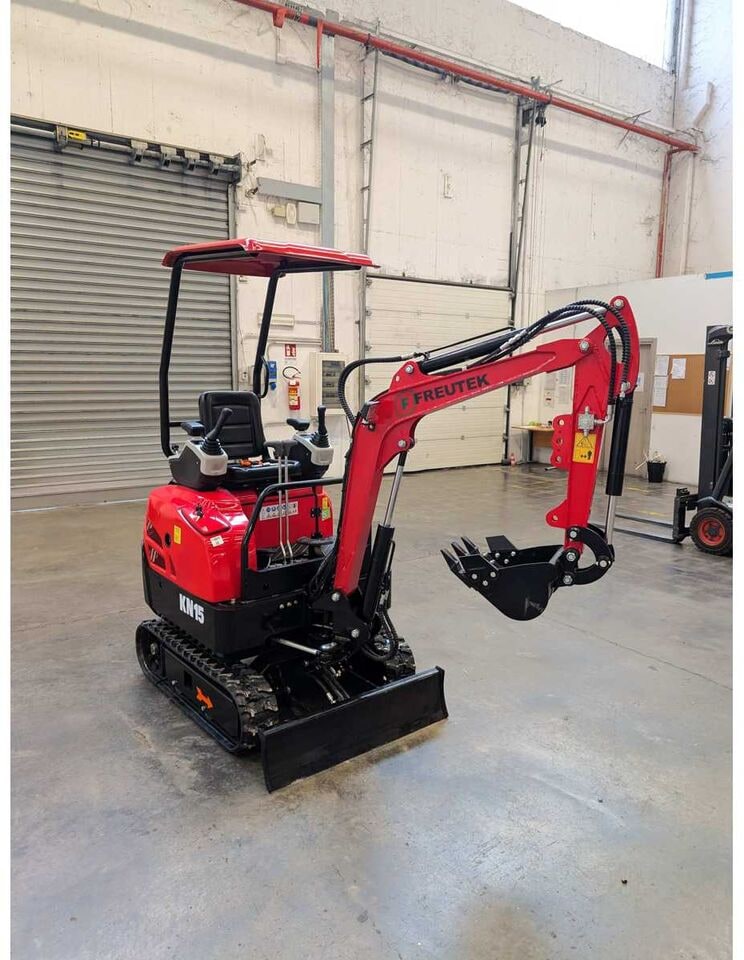

Machine Overview:

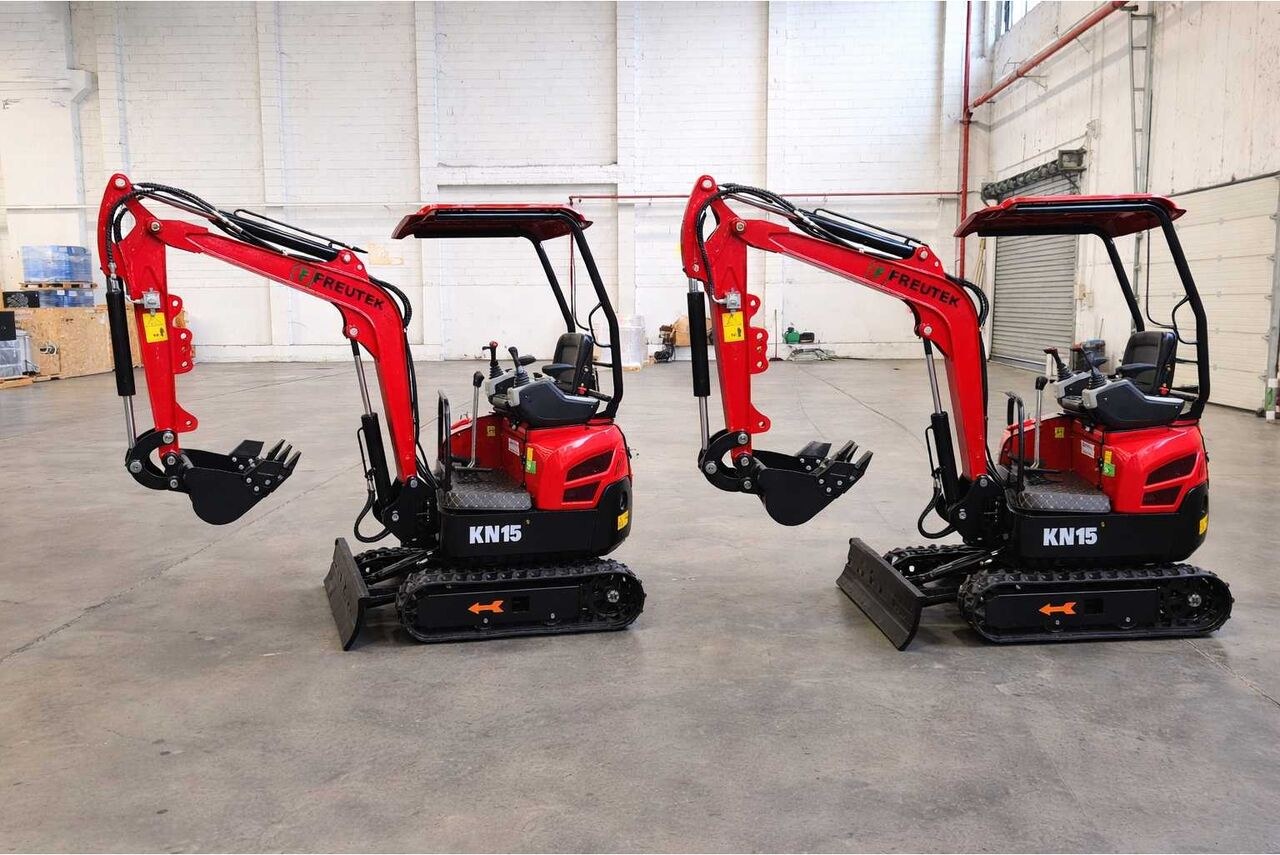

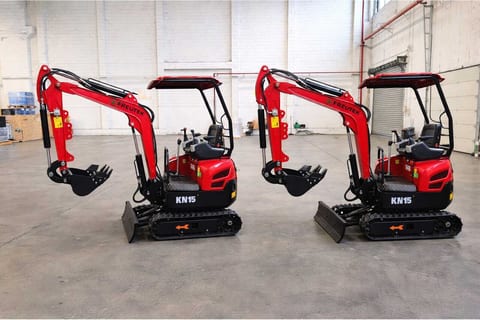

2025 Freutek EKN0015 diesel mini-excavator lot composed of 2 excavators. Each unit has a swing boom, dual control, Koop diesel engine and compact dimensions for confined work areas.

Key Features:
- 2025 manufacture year
- Lot composed of 2 excavators

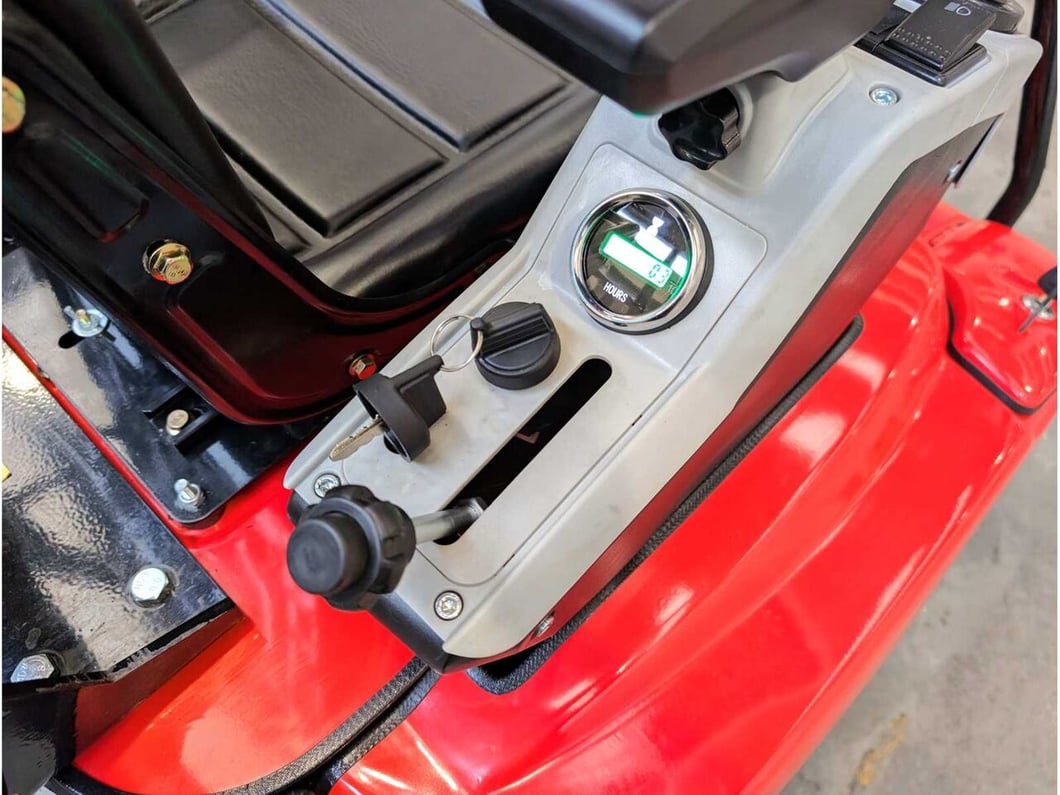

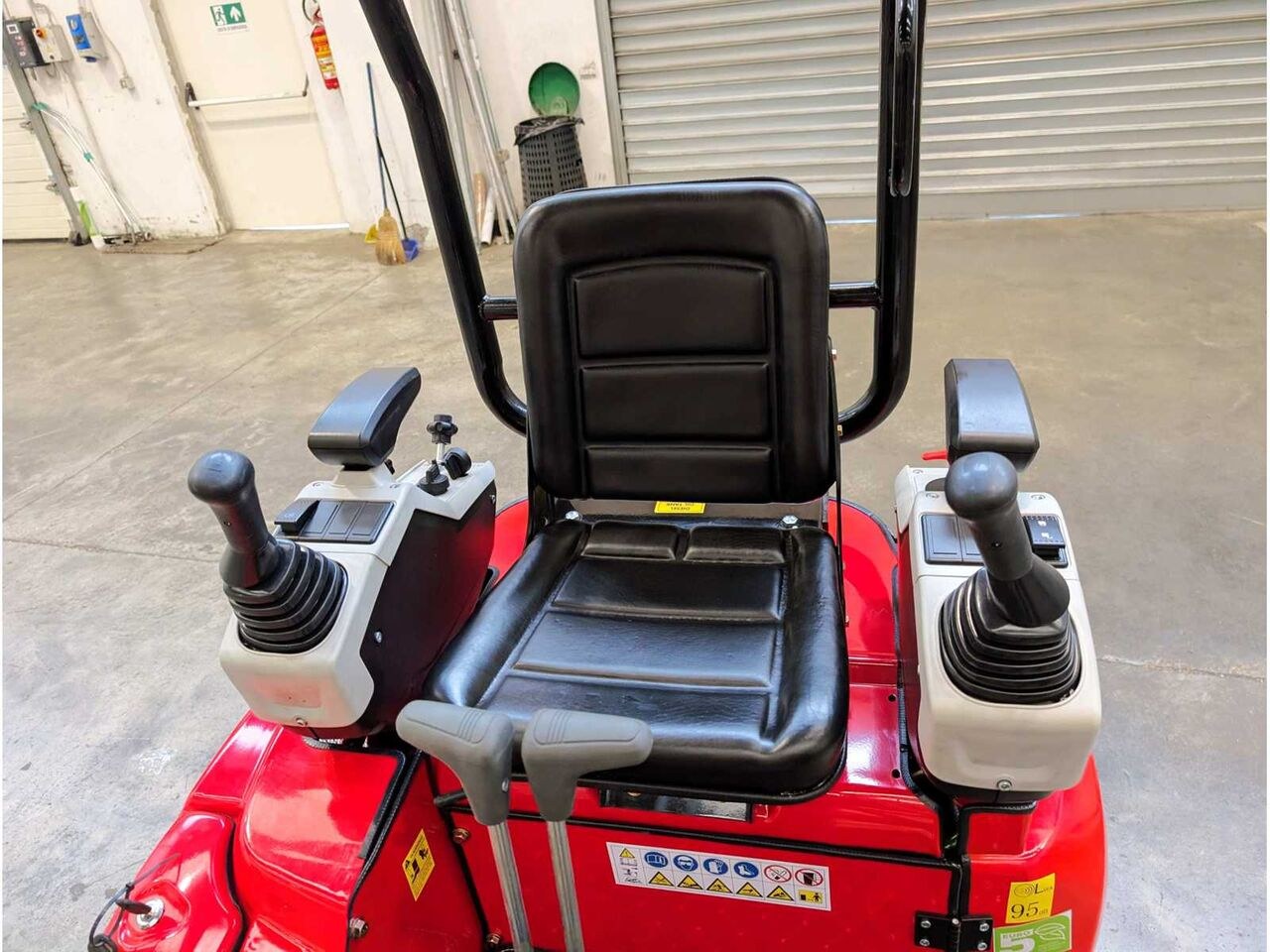

- Swing-boom mini-excavator with dual control
- Koop diesel engine, 8.6 kW
- 950 kg operating weight and 800 kg net weight
- 35,000 cc bucket capacity
- Fixed undercarriage with 180 mm tracks
- Machine condition: unchecked

Technical Data

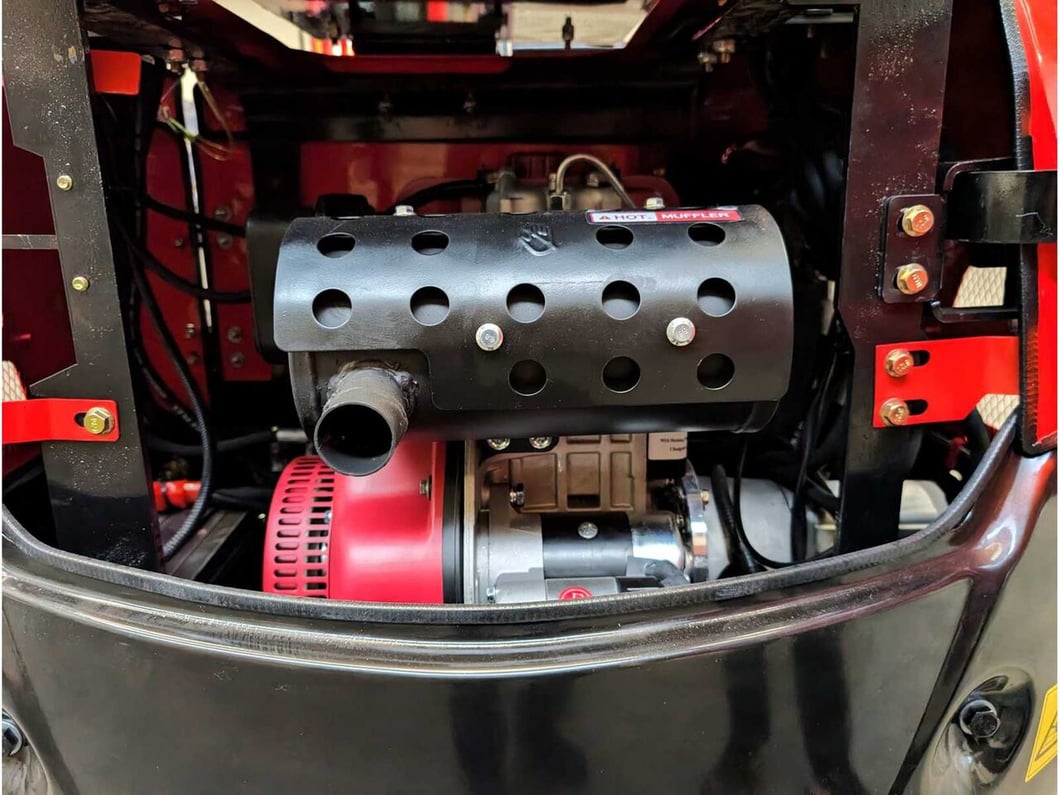

Engine:
- Koop diesel, single cylinder, air-cooled
- Maximum power: 8.6 kW (≈ 11.2 hp)
- Displacement: 499 cc
- Maximum speed: 3600 rpm
- Fuel type: Diesel

Hydraulic System:
- Tianjin 306 mechanical pump
- Pump flow rate: 21.6 l/min
- Working pressure: 18 MPa (max 20 MPa)
- 9-way manual hydraulic valve (TengFei)

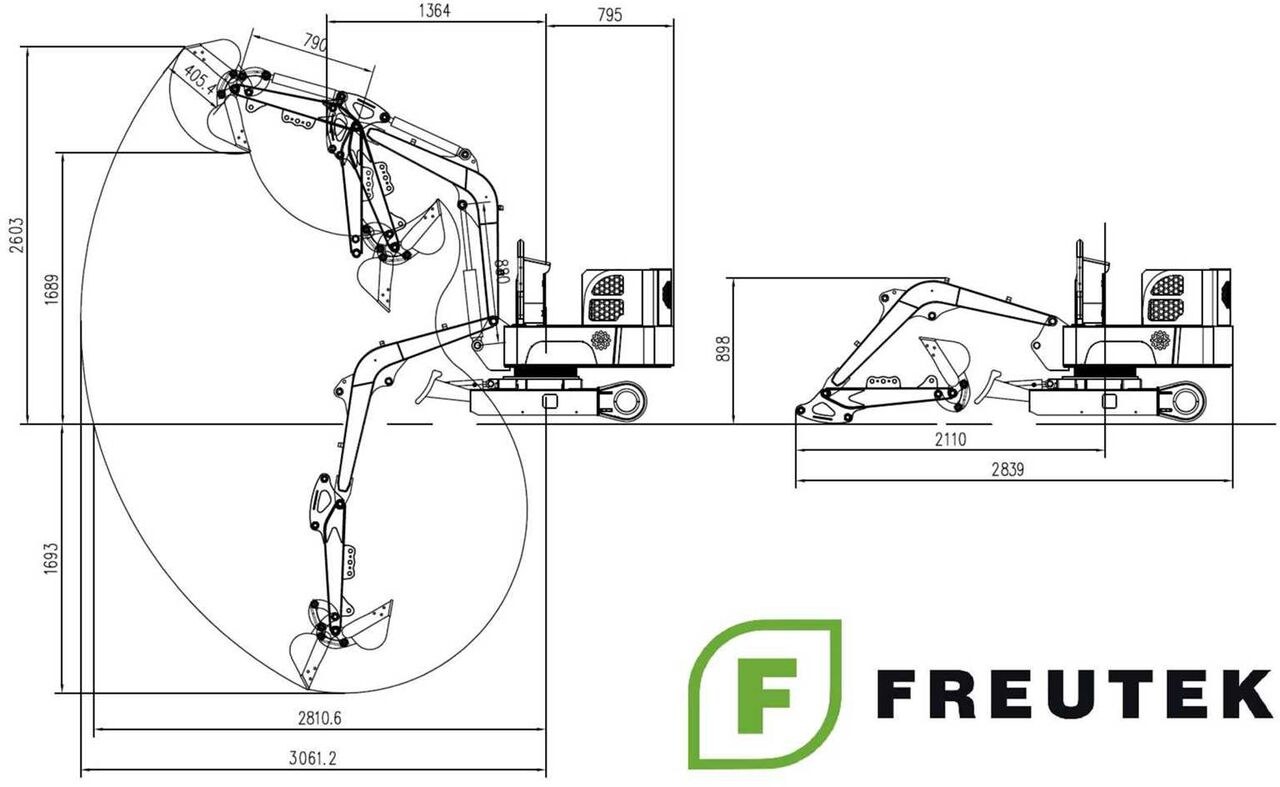

Work Area:
- Maximum digging depth: 1693 mm
- Arm length: 790 mm
- Backfill blade width: 980 mm

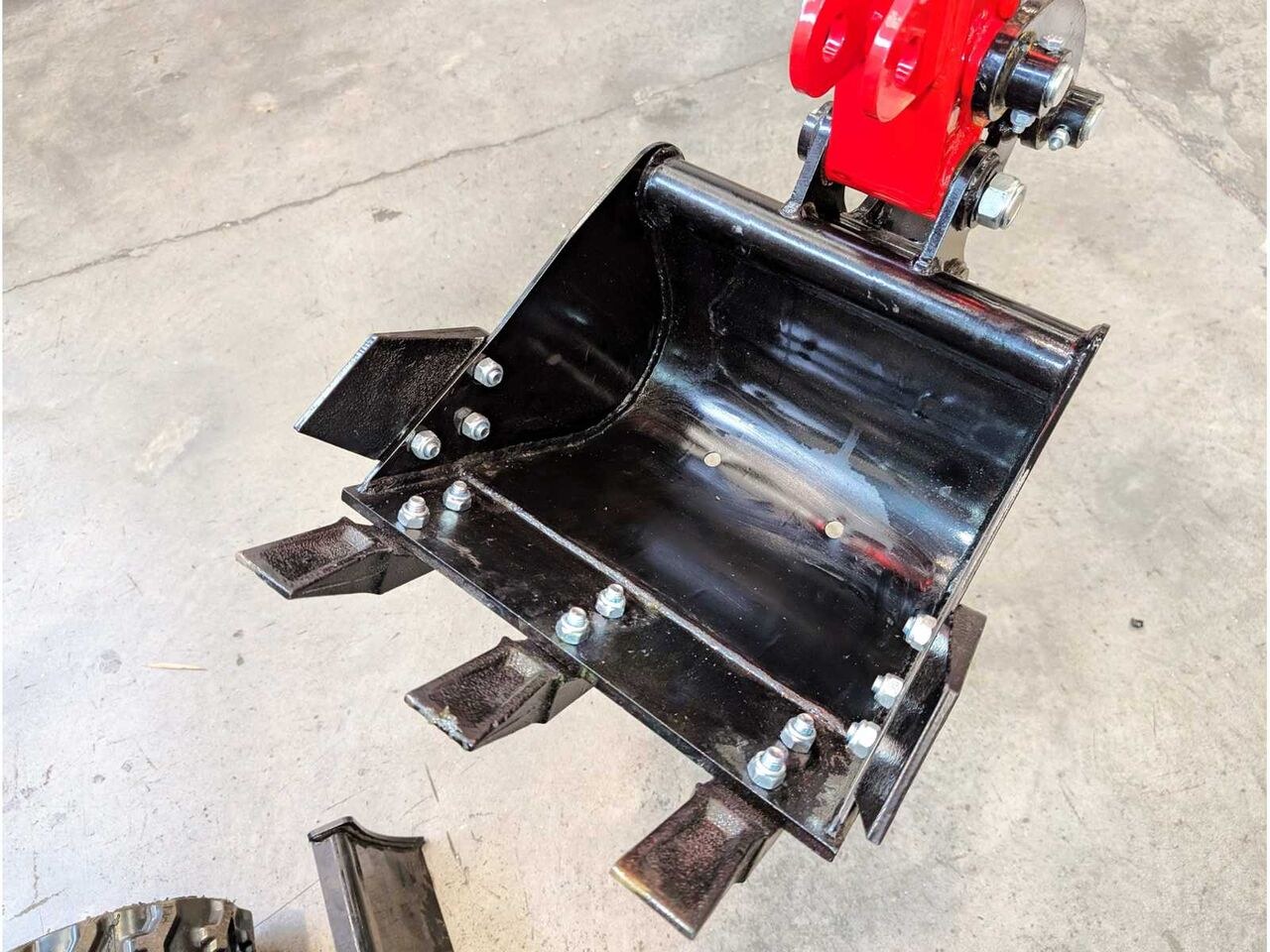

- Bucket capacity: 35,000 cc
- Bucket width: 985 mm

Dimensions / Transport:
- Overall width: 970 mm
- Overall height: 2200 mm
- Length with retracted boom: 2039 mm
- Length with extended boom: 2839 mm
- Approx. transport dimension: LxWxH 2170 x 1280 x 2314 mm
- Approx. Weight: 1000kg

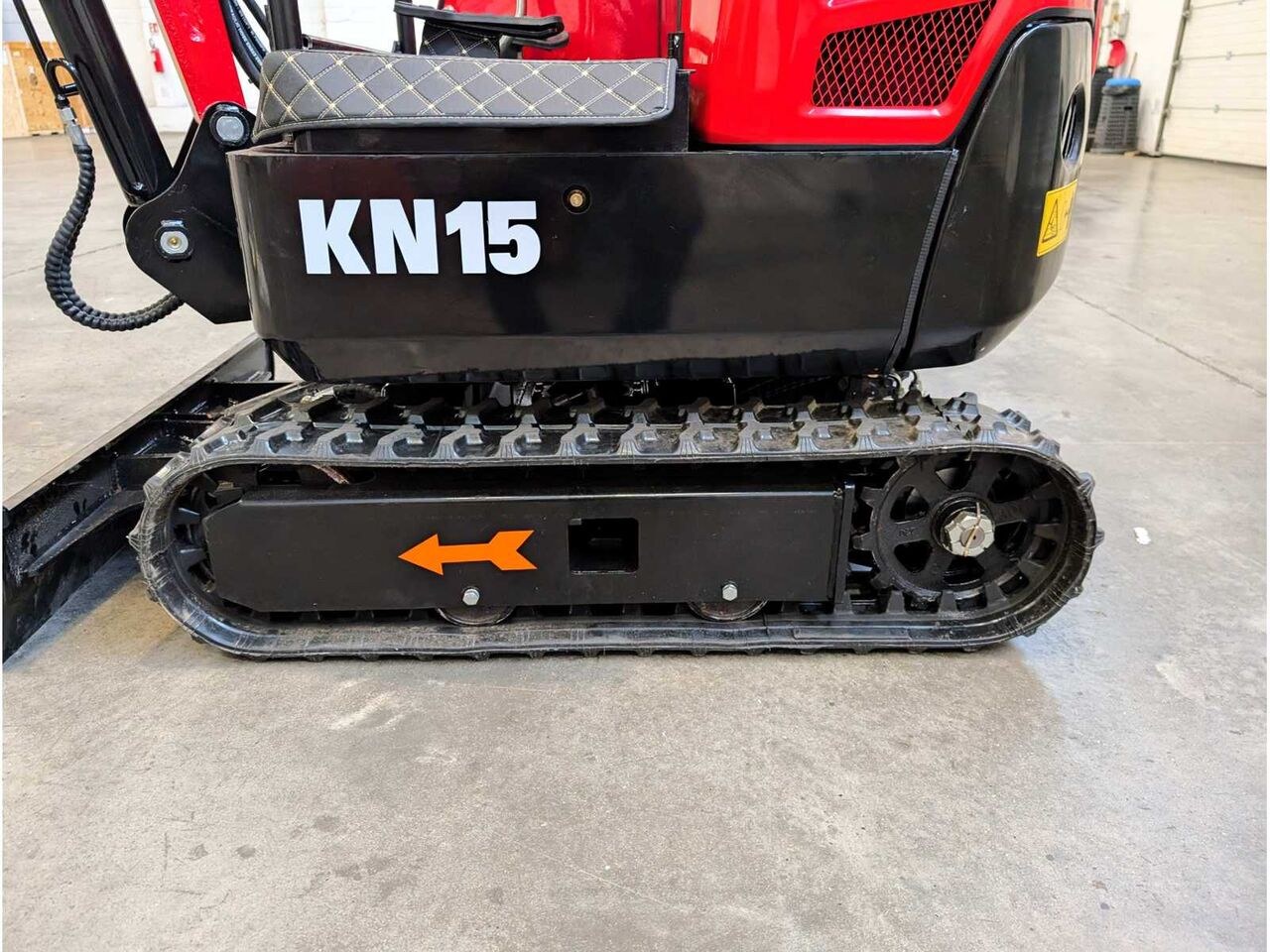

Undercarriage:
- Fixed undercarriage
- Track width: 180 mm
