2025 Freutek EKN0015 Mini Excavator

Freutek EKN0015 | 0.95 t
Location: Italy

Machine Overview:

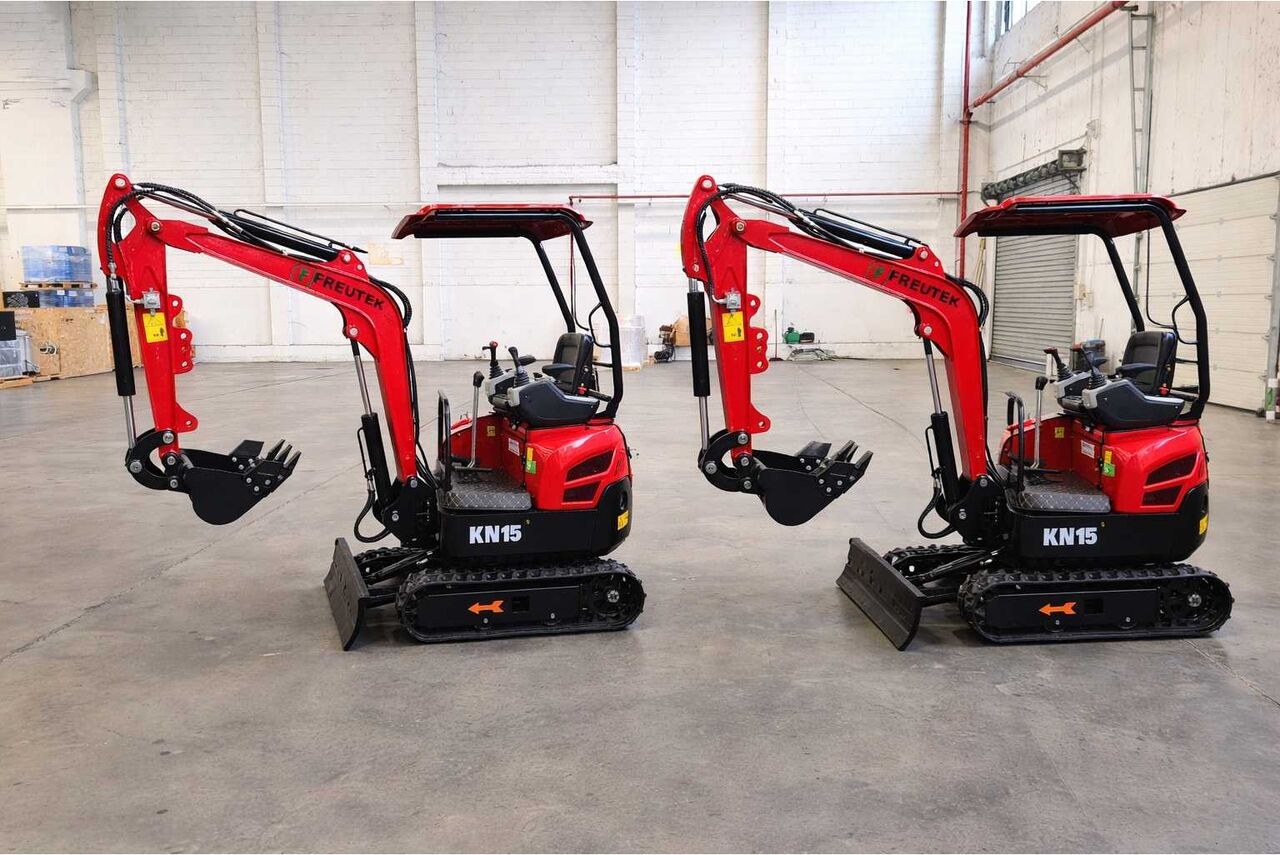

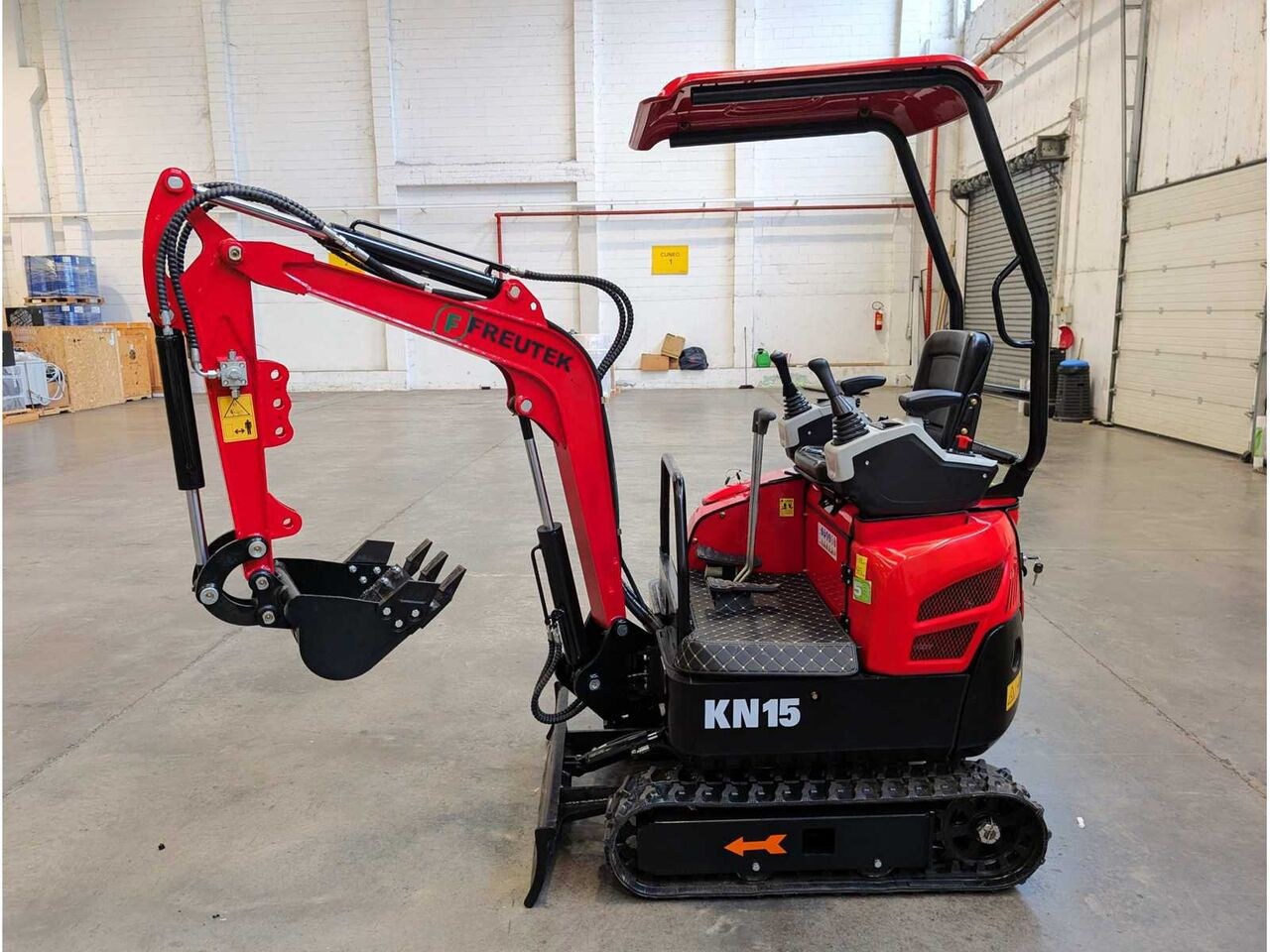

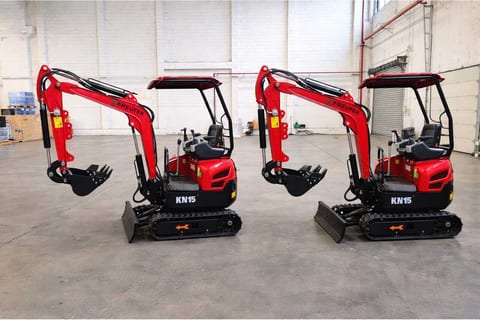

Freutek EKN0015 diesel mini-excavator lot composed of 2 excavators, with 2025 year of manufacture supplied. Each excavator is specified with a Koop diesel engine, Tianjin/Tengfei hydraulic components, fixed undercarriage and compact transport dimensions.

Key Features:
- 2025 year of manufacture
- Lot composed of 2 excavators
- 0.95 t operating weight
- Koop diesel engine
- 8.6 kW maximum power
- 499 cc displacement
- Tianjin 306 mechanical pump
- Fixed undercarriage

Technical Data

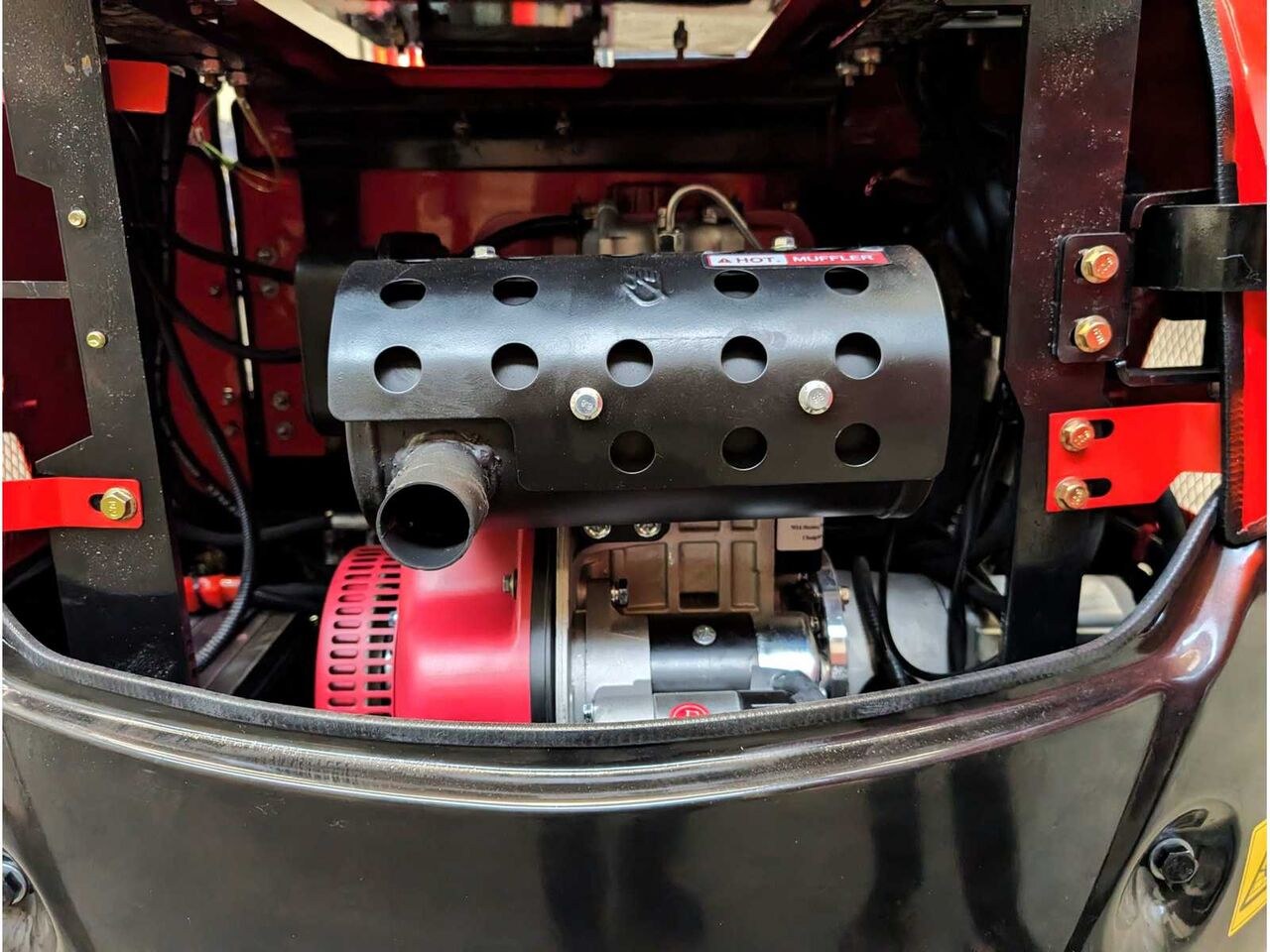

Engine:
- Engine: 8.6 kW Koop diesel, single cylinder, air-cooled, 3600 rpm
- Maximum power: 8.6 kW (≈ 11.2 hp)
- Displacement: 499 cc
- Number of cylinders: 1
- Fuel type: Diesel

Hydraulic System:
- Hydraulic system: Tianjin/Tengfei components
- Pump: Tianjin 306 Mechanical
- Pump flow rate: 21.6 l/min
- Working pressure: 18 MPa (max 20 MPa)
- 9-way manual hydraulic valve: TengFei

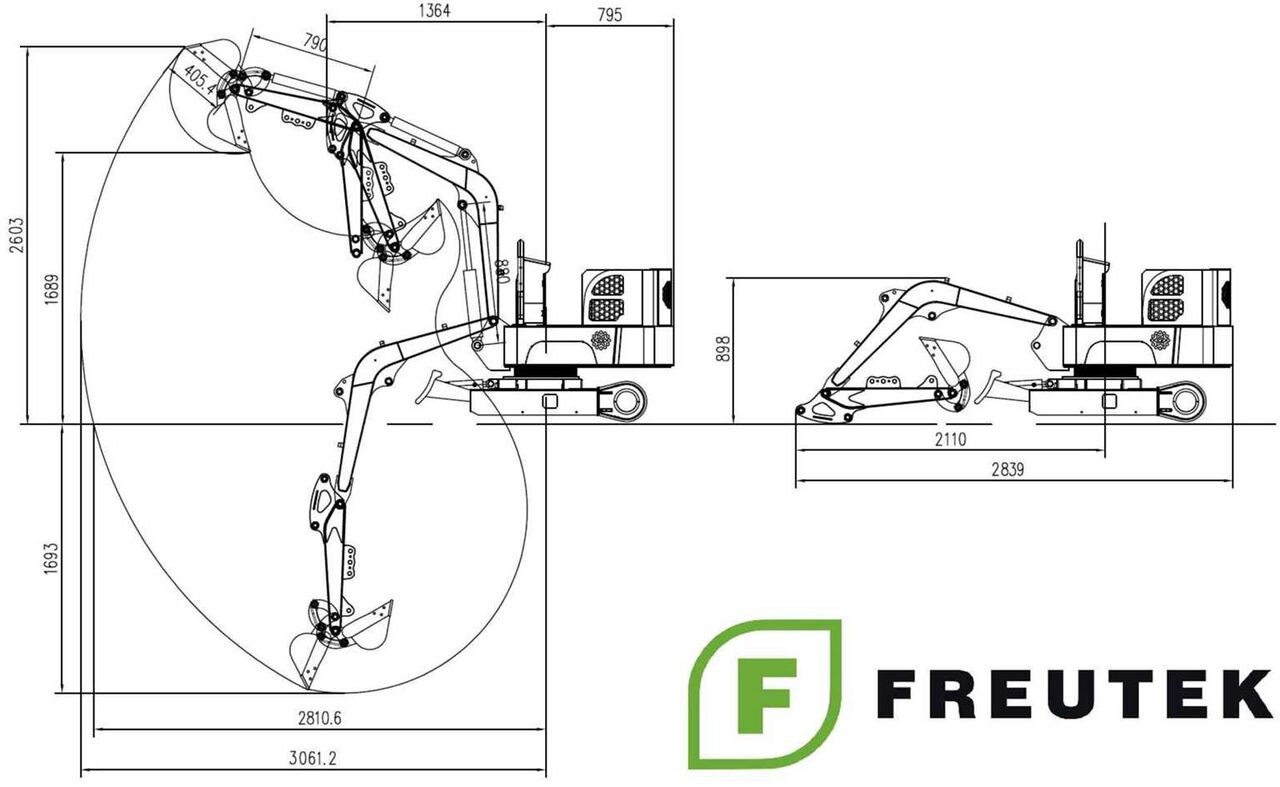

Work Area:
- Working radius: up to 3061 mm in diameter, 2603 mm in height and 1693 mm in depth
- Maximum digging depth: 1693 mm
- Arm length: 790 mm

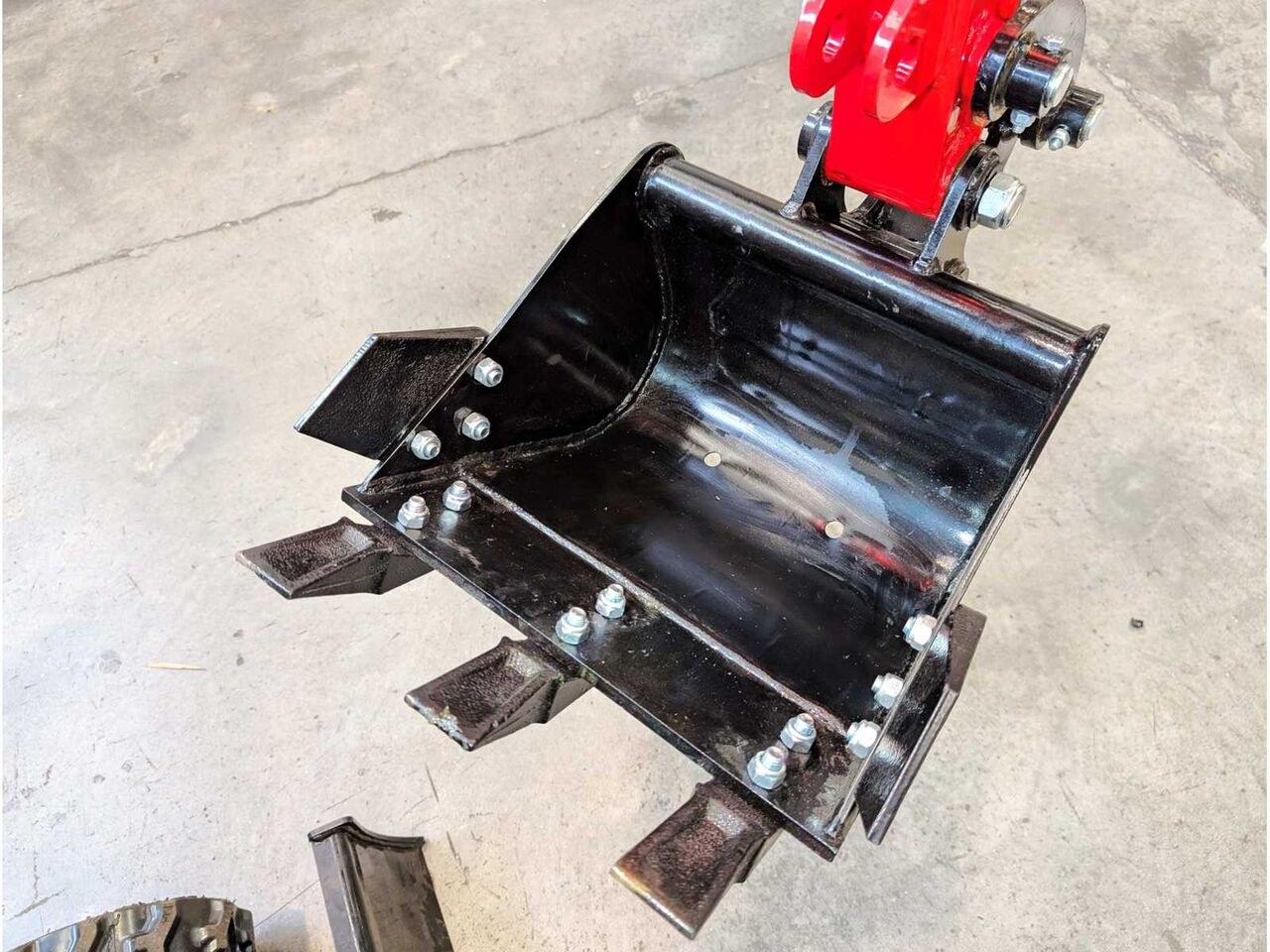

- Bucket capacity: 35,000 cc
- Bucket width: 985 mm
- Backfill blade width: 980 mm

Dimensions / Transport:
- Overall width: 970 mm
- Overall height: 2200 mm
- Length with bucket: 1180 mm
- Length with retracted boom: 2039 mm
- Length with extended boom: 2839 mm
- Approx. transport dimension: LxWxH 2170 x 1280 x 2314 mm

Undercarriage:
- Undercarriage type: Fixed
- Track width: 180 mm

Documentation & Compliance:
- Machine condition: unchecked
