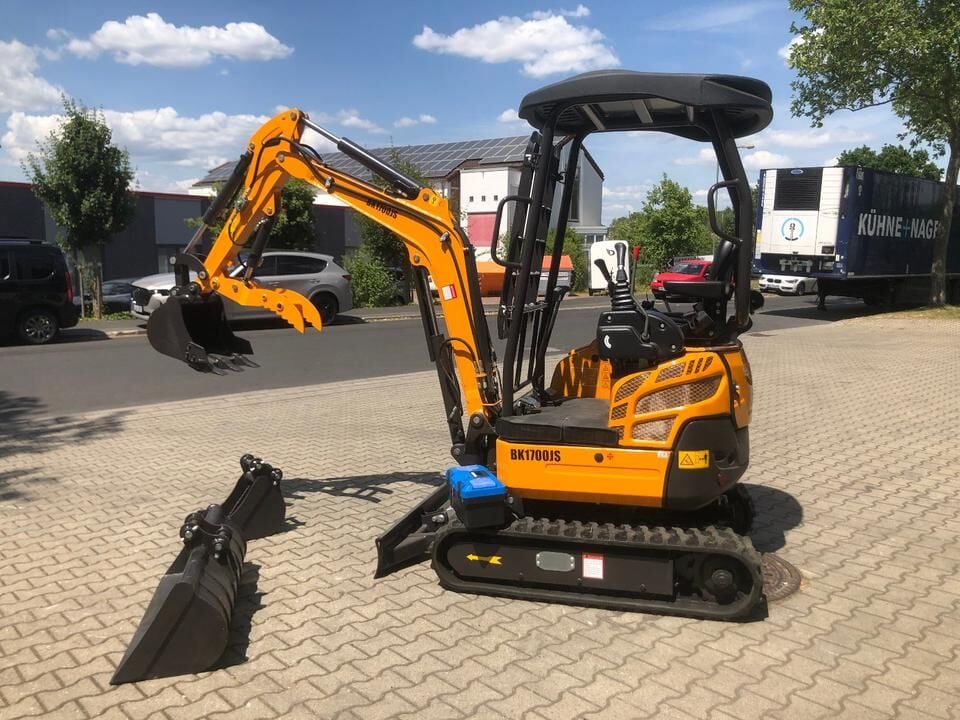

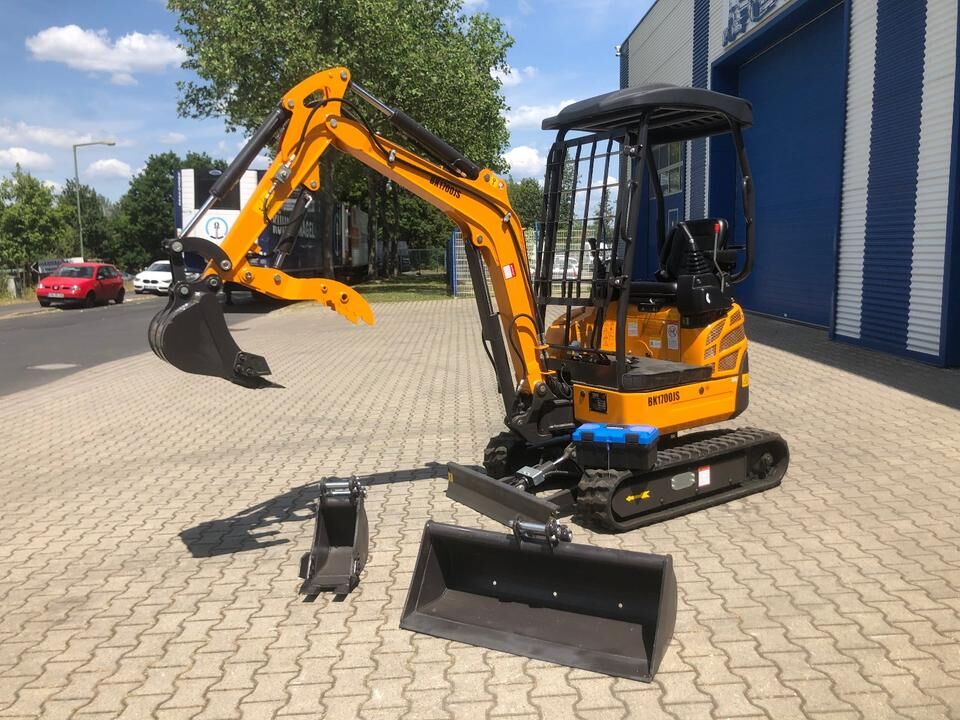

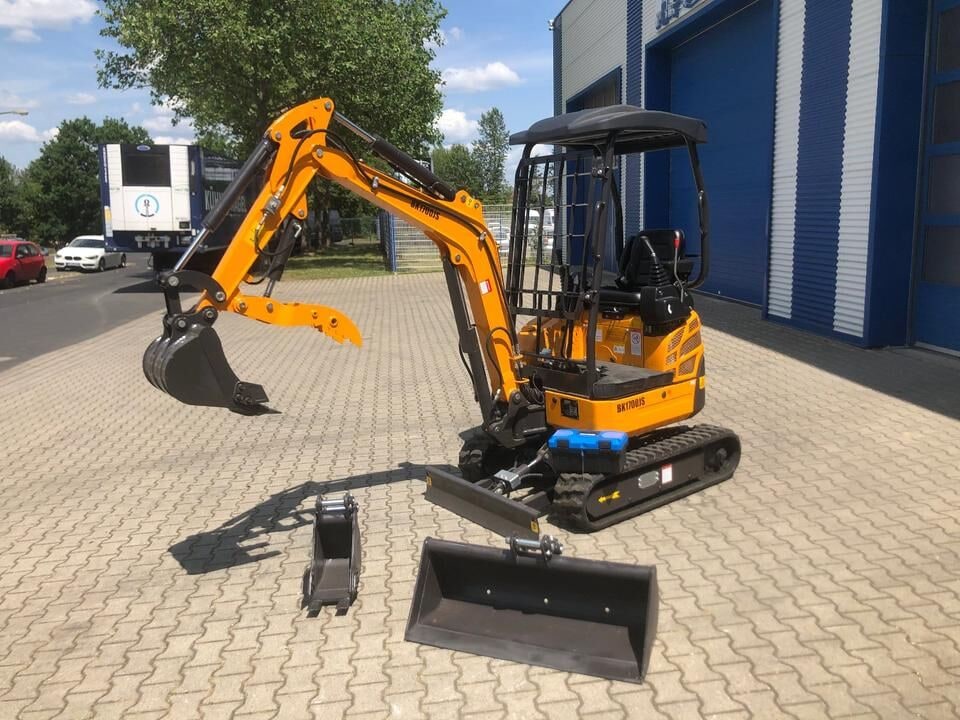

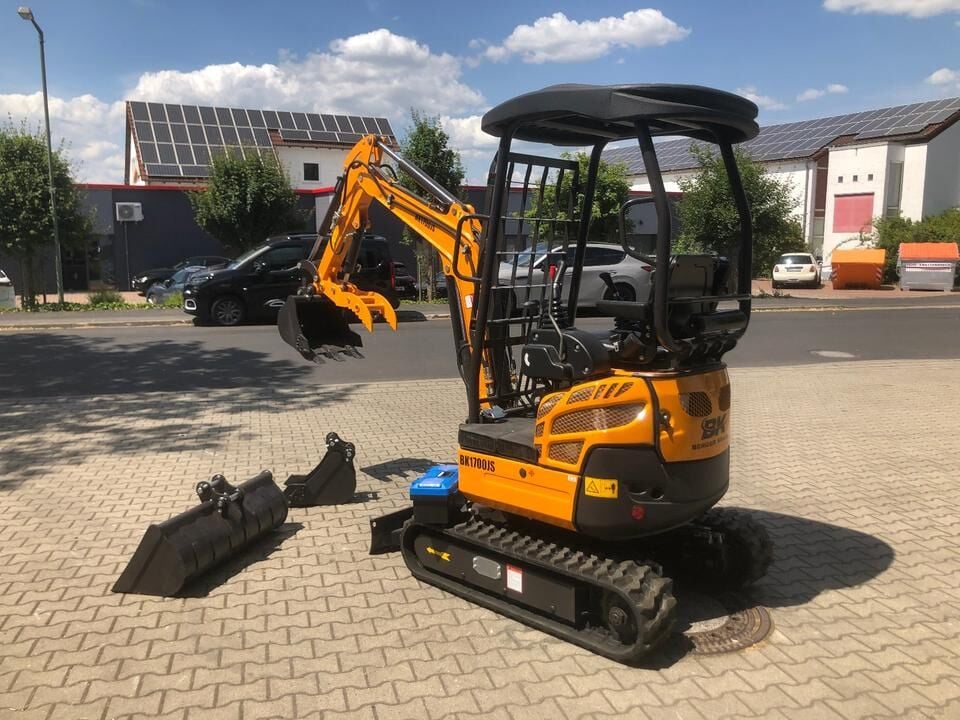

Berger Kraus BK1700JS Mini Excavator

Berger Kraus BK1700JS | with Warranty
Location: Kassel, Germany

Machine Overview:
Berger Kraus BK1700JS mini excavator with Kubota engine, joystick operation, swing arm, hydraulic excavator thumb and operator protection grille. Supplied as a demonstration vehicle with up to a maximum of 5 operating hours and bucket package.

Key Features:
- Kubota engine with warranty
- Up to a maximum of 5 operating hours
- Joystick operation next to the driver's seat
- Swing arm and hydraulic excavator thumb
- 1640kg operating weight
- 11,8 kw (15HP) / 2300r / min rated power
- Bucket package included
- CE, invoice showing VAT and German operating / repair manual

Technical Data

Engine:
- KUBOTA EURO 5 (D902) 3-cylinder water-cooled engine
- Rated power: 11,8 kw (15HP) / 2300r / min
- Torque: 51,3Nm
- Fuel tank capacity: 18L

Hydraulic System:
- BEIFANG main pump
- EATON BRAND(USA) slewing motor

Work Area:
- Max. digging depth: 2200mm
- Max. digging height: 3230mm
- Max. dump height: 2260mm
- Max. digging radius: 3550mm
- Max. blade lift height: 215mm
- Max. blade depth: 190mm
- Min. turning radius: 1520mm
- Slewing radius: 360°

Dimensions / Transport:
- Track width: 1100mm
- Total track length: 1434mm
- Ground clearance: 418mm
- Track gauge: 180 mm
- Turning radius (rotation): 790mm
- Roof height: 2371mm
- Seat height: 1600mm

Undercarriage:
- EATON BREAND(USA) undercarriage
- Travel speed: 2,5 km/h

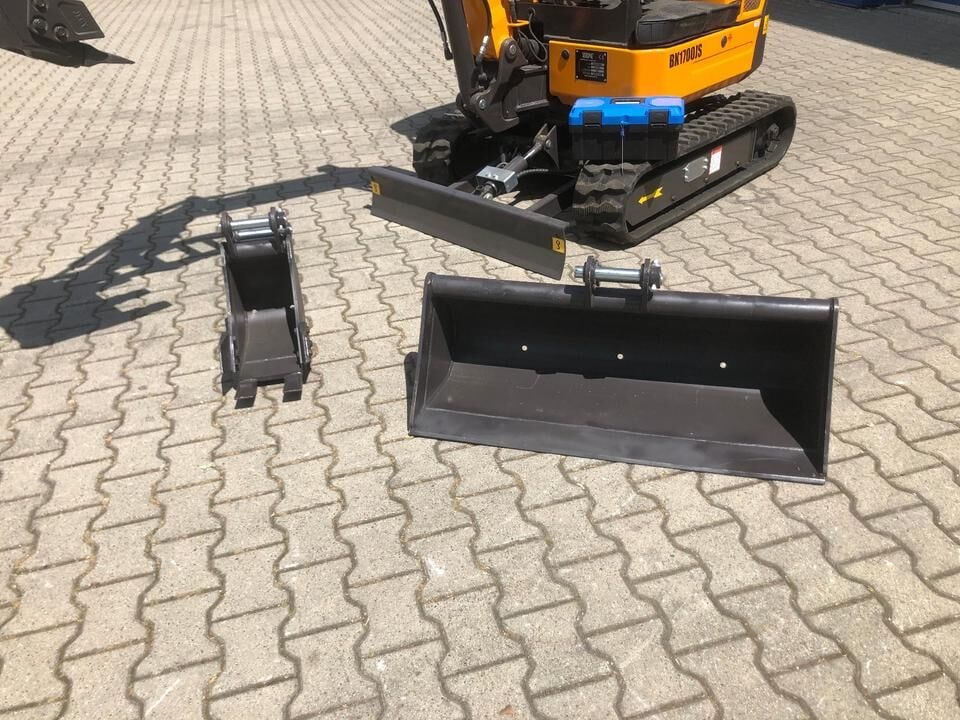

Attachments & Equipment:
- Bucket 200mm
- Bucket 400mm
- Bucket 1000mm
- Tool box
- Hydraulic excavator thumb

Documentation & Compliance:
- CE
- Invoice showing VAT
- German operating / repair manual
