Berger Kraus BK1250JSR | 5 hours
Location: Kassel, Germany | Availability: In Stock

Machine Overview:

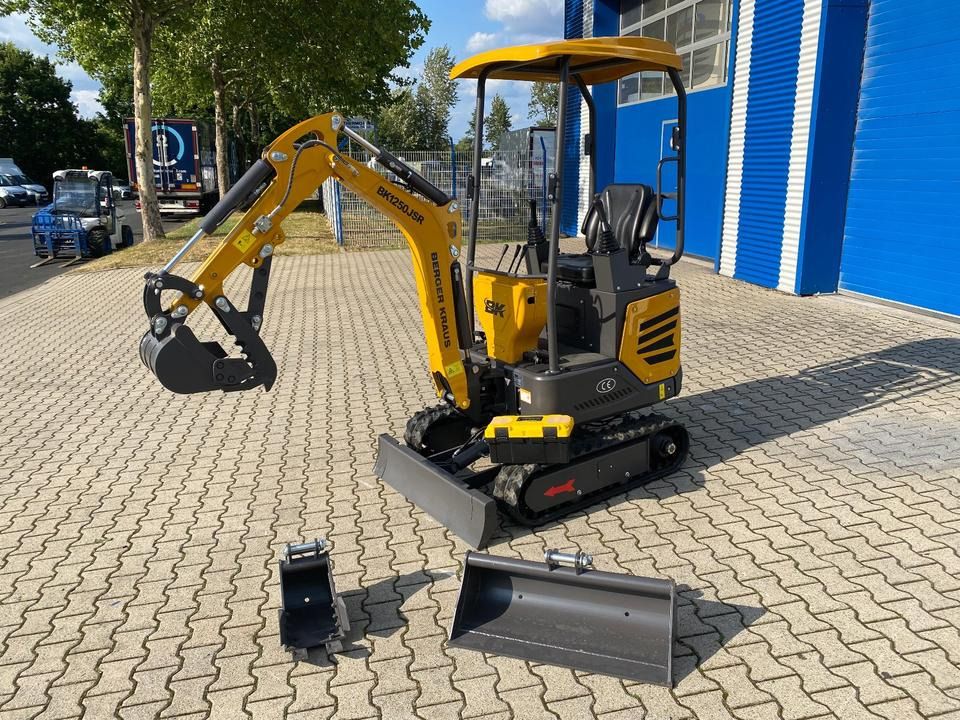

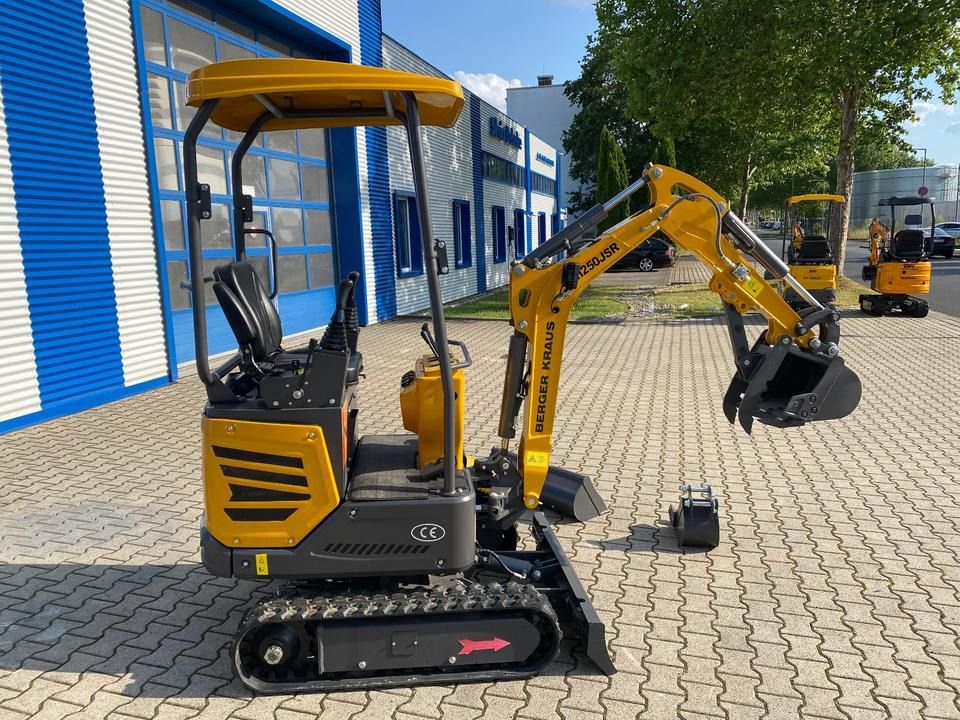

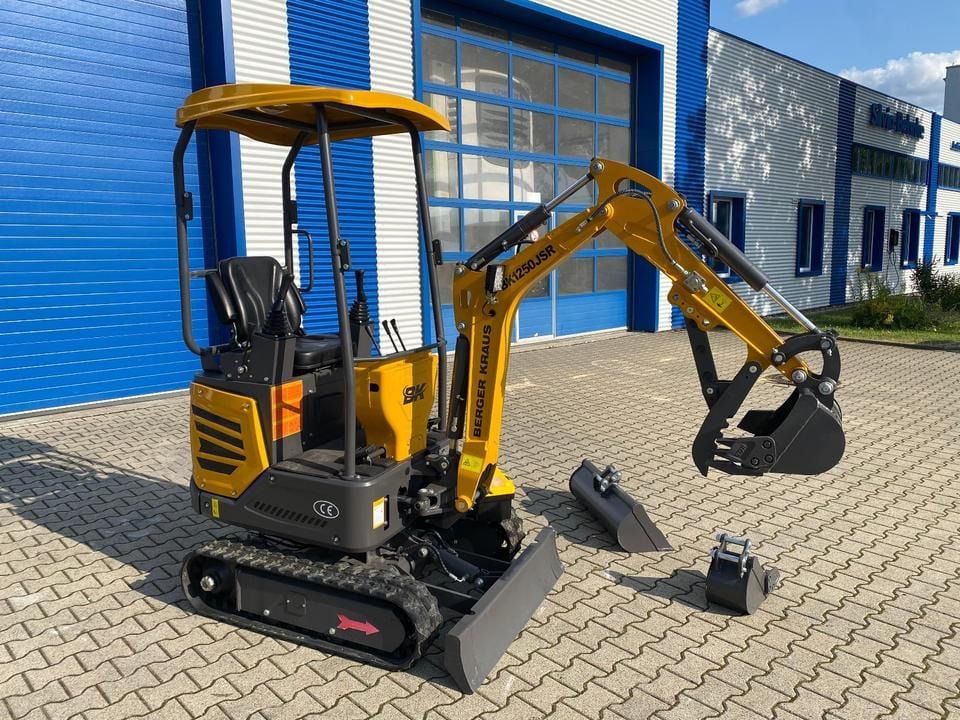

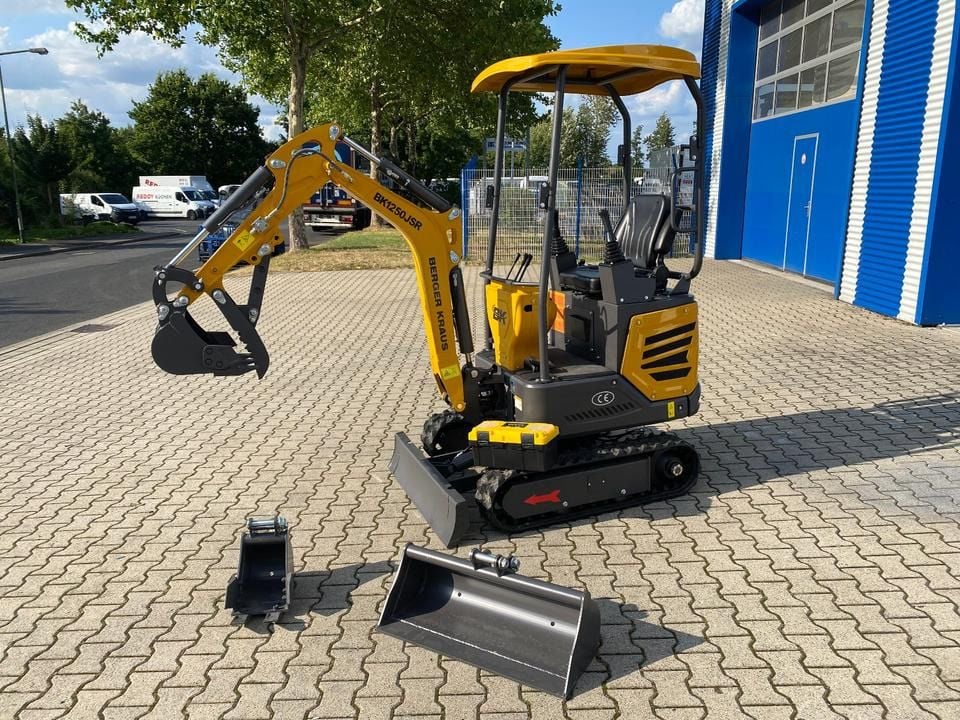

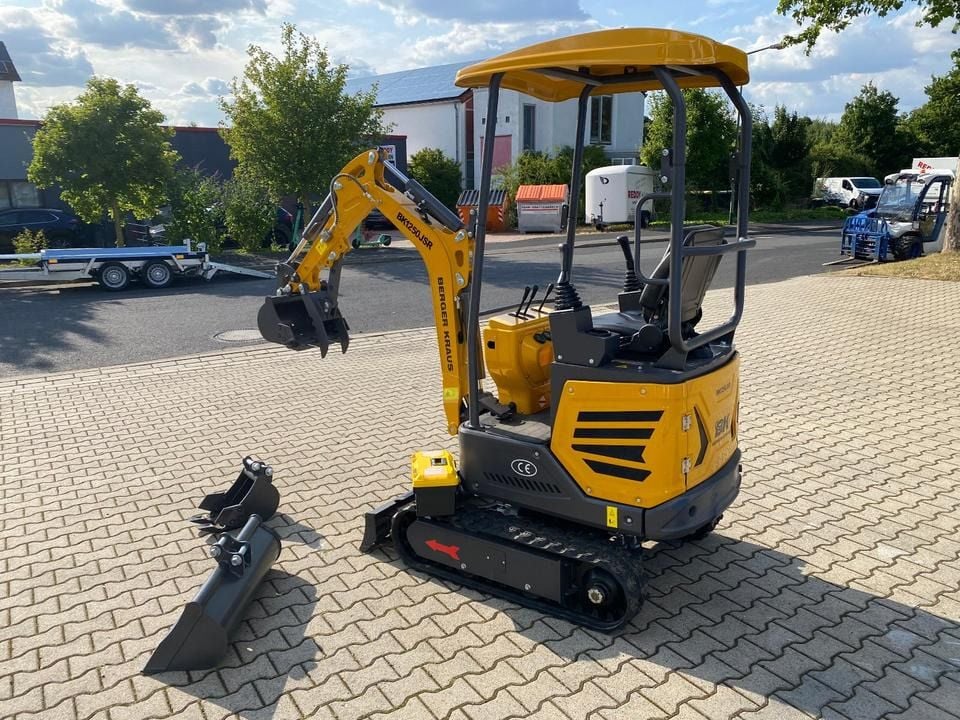

BK1250JSR mini excavator with joystick controls, swing boom and adjustable undercarriage. The machine is sold as a demonstration vehicle with up to 5 operating hours and includes a bucket package.

Key Features:
- Operating weight: 1100kg
- KUBOTA EURO 5 (D722 / E711) 3-cylinder liquid-cooled diesel engine
- Rated power: 10,2 kw / 2500r / min
- Swing boom and adjustable undercarriage
- Pre-mounted 380mm bucket with 0,026 cbm capacity
- Pre-mounted excavator thumb
- Maximum digging depth: approx. 1750mm

Technical Data
Engine:
- KUBOTA EURO 5 (D722 / E711) 3-cylinder liquid-cooled diesel engine
- Rated power: 10,2 kw / 2500r / min
- Displacement: 719ccm

Hydraulic System:
- TIANJIN double gear pump, 15L + 7,5L at 2500 U/min
- Hydraulic system pressure: 16MPa
- Swing motor: EATON (USA)
- Travel motor: ZHENJIANG with overflow function

Work Area:
- Digging reach at ground level: approx. 3030mm
- Max. digging reach: approx. 2940mm
- Max. digging depth: approx. 1750mm
- Max. digging height: approx. 2610mm
- Max. dumping height: approx. 1740mm

Dimensions / Transport:
- Wheelbase: 920mm
- Total track length: 1230mm
- Travel speed: 1,2 km / h

Undercarriage:
- Undercarriage width: 880-1100mm adjustable undercarriage
- Ground clearance of undercarriage: 132mm
- Track width: 180mm

Attachments & Equipment:
- Pre-mounted excavator thumb
- Buckets: 800mm, 200mm and 380mm
- Tool box

Documentation & Compliance:
- CE supplied
- Invoice with VAT shown
- German operating / repair manual supplied
