Berger Kraus BK2000NKSR
Location: Kassel, Germany

Machine Overview:

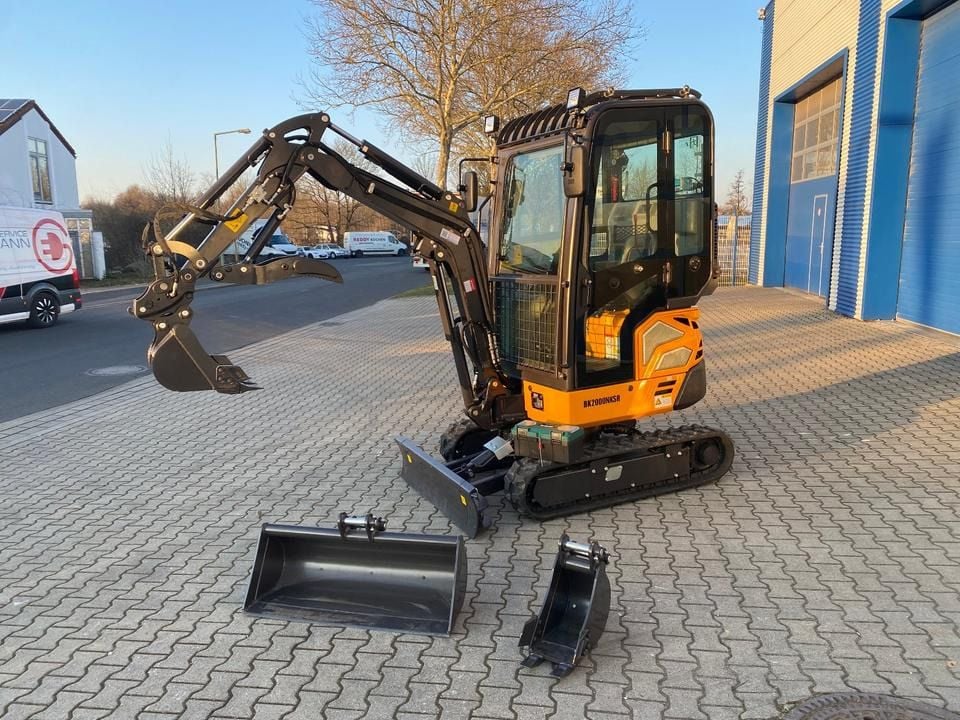

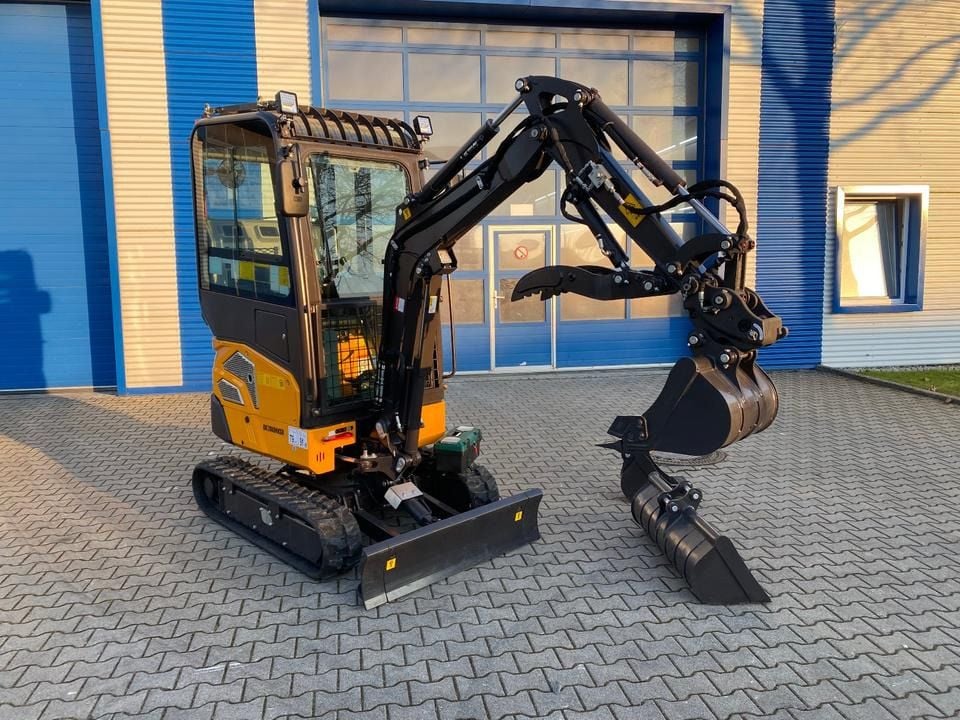

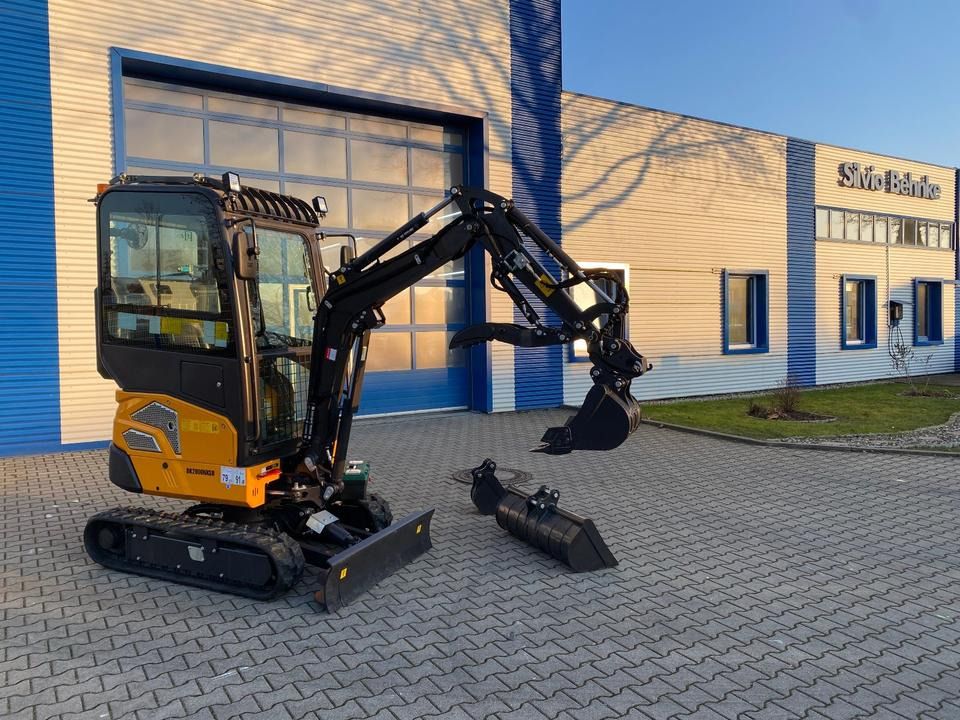

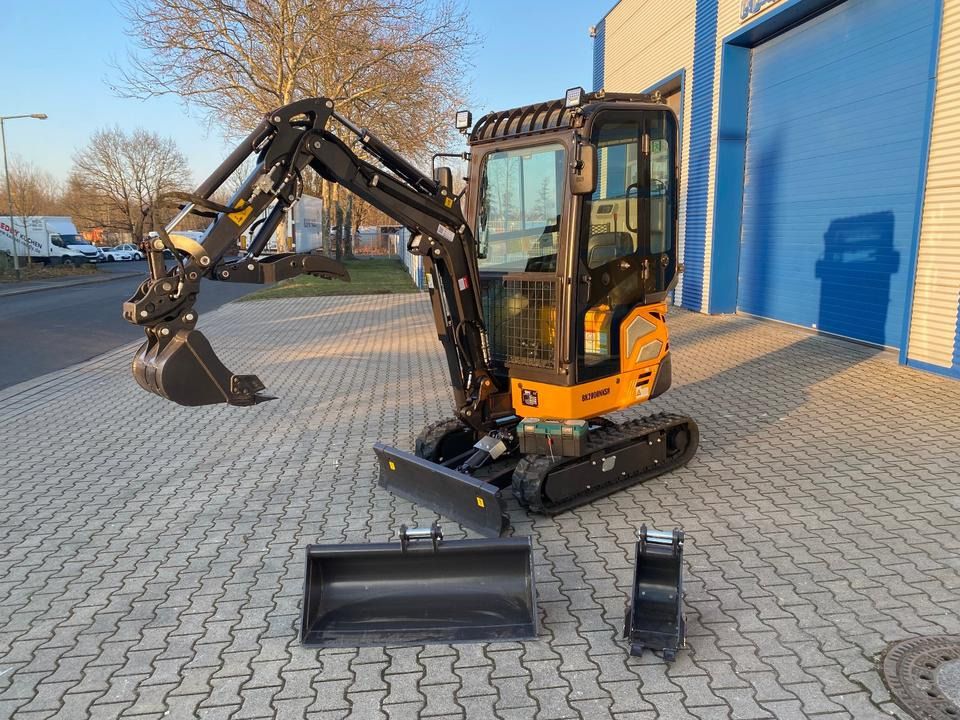

Berger Kraus BK2000NKSR mini excavator with KUBOTA D1105 diesel engine, swing arm, adjustable undercarriage and hydraulic joysticks. This version includes a bucket package.

Key Features:
- Operating weight: 2030 kg
- KUBOTA D1105, 3-cylinder liquid-cooled diesel engine
- Rated power: 14,2 kW / 2200 U/min
- Hydraulic quick coupler
- Hydraulic excavator thumb
- Electric air conditioning
- Bucket package included

Technical Data
Engine:
- Engine: KUBOTA D1105, 3-cylinder liquid-cooled (Diesel) Euro5
- Rated power: 14,2 kW / 2200 U/min
- Engine displacement: 1.123 L

Hydraulic System:
- Main pump: TaiFeng piston pump 39,6 L/min
- Maximum pressure: 220 bar
- Hydraulic oil tank capacity: 15,3 l

Work Area:
- Max. digging reach: 3610 mm
- Max. digging depth: 2150 mm
- Max. discharge height: 2310 mm
- Max. vertical digging depth: 1740 mm
- Arm swing left: 390 mm
- Arm swing right: 510 mm

Dimensions / Transport:
- Total track length: 1590 mm
- Ground clearance: 473 mm
- Turning radius: 790 mm

Undercarriage:
- Track width (rubber): 230 mm

Attachments & Equipment:
- Hydraulic quick coupler pre-mounted
- Hydraulic excavator thumb pre-mounted

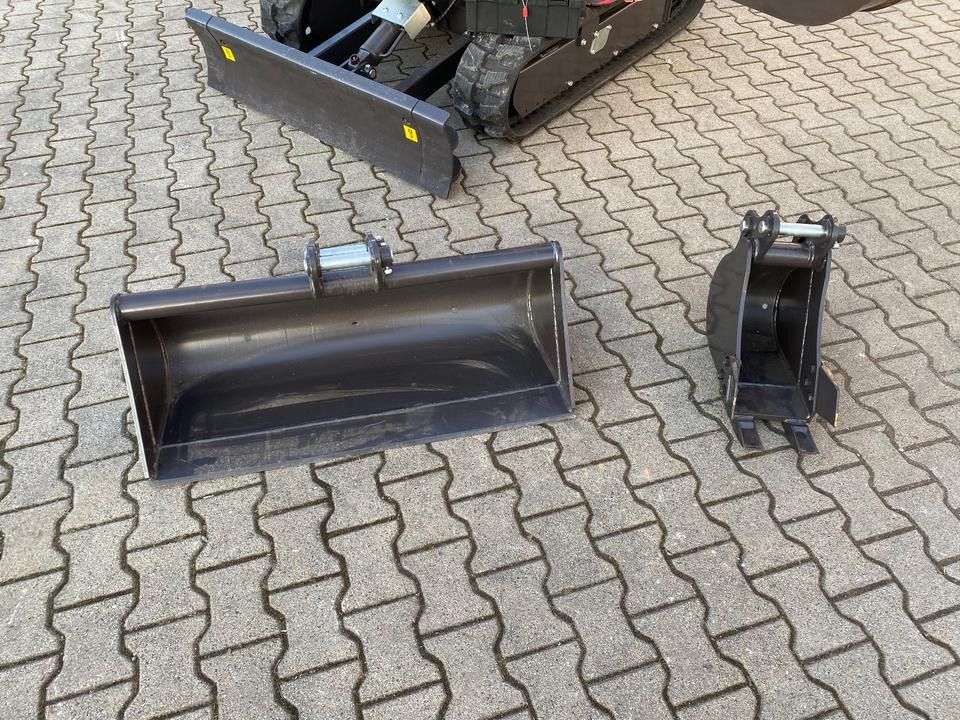

- Bucket 200mm, bucket 400mm and bucket 1000mm
- Tool box

Documentation & Compliance:
- CE
- Operating / repair manual in German
- Warranty/guarantee according to statutory requirements
