2025 Freutek EKN0015 Mini Excavator

Freutek EKN0015 | 0.95 t Mini Excavator
Location: Italy | Availability: 5 units available

Machine Overview:
2025 Freutek EKN0015 diesel mini excavator lot with 5 units. Each machine has a swing boom, dual control, fixed undercarriage and compact dimensions for restricted-space work.

Key Features:

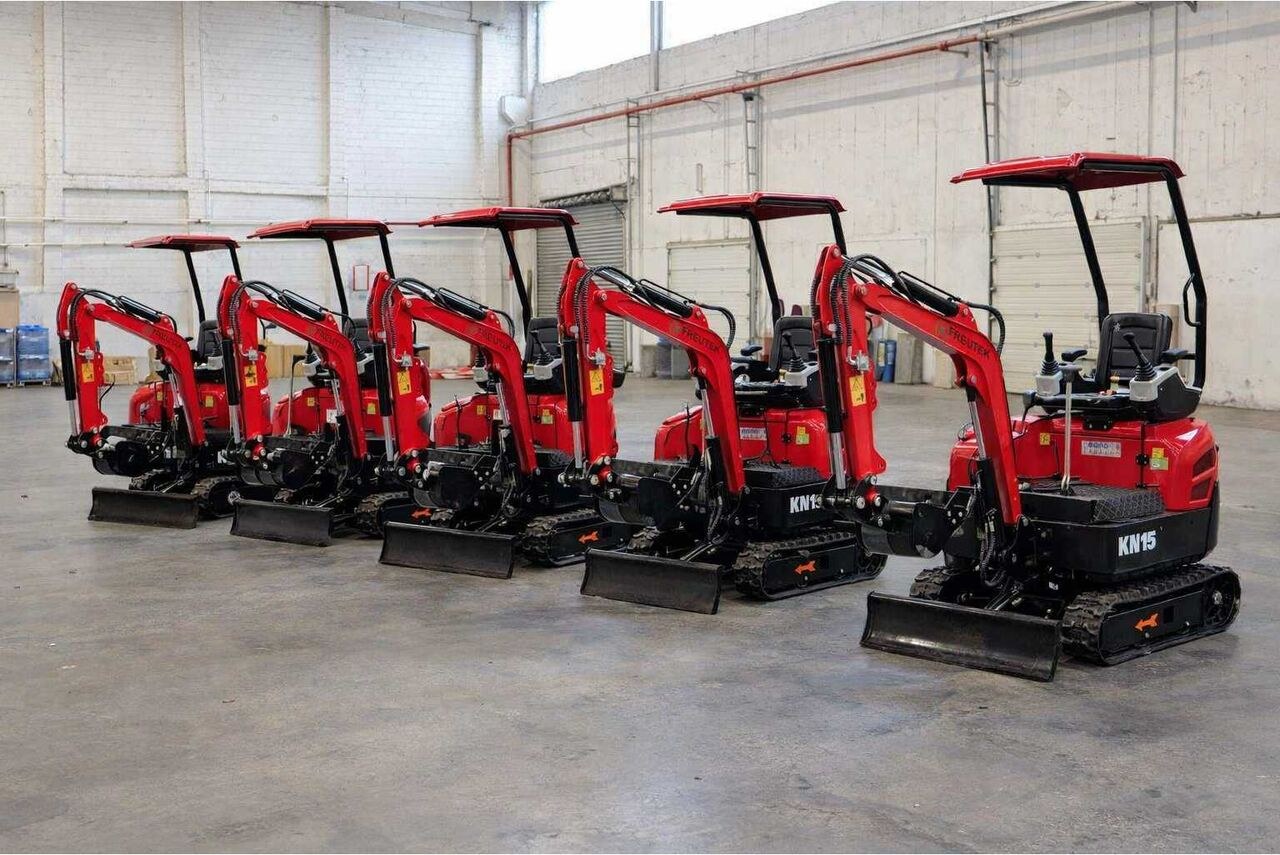

- Lot composed of 5 excavators
- 2025 year of manufacture
- 0.95 t operating weight
- Koop diesel engine
- Swing-boom mini excavator with dual control
- Fixed undercarriage with 180 mm tracks
- 9-way manual hydraulic valve
- Machine condition: unchecked

Technical Data

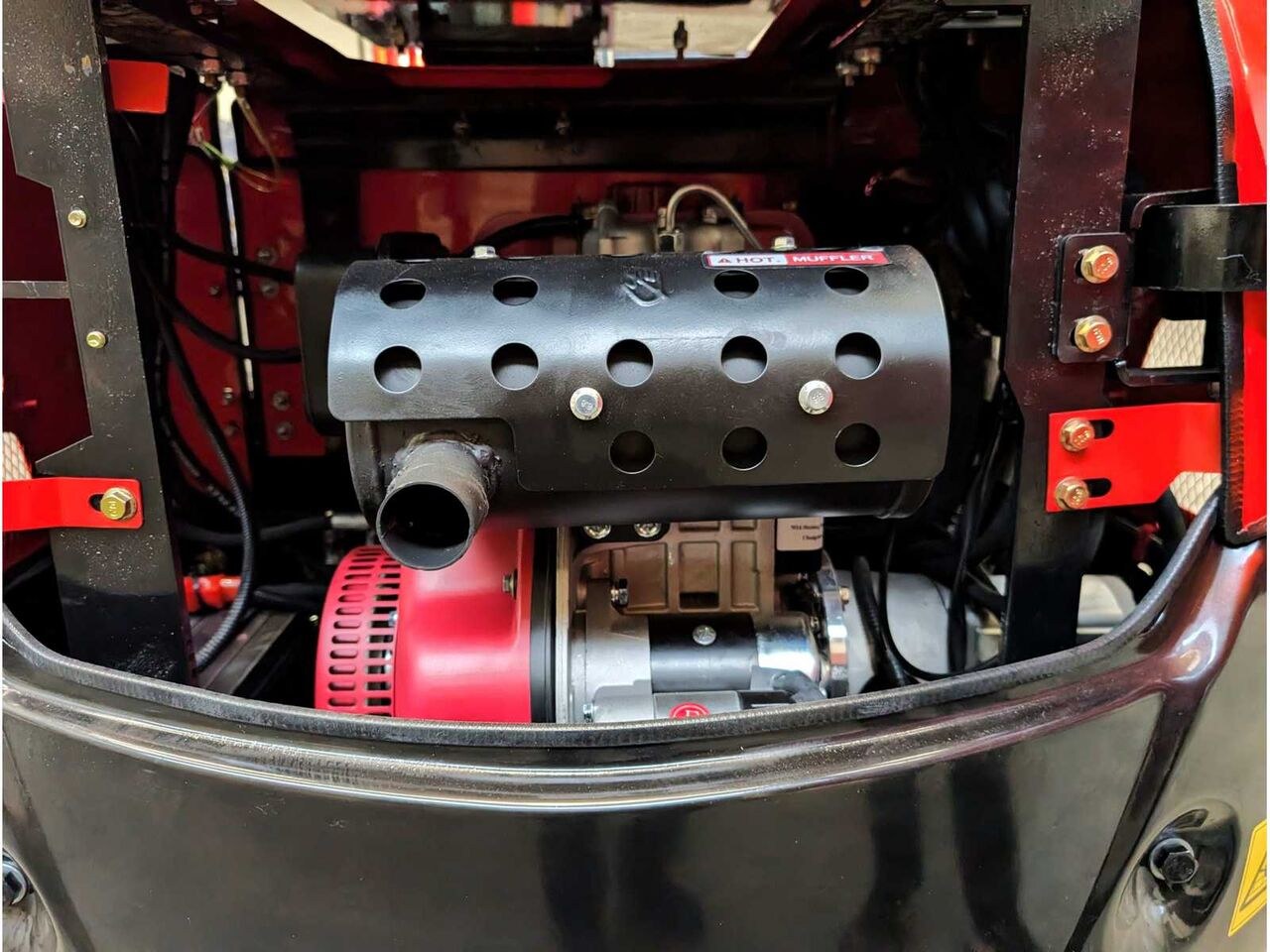

Engine:
- Koop diesel engine
- Maximum power: 8.6 kW (≈ 11.2 hp)
- Single cylinder, 499 cc
- Air-cooled
- Maximum speed: 3600 rpm
- Fuel type: Diesel

Hydraulic System:
- Tianjin 306 mechanical pump
- Pump flow rate: 21.6 l/min
- Working pressure: 18 MPa (max 20 MPa)
- 9-way manual hydraulic valve (TengFei)

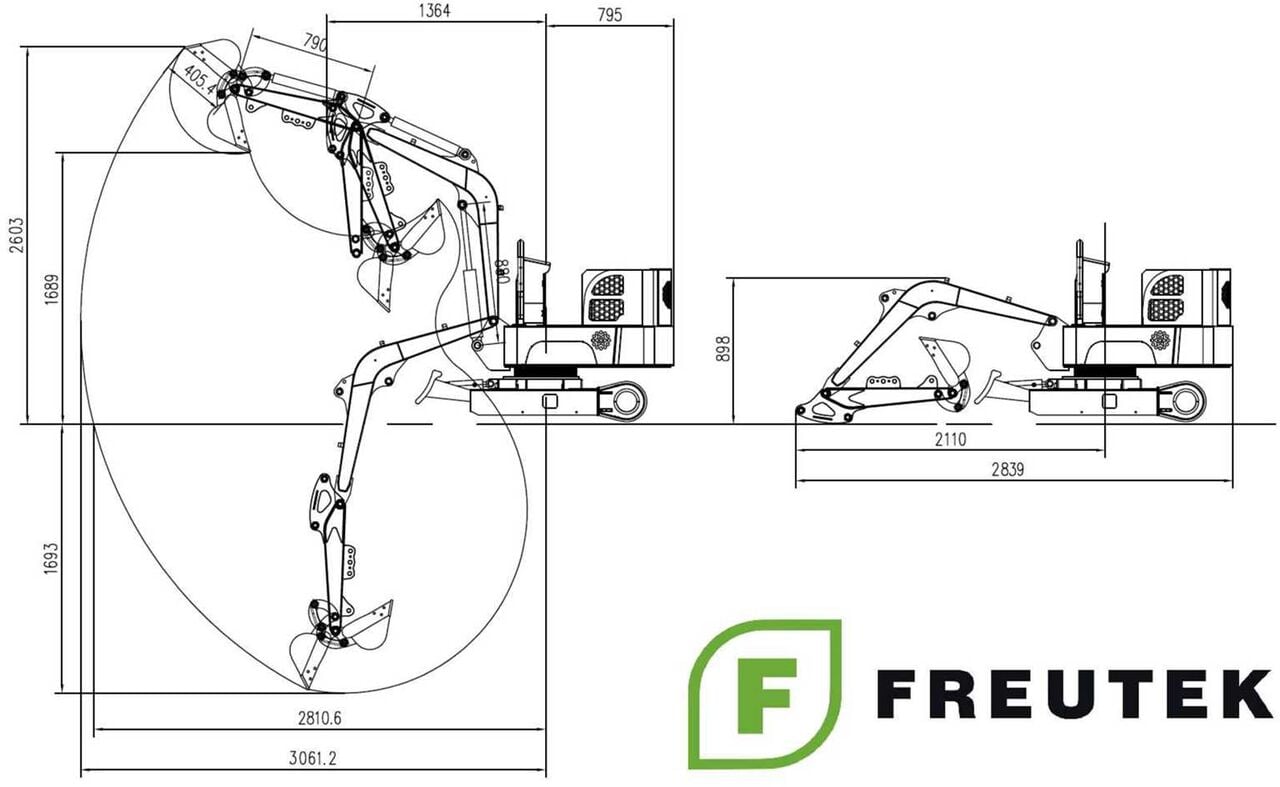

Work Area:
- Maximum digging depth: 1693 mm
- Arm length: 790 mm

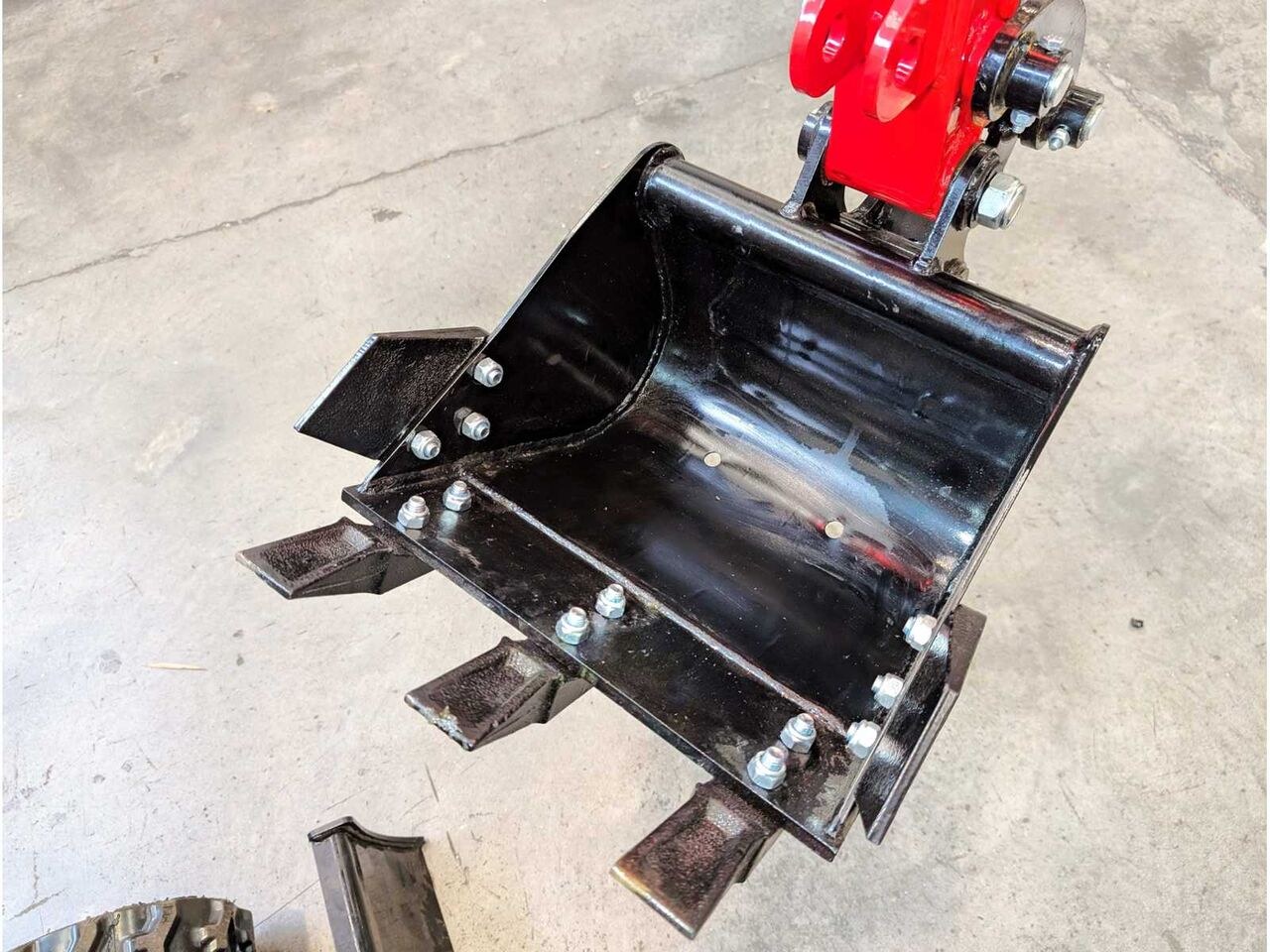

- Bucket capacity: 35,000 cc
- Bucket width: 985 mm
- Backfill blade width: 980 mm

Dimensions / Transport:
- Overall width: 970 mm
- Overall height: 2200 mm
- Length with bucket: 1180 mm
- Length with retracted boom: 2039 mm
- Length with extended boom: 2839 mm
- Approx. transport dimension: LxWxH 2170 x 1280 x 2314 mm

Undercarriage:
- Fixed undercarriage
- Track width: 180 mm
