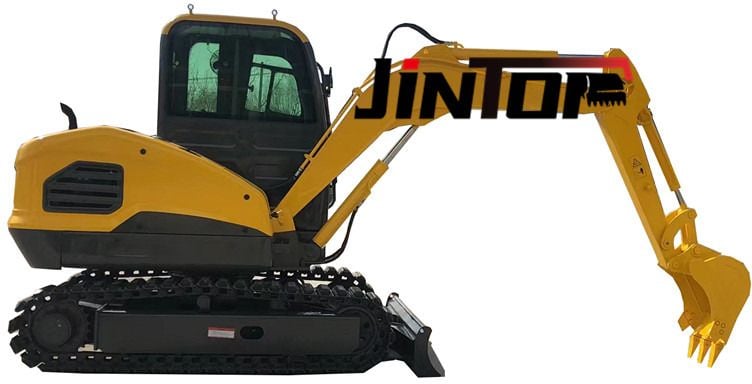

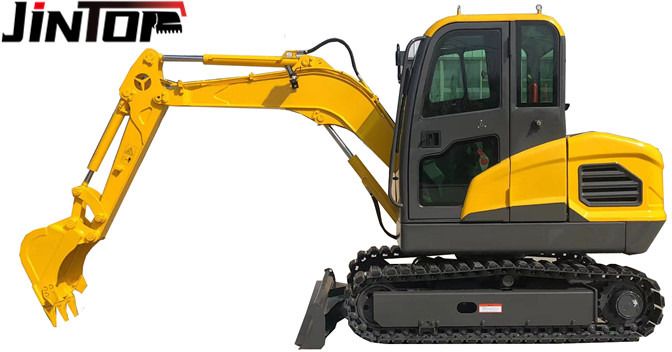

2025 Yanmar JT45 Mini Excavator

Yanmar JT45 | 3.7 t | 2025
Location: Shandong, China | Availability: In Stock

Machine Overview:
This 3.7-ton crawler excavator features a standard Changchai 490 34 kW engine or an optional Yanmar engine for EPA/Euro V compliance. It is designed for small construction sites, urban development, and landscaping.

Key Features:
- Operating weight: 3,700 kg
- Standard engine: Changchai 490, four-cylinder, 34 kW (China Stage II)
- Optional Yanmar 388 engine (EPA/Euro V compliant)
- Maximum digging depth: 2,545 mm
- Hydraulic flow: 45 L/min from Taifeng 45 variable displacement piston pump
- Double-layer hydraulic hoses for extended durability
- Reinforced boom and arm made of cast steel with Q355 manganese steel plates

Technical Data

Engine:
- Standard: Changchai 490, 34 kW (China Stage II)
- Optional: Yanmar 388 (EPA/Euro V)

Hydraulic System:
- Main pump: Taifeng 45 variable displacement piston pump, 45 L/min
- Likchuan swing motor
- Zhongwei Zhuote integrated high-low speed travel motor

Work Area:
- Max. digging height: 4,450 mm
- Max. dumping height: 3,050 mm
- Max. digging depth: 2,545 mm
- Max. digging radius: 4,630 mm

Dimensions / Transport:
- Shipping length: 4,400 mm
- Transport height: 2,250 mm
- Track width: 300 mm
- Track length: 2,175 mm
- Ground clearance: 557 mm

Attachments & Equipment:
- Operator cabin
- Enlarged swing bearing with 20 mounting screws
- Compatible with multiple attachments (e.g., buckets, breakers, augers)
