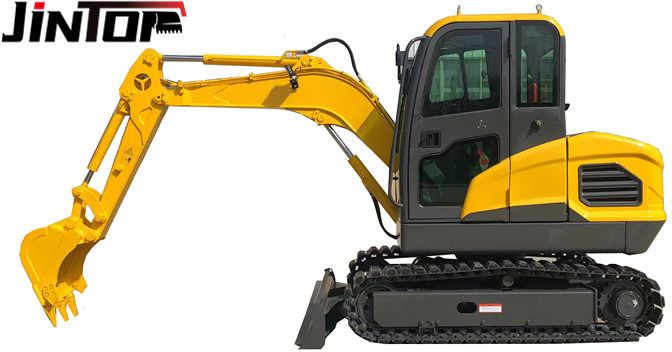

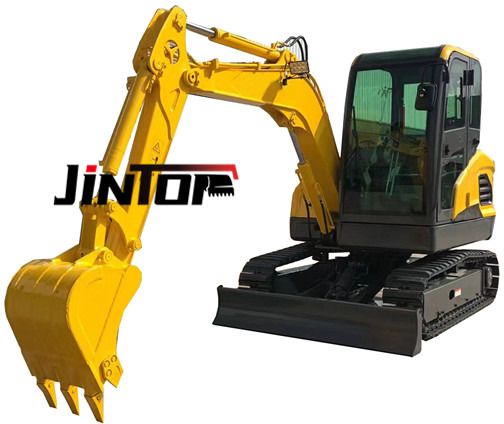

2025 Yanmar JT45 Mini Excavator

Yanmar JT45 | 3.7 t
Location: Shandong, China

Machine Overview:
Yanmar JT45 crawler excavator manufactured in 2025 with 3.7 t weight. a crawler excavator with 300 mm track width, operator cabin, steel tracks and hydraulic system details including Taifeng pump and high-low speed travel motor.

Key Features:
- 2025 Yanmar JT45 crawler excavator
- 3.7 t weight
- Standard Changchai 490 four-cylinder 34KW China Stage II engine
- Optional Yanmar 388F engine stated for EPA or Euro V standards
- Steel tracks and operator cabin
- 300 mm track width
- Taifeng 45 variable displacement piston pump
- Attachment compatibility for excavation, loading, crushing and drilling tasks

Technical Data

Engine:
- Standard engine: Changchai 490 four-cylinder 34KW China Stage II
- Optional engine: Yanmar 388F

Hydraulic System:
- Main pump: Taifeng 45 enlarged variable displacement piston pump
- Flow rate: 45L/min
- Likchuan swing motor
- Zhongwei Zhuote integrated high-low speed travel motor
- Double-layer hydraulic hoses
- Taifeng control valve with valve stem diameter of 1.5

Work Area:
- Boom length: 2400(mm)
- Stick length: 1250(mm)
- Max.Digging Height: 4450(MM)
- Max.Dumping Height: 3050(MM)
- Max.Digging Depth: 2545(MM)
- Max.Digging radius: 4630(MM)
- Minimum radius of gyration: 1820(MM)

Dimensions / Transport:
- Shipping length: 4400(mm)
- Total height during transportation: 2250(mm)
- Upper shelf / chassis width: 1530/1600(mm)
- Min.ground clearance: 557(mm)

Undercarriage:
- Track width: 300 mm
- Track length: 2175(mm)
- Track gauge: 1703(mm)
- Steel tracks
- X-shaped chassis construction

Attachments & Equipment:
- Operator cabin
- Upgraded control panel
- Centralized switch design
- Radio
