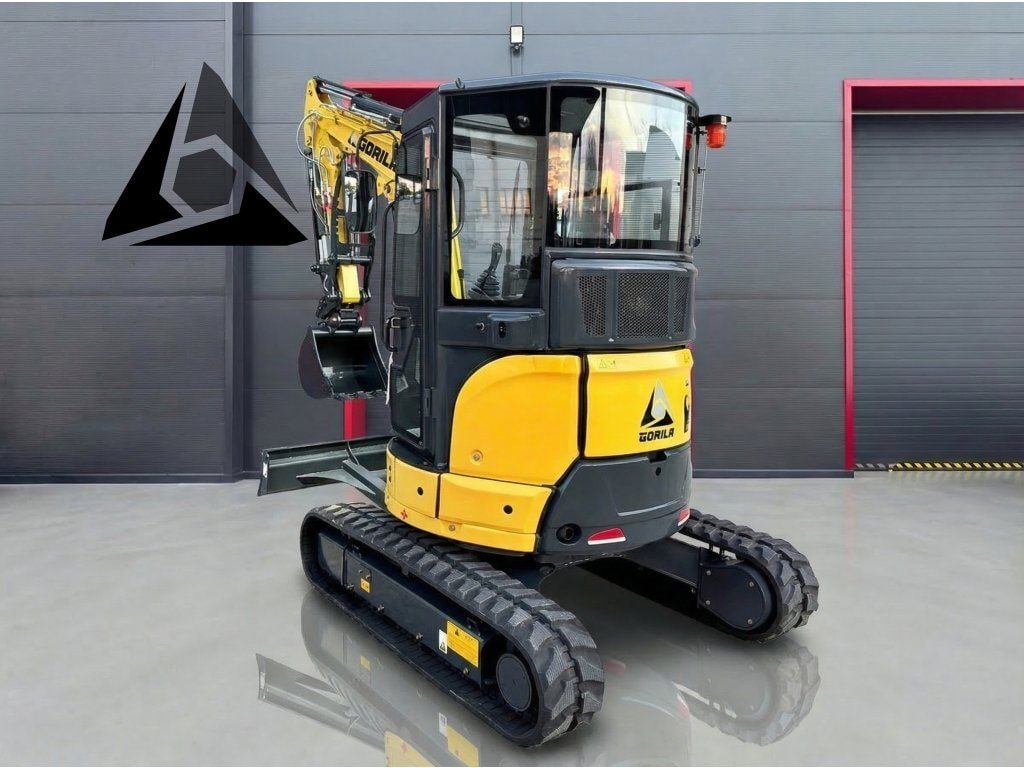

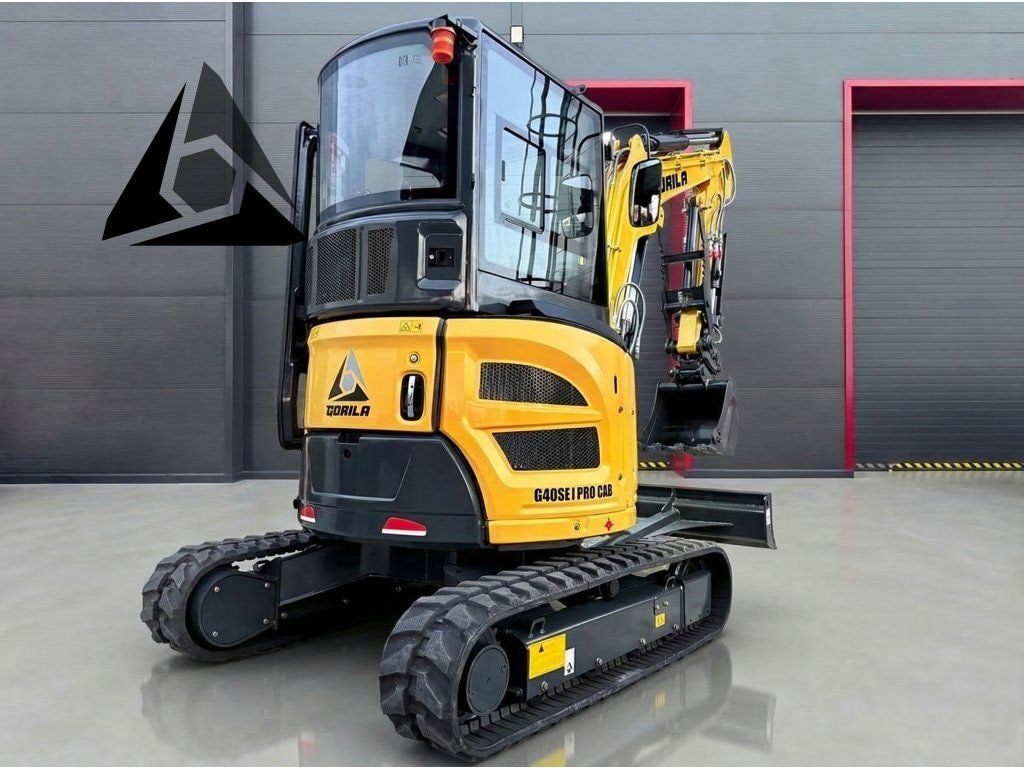

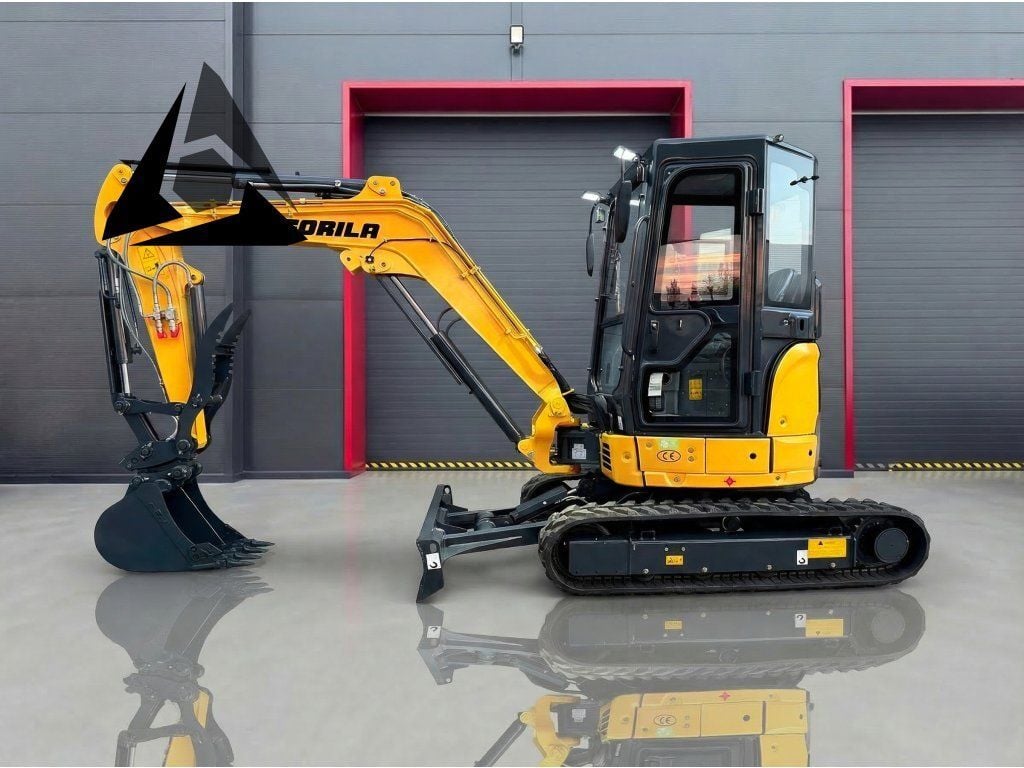

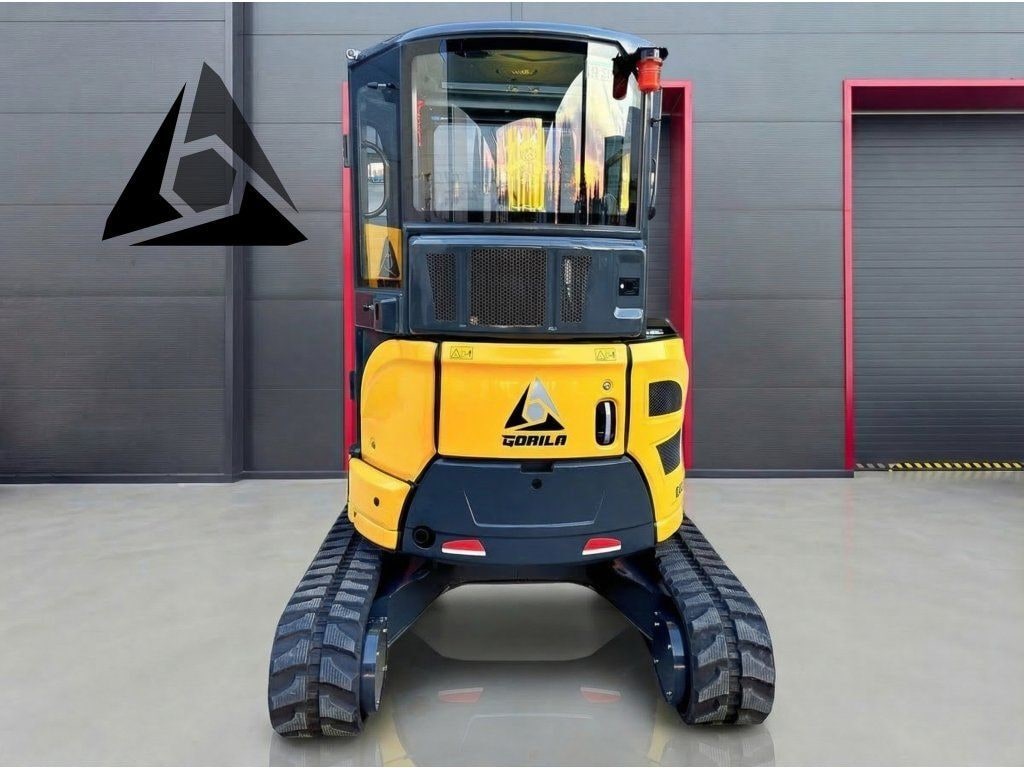

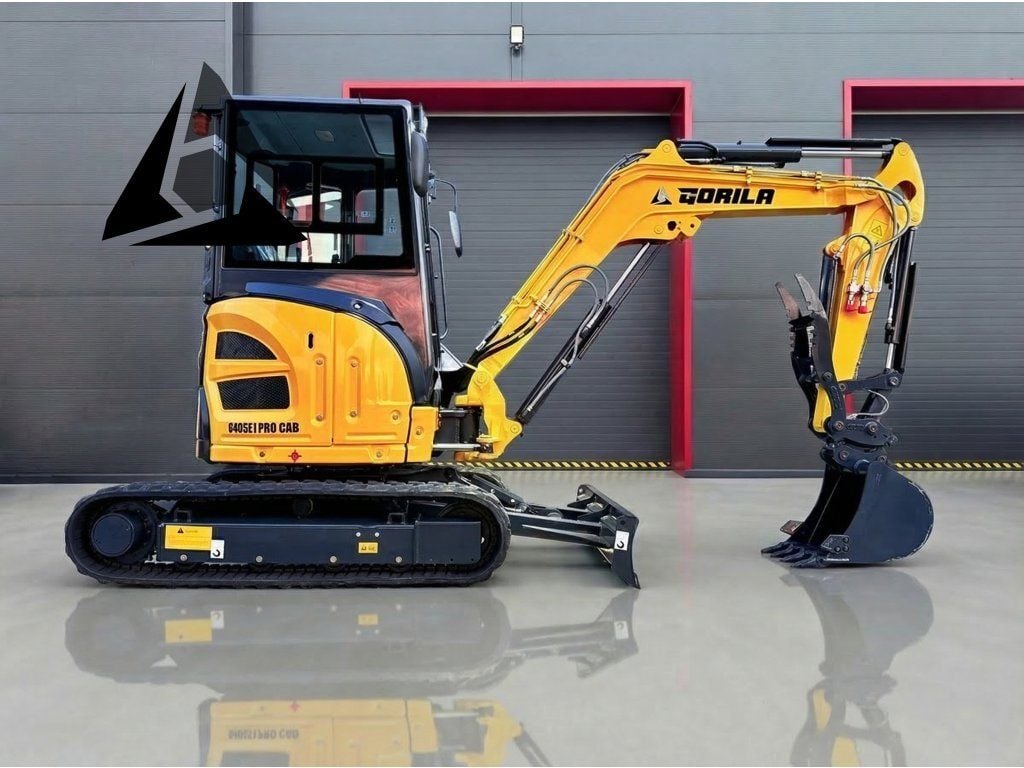

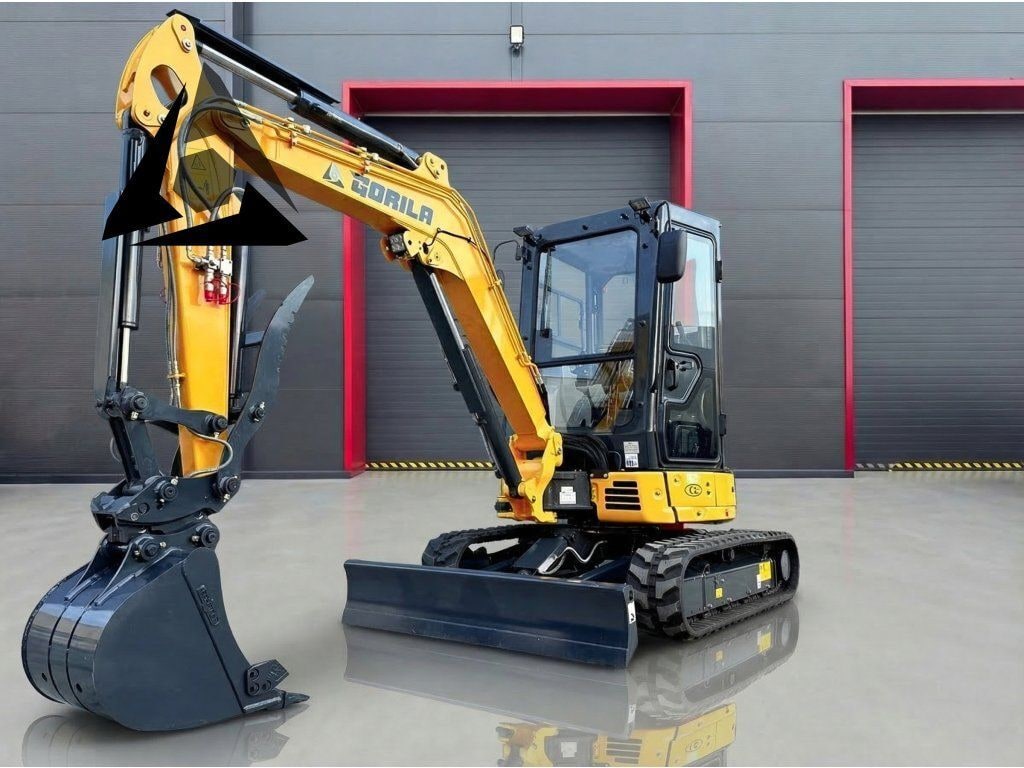

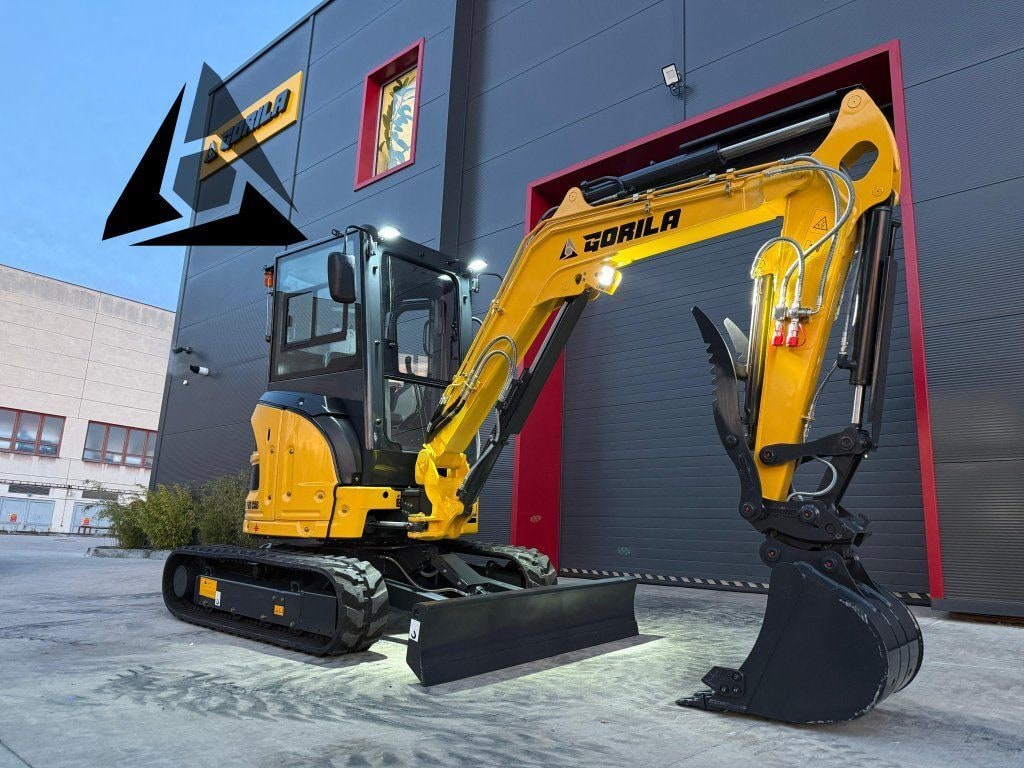

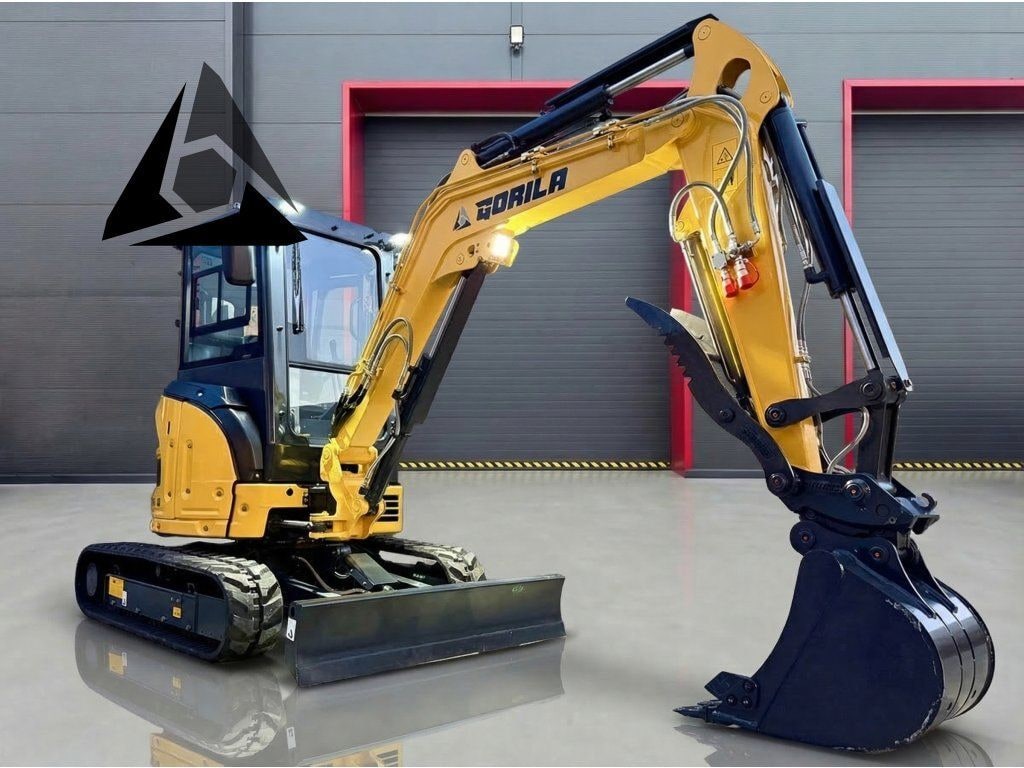

Gorila G40S I PRO CAB Mini Excavator

Gorila G40S I PRO CAB | Mini Excavator
Location: Hořice, Czech Republic

Machine Overview:

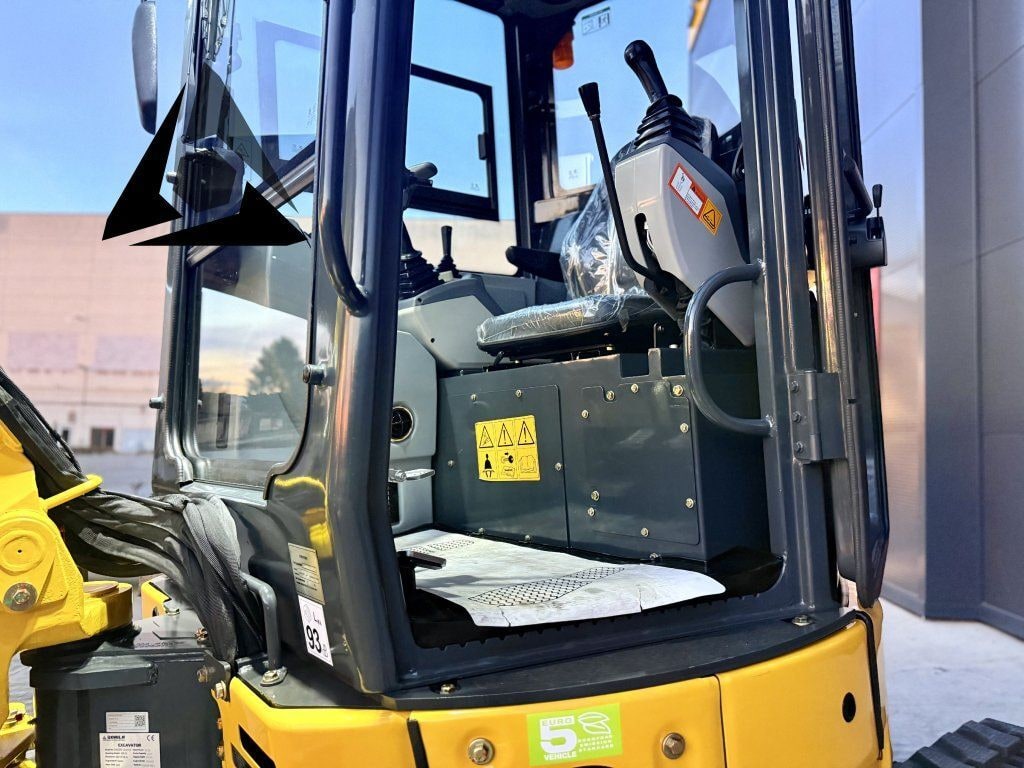

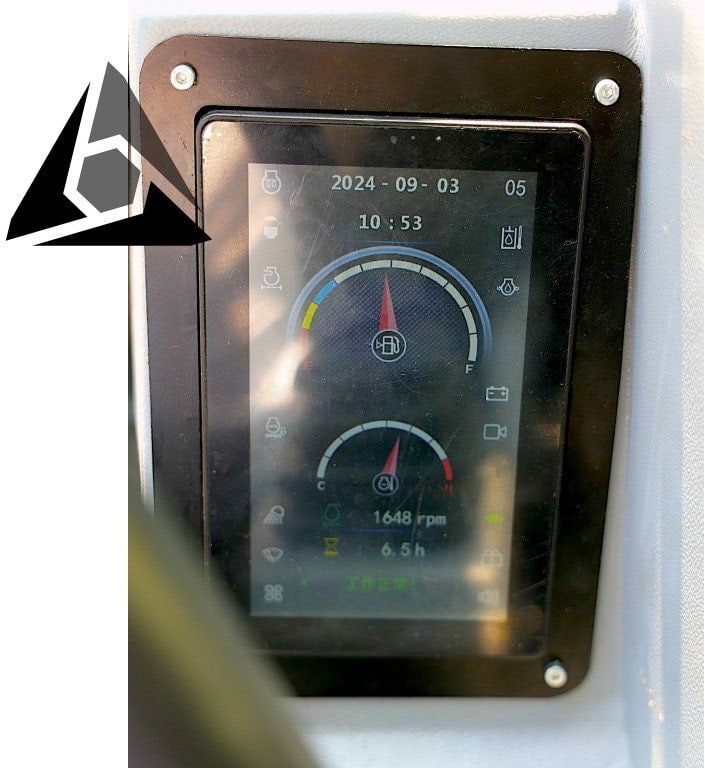

Tracked mini excavator with cab, Yanmar 3TNV88F engine, joystick control and zero tail swing. The cab equipment includes air conditioning, heating, LCD display, radio, roof window and adjustable seat.

Key Features:
- Yanmar 3TNV88F engine
- Cab with air conditioning and heating
- Zero tail swing

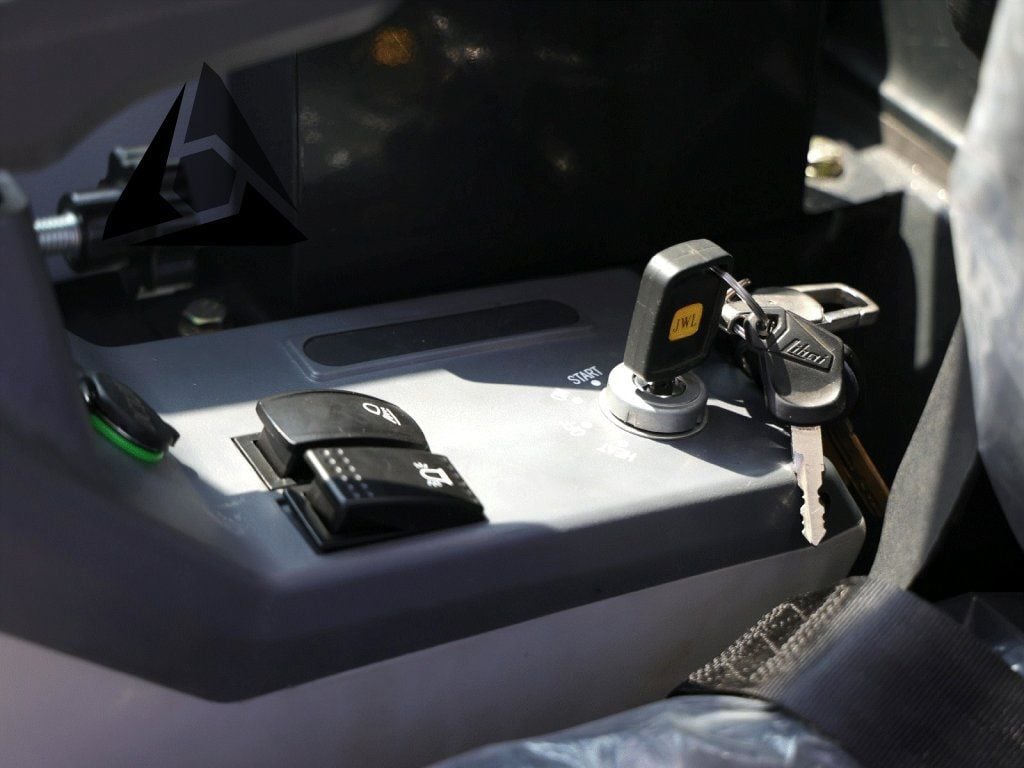

- Joystick controls
- Hydraulic system with 99 L/min maximum flow
- Bucket digging force: 30 kN

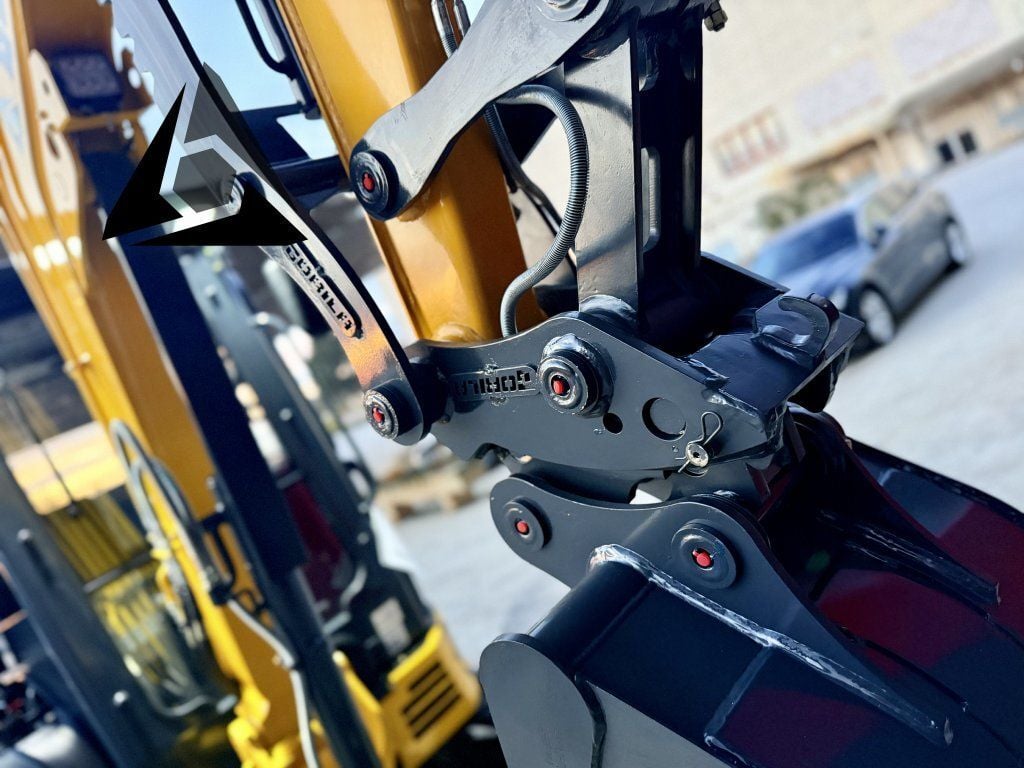

- Hook on quick coupler
- LED work lights and safety beacon

Technical Data

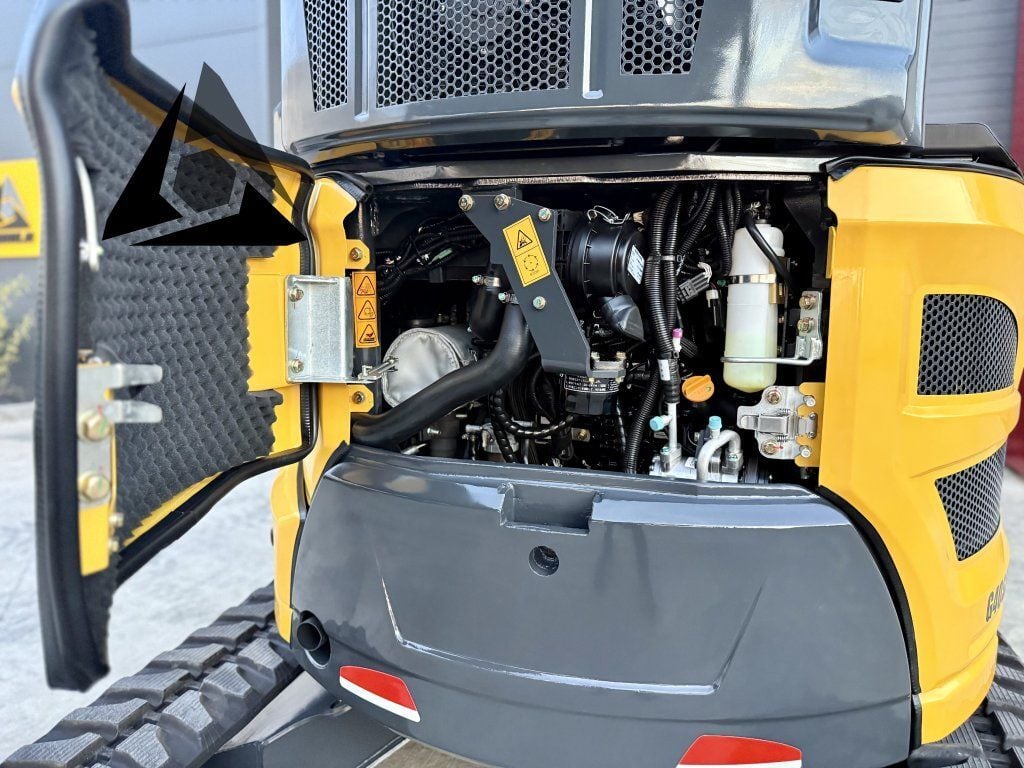

Engine:
- Engine: YANMAR 3TNV88F
- Power output: 24 hp
- Rated power: 18.2 / 2200 kW / ot/min

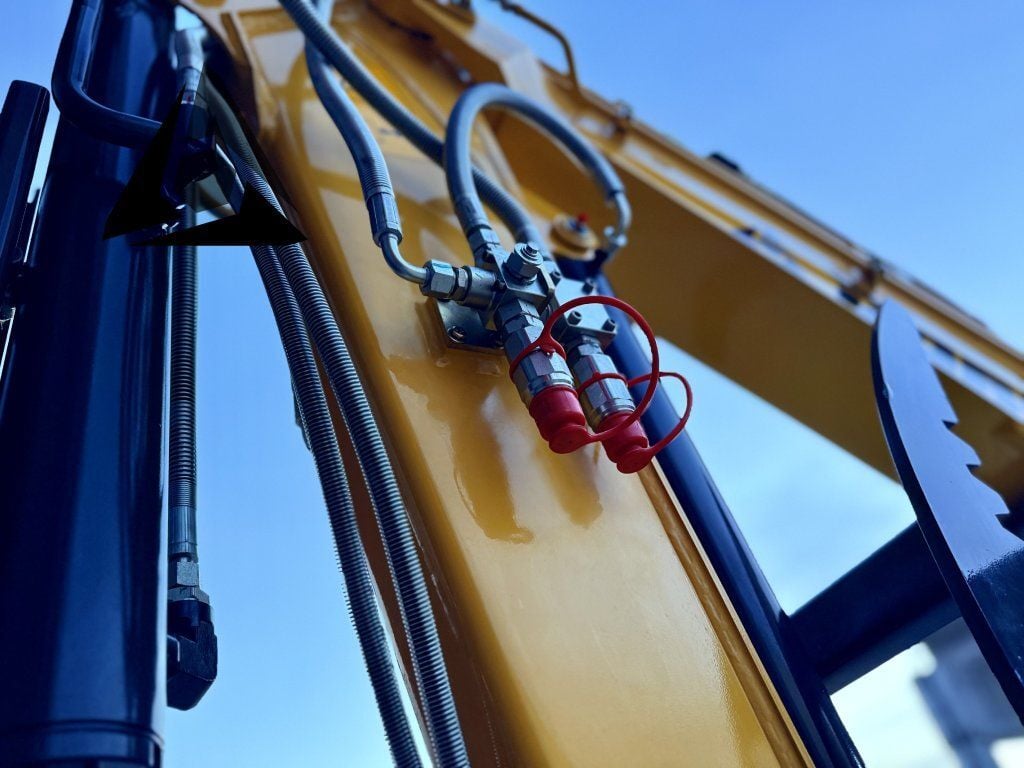

Hydraulic System:
- Hydraulic pump model: LX10V045 / HP5V45
- Maximum flow: 99 L/min
- Working pressure: 26 / 25.5 MPa
- Hydraulic tank capacity: 50 L

Work Area:
- Max. digging height: 4920 mm
- Max. dumping height: 3490 mm
- Max. digging depth: 3165 mm
- Max. digging reach: 5260 mm

Dimensions / Transport:
- Length: 4.8 m
- Width: 1.74 m
- Height: 2.48 m
- Arm length: 1.37 m

Undercarriage:
- Track width: 1740 mm
- Track pad width: 300 mm
- Track contact length with ground: 1660 mm
