BK1000JSR JOYSTICK
Location: Kassel, Germany

Machine Overview:

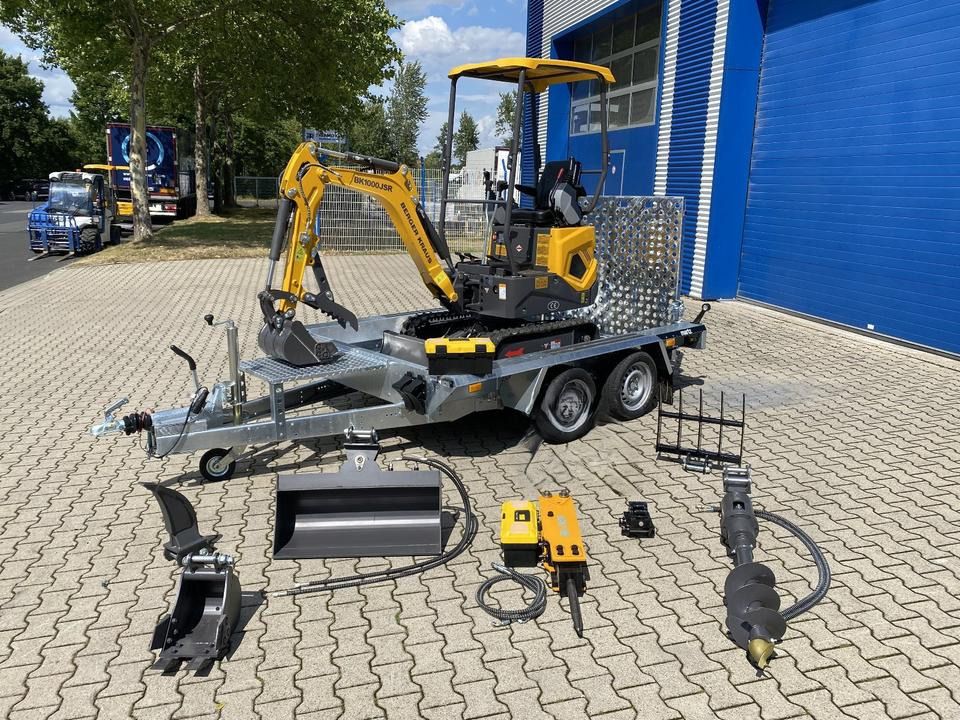

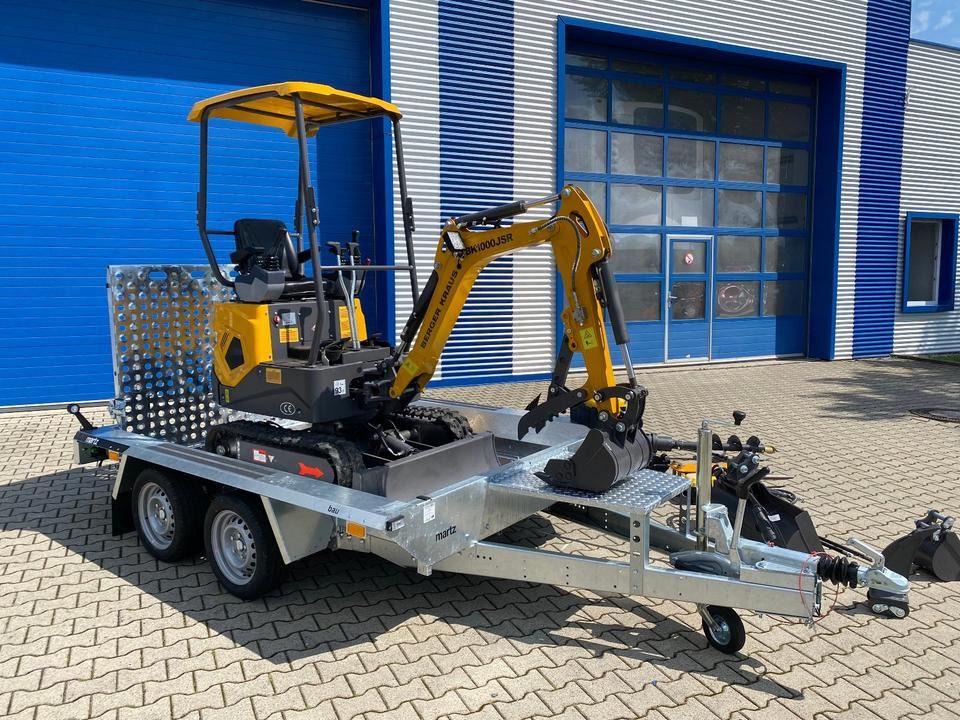

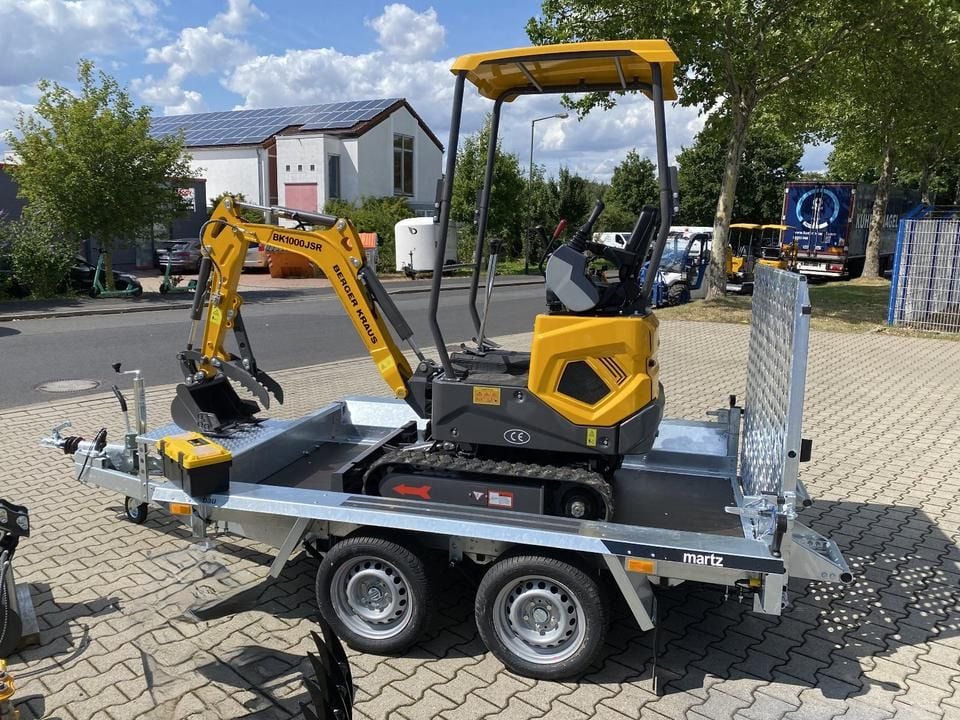

BK1000JSR JOYSTICK 1-ton mini excavator rental with joystick control, swing arm, adjustable undercarriage and matching trailer for transport. Included attachments are a ditching bucket 800mm, standard bucket 380 and quick coupler.

Key Features:
- Rental period: 1 week / 7 days incl. 56 operating hours
- Includes matching trailer for transport
- Joystick control
- Swing arm
- Adjustable undercarriage
- Operating weight: 950 kg
- Quick coupler

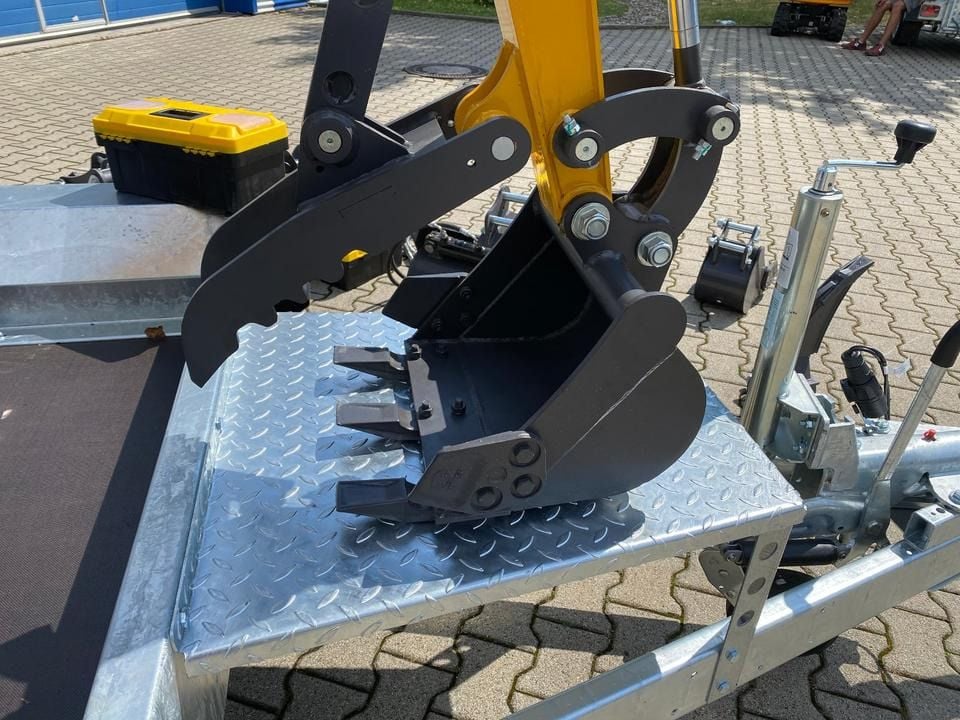

- Ditching bucket 800mm and standard bucket 380

Technical Data

Engine:
- KOOP EURO 5 diesel engine
- Rated power: 8,6KW (~12PS)/3600r/min

Hydraulic System:
- Main pump: TIANJIN double gear pump (18L+9L at 3000 U/min)
- Hydraulic system pressure: 16MPa
- Swing motor: EATON (USA)
- Travel motor: ZHENJIANG with overflow function
- Hydraulic oil cooler

Work Area:
- Digging reach at ground level: ca. 3030mm
- Max. digging reach: ca. 2940mm
- Max. digging depth: ca. 1750mm
- Max. dumping height: ca. 2610mm
- Max. vertical digging depth: ca. 1655mm
- Slewing radius: 360 °

Dimensions / Transport:
- Wheelbase: 920mm
- Total track length: 1230mm
- Ground clearance of the undercarriage: 132mm
- Turning radius: 784 mm

Undercarriage:
- Undercarriage width: 890-1100mm adjustable undercarriage
- Track width: 180 mm

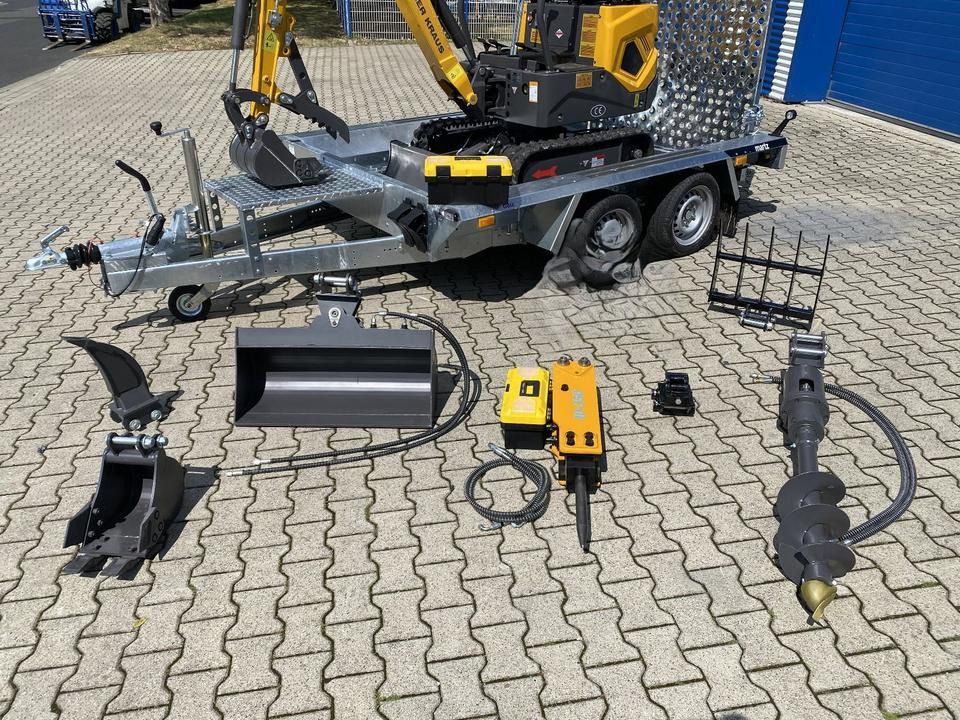

Attachments & Equipment:
- Matching trailer
- Ditching bucket 800mm
- Standard bucket 380
- Quick coupler
- Optional grab, rake, harrow, bucket 200mm, hydraulic ditching bucket 1000mm, earth auger and hydraulic breaker
