Berger Kraus BK1350JSR
Location: Kassel, Germany

Machine Overview:

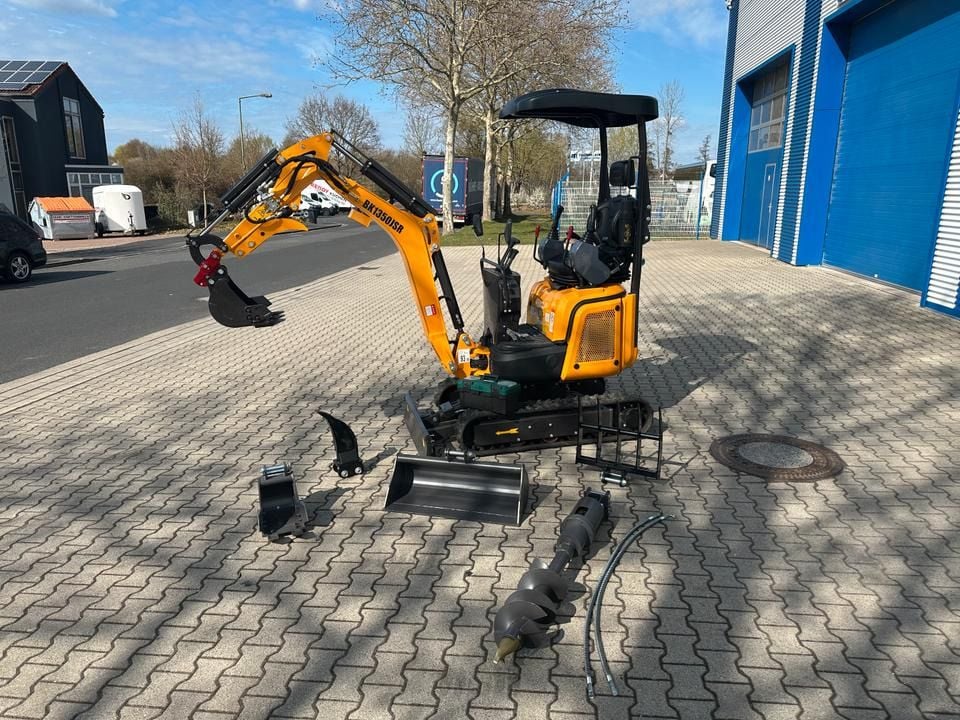

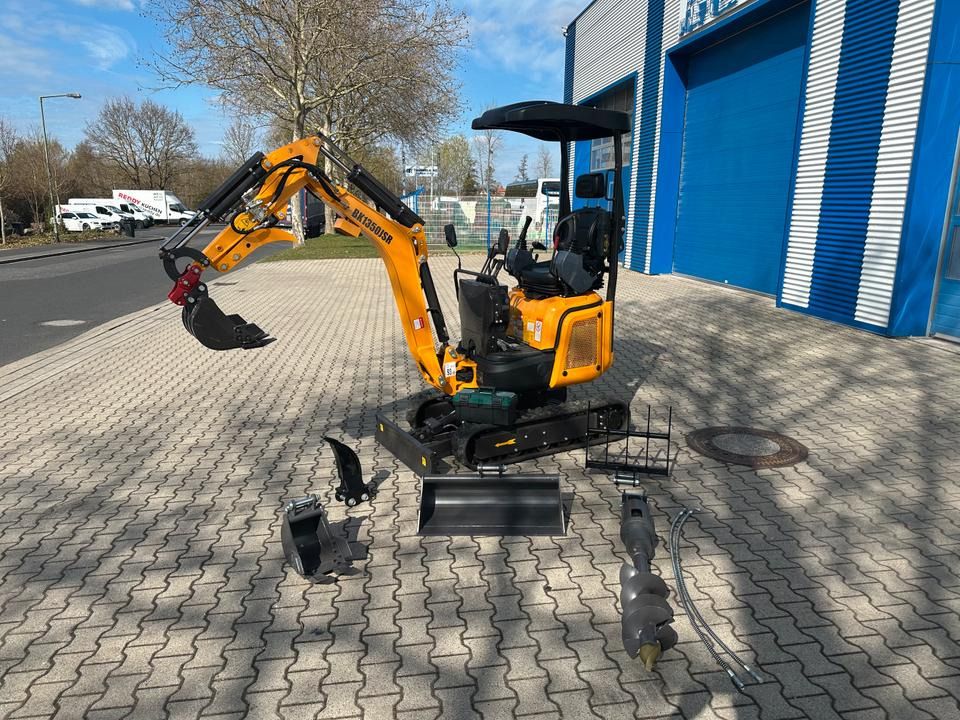

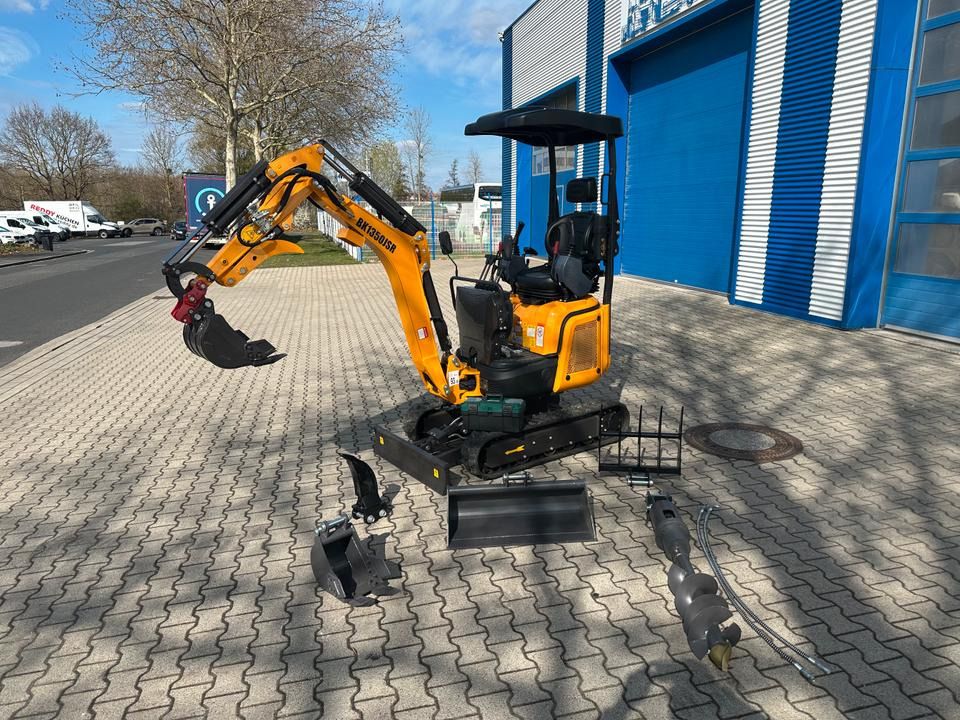

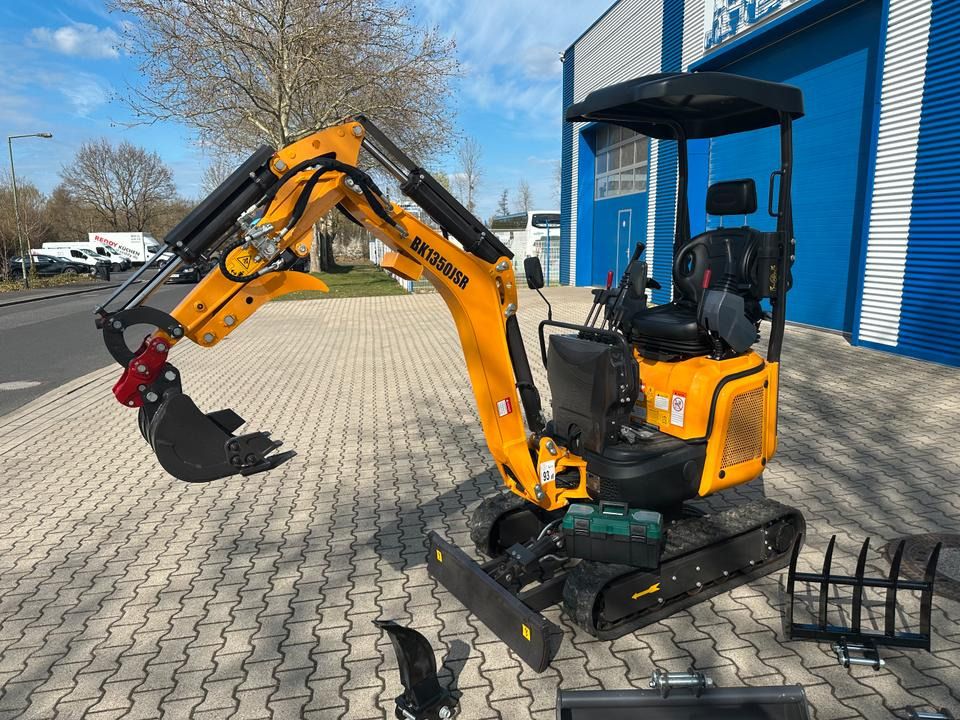

Berger Kraus BK1350JSR mini excavator with joystick controls, swing arm and adjustable undercarriage. The machine is supplied as a demonstration vehicle with up to a maximum of 5 operating hours.

Key Features:
- 1295kg operating weight
- Kubota EURO 5 D722 3-cylinder liquid-cooled diesel engine
- Adjustable undercarriage, approx. 850-1000mm wide
- Pre-mounted 380mm bucket with 0,026 cbm capacity
- Two travel speeds: 2 / 3,6 km/h
- Quick coupler and excavator thumb pre-mounted
- Small accessory package included

Technical Data
Engine:
- Rated power: 10,2 kw (14PS) / 2500r / min
- Displacement: 719ccm³

Hydraulic System:
- TAIFENG piston pump
- Oil flow: 45L/min
- EATON swing motor
- JINGKEN travel motor
- Hydraulic oil tank: 15,3L

Work Area:
- Digging reach at ground level: ca. 3380mm
- Max. digging reach: ca. 3410mm
- Max. digging depth: ca. 2002mm
- Max. dumping height: ca. 2980mm
- Max. unloading height: ca. 2170mm
- Minimum turning radius: ca. 1490mm

Dimensions / Transport:
- Overall dimensions (LxWxH): 3100x850(1000)x2320
- Total track length: ca. 1435mm
- Track width: ca. 180Mm
- Track height: 320mm

Undercarriage:
- Undercarriage width: ca. 850-1000mm adjustable undercarriage
- Max. blade lift height: ca. 140mm
- Max. blade digging depth: ca. 200mm
- Slewing radius: 360 °

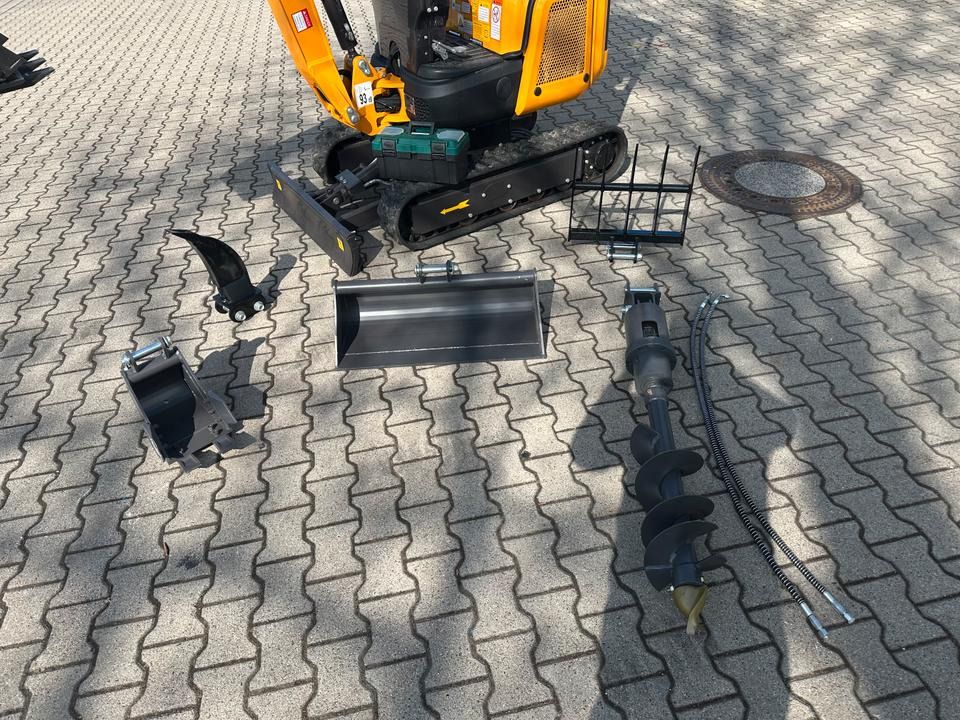

Attachments & Equipment:
- Quick coupler (Quick-Hitch), pre-mounted
- Excavator thumb, pre-mounted
- Bucket 800mm
- Bucket 200mm
- Bucket 380mm
- Ripper tooth
- Rake
- Earth auger 20cm diameter
- Tool box

Documentation & Compliance:
- CE supplied
- Invoice with VAT shown
- Operating / repair manual in German
