Hyundai R220LC-9S | 22 t
Location: Shanghai, China

Machine Overview:

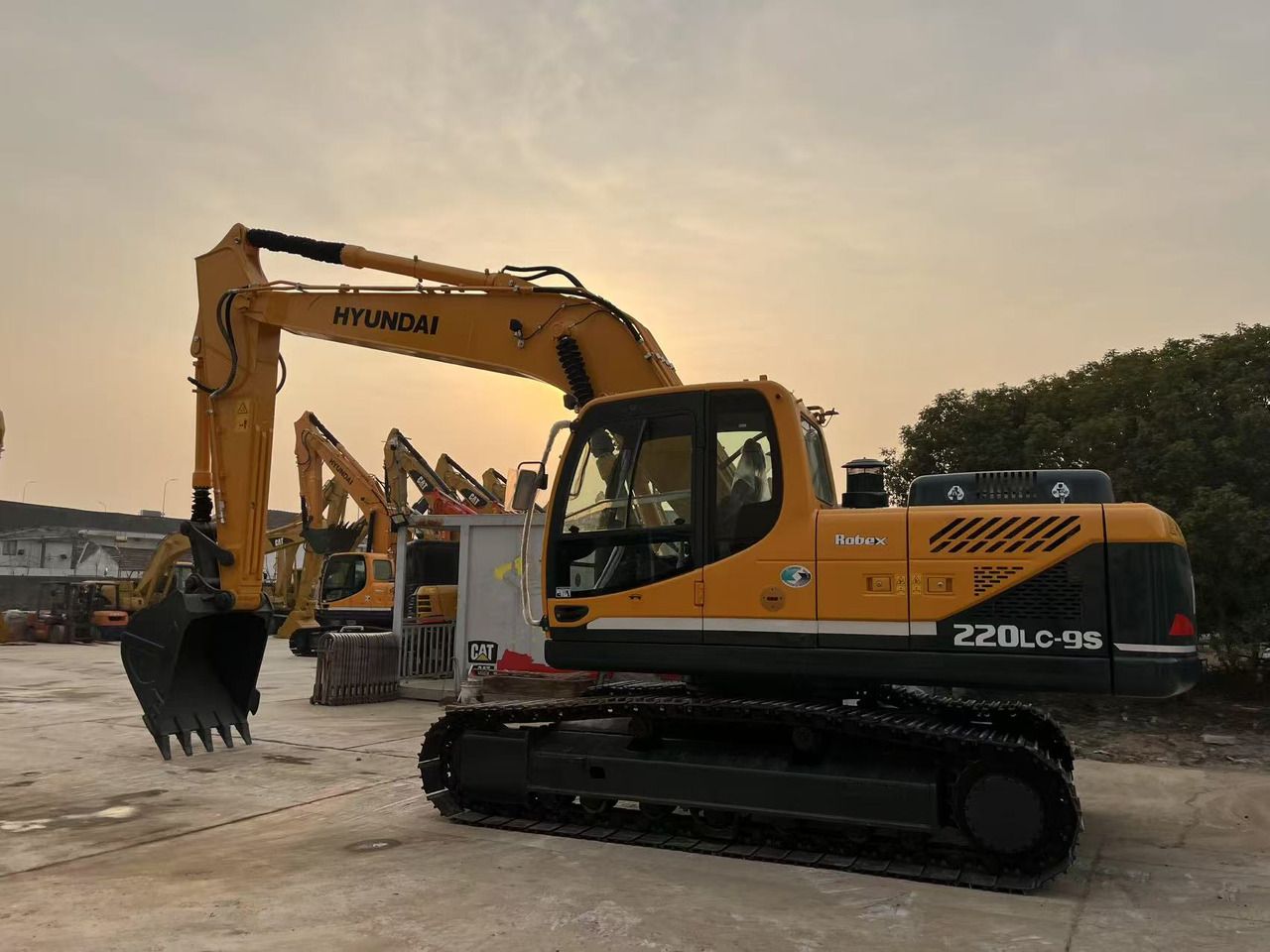

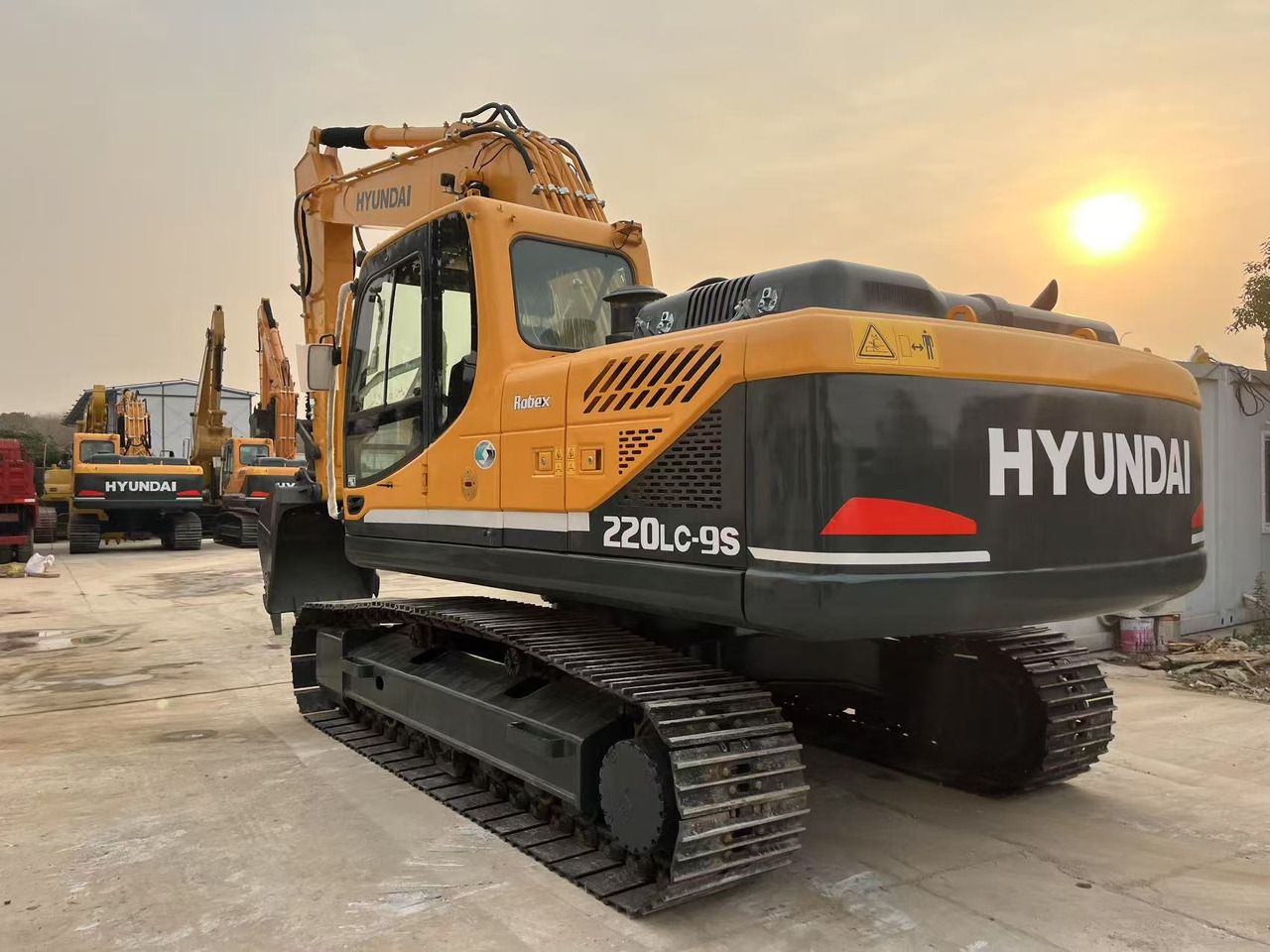

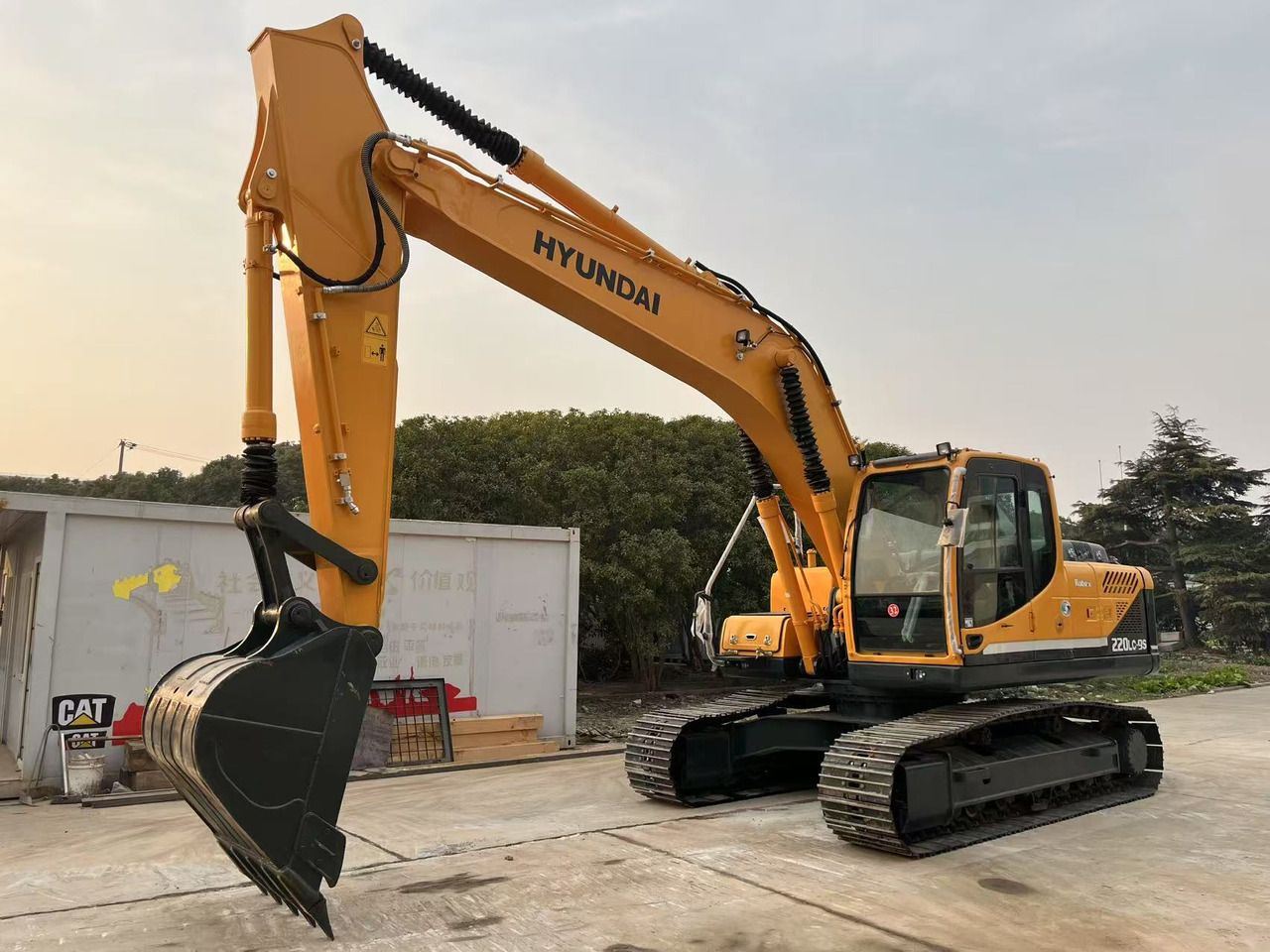

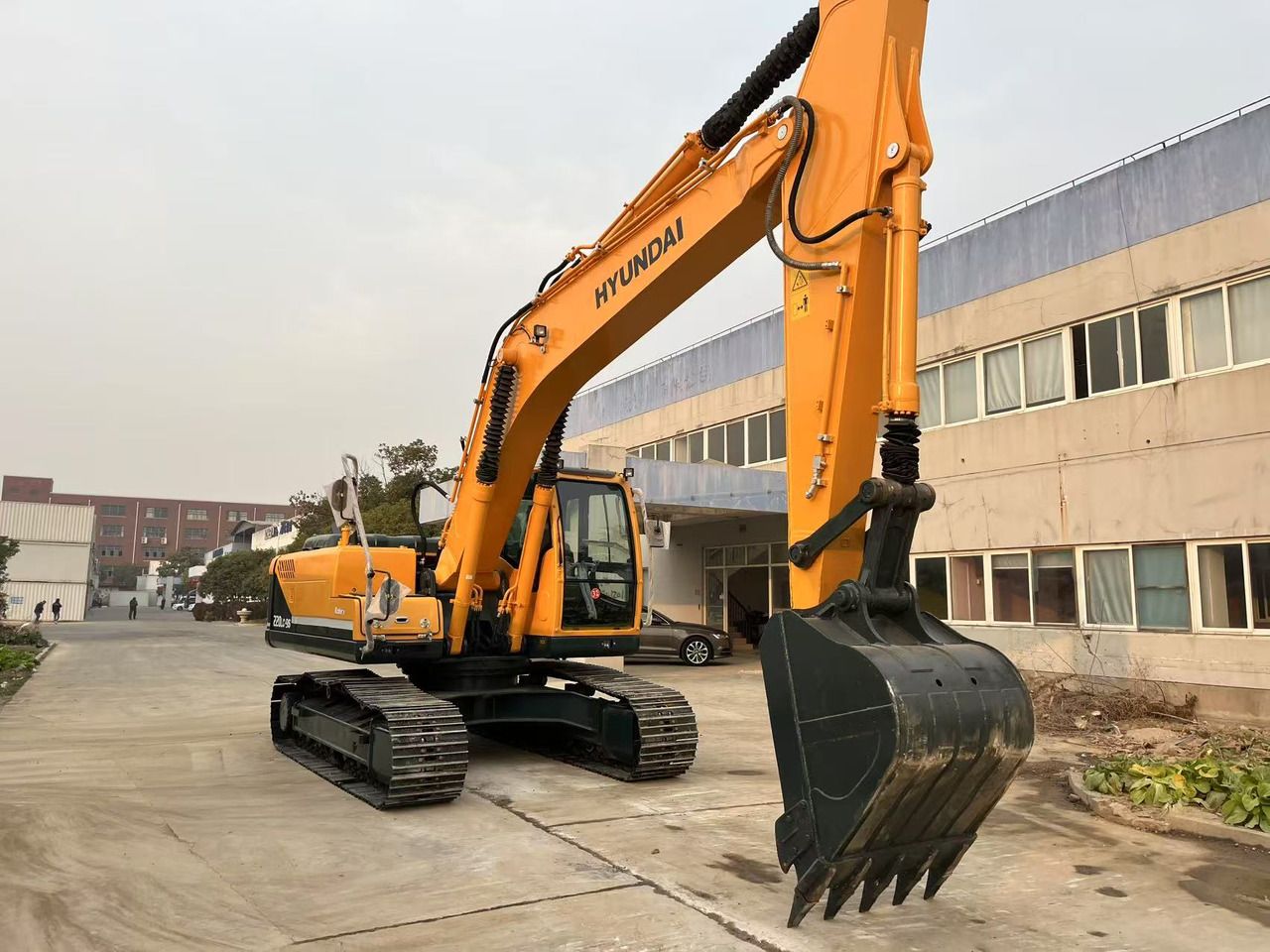

Used Hyundai R220LC-9S crawler excavator, manufactured in 2022 and listed in excellent condition. Powered by a Cummins QSB6.7 diesel engine, with 22 t operating weight, 1.0m³ bucket capacity, 9.5m maximum digging depth and 15.3m maximum reach.

Key Features:
- 2022 Hyundai R220LC-9S crawler excavator
- Excellent condition
- Cummins QSB6.7 diesel engine
- 1.0m³ bucket capacity
- 9.5m maximum digging depth
- 15.3m maximum reach
- 210kN bucket breakout force
- 400 L fuel tank

Technical Data

Engine:
- Engine: Cummins QSB6.7 Engine
- Fuel: diesel
- Emission class: Euro 2
- Displacement: 6700 cc
- Engine cylinders: 6
- Power output: 124 hp

Hydraulic System:
- Hydraulic flow: 210L/min
- Tank volume: 125 L

Work Area:
- Maximum digging depth: 9.5m
- Maximum reach: 15.3m
- Maximum dump height: 6.1m

Dimensions / Transport:
- Length: 9,48 m
- Overall length: 9480mm
- Turning radius: 15,3 m

Undercarriage:
- Track width: 3200 mm
- Suspension: hydraulic
