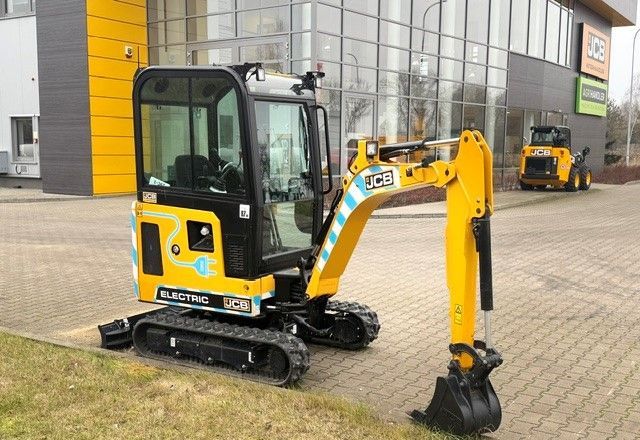

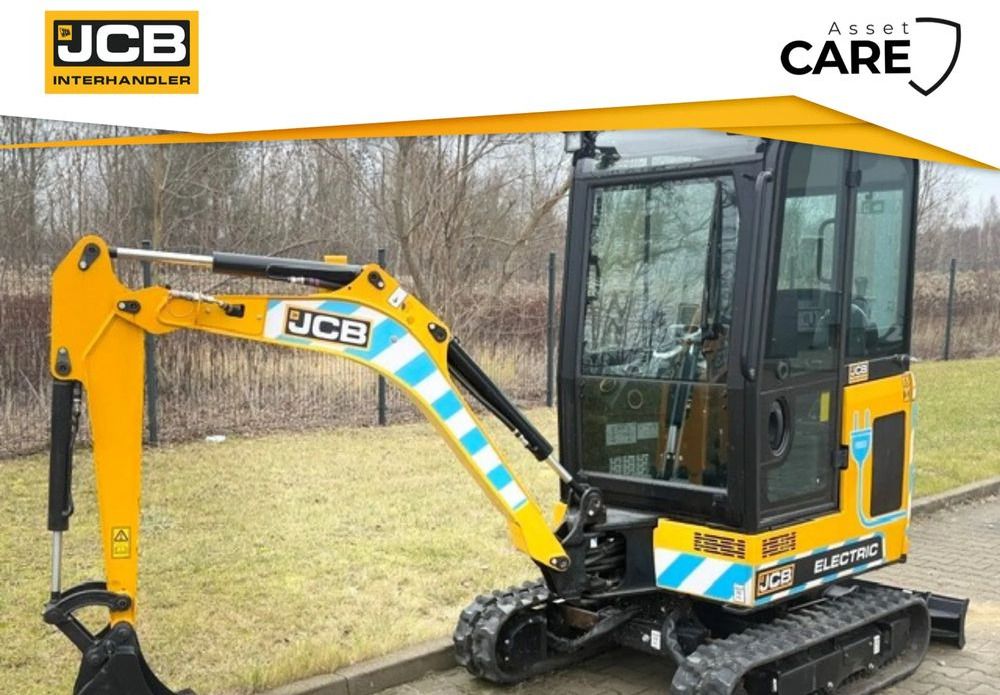

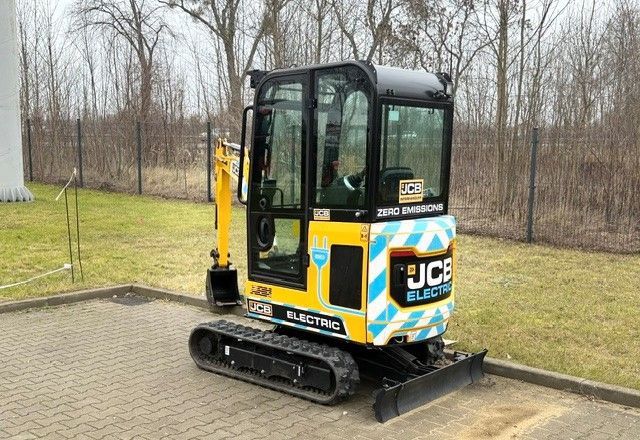

2022 JCB 19C-1 Mini Excavator

JCB 19C-1
Location: Torun, Poland

Machine Overview:
JCB 19C-1E electric mini excavator from 2022. It is a 100% electric mini excavator with lithium-ion batteries, zero emissions, quiet operation, and extendable undercarriage for confined areas and indoor work.

Key Features:
- 2022 year of manufacture
- Electric mini excavator
- Lithium-ion battery system
- 14.9 kWh standard capacity / 19.8 kWh long range capacity
- 48V voltage
- 20 kW peak three-phase AC electric motor
- Extendable undercarriage
- Delivery throughout Poland

Technical Data
Engine:
- Electric motor: 20 kW peak, three-phase AC (Permanent Magnet)
- Battery type: Manganese laminated Lithium-ion
- Capacity: 14.9 kWh (standard) / 19.8 kWh (long range)
- Voltage: 48V

Hydraulic System:
- Pump flow: 42 l/min
- Working system pressure: 235 bar
- Slew pressure: 167 bar
- Flow on AUX 1/2: 32 l/min

Work Area:
- Max. digging depth: 2421–2576 mm
- Max. loading height: 2637 mm
- Max. reach at ground level: 3981 mm
- Tail swing radius at full slew: 1517 mm

Dimensions / Transport:
- Operating weight: 1902–2037 kg (cab version)
- Height with cab: 2328 mm
- Undercarriage width: 980–1330 mm
- Ground clearance: 162 mm
- Transport length: 3862 mm

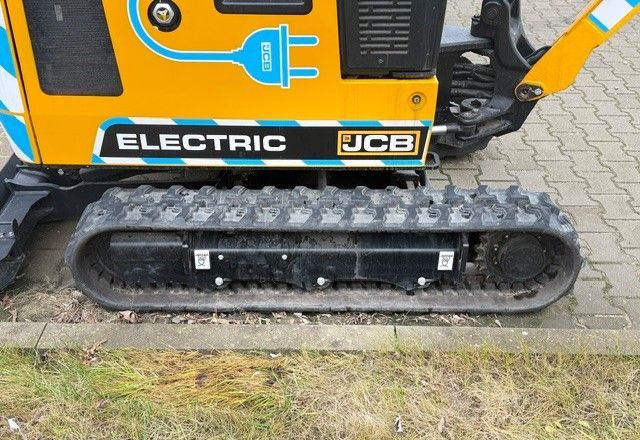

Undercarriage:
- Travel speed: 2.4 / 4.1 km/h
- Track width: 230 mm
- Extendable undercarriage / extendable dozer

Documentation & Compliance:
- Accident-free: Yes

Shipping & Delivery:
- Delivery throughout Poland
