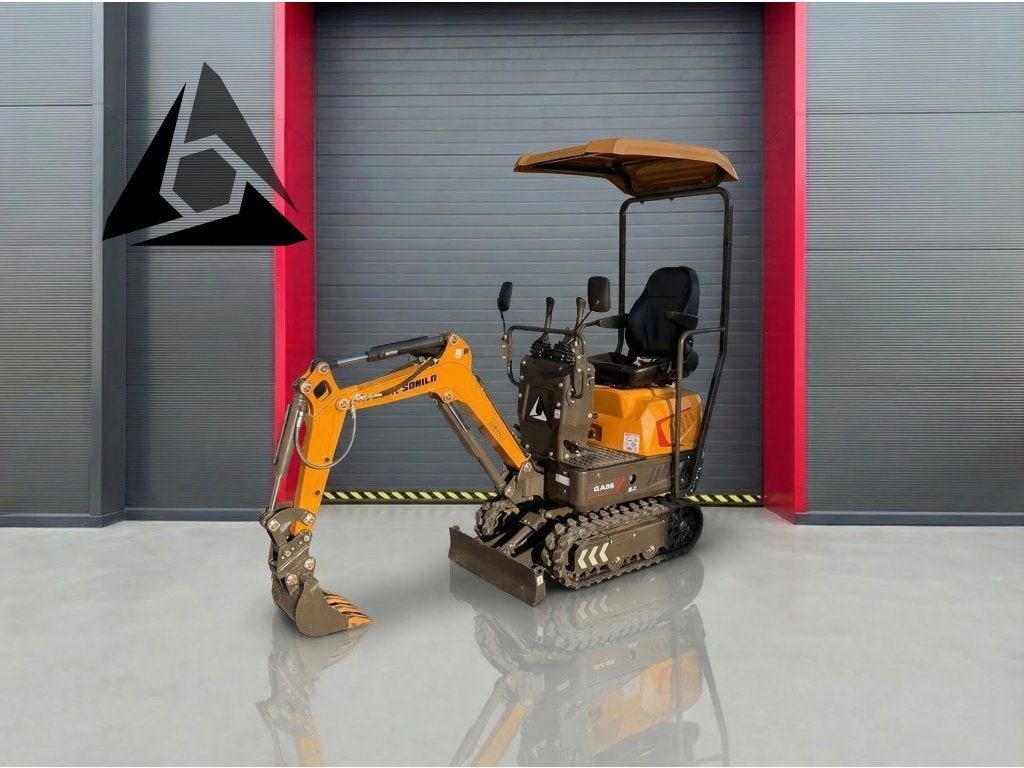

Gorila GA06 Mini Excavator

Gorila GA06 | 0.6 t Mini Excavator
Location: Hořice, Czech Republic

Machine Overview:
The GORILA GA06 mini excavator is our smallest model, designed for compactness and versatility. It features a semi-swing rear and swing boom for safe operation around obstacles. With a Loncin G300FA engine, it offers a maximum digging depth of 978mm.

Key Features:
- Operating weight: 640 kg (0.6 t)
- Bucket digging force: 7.45 kN
- Arm digging force: 4.5 kN
- Maximum digging depth: 978 mm
- Maximum digging height: 1863 mm
- Maximum dumping height: 1257 mm
- Maximum digging reach: 2260 mm
- Includes 200mm bucket with teeth, 300mm bucket with teeth, quick coupler, grading bucket 600mm, pins and hoses, and tool case with grease gun

Technical Data

Engine:
- Engine model: Loncin G300FA
- Rated power: 6.8 kW / 3600 rpm
- Displacement: 302 cc

Dimensions:
- Overall length: 2235 mm
- Overall width: 700 mm
- Overall height: 2117 mm (top of cab)
- Minimum ground clearance: 160 mm
- Track width: 150 mm
- Track gauge: 550 mm
