Caterpillar 320CL | 20,8 t | 2019
Location: Shanghai, China

Machine Overview:

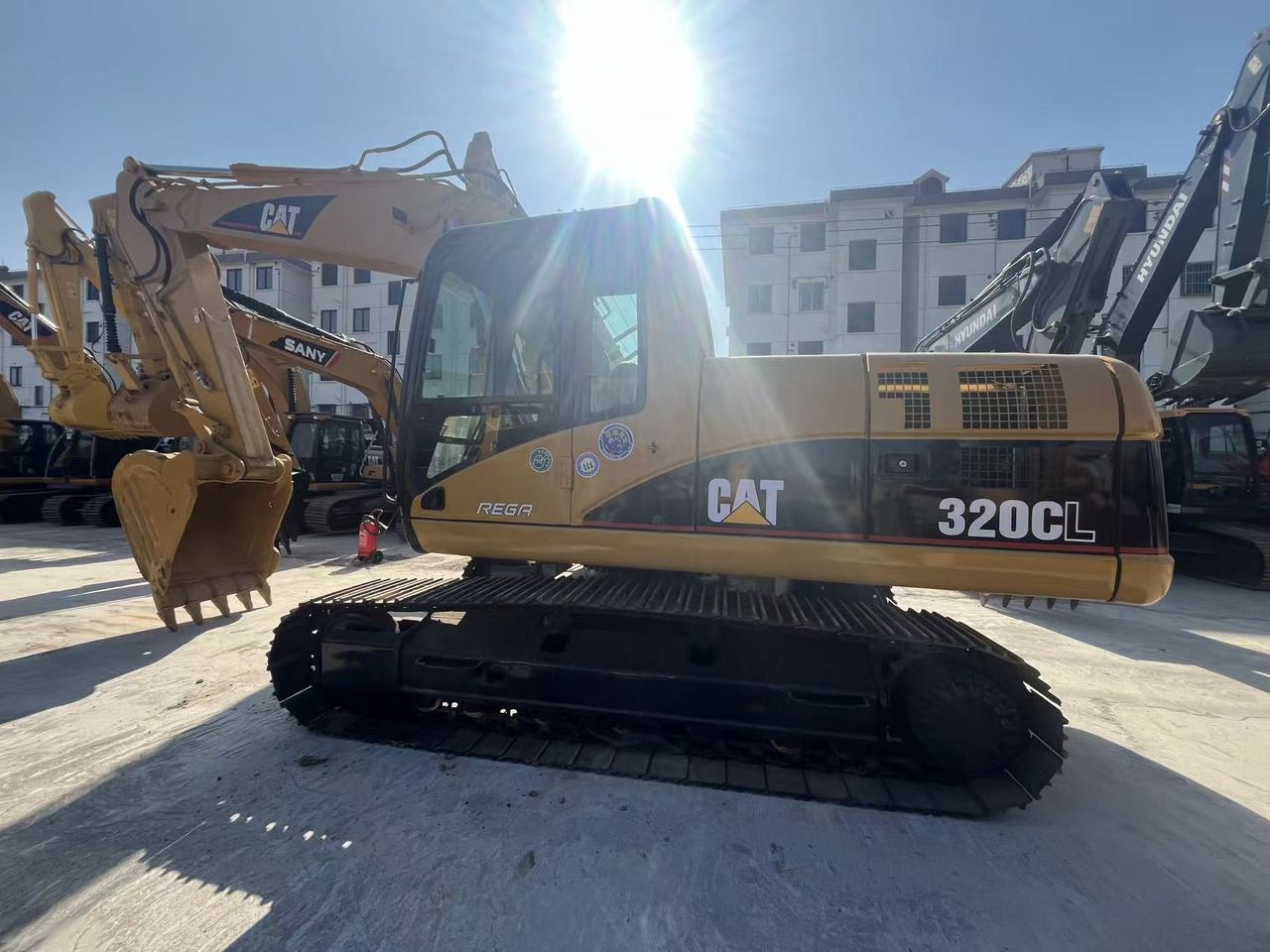

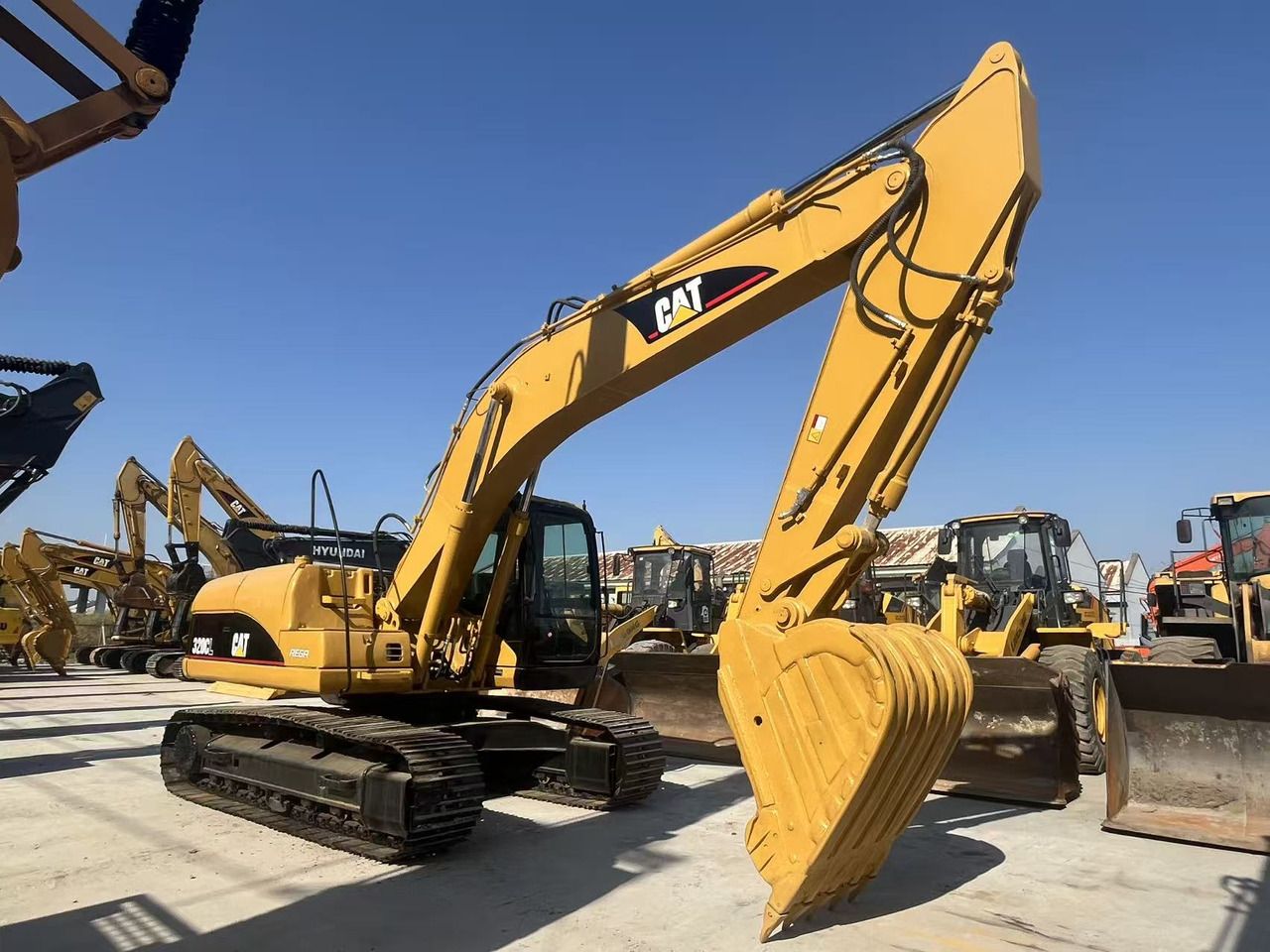

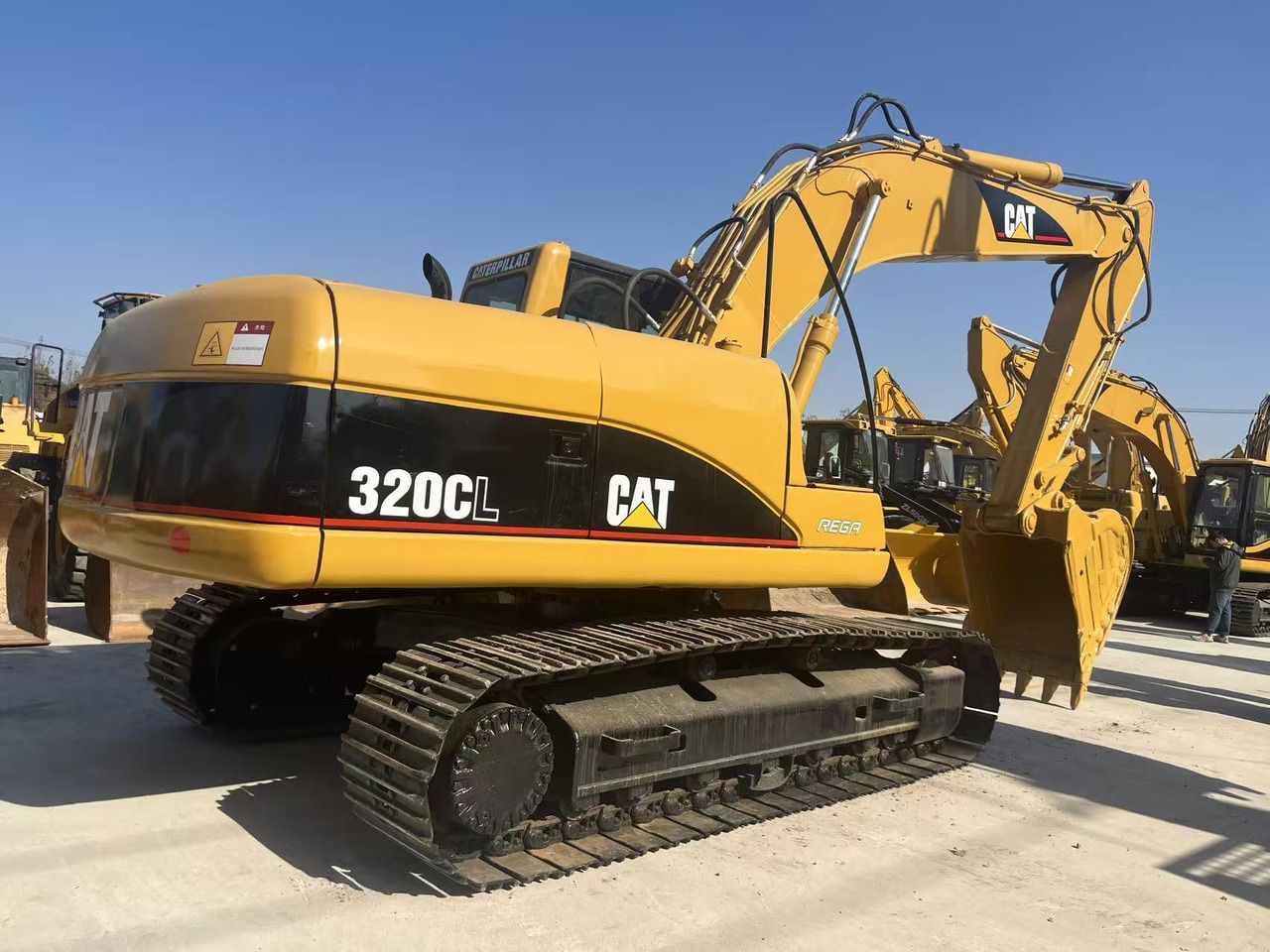

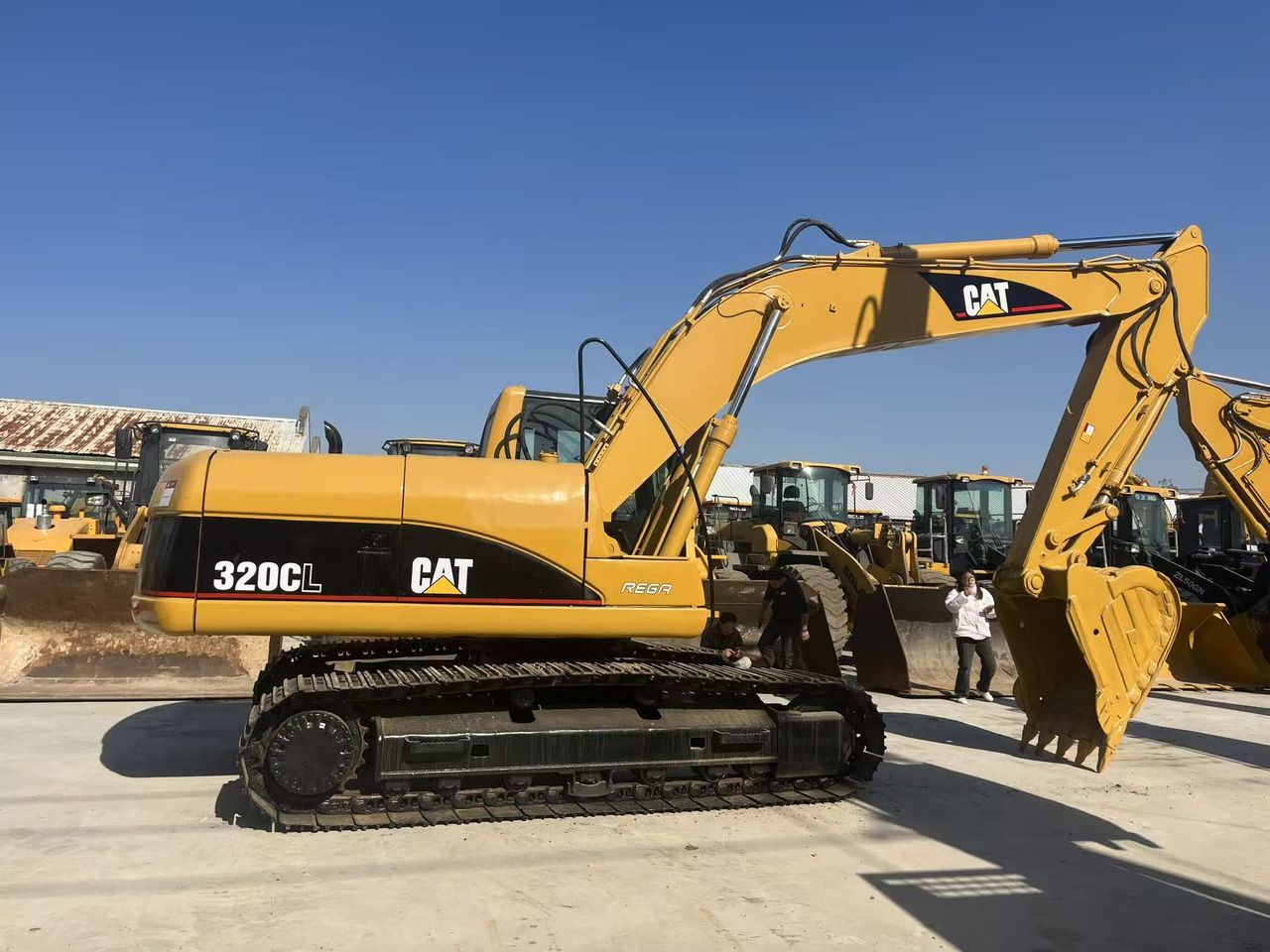

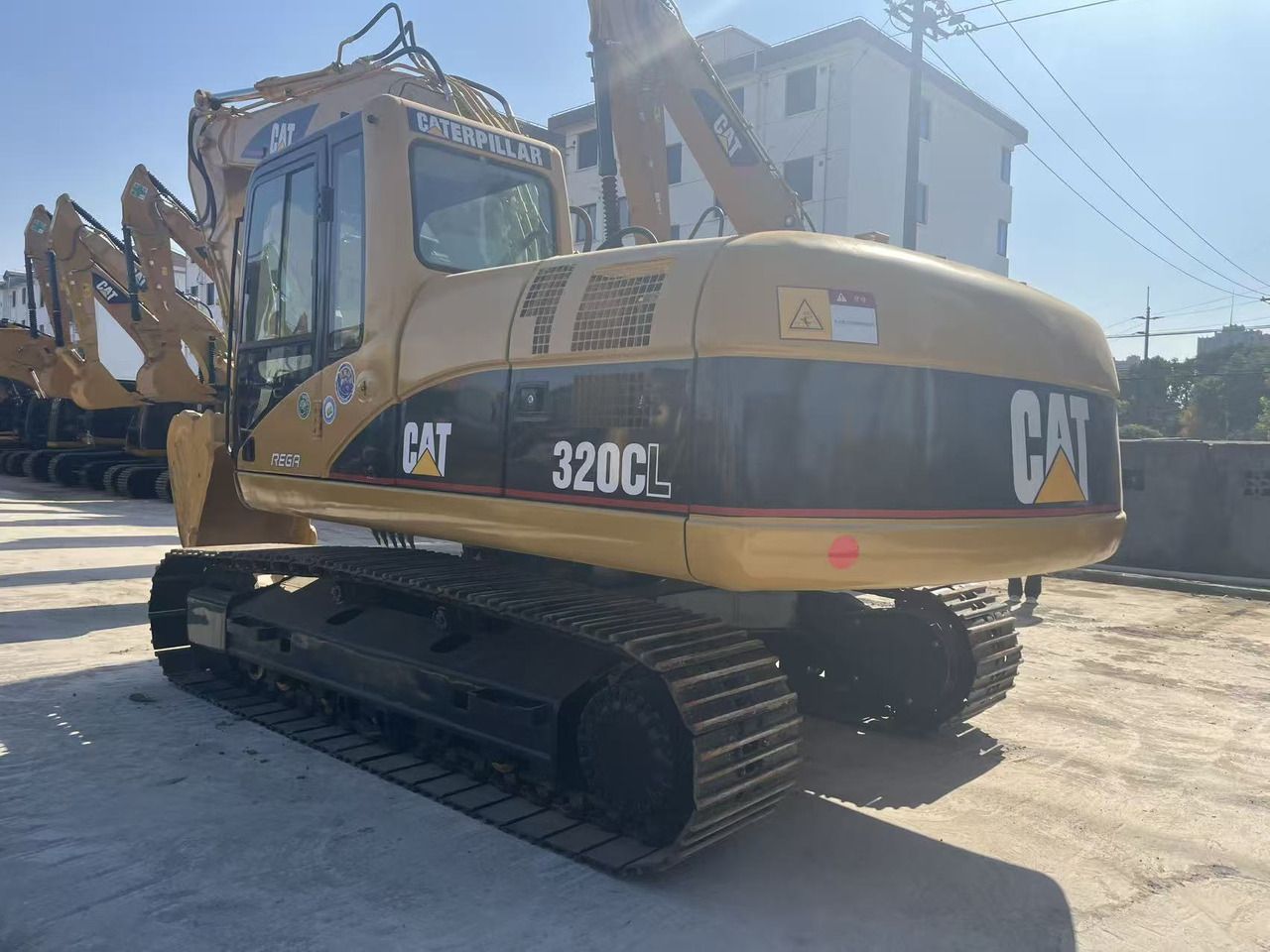

Caterpillar 320CL crawler excavator with Caterpillar 3066E 6-cylinder turbocharged diesel engine, 20,8 t operating weight and 0.9 m³ bucket capacity. The machine has a 6,6 m working depth and ROPS/FOPS certified cab.

Key Features:
- 2019 year of manufacture
- Excellent condition
- Caterpillar 3066E diesel engine
- 158 hp power output
- 0.9 m³ bucket capacity
- 6,6 m working depth
- ROPS/FOPS certified cab
- Bucket, quick coupler, hydraulic hammer and counterweight

Technical Data
Engine:
- Fuel: diesel
- Emission class: Euro 2
- Displacement: 6400 cc
- Engine cylinders: 6
- Power output: 158 hp
- Gearbox: manual
- Transmission: Full-time crawler 4WD

Work Area:
- Working depth: 6,6 m
- Lift height: 8,9 m
- Arm length: 5,1 m
- Turning radius: 9,1 m

Dimensions / Transport:
- Loading length: 8750 mm
- Loading width: 2380 mm
- Loading height: 3010 mm
- Chassis height: 460 mm

Undercarriage:
- Suspension: hydraulic
- Track width: 2280 mm
- Fuel tank: 330 L

Attachments & Equipment:
- Quick coupler optional, hydraulic quick coupler available
- Auxiliary hydraulics standard, high-flow optional
- Standard counterweight: 4.0 t
- Bucket, quick coupler, hydraulic hammer, counterweight

Documentation & Compliance:
- ROPS/FOPS certified cab
