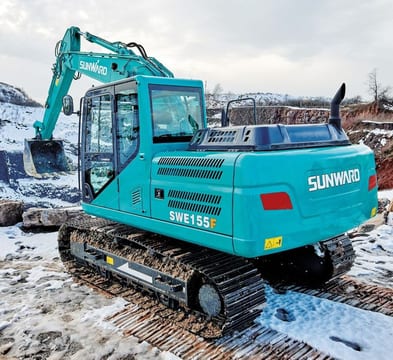

2024 Sunward SWE155F Crawler Excavator

Sunward SWE155F | with Warranty
Location: Riga, Latvia

Machine Overview:
New 2024 Sunward SWE155F crawler excavator with Cummins QSF3. 8 diesel engine and Euro 5 emission class. Source details list 15.6t total weight, 93kW/2200rpm engine power, 1m³ standard bucket, and 5525mm max. digging depth.

Key Features:
- New 2024 Sunward SWE155F
- 15.6t total weight
- Cummins QSF3. 8 diesel engine
- Euro 5 emission class
- Standard 1m³ bucket
- 5525mm max. digging depth
- 600 mm tracks
- Warranty 3 years or 3000 engine hours

Technical Data

Engine:
- Engine: Cummins QSF3. 8
- Fuel: diesel
- Power output: 126 hp
- Engine power: 93kW/2200rpm

Hydraulic System:
- Hydraulic system type: 2 piston pumps
- Flow: 2x126.4 L/min
- Working pressure: 31.4/34.3 Mpa
- Hydraulic outlets on boom

Work Area:
- Max. digging depth: 5525mm
- Max. loading height: 6200mm
- Max. vertical digging depth: 5000mm
- Max. reach: 8370mm
- Max. reach at ground level: 8225mm
- Bucket digging force: 100 kN

Dimensions / Transport:
- Transport length: 7825mm
- Transport width: 2600mm
- Transport height: 2825mm
- Tail swing radius: 2355mm
- Counterweight clearance: 940mm

Undercarriage:
- Track width: 600 mm
- Tracks 600 mm(metal)

Attachments & Equipment:

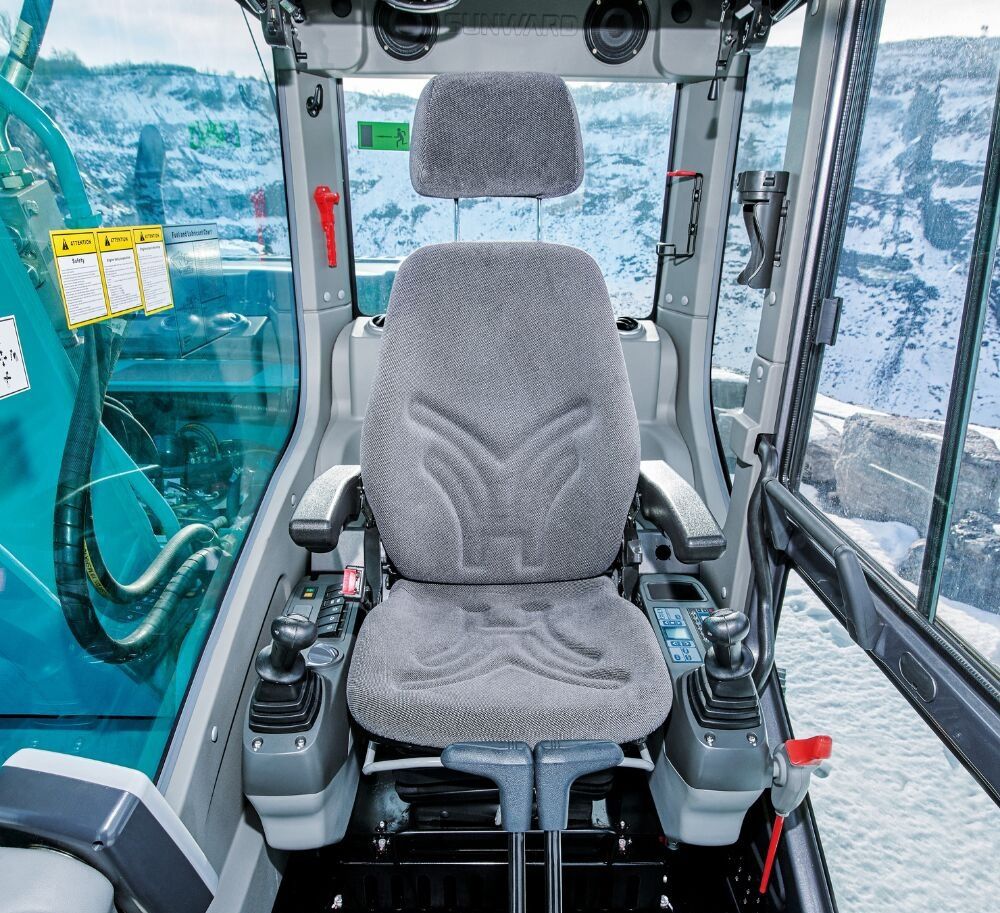

- Heated cab with air conditioning
- Standard bucket
- Standard boom

Documentation & Compliance:
- Warranty 3 years or 3000 engine hours
