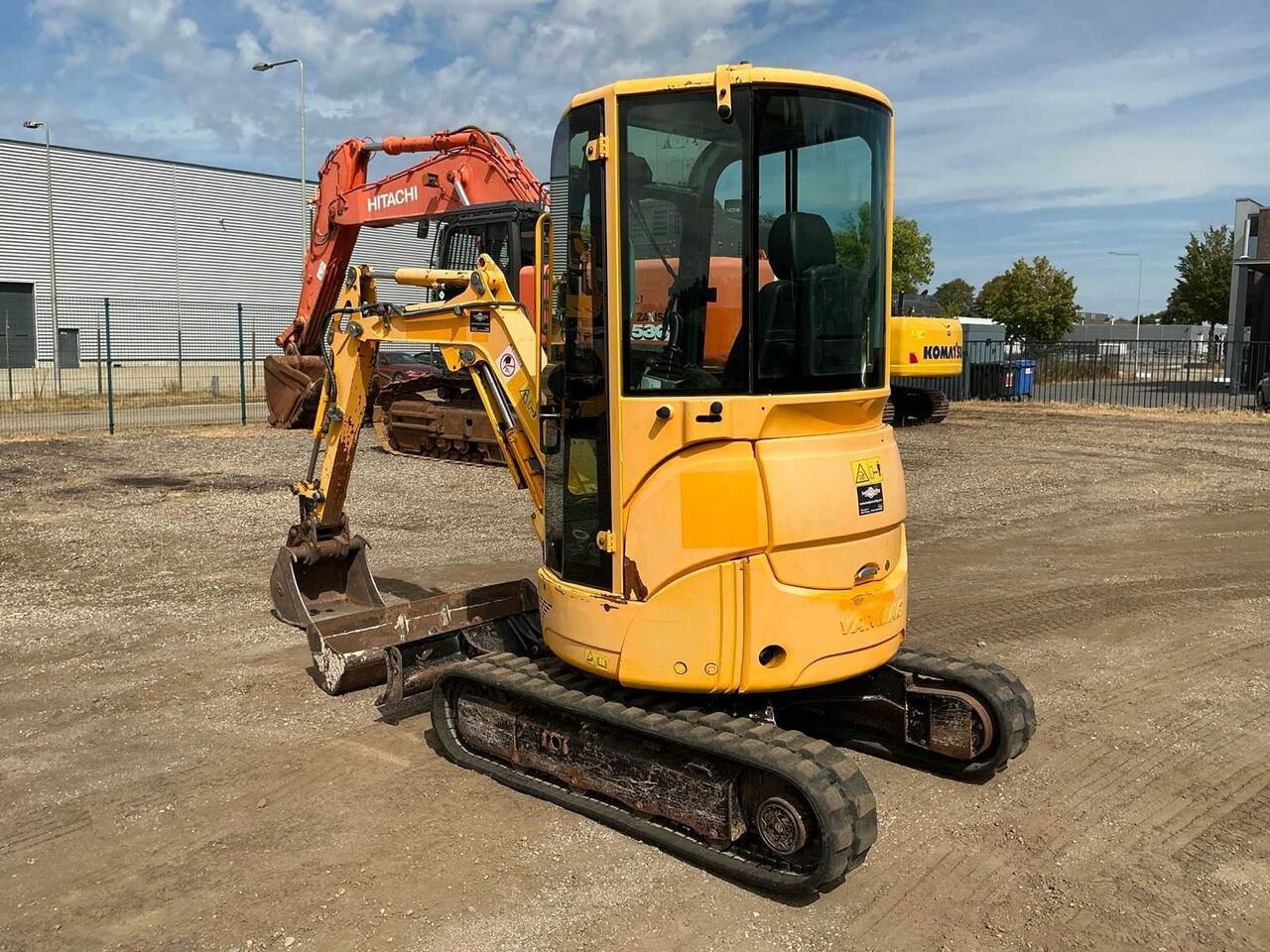

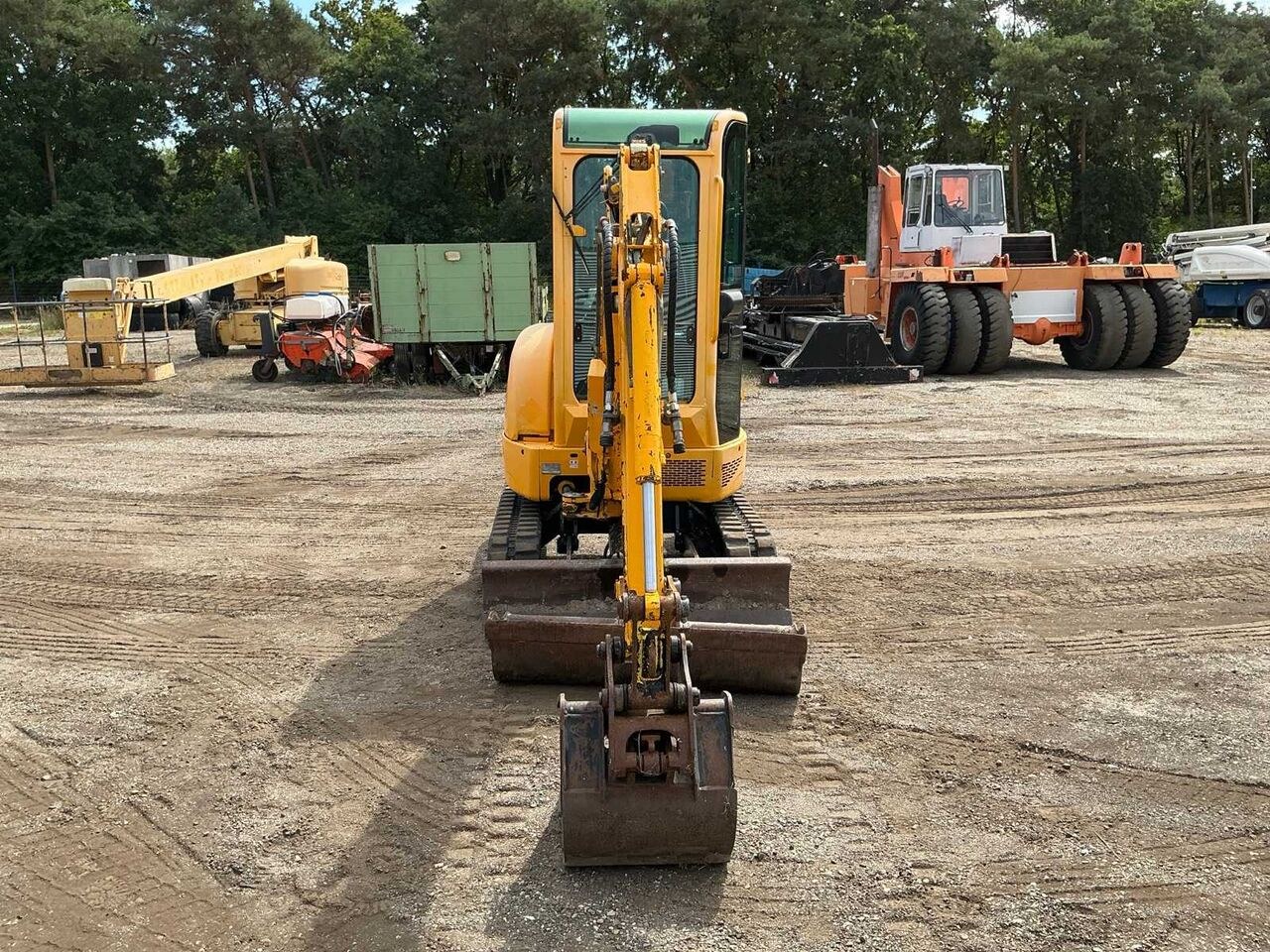

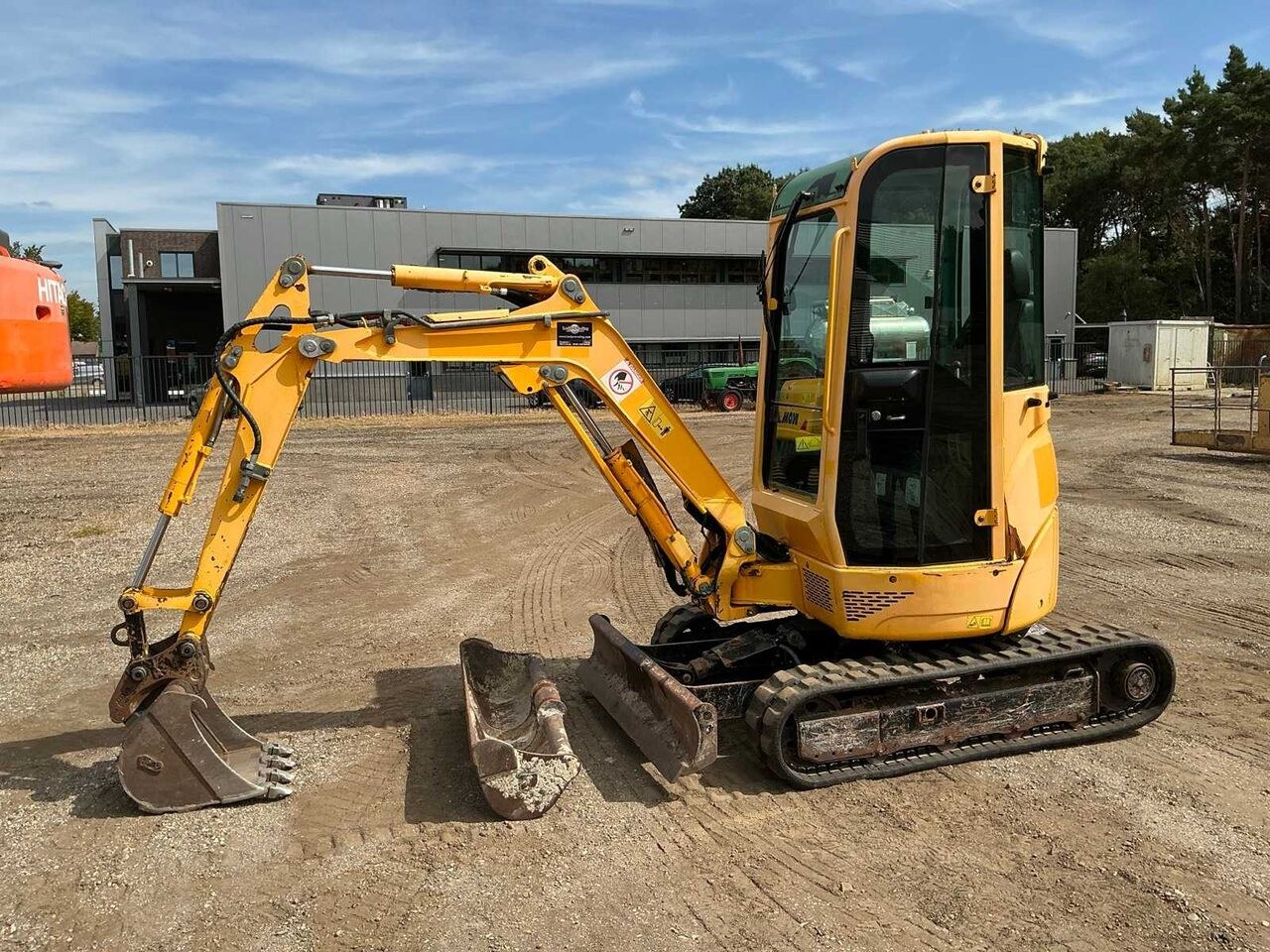

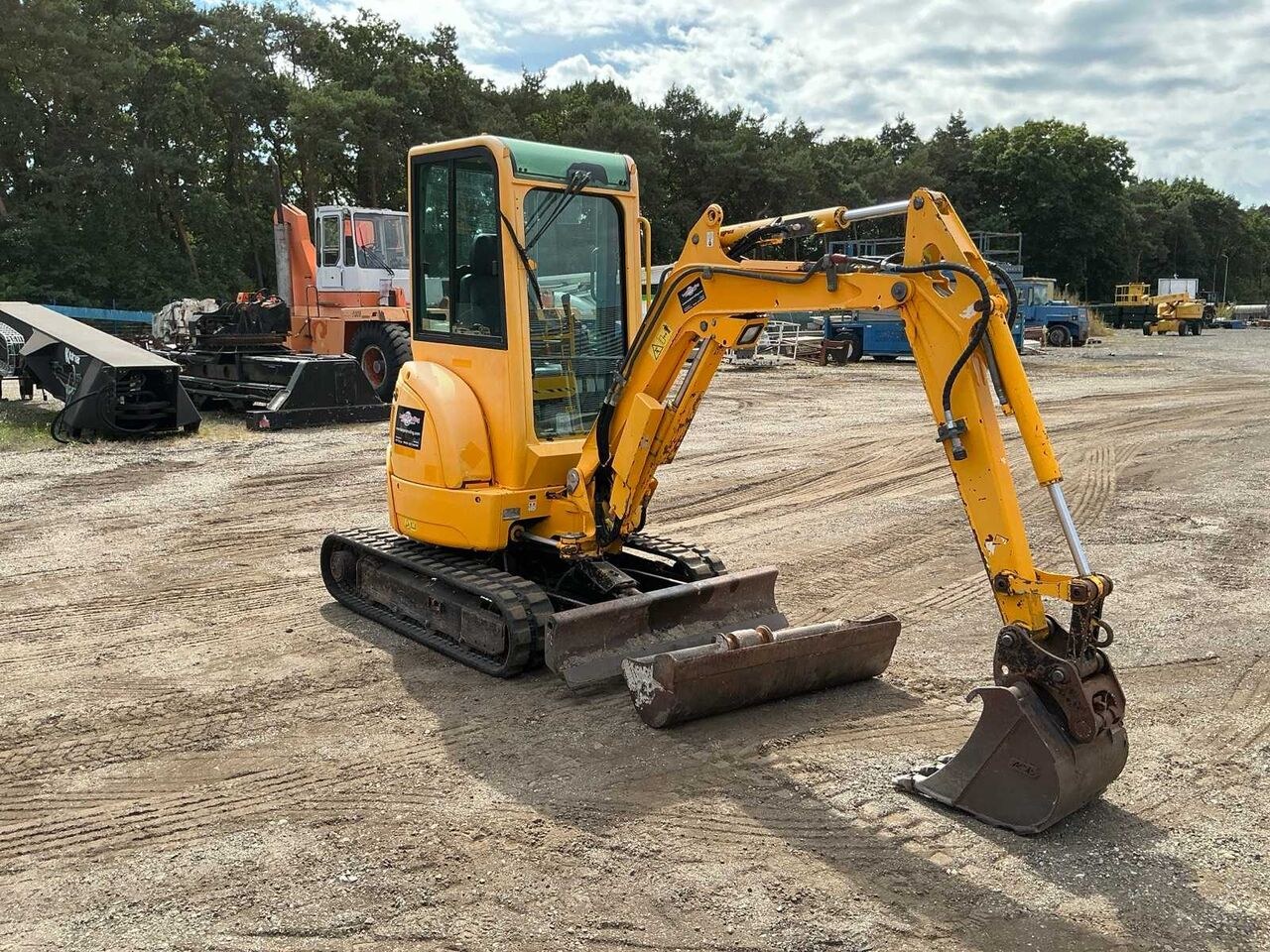

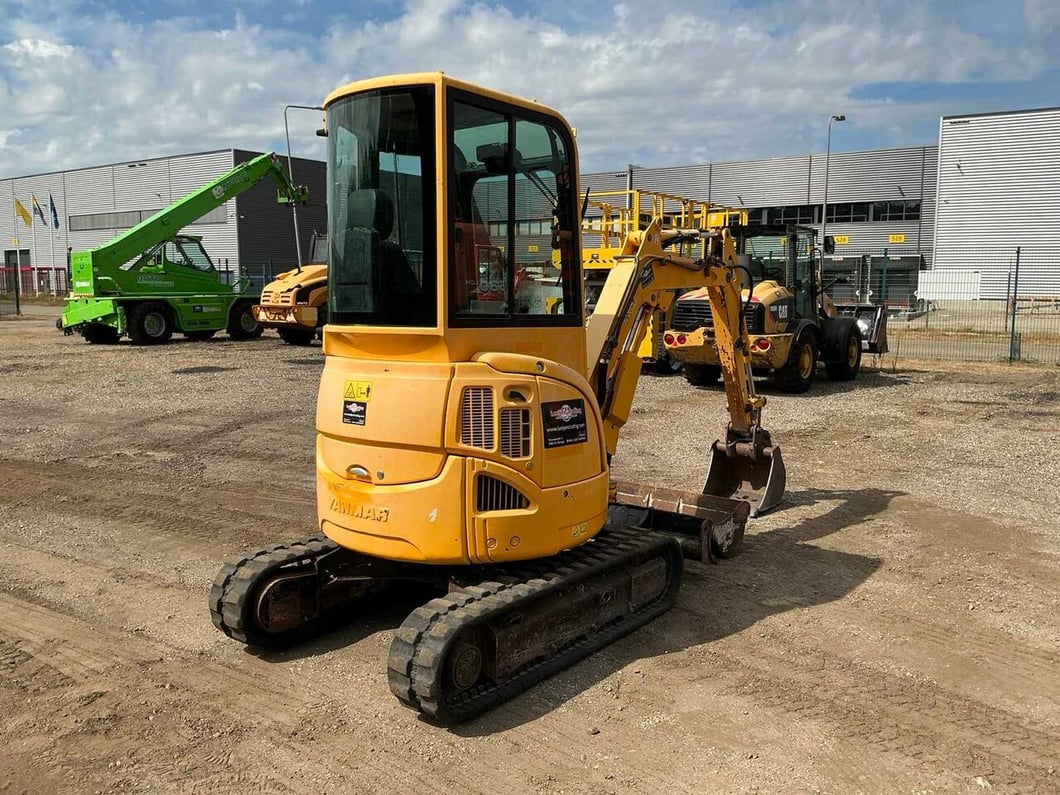

2012 Yanmar VIO 20-4 Mini Excavator

Yanmar VIO 20-4
Location: Beringe, Netherlands

Machine Overview:
2012 Yanmar VIO 20-4 zero tail swing mini excavator with enclosed ROPS/FOPS cab, diesel engine, dozer blade, mechanical quick coupler and auxiliary boom function.

Key Features:
- 2012 year of manufacture
- Zero tail swing
- 14.3 kW diesel engine
- Own weight: Approx. 2,405 kg
- Max. digging depth: approx. 2,505 mm
- Enclosed ROPS/FOPS cab
- Mechanical quick coupler
- CE standard

Technical Data

Engine:
- Engine power: 14.3 kW
- Fuel: Diesel

Work Area:
- Max. digging depth: approx. 2,505 mm
- Rear swing radius: 690 mm

Dimensions / Transport:
- Own weight: Approx. 2,405 kg
- Length: approx. 3,890 - 4,400 mm
- Width: approx. 1,380 mm
- Height: approx. 2,460 - 2,500 mm
- Track width: 250 mm

Undercarriage:
- Zero tail swing
- Drive levers and pedals

Attachments & Equipment:
- Tine tray 480mm
- Cleaning tray 1200mm
- Mechanical quick coupler
- Aux. boom function
- Dozer blade
- Cylinder protection for boom, arm, bucket and blade

Documentation & Compliance:
- ROPS/FOPS cab
- CE standard
