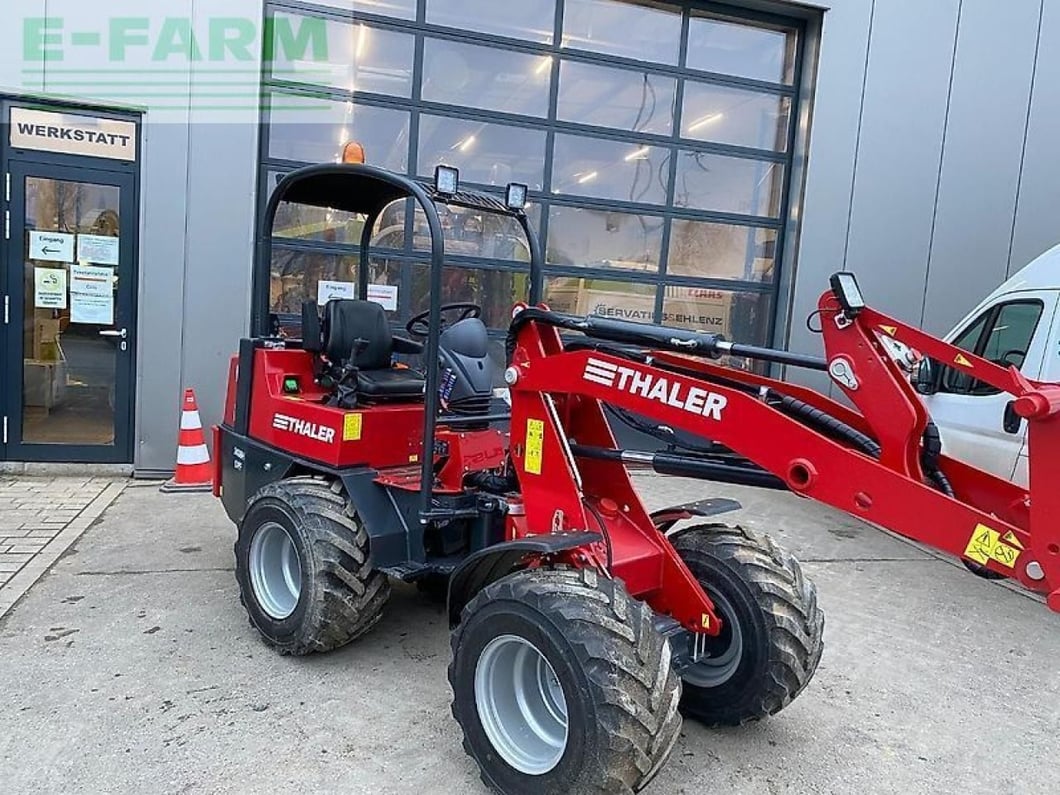

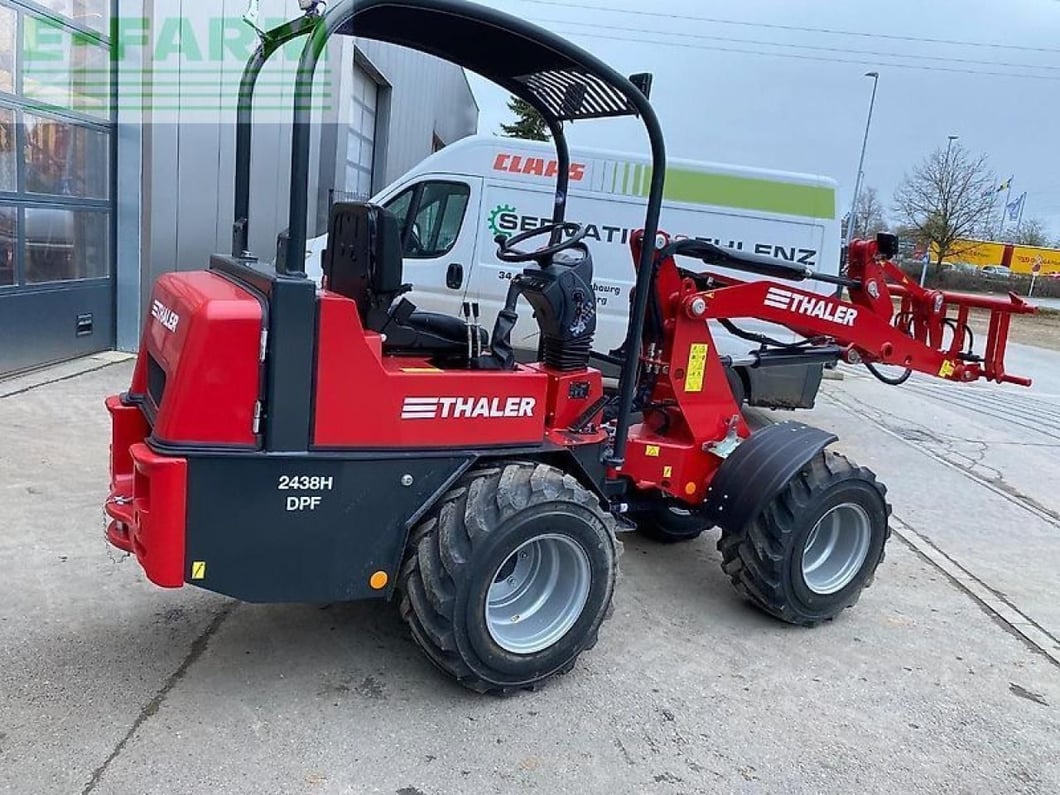

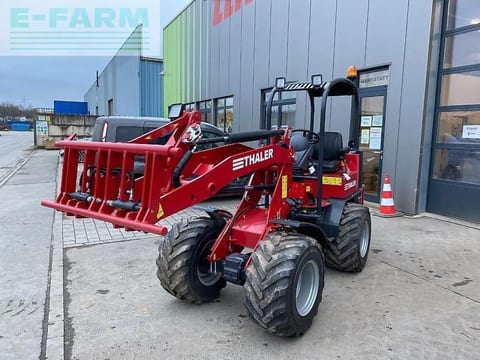

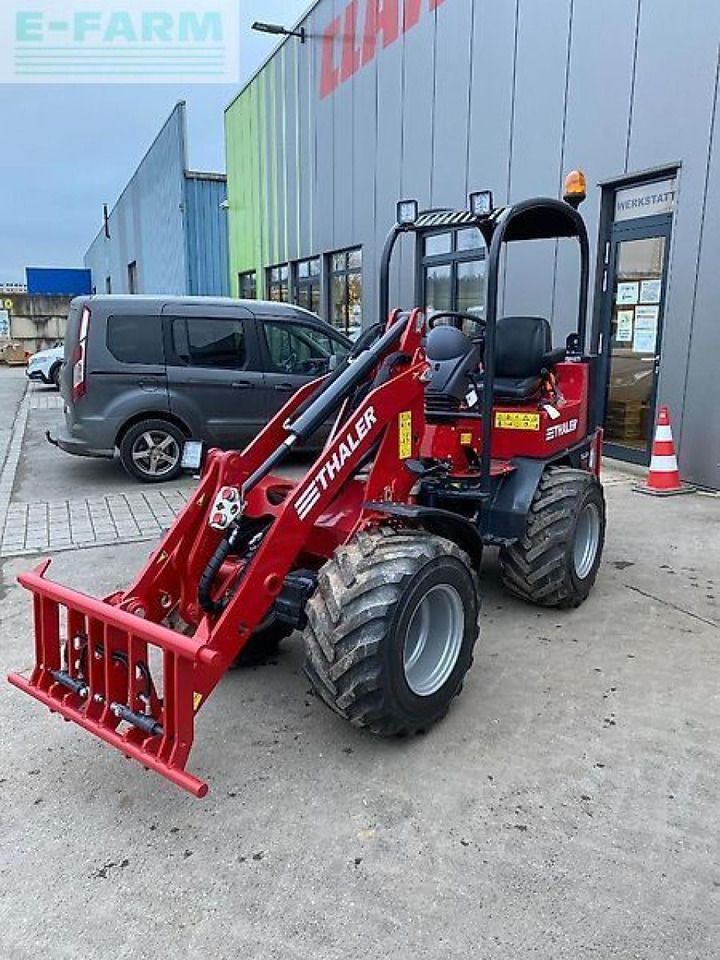

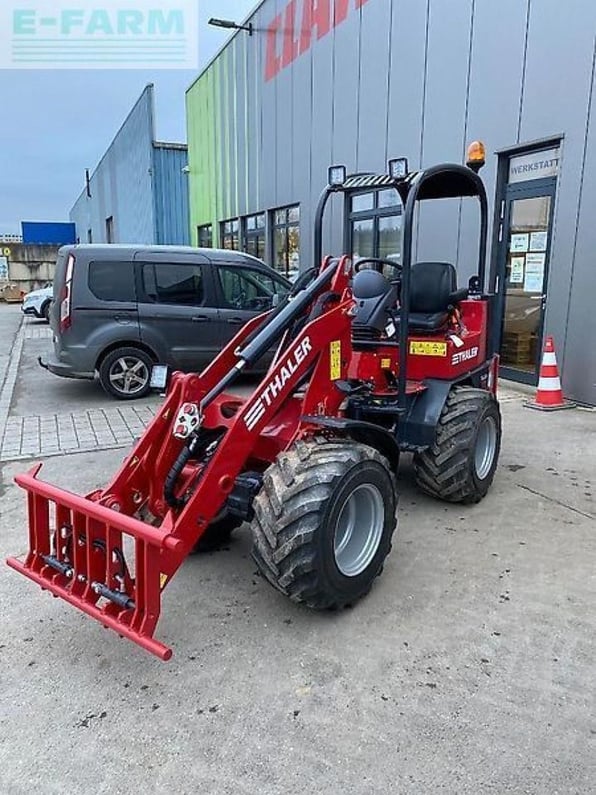

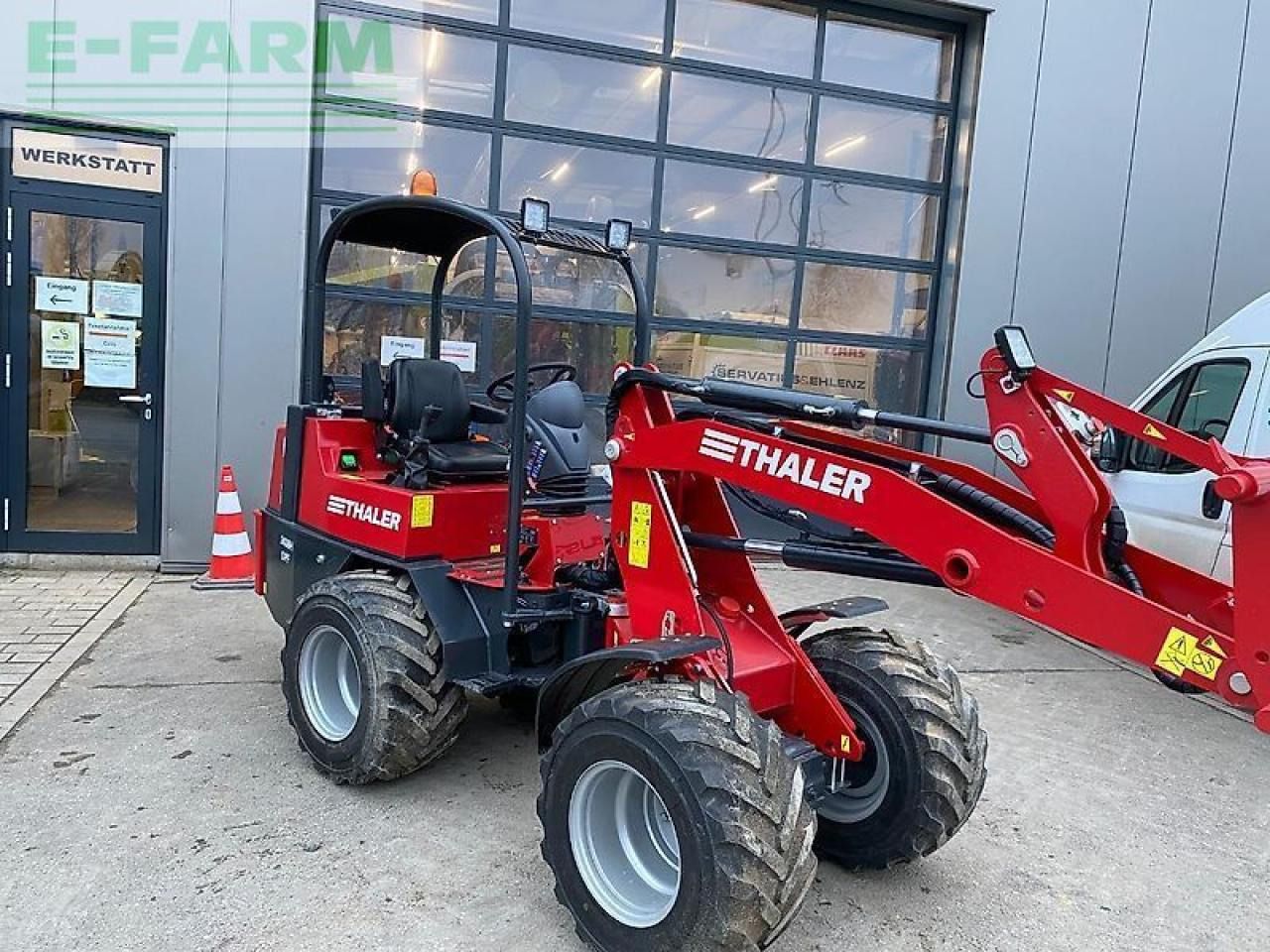

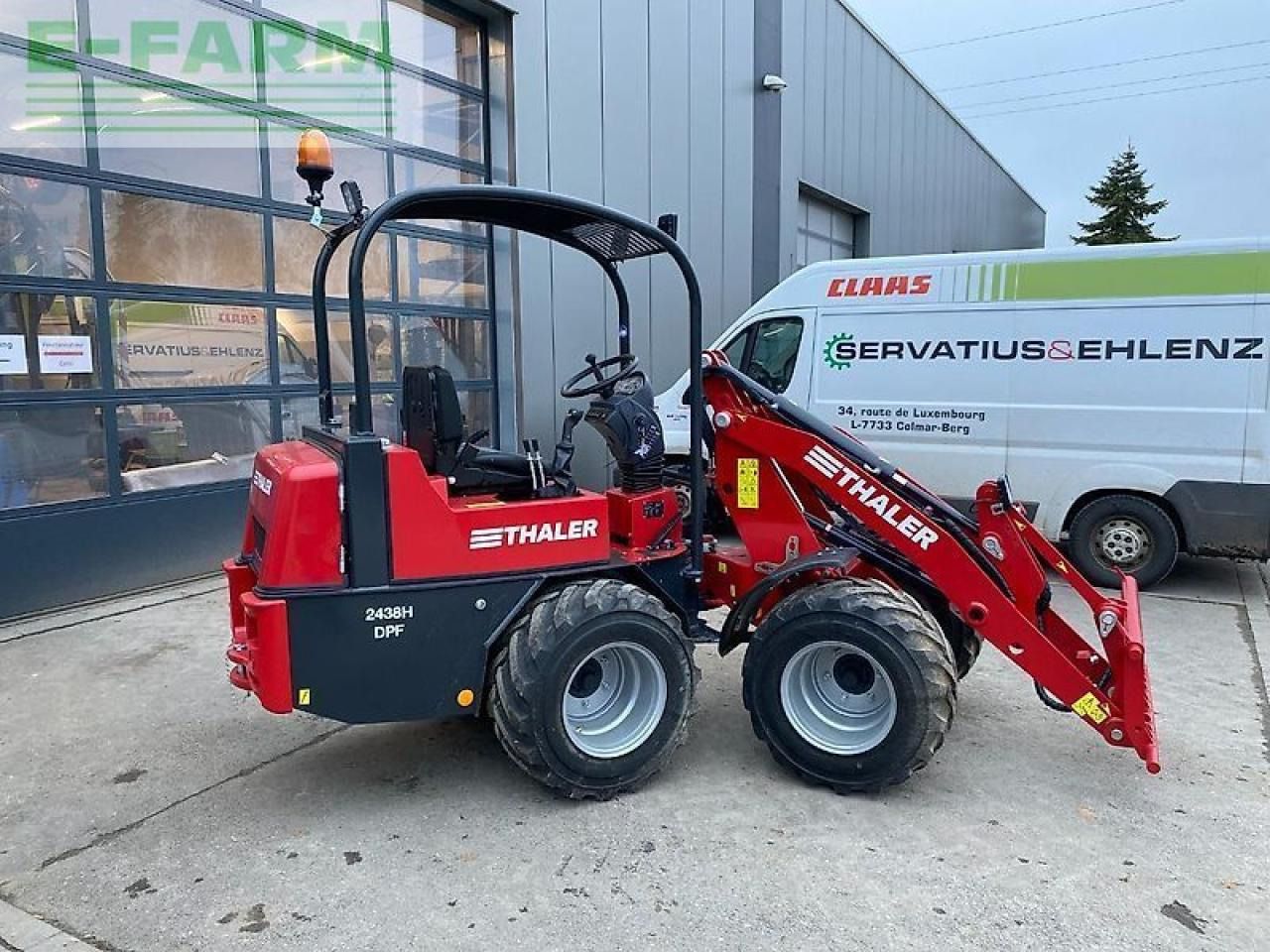

2024 Thaler 2438H Mini Excavator

Thaler 2438H
Location: Rittersdorf, Germany

Machine Overview:
2024 Thaler 2438H loader with hydrostatic all-wheel drive, automotive control and multifunction joystick. The machine has Stage V emissions equipment, 25 km/h fast runner specification and a 1,4 t lifting capacity.

Key Features:
- 2024 machine
- Hydrostatic all-wheel drive with automotive control
- 2-stage drive with fast/slow speed on joystick
- 25 km/h max speed
- 1,4 t lifting capacity
- 3520 m lift height
- Hydraulic attachment locking
- CE approval

Technical Data

Engine:
- 3-cylinder Yanmar engine, water-cooled
- Power output: 28 hp
- DOC and DPF emission standard Stage V

Hydraulic System:
- Working hydraulics max. 45 llmin.
- 3rd control circuit front with cylinder function (DN10)
- Gear pump 20 ccm
- Fully hydraulic articulated pendulum steering

Dimensions / Transport:
- Width: 1,34 m
- Machine width approx. 1,12 m
- Height approx. 2,21 m

Undercarriage:
- Rear tires: 31x15,5-15 as deestone
- Wide tyres 31x15,5-15 AS Deestone
- Standard axle

Attachments & Equipment:
- 3 LED work lights, 1 rear and 2 front top-mounted on roof
- 1 LED work light front on lift arm
- Removable beacon
- Additional cast rear weight 120kg with towing device
- Battery main switch
- Armrest set for standard seats

Documentation & Compliance:
- CE approval
