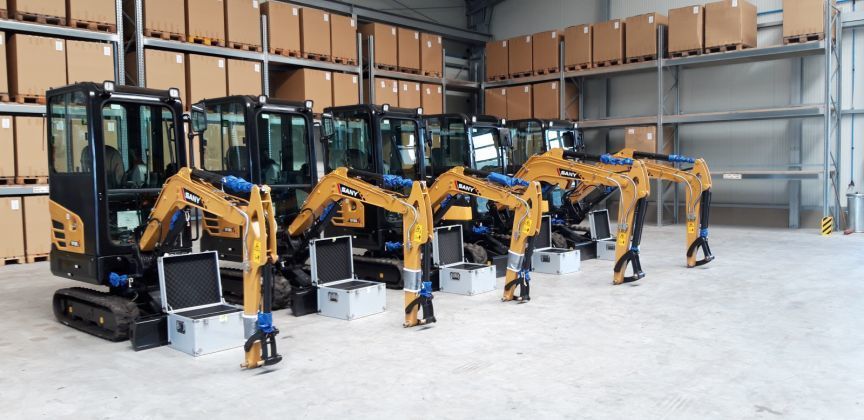

New 2025 Sany SY18C Mini Excavator

Sany SY18C | 5 hours
Location: Westerstede, Germany | Availability: In Stock

Machine Overview:
New 2025 Sany SY18C mini excavator with only 5 operating hours. Powered by a Yanmar 3TNV80F Stage V diesel engine. Features reinforced undercarriage, axial piston swing motor, and hydraulic slewing lock brake.

Key Features:
- Yanmar 3TNV80F Stage V diesel engine, 14.6 kW / 2400 rpm
- Max. torque: 64.7 Nm at 1800 rpm
- Bucket breakout force: 15.2 kN, stick tearing force: 9.2 kN
- Max. driving speeds: fast 3.8 km/h, slow 2.2 km/h
- Climbing ability: 30°
- Reinforced undercarriage with welded box construction

Technical Data

Engine:
- Model: Yanmar 3TNV80F
- Type: Water-cooled 4-stroke diesel
- Emission stage: Stage V
- Power: 14.6 kW / 2400 rpm
- Max. torque: 64.7 Nm at 1800 rpm
- Displacement: 1267 cc

Work Area:
- Boom length: 1810 mm
- Handle length: 1130 mm
- Bucket breakout force ISO: 15.2 kN
- Stick tearing force ISO: 9.2 kN

Undercarriage:
- Reinforced, large undercarriage with welded box construction
- 3 casters

Attachments & Equipment:
- Shovel capacity: 0.04 m³
- Swing mechanism: axial piston motor running in oil bath with planetary gear and single-row slewing ring, spring-loaded slewing lock brake hydraulically released
