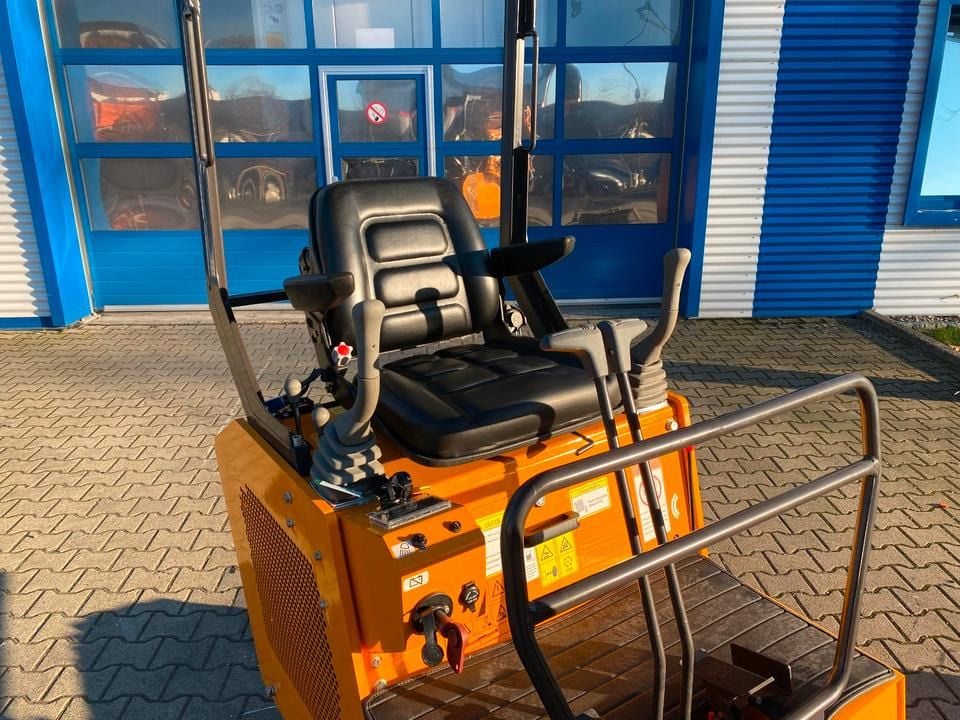

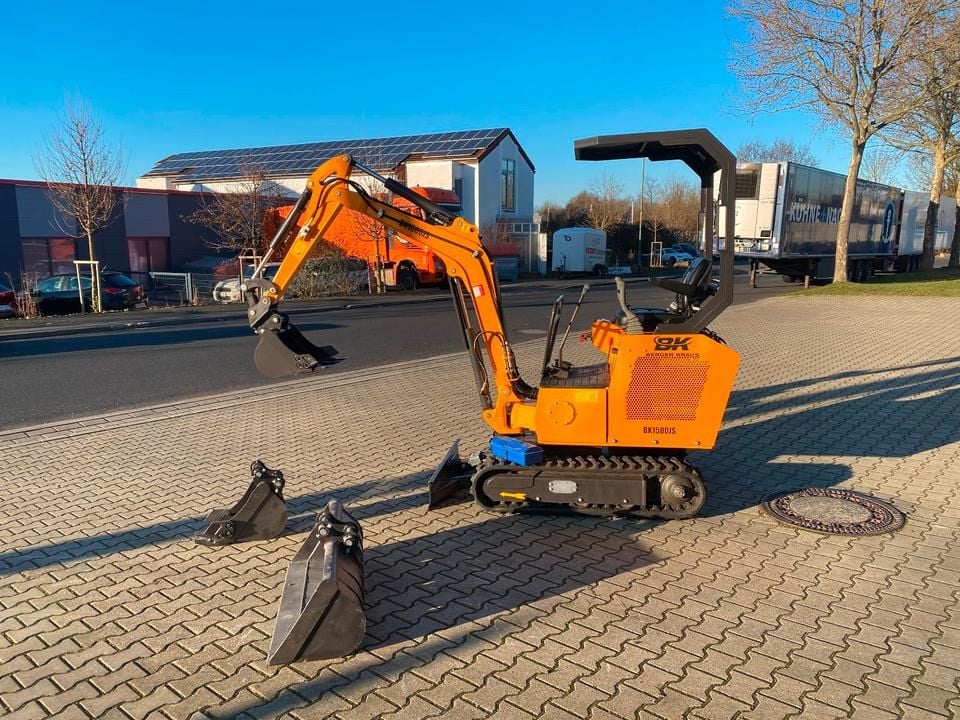

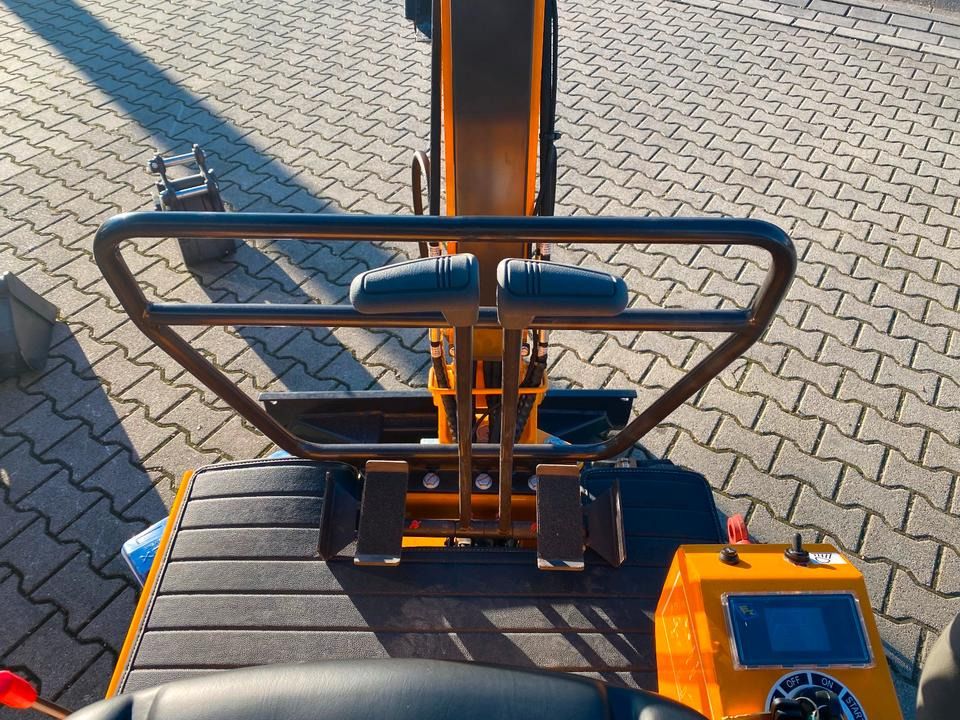

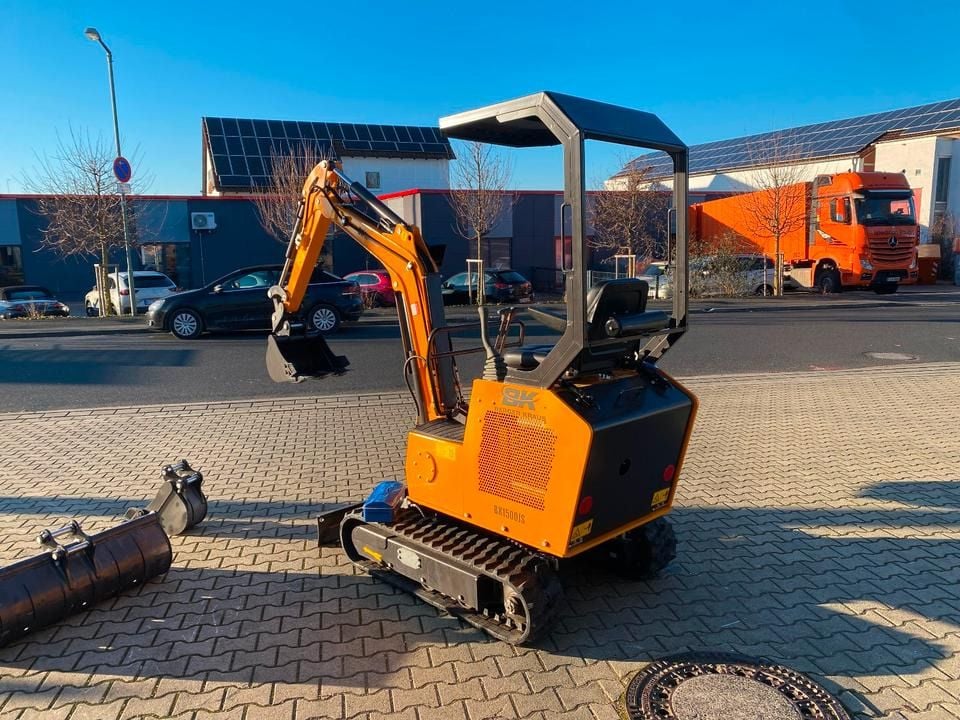

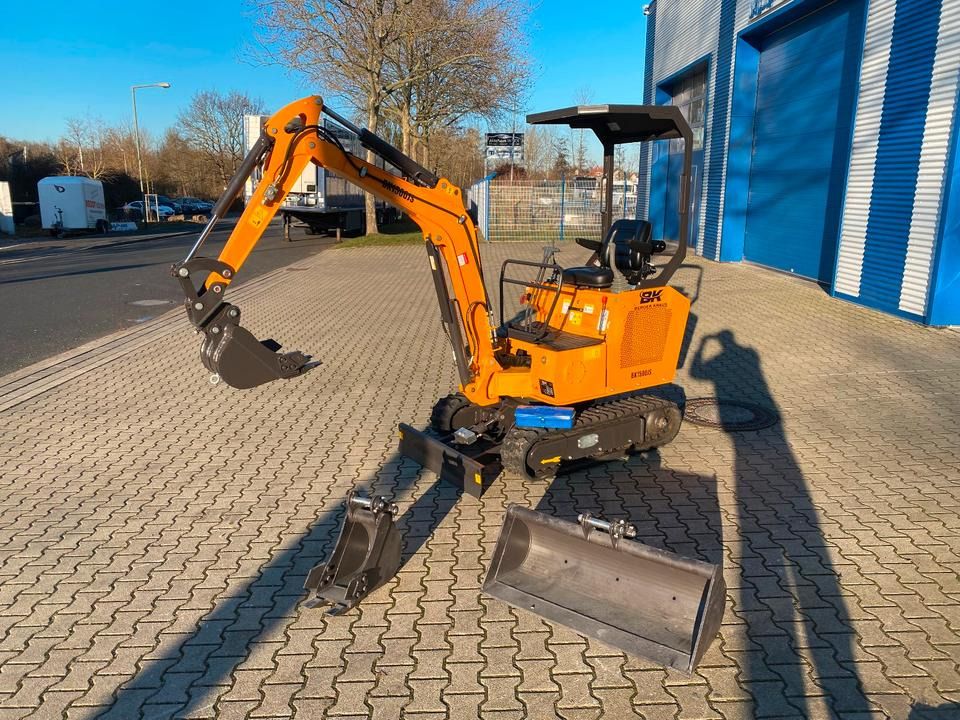

Berger Kraus BK1500JS Mini Excavator

Location: Kassel, Germany

Machine Overview:
Berger Kraus BK1500JS mini excavator with Kubota D902 diesel engine, joystick operation, swing arm, bucket package, tool box, and quick coupler. The machine is supplied with CE, invoice with VAT, and German operating / repair manual.

Key Features:
- Operating weight: 1400kg
- Kubota D902 3-cylinder liquid-cooled diesel engine
- Rated power: 11,8 kw / 2300r/min
- Oil flow rate: 20L/Min
- Travel speed: 2 km/h
- Max. gradeability: 30°
- Bucket package with quick coupler and tool box

Engine:
- Engine: Kubota D902 3-cylinder liquid-cooled (diesel)
- Rated power: 11,8 kw / 2300r/min
- Displacement: 0,898L
- Fuel tank capacity: 21,4L

Hydraulic System:
- Oil flow rate: 20L/Min
- Main pump: BEIFANG
- Swing motor: EATON BRAND
- Travel drive: EATON BRAND
- Hydraulic tank capacity: 11,1L

Work Area:
- Max. digging depth: 2167mm
- Max. digging height: 3258mm
- Max. unloading height: 2293mm
- Minimum turning radius: 1440mm
- Max. digging radius: 3560mm
- Slewing radius: 360°

Dimensions / Transport:
- Dimensions (LxWxH): 3160x1040x2377mm
- Track width: 1123mm
- Total track length: 1450mm
- Transport length: 2330mm
- Overall height: 2575mm

Undercarriage:
- Track width: 1123mm
- Ground clearance: 420mm
- Track gauge: 230mm

Attachments & Equipment:
- Bucket 200mm
- Bucket 400mm
- Bucket 1000mm
- Tool box
- Quick coupler

Documentation & Compliance:
- CE
- Invoice with VAT shown
- Operating / repair manual in German
