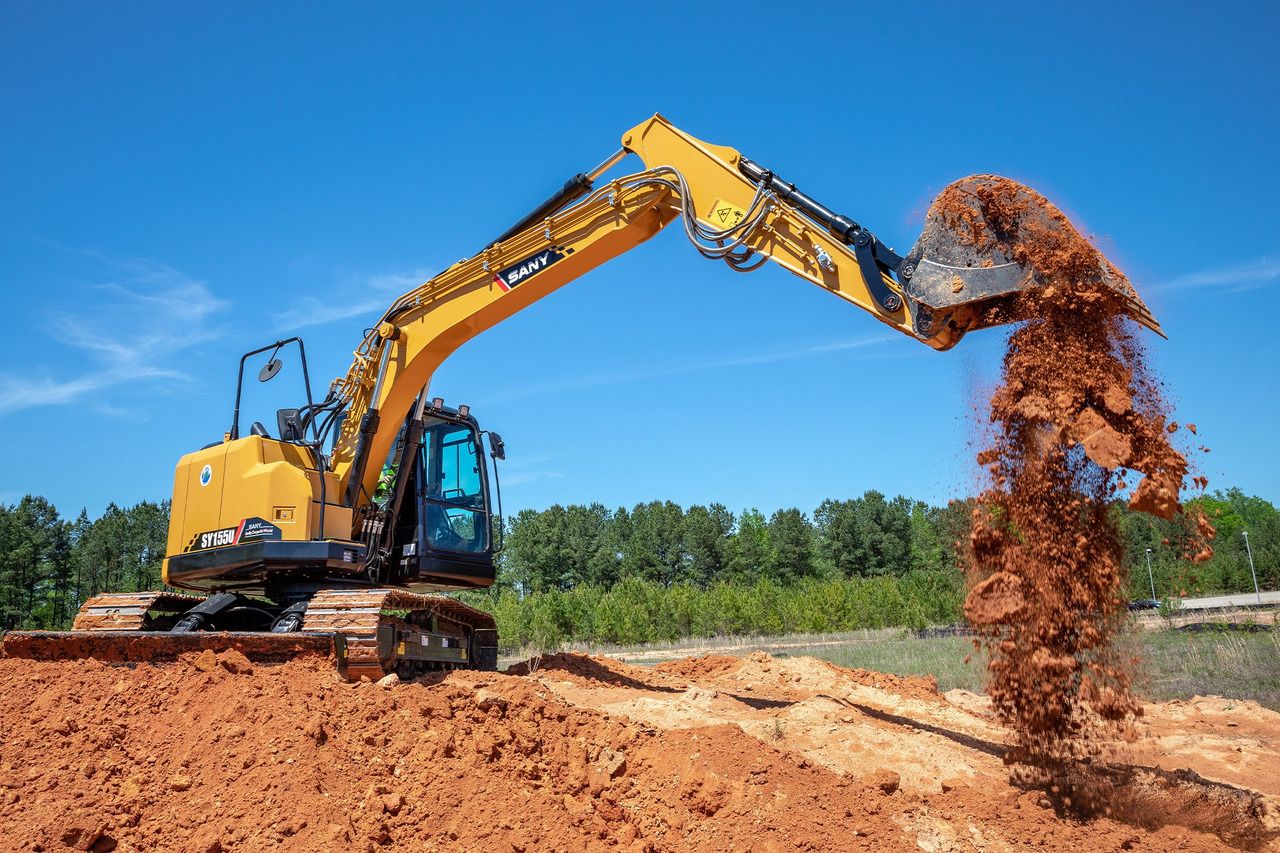

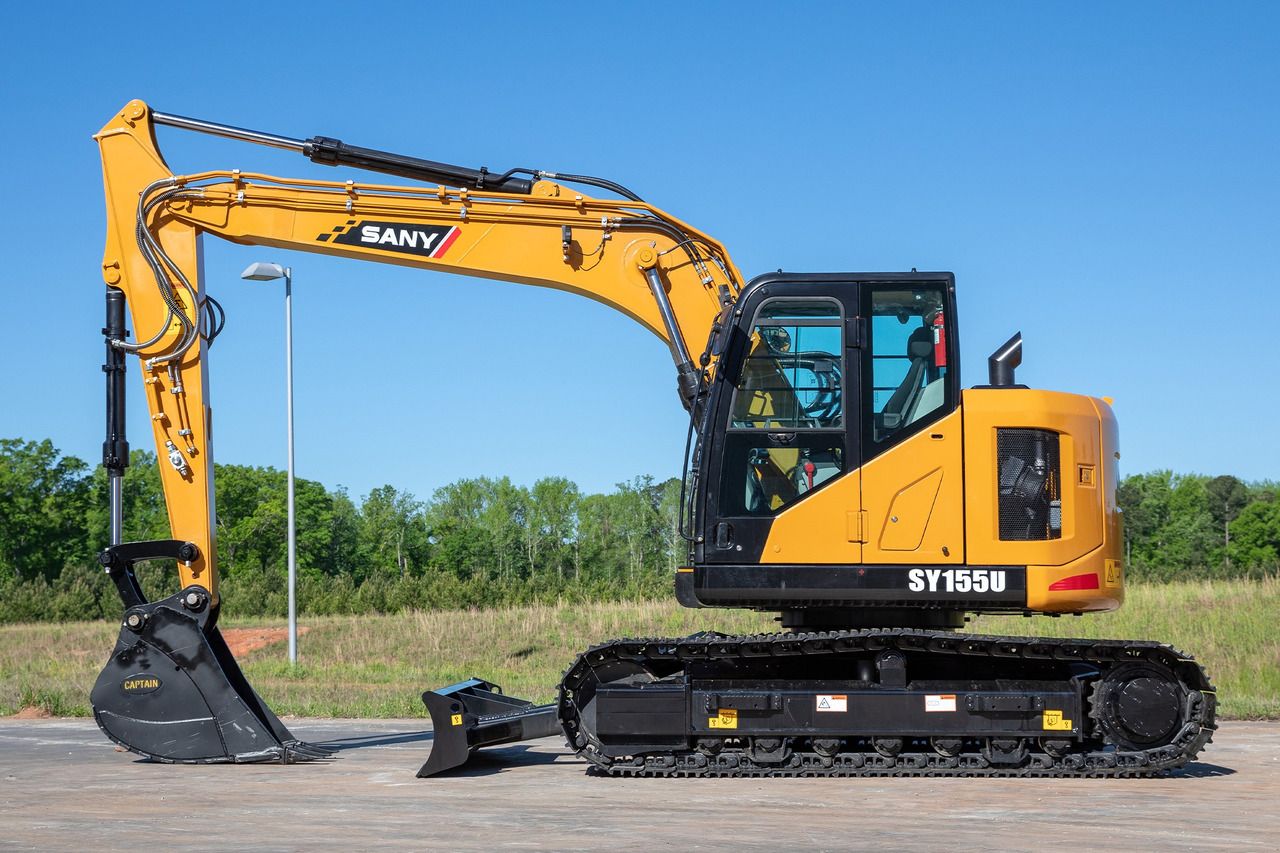

Sany SY155U Crawler Excavator

Sany SY155U | 16 t
Location: Jinan, China | Availability: 10,000 Units / Month

Machine Overview:
Used Sany SY155U short-tail crawler excavator with ISUZU 4JJ1X STAGE V engine, 0.6 m³ bucket capacity and 5468 mm working depth. The compact tail design is suited to confined-site digging, utility work and urban construction tasks.

Key Features:
- Short-tail-swing excavator
- 0.6 m³ bucket capacity
- 5468 mm working depth
- 8,338 mm max digging reach
- 2,086 mm minimum swing radius
- 103 kN bucket digging force
- 67 kN arm digging force
- 15-20 days delivery stated

Technical Data

Engine:
- Engine: ISUZU 4JJ1X STAGE V
- Power output: 105 hp
- Rated power from source text: 78.5 kW / 1900 rpm

Hydraulic System:
- Hydraulic max. oil flow: 2 x 110 L/min

Work Area:
- Max. digging depth: 5,468 mm
- Max. digging reach: 8,338 mm
- Min. swing radius: 2,086 mm

Dimensions / Transport:
- Transport length: 7,3 m
- Transport width: 2,59 m
