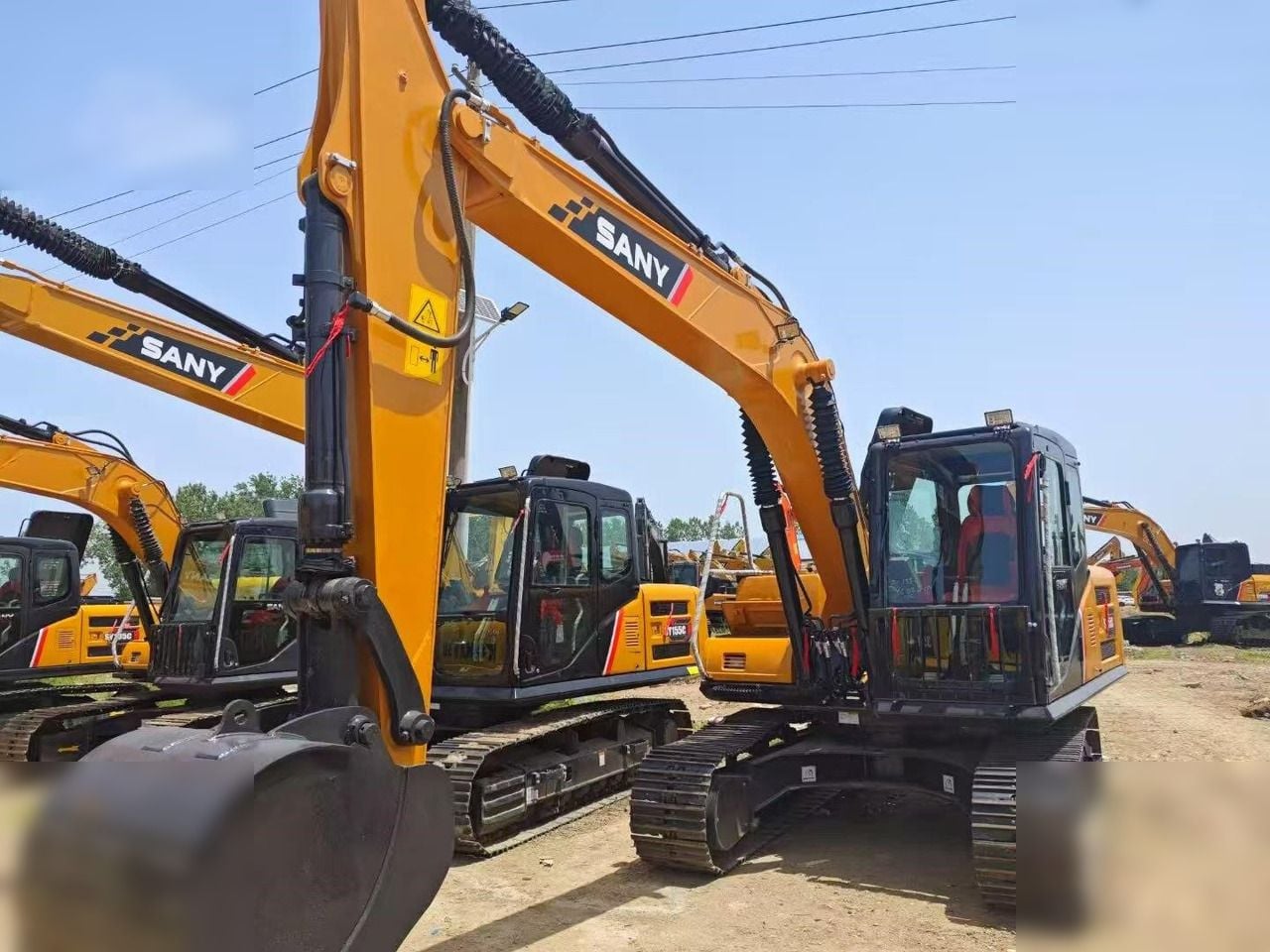

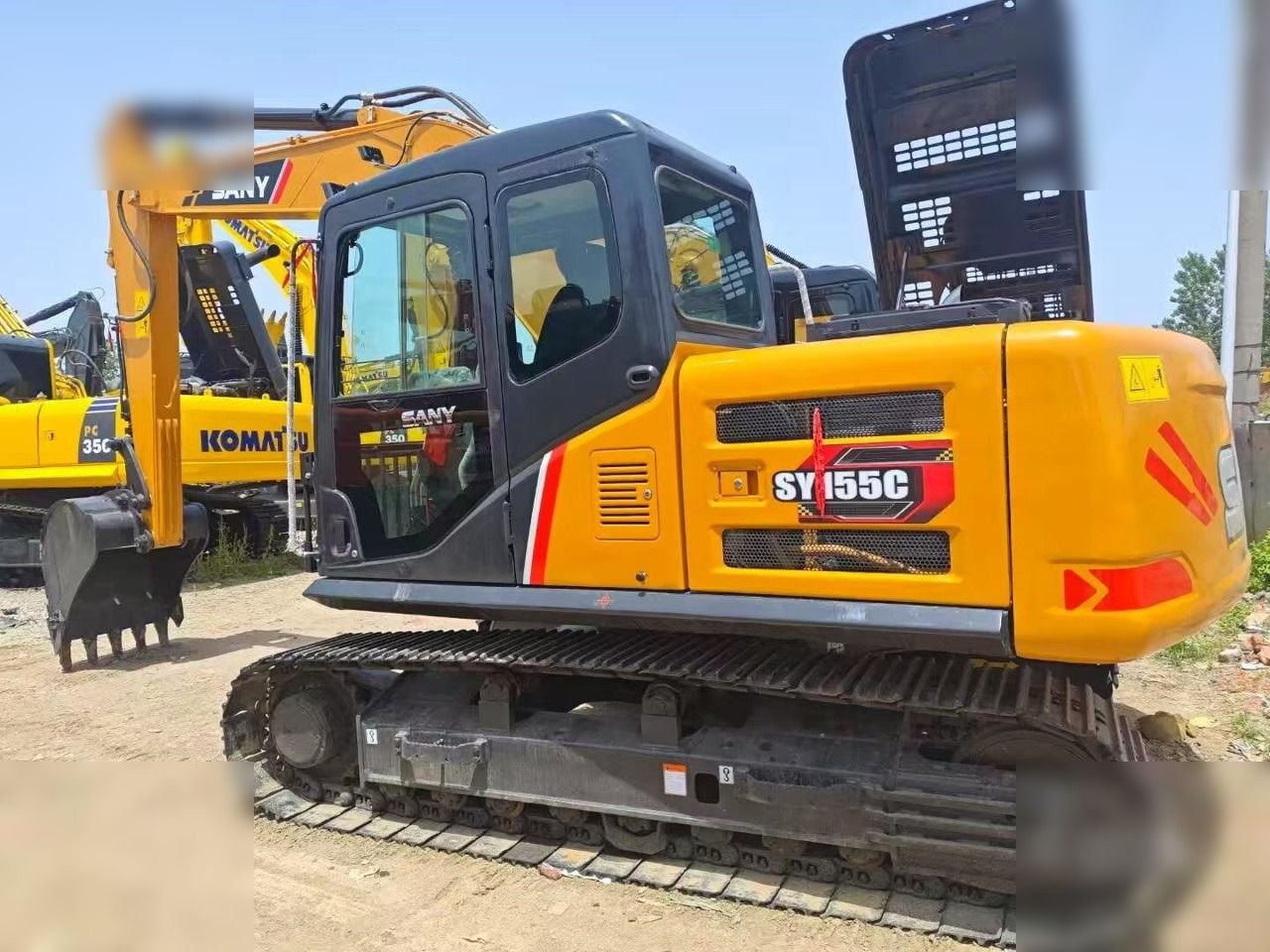

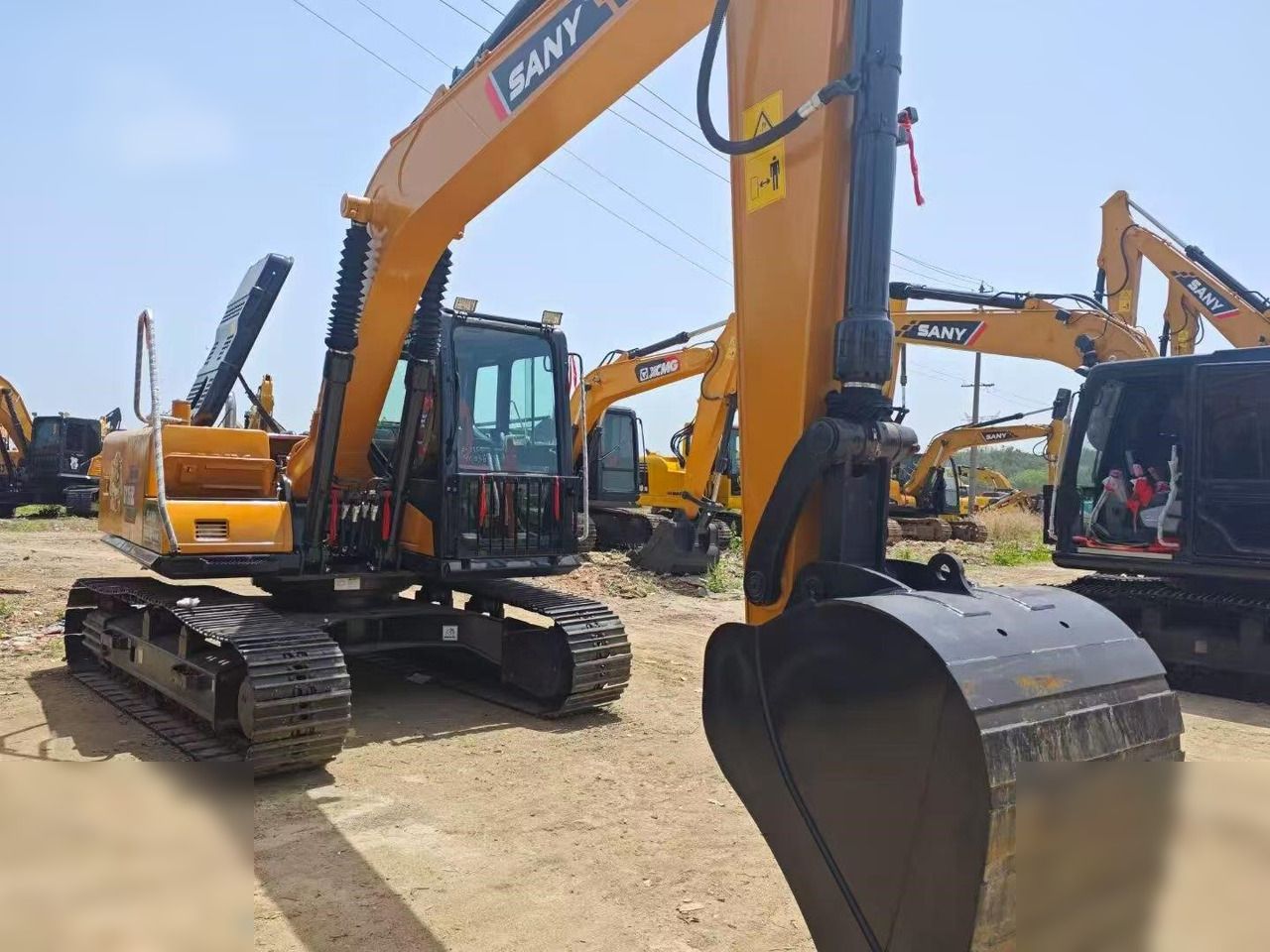

2022 Sany SY155C Crawler Excavator

Sany SY155C | 15.499 Ton Crawler Excavator | 566 hours
Location: Hefei, China

Machine Overview:
2022 Sany SY155C crawler hydraulic excavator with 566 hours, 15.499 Ton operating weight and 124 hp power output. The source also gives detailed hydraulic, digging and travel data for construction, roadworks, quarrying and landscaping applications.

Key Features:
- 2022 year of manufacture
- 566 hours
- 124 hp power output
- Auxiliary and high-pressure hydraulics
- Hydraulic thumb
- Grade control and grade control ready
- Counterweight
- Cold weather package

Technical Data
Engine:
- Power output: 124 hp
- Engine power: 93 kW / 125 HP
- Engine model: Cummins QSB6.7
- Type: Turbocharged diesel
- Displacement: 6.7 L
- Fuel tank capacity: 280 L

Hydraulic System:
- Main pump: Variable displacement piston pump (2 x 180 L/min)
- Working pressure: 34.3 MPa
- Pilot pressure: 3.9 MPa
- Control system: Load-sensing hydraulic system
- Auxiliary hydraulics: Yes
- High pressure hydraulics: Yes
- Thumb type: Hydraulic

Work Area:
- Max digging depth: 6,020 mm
- Max digging reach: 8,770 mm
- Max dumping height: 6,290 mm
- Max digging force (bucket): 108 kN
- Max digging force (arm): 78 kN
- Swing speed: 10-12 rpm
- Travel speed: 5.2 km/h (max)
- Gradeability: 35 deg (70%)

Dimensions / Transport:
- Operating weight: 15.499 Ton

Attachments & Equipment:
- Counterweight

Documentation & Compliance:
- Tier 3 compliant
