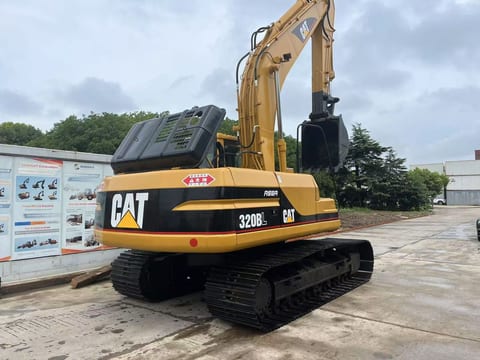

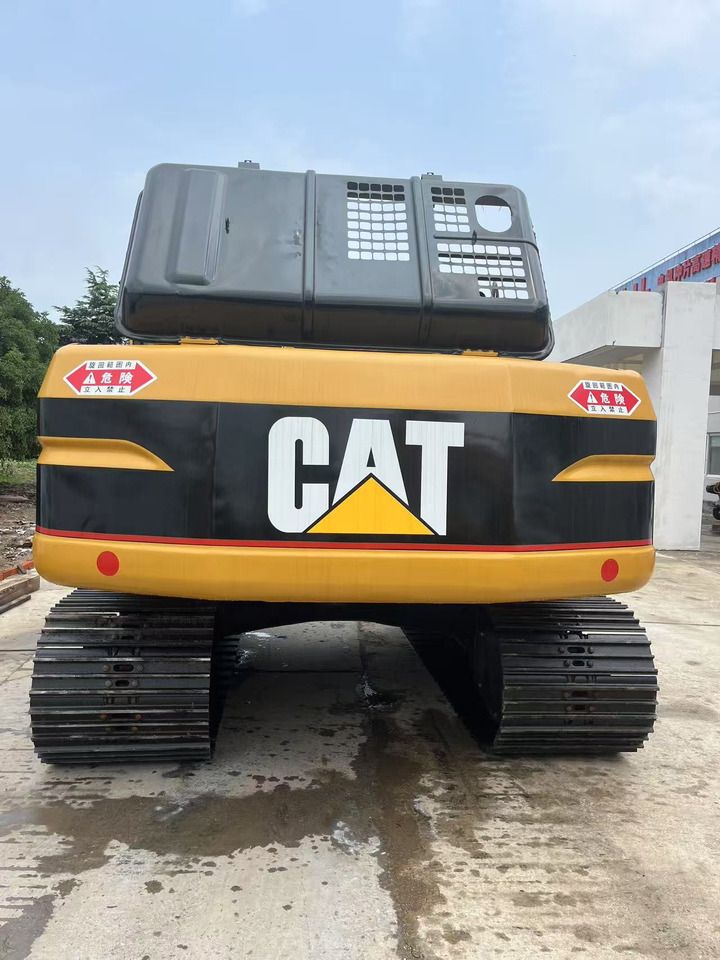

2023 Caterpillar 320BL Crawler Excavator

Caterpillar 320BL | 20,5 t | 10 units available
Location: Shanghai, China | Availability: 10 units available

Machine Overview:
2023 Caterpillar 320BL crawler excavator in excellent condition with 20,5 t operating weight. Powered by a Cat 3066T turbocharged 6-cylinder diesel engine, it has 138 hp, 800mm wide track, 6,65 m working depth and bucket, hydraulic hammer and counterweight equipment.

Key Features:
- 2023 machine in excellent condition
- 20,5 t operating weight
- Cat 3066T turbocharged 6-cylinder diesel engine
- Power output: 138 hp
- Working depth: 6,65 m
- Bucket capacity: 0.8 – 1.0 m³ (1.05 – 1.31 yd³)
- 800mm wide track stated in source description
- 10 units available

Technical Data

Engine:
- Fuel: diesel
- Engine: Cat 3066T (turbocharged, 6-cylinder diesel)
- Engine cylinders: 6
- Power output: 138 hp
- Displacement: 6400 cc
- Emission class: Euro 2
- Gearbox: manual
- Fuel tank: 360 L

Hydraulic System:
- Hydraulic system pressure: 34.5 MPa

Work Area:
- Working depth: 6,65 m
- Maximum reach at ground level: 9,850 mm
- Lift height: 6,85 m
- Turning radius: 9,85 m

Dimensions / Transport:
- Width: 3,18 m
- Height: 2,85 m
- Chassis height: 450 mm
- Wheel base: 3200 mm
- Track width: 2180 mm

Undercarriage:
- 800mm wide track

Attachments & Equipment:
- Bucket
- Hydraulic hammer
- Counterweight
- Standard Bucket Capacity (SAE Heaped): 0.8 – 1.0 m³ (1.05 – 1.31 yd³)
