2026 Gorila GX12 PRO Mini Excavator

Gorila GX12 PRO | 1,2 t | 13 hp
Location: Hořice, Czech Republic

Machine Overview:

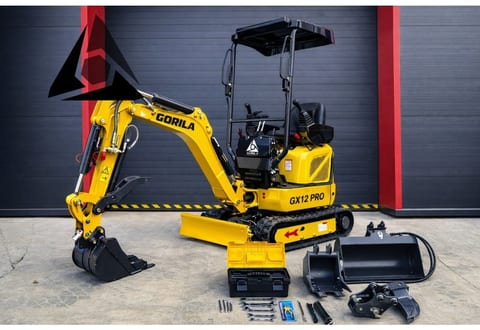

Gorila GX12 PRO compact crawler mini excavator with Kubota D722 engine, open canopy, expanding undercarriage and side swing digging. It is designed for tight spaces, with passage through 80 cm doors and an overall transport width of 75 cm.

Key Features:
- Kubota D722 three-cylinder diesel engine
- 10,2 kW / 2500 ot./min engine power stated in description
- Expanding undercarriage
- Two-speed track drive
- Side swing digging
- Removable ROPS protective frame
- Tilting joystick controls
- Rubber tracks

Technical Data

Engine:
- Engine brand: Kubota
- Model: D722
- Capacity: 719 cm³
- Power: 10,2 kW / 2500 ot./min
- Power output: 13 hp
- Fuel tank capacity: 12 l

Hydraulic System:
- Pump type: Gear pump
- Flow P1: 21 l/min
- Pressure P1: 17,2 MPa
- Flow P2: 3,1 l/min
- Pressure P2: 3,9 MPa
- Slewing motor: Piston motor
- Travel motor: Piston motor
- Hydraulic oil capacity: 12,6 l

Work Area:
- Maximum digging height: 3079 mm
- Maximum dumping height: 2225 mm
- Maximum digging depth: 1805 mm
- Maximum reach: 3390 mm
- Minimum turning radius: 1273 mm
- Digging force arm: 5,4 kN
- Digging force bucket: 10,4 kN
- Boom swing L/R: 55° / 55°

Dimensions / Transport:
- Overall length: 2965 mm
- Overall height: 2230 mm
- Overall width: 750 / 990 mm
- Ground clearance: 140 mm
- Transport width: 75 cm
- Working width: 99 cm

Undercarriage:
- Track type: Rubber tracks
- Track width: 180 mm
- Track length: 1310 mm
- Travel speed: 4 km/h
- Gradeability: 58 % / 30°
- Ground pressure: 29 kPa

Attachments & Equipment:
- Thumb
- Bucket 200 mm with teeth
- Bucket 400 mm with teeth
- Quick coupler
- Slope hydraulic bucket 800 mm
- Quick couplings
- Accessories including pins and hoses
- Toolbox with tools and grease gun
