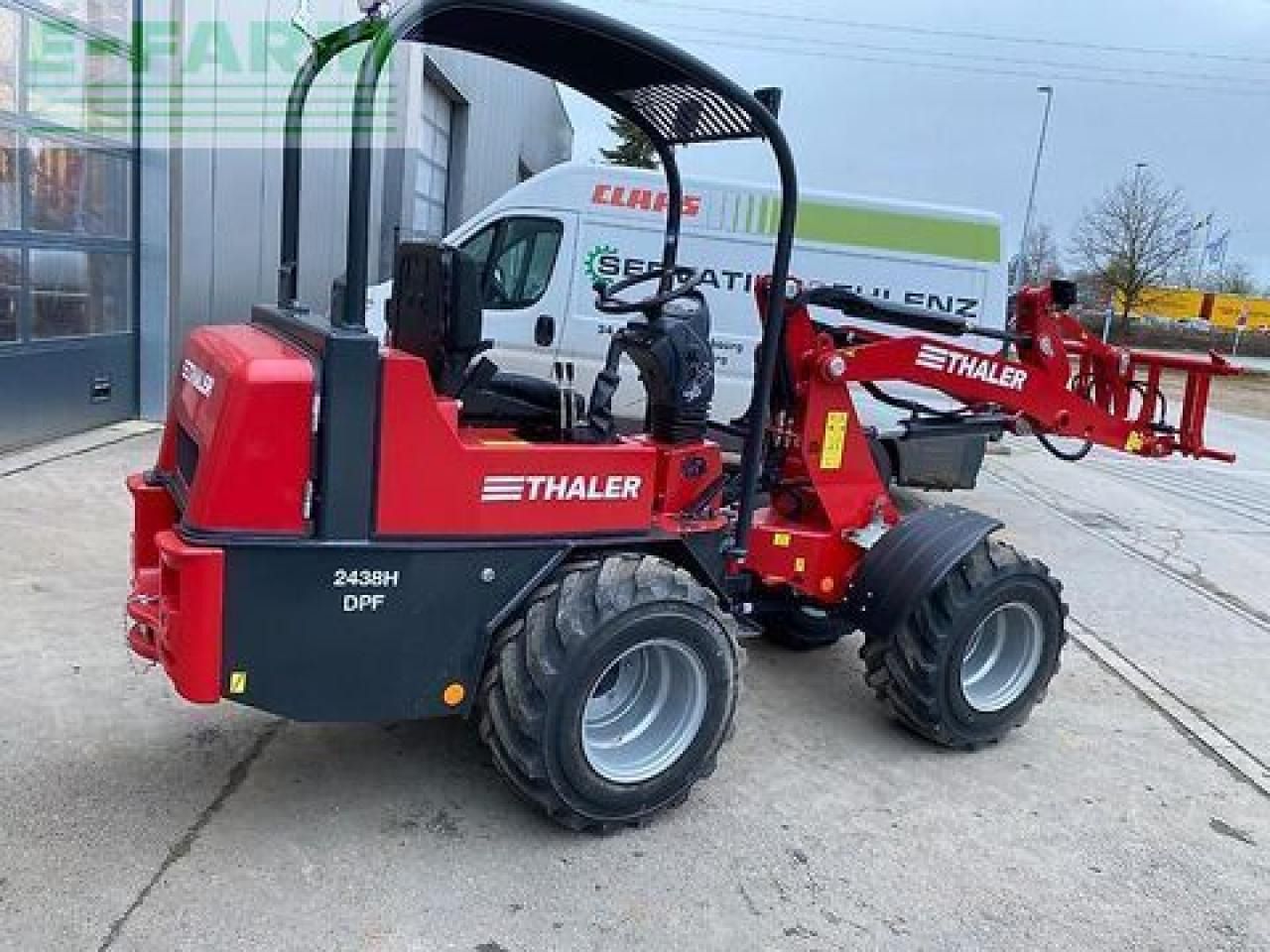

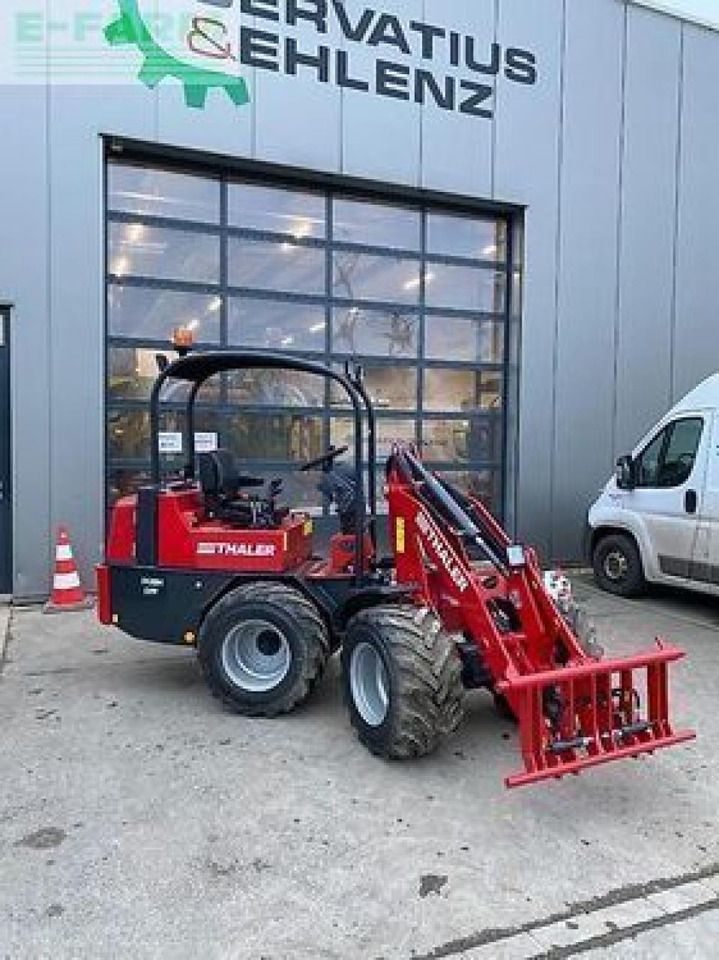

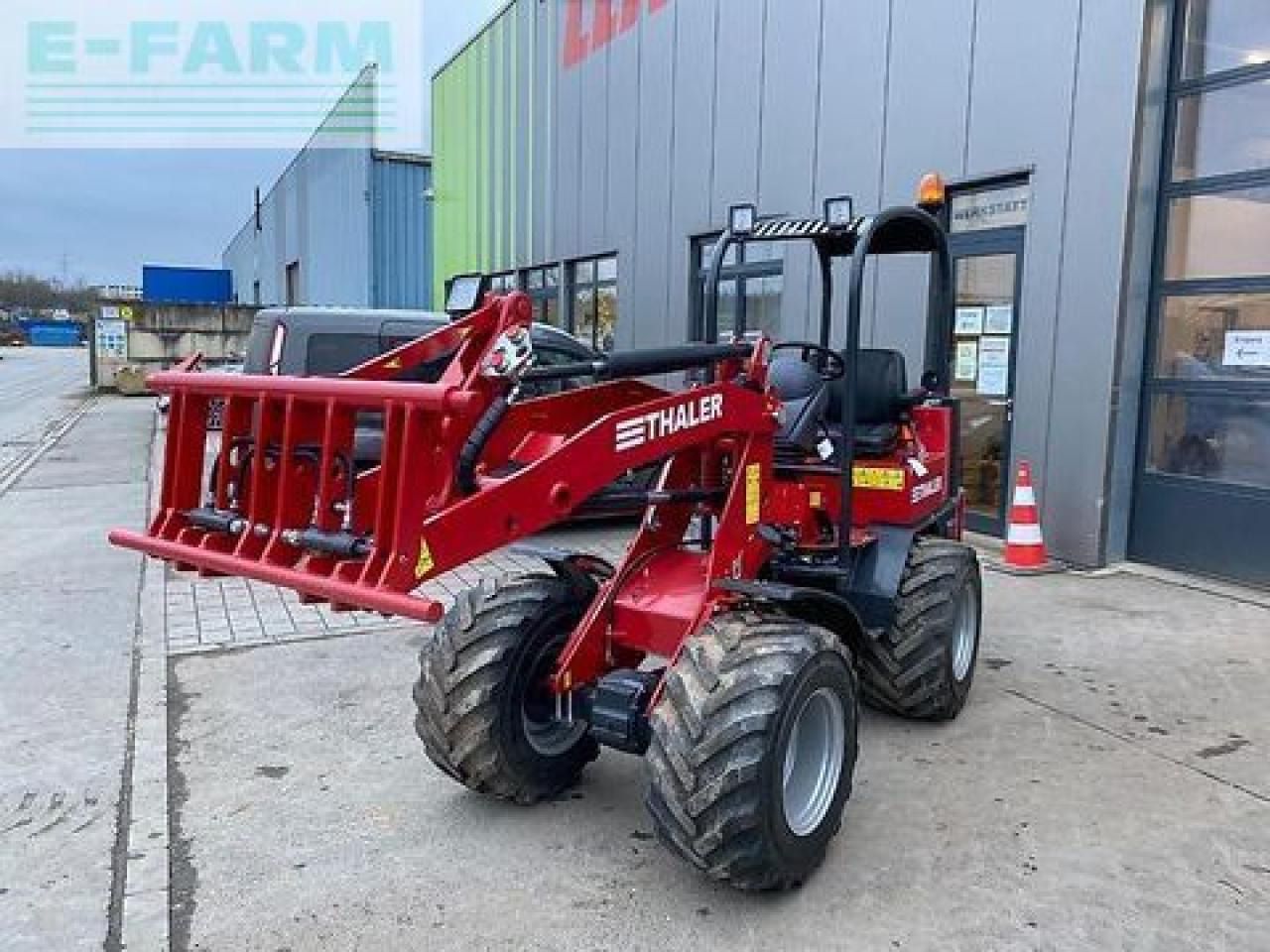

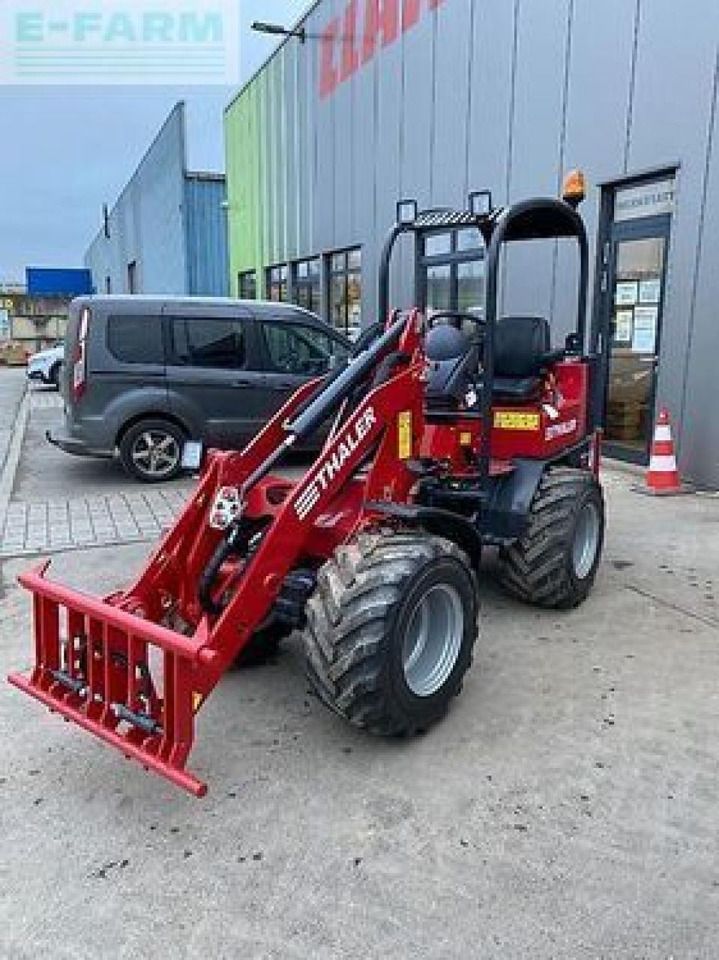

2024 Thaler 2438H Mini Excavator

Thaler 2438H
Location: Rittersdorf, Germany

Machine Overview:
Thaler 2438H loader from 2024 with hydrostatic all-wheel drive, automotive control and Stage V emissions equipment with DOC and DPF. Powered by a 3-cylinder water-cooled Yanmar engine.

Key Features:
- 2024 model year
- 3-cylinder water-cooled Yanmar engine
- 28 hp power output
- Hydrostatic all-wheel drive with automotive control
- 2-stage drive with inch pedal and fast/slow speed selection on joystick
- Working hydraulics up to 45 l/min
- Driver canopy with restraint system and safety belt
- Machine width approx. 1,12 m and height approx. 2,21 m

Technical Data

Engine:
- Yanmar 3-cylinder water-cooled engine
- Power output: 28 hp
- DOC and DPF emission standard Stage V

Hydraulic System:
- Work hydraulics max. 45 l/min
- Single-lever control with float position
- 3rd control circuit front with cylinder function (DN10)
- Fully hydraulic articulated oscillating steering

Dimensions / Transport:
- Machine width approx. 1,12 m
- Height approx. 2,21 m

Undercarriage:
- AS tyres with 6-hole rim
- Parking brake: drum brake on cardan shaft acting on all 4 wheels
