LiuGong 9035FZTS | 3,8 t | 2 hours | 12 months Warranty
Location: Shanghai, China

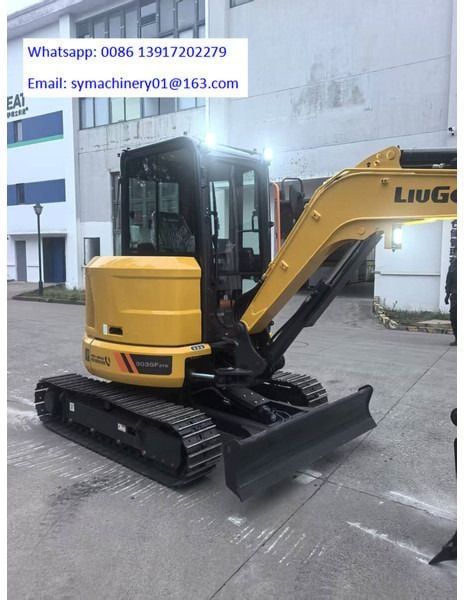

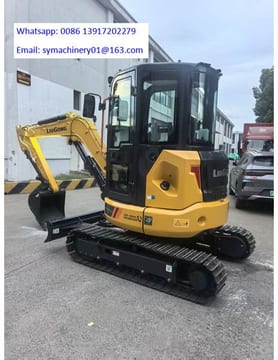

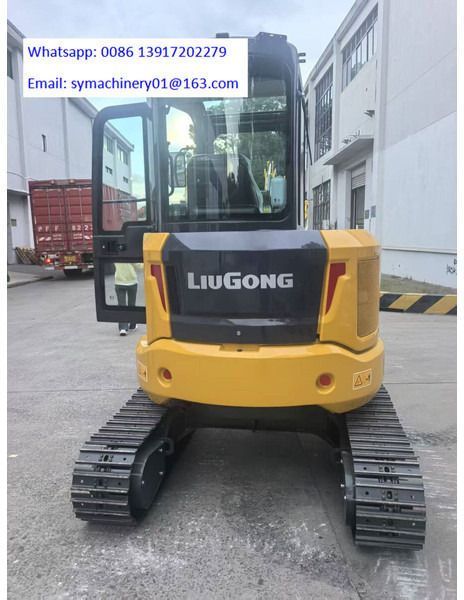

Machine Overview:

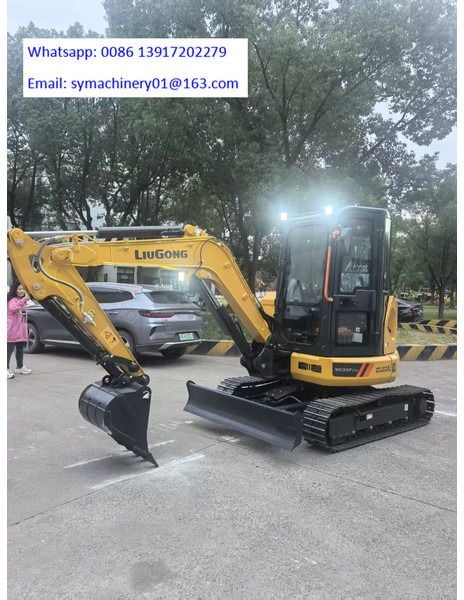

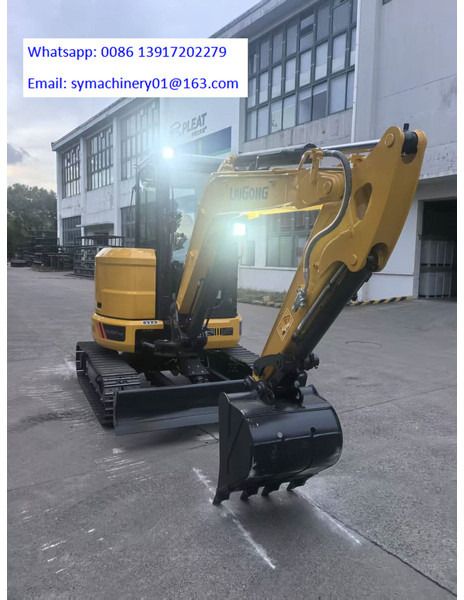

New 2025 LiuGong 9035FZTS mini excavator with diesel Yanmar engine, Stage V / Tier 4 F emissions, 0.11 m3 standard bucket capacity and 3085 mm digging depth.

Key Features:
- 2 hours
- New condition
- Yanmar diesel engine
- Standard bucket capacity 0.11 m3
- Digging depth 3085 mm
- Track shoe width 300 mm
- 12 months warranty

Technical Data

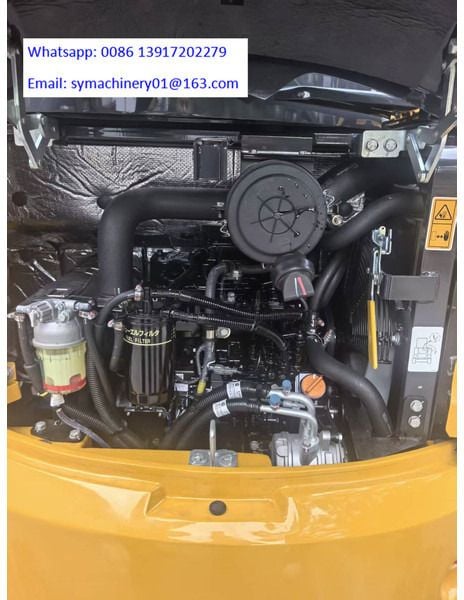

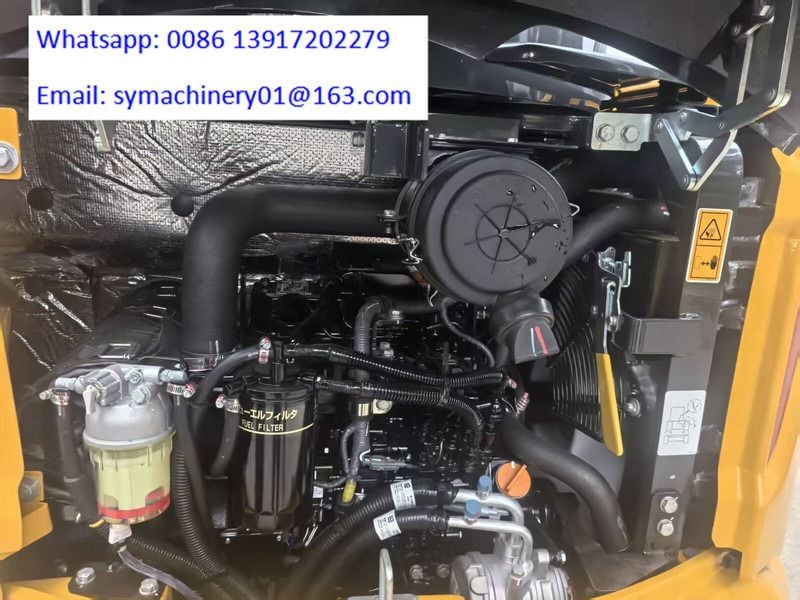

Engine:
- Fuel: diesel
- Engine: Yanmar
- Power output: 30 hp
- Emission: Tier 4 F / Stage V

Hydraulic System:
- System maximum flow 99 L/min (26.2 gal/min)
- System pressure 25.3 MPa

Work Area:
- Digging reach 5385 mm
- Digging reach on ground 5270 mm
- Digging depth 3085 mm
- Vertical wall digging depth 2503 mm
- Cutting height 4710 mm
- Dumping height 3310 mm
- Minimum front swing radius 2416 mm

Dimensions / Transport:
- Length: 4,85 m
- Width: 2,1 m
- Height: 2,5 m
- Shipping length 4810 mm
- Shipping width 1700 mm
- Shipping height 2500/2581 mm (cab/canopy)

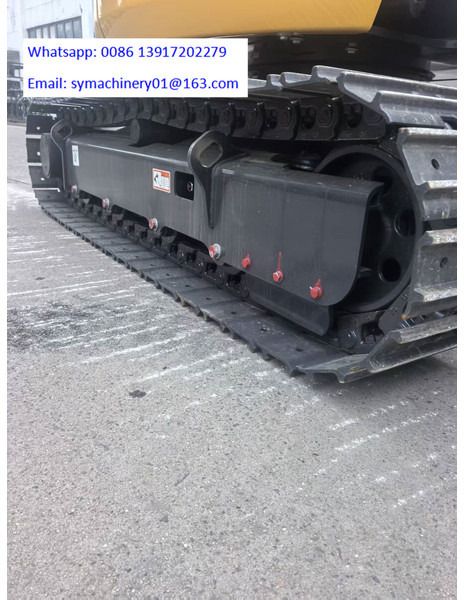

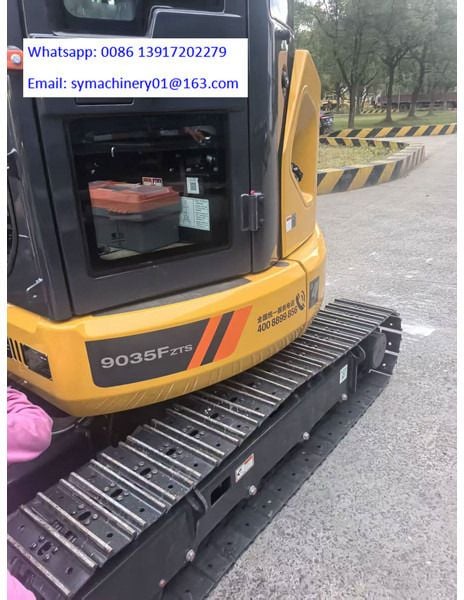

Undercarriage:
- Track width: 300 mm
- Travel speed high: 4.2 km/h
- Travel speed low: 2.5 km/h
