Kubota KX019 Mini Excavators for Sale

Browse 21 Kubota KX019 Mini Excavators machines on Machmon. Compare by model, location, and condition, then contact sellers using the enquiry options provided.
21 Classified ads
Kubota KX019 · Mini excavators

Kubota KX019

Use the Kubota KX019-4 stock above to compare year, hours, seller location and visible price across live listings.

Kubota KX019 excavator

Key specifications

Class
1.9 tonne mini excavator (KX019-4)
Engine
Kubota D902-E4 diesel, 11.8 kW / 16.0 PS at 2300 rpm (KX019-4)
Machine weight
1780 kg cabin / 1680 kg canopy (KX019-4)
Max digging depth
2580 mm (KX019-4)
Max reach
4070 mm (KX019-4)
Max digging force
15.9 kN bucket, 7.8 kN arm (KX019-4)
Track width
990 to 1300 mm, adjustable (KX019-4)
Protective structures
ROPS (roll-over, ISO 3471) and TOPS (tip-over) certified, OPG Level 1 falling-object guard (KX019-4)

Model overview

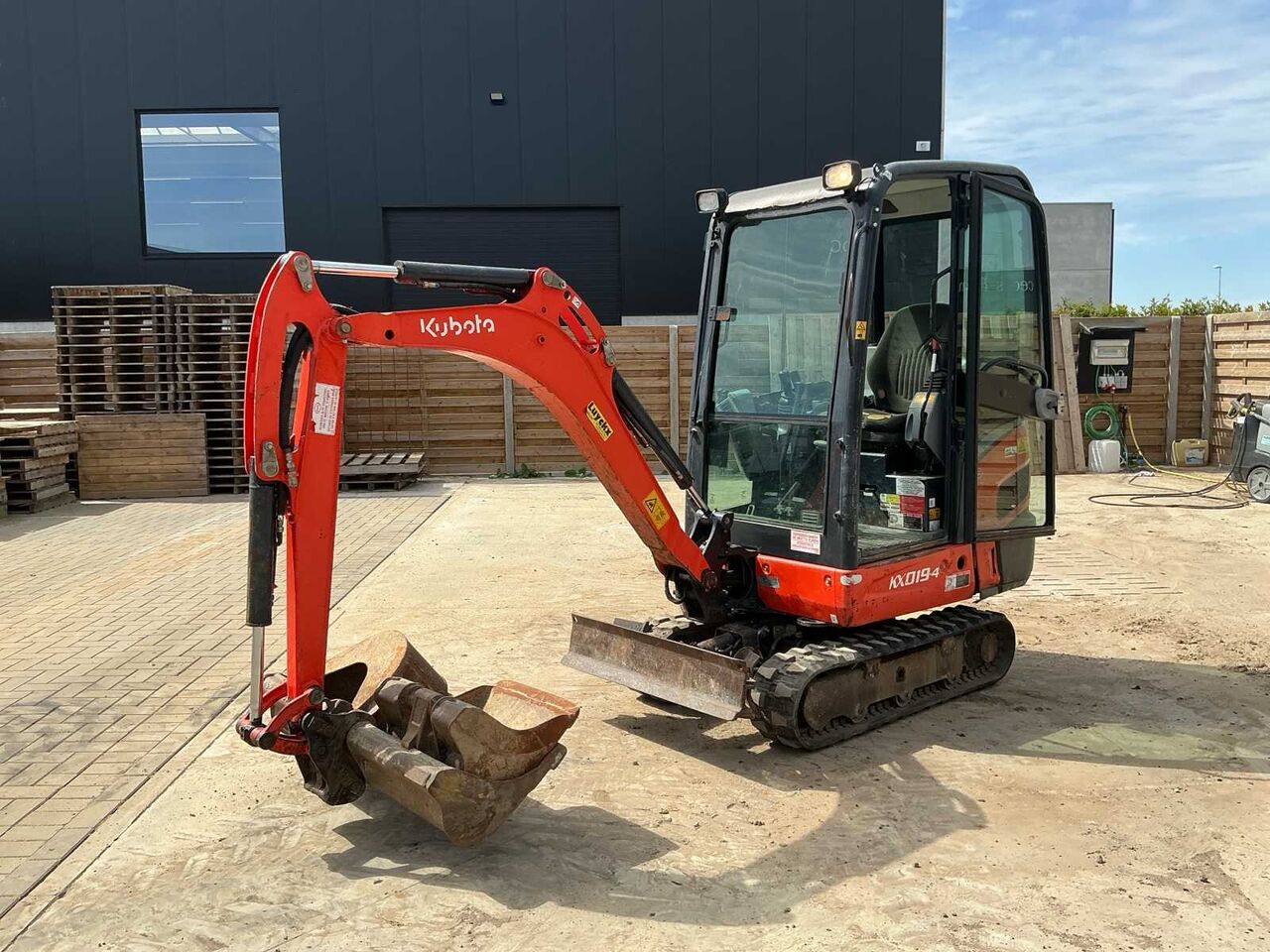

The Kubota KX019-4 is a 1.9-tonne class mini excavator built for roadside, residential and other space-restricted work. Adjustable tracks retract to 990 mm and extend to 1300 mm, letting the machine pass through narrow gateways and doorways while retaining stability once widened for digging. Power comes from Kubota's D902-E4 diesel engine, rated at 11.8 kW (16.0 PS). The machine offers a maximum digging depth of 2580 mm and a maximum reach of 4070 mm, with a topside-mounted boom cylinder positioned to reduce damage risk on tight sites. Standard protective structures include ROPS and TOPS certification (roll-over and tip-over protection) plus an OPG Level 1 guard against falling objects, and the machine ships with an anti-theft system using a programmed key.

At a glance

Cabin or canopyMachine weight differs by 100 kg between the cabin and canopy configuration, check which variant each listing offers.

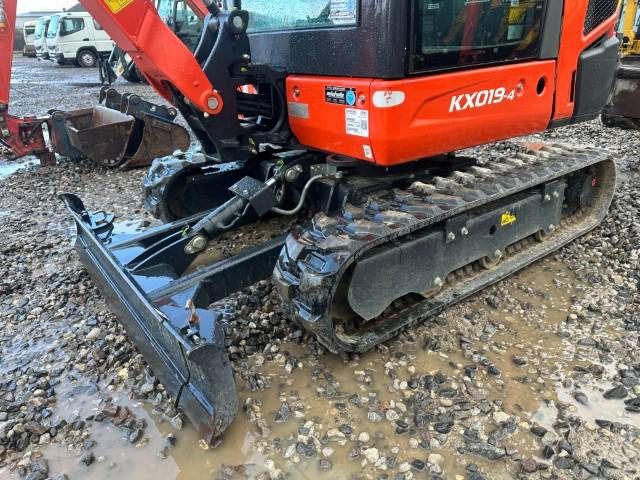

Track width settingThe adjustable undercarriage runs from 990 mm to 1300 mm, useful when a job needs narrow-access travel.
Route matchConfirm each listing is the Kubota KX019 route before comparing price, year and seller details.
Visible price and POA stockCompare priced listings separately from machines where the seller asks for enquiry before quoting.
Hours, year and configurationUse the live filters and listing cards to compare age, operating hours and visible configuration details.

4672 machines · €390 - €498,960 · 1989 to 2026 · China, Germany, Netherlands

View all Kubota KX019 listingsOpen filters

Specifications sourced from kuk.kubota-eu.com (official manufacturer page).
