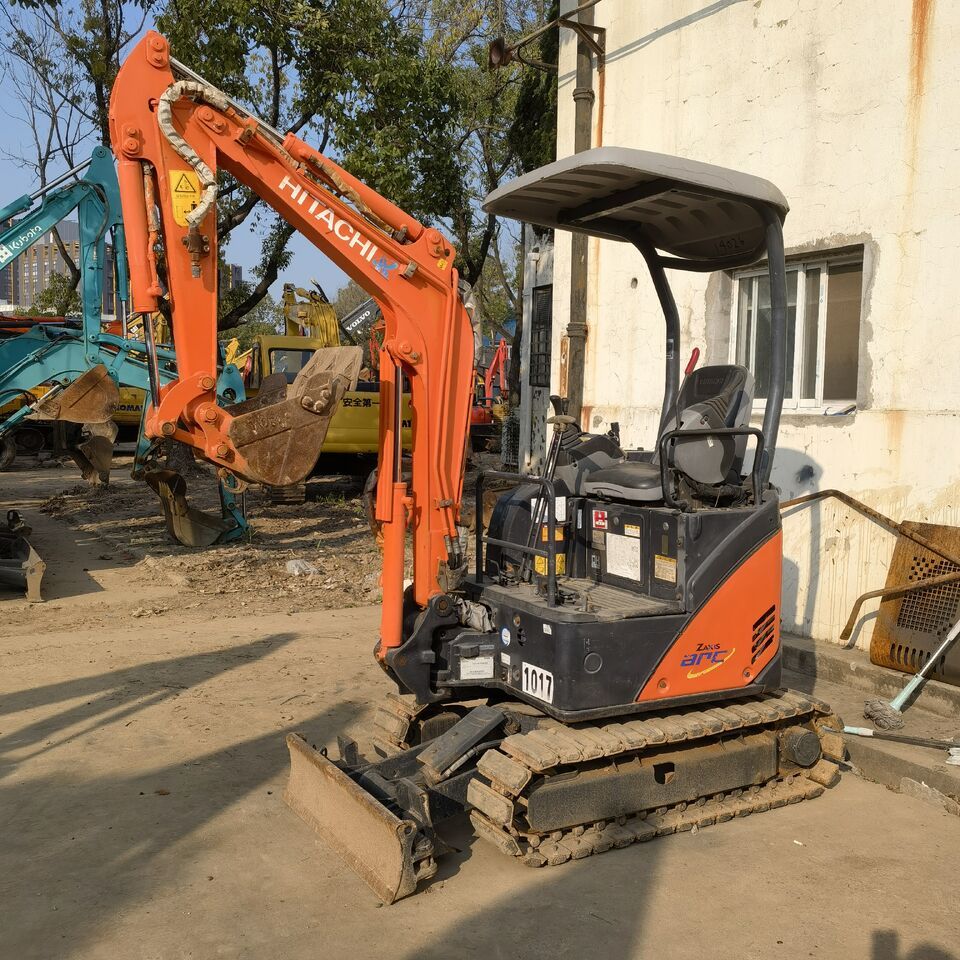

2024 Hitachi ZX17U-2 Mini Excavator

Hitachi ZX17U | 2000 hours
Location: Shanghai, China | Availability: 5 units available

Machine Overview:
The Hitachi ZX17U-2 is a tight-tail swing mini excavator ideal for indoor, landscaping and urban construction. Powered by a Yanmar 3TNV70 3-cylinder diesel engine with 854 cc displacement, it outputs 11.0 kW (15 HP) at 2400 rpm. Operating weight 1,850 kg, bucket capacity 0.02-0.05 m³.

Key Features:
- 675 mm short tail swing
- Retractable undercarriage (min. 980 mm width)
- 230 mm rubber tracks
- Digging force: bucket 16.0 kN, arm 10.3 kN
- Max digging depth 2,170 mm
- Fuel tank 19.5 L

Engine:
- Yanmar 3TNV70, 3-cylinder diesel, 854 cc, 15 HP at 2400 rpm
- Emission class: Euro 3

Hydraulic System:
- Hydraulic tank capacity: 35 L

Work Area:
- Max digging depth: 2,170 mm
- Bucket capacity: 0.02-0.05 m³
- Bucket digging force: 16.0 kN, arm digging force: 10.3 kN

Dimensions / Transport:
- Transport length: 3.59 mm, width: 1.28 mm, height: 2.4 mm
- Turning radius: 675 mm

Undercarriage:
- Retractable undercarriage, 230 mm rubber tracks

Documentation & Compliance:
- Emission class: Euro 3
