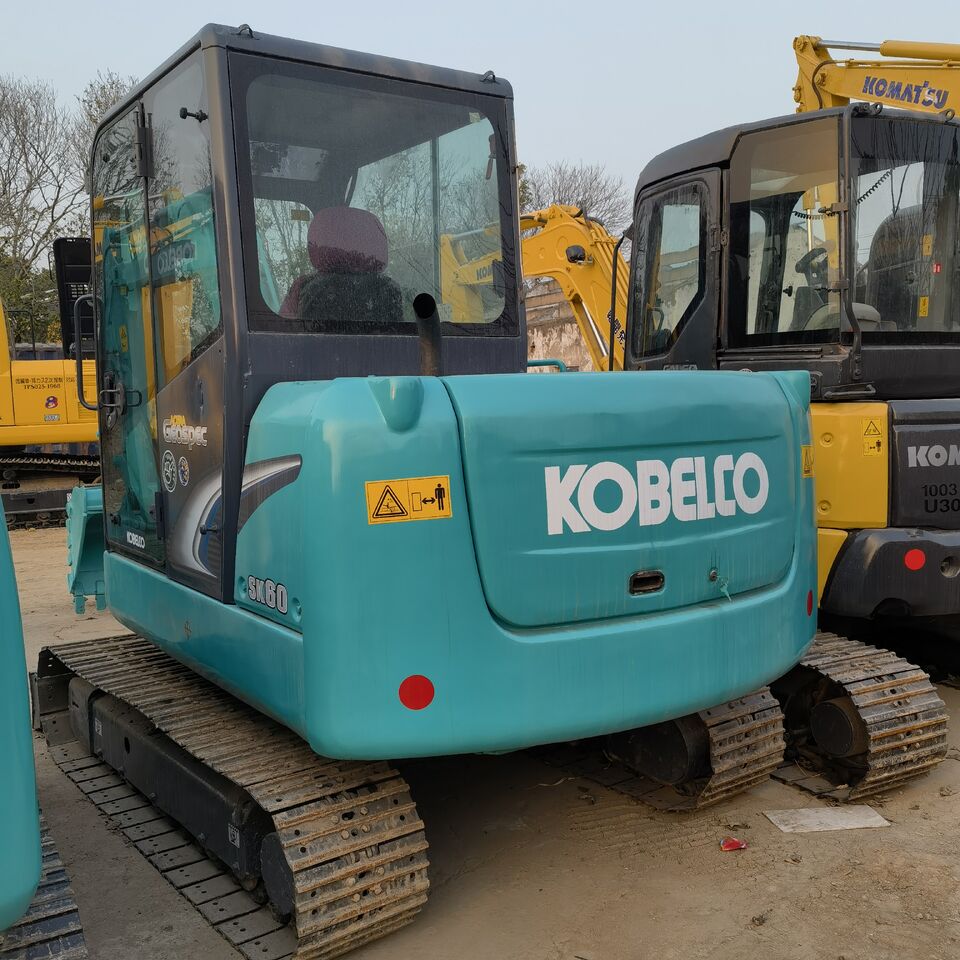

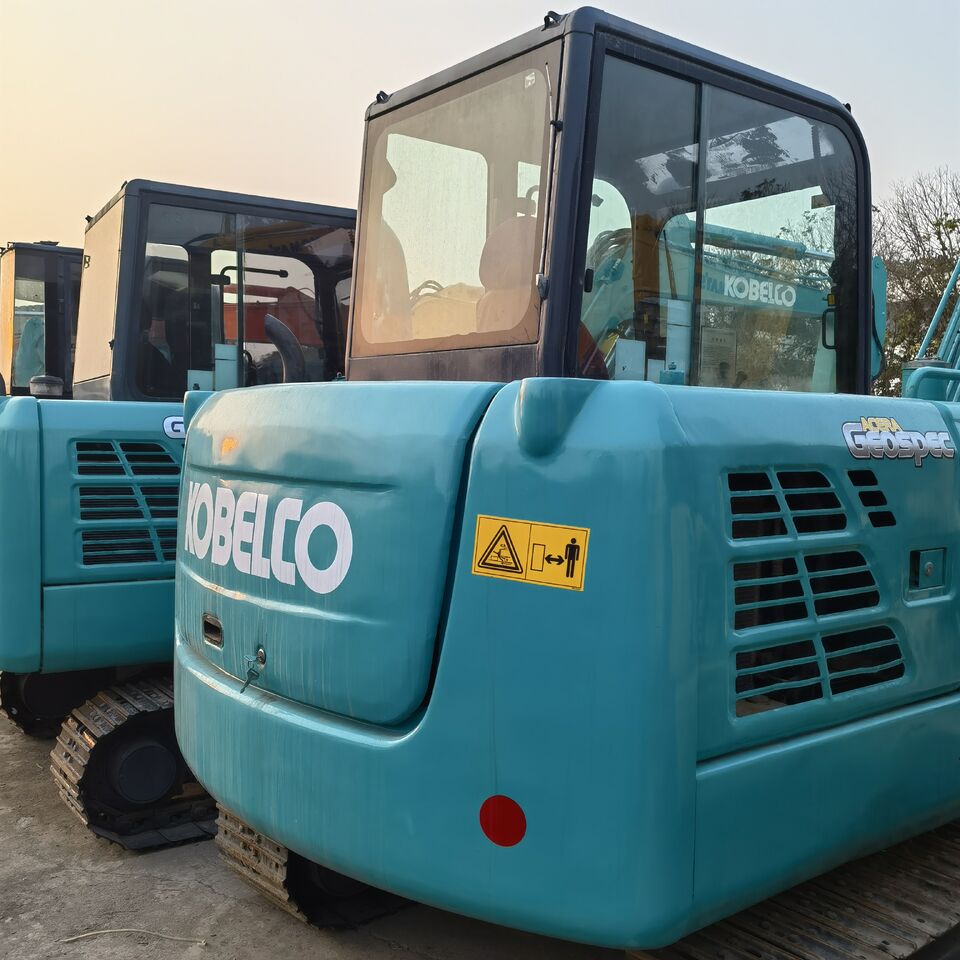

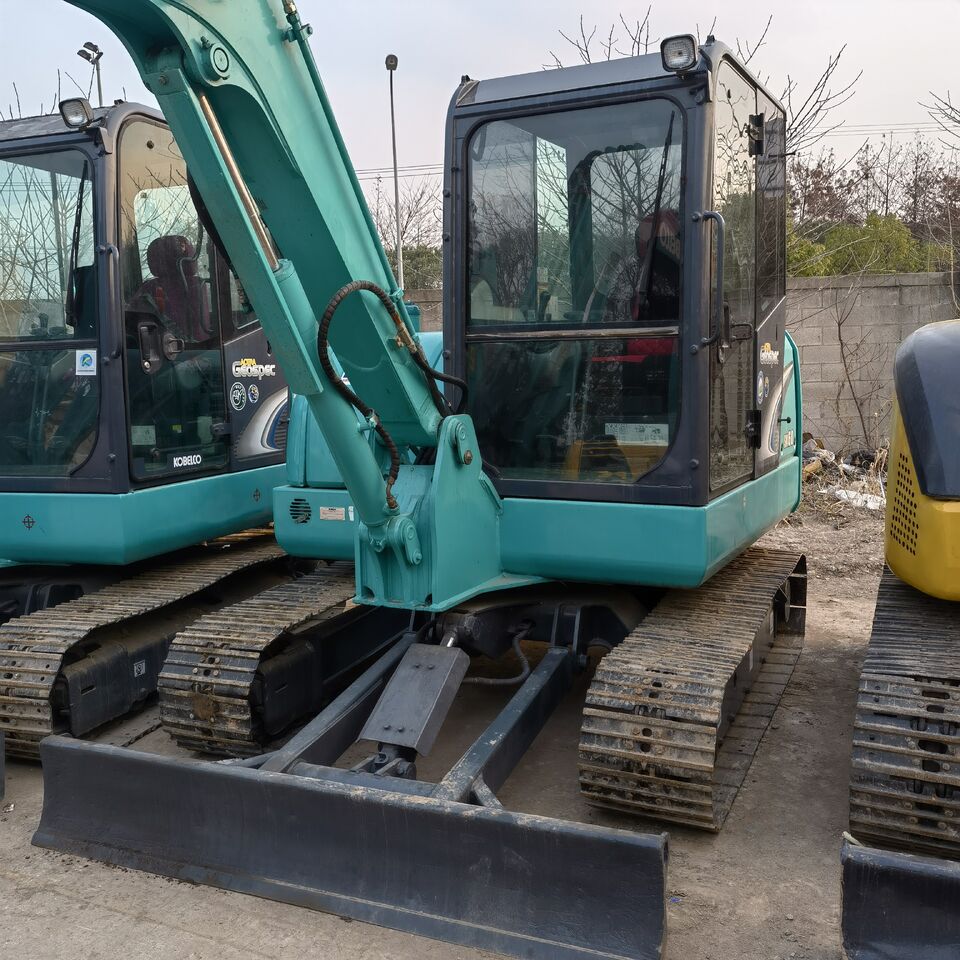

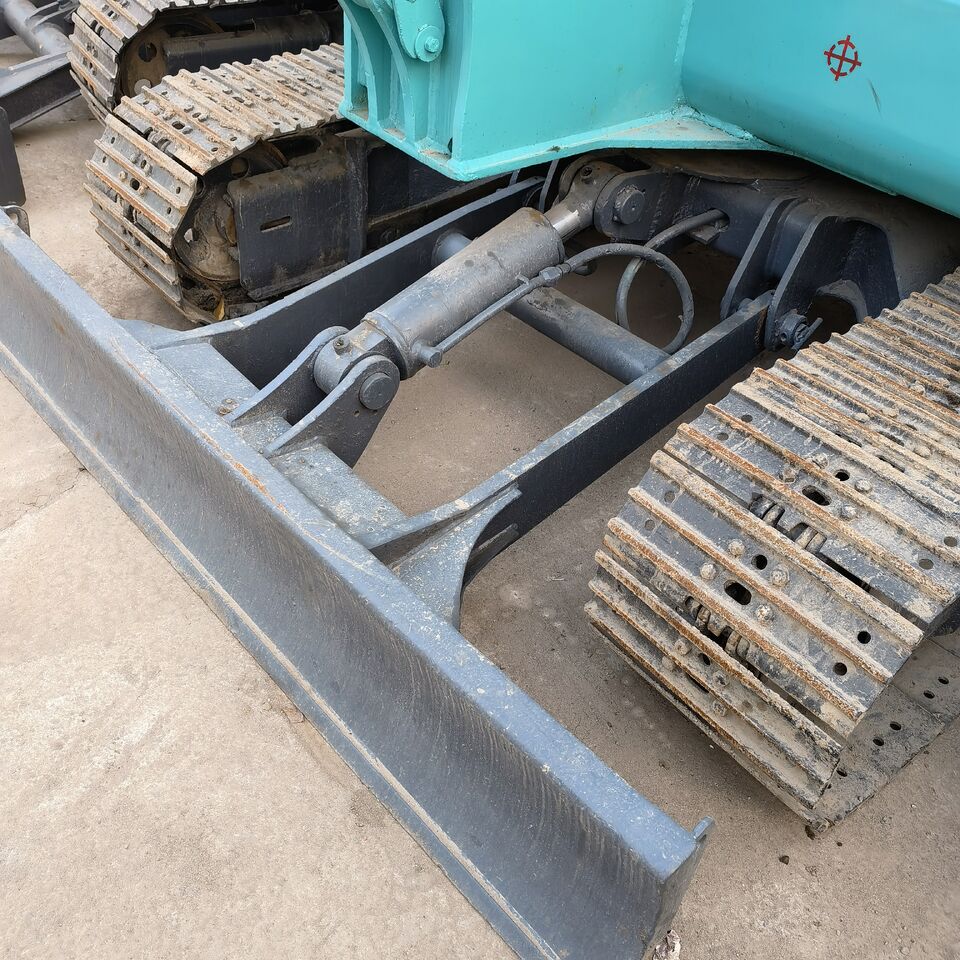

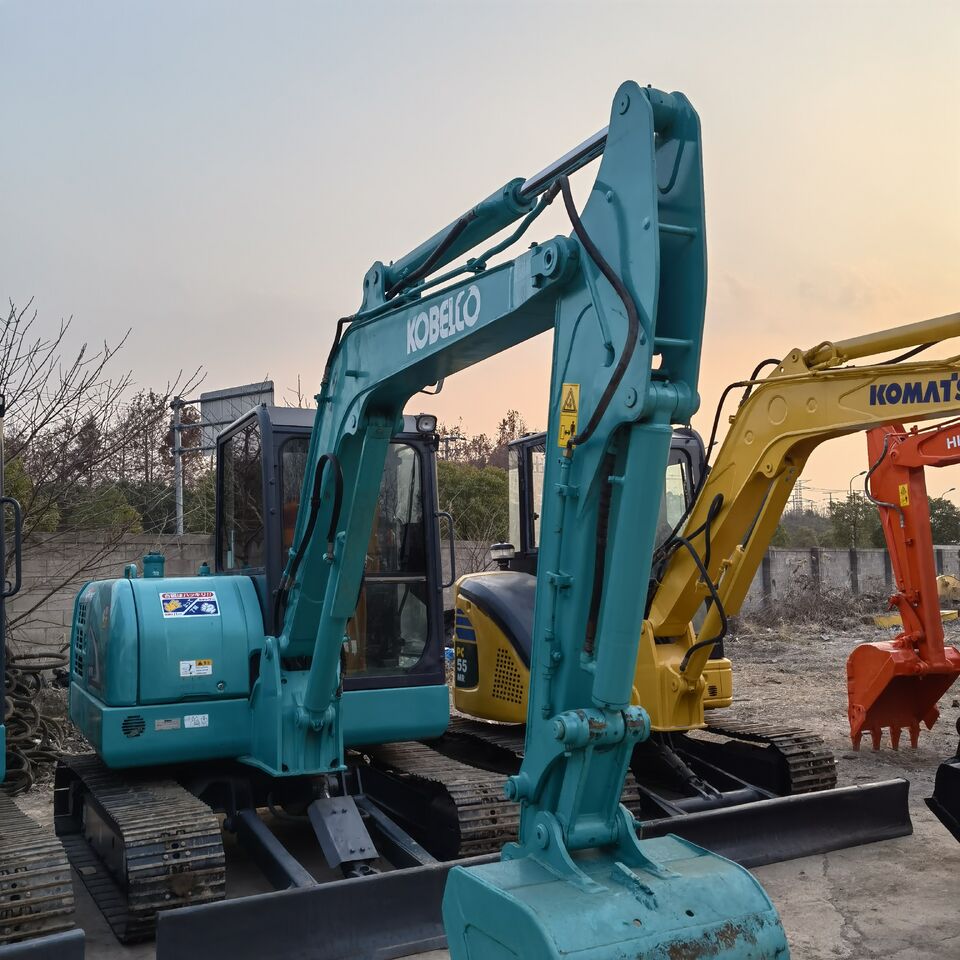

2023 Kobelco SK60-10

Kobelco SK60-10 | 5.8 t | 2000 hours
Location: Shanghai, China | Availability: 5 units available

Machine Overview:
Kobelco SK60-10 compact excavator, 2023 model. Powered by Yanmar 4TNV94L diesel engine (35.5 kW, 3.053 L). Bucket capacity 0.22 m³. Maximum digging depth 3910 mm, bucket digging force 40.5 kN. Travel speeds 2.5/4.2 km/h, gradeability 58%.

Key Features:
- Yanmar 4TNV94L 4-cylinder diesel engine, 35.5 kW (48 hp)
- Maximum digging depth 3910 mm
- Bucket digging force 40.5 kN, arm digging force 25.1 kN
- Tail swing radius 1680 mm for compact operation
- Travel speeds 2.5/4.2 km/h, 58% gradeability
- Fuel tank 120 L, hydraulic tank 41 L
- Euro 3 emission standard

Technical Data:
Engine: Yanmar 4TNV94L, 4 cylinders, 3.053 L, 35.5 kW (48 hp) at 2400 rpm, diesel, Euro 3.
Hydraulic System: Hydraulic tank capacity 41 L.
Work Area: Maximum digging radius 6200 mm, maximum digging depth 3910 mm, bucket digging force 40.5 kN, arm digging force 25.1 kN.
Dimensions: Length 5.85 m, width 1.9 m, height 2.55 m.
Undercarriage: Travel speeds 2.5/4.2 km/h, gradeability 58%.
Attachments: Standard bucket 0.22 m³.
Documentation: 2023 model, excellent condition, Euro 3 compliant.
