2023 Hyundai R485LC-9T

Hyundai R485LC-9T | 2000 hours
Location: Shanghai, China | Availability: 5 units available

Machine Overview:

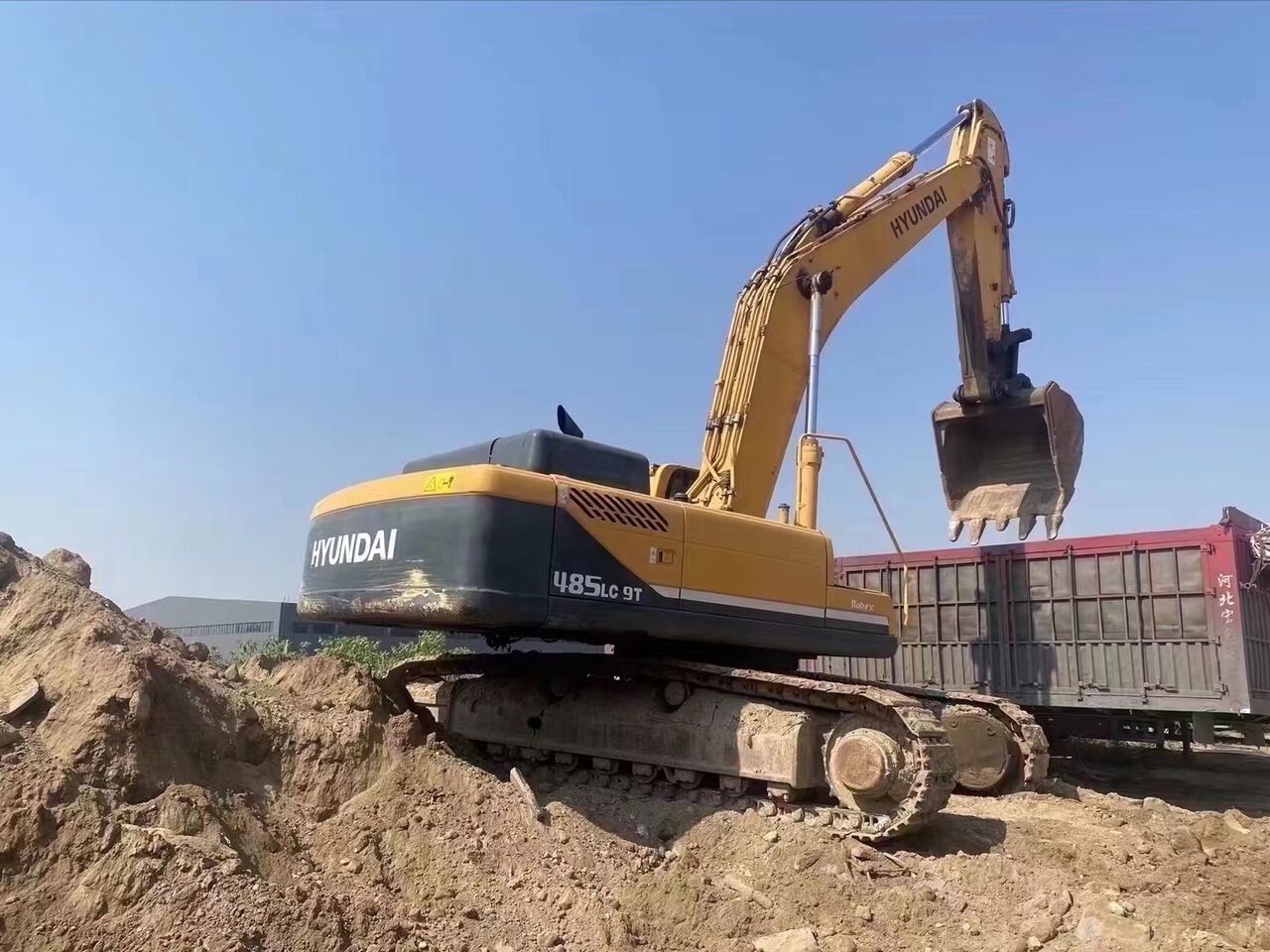

This Hyundai R485LC-9T crawler excavator is a 48.1-ton heavy-duty machine with a Cummins QSM11-C engine, built for mining, quarrying, and large-scale earthmoving.

Key Features:
- Cummins QSM11-C 6-cylinder turbocharged diesel engine, 10.8L displacement
- 353 hp (263 kW) at 1900 rpm, Tier 3 / Euro 3 compliant
- Standard heavy-duty bucket capacity 2.05 m³
- Operating weight 48,100 kg
- Max digging depth 7,810 mm, max digging radius 12,100 mm
- Bucket breakout force 255 kN, arm force 199.1 kN
- Travel speeds 3.2 / 5.0 km/h, gradeability 70%

Engine:
- Cummins QSM11-C, 6 cylinders, 10.8L, 353 hp, diesel, Euro 3 emissions
- Hydraulic tank capacity 620 L

Technical Data:
- Transport length 12,060 mm, width 3,340 mm, height 3,730 mm
- Tail swing radius 3,750 mm, ground clearance 555 mm
- Swing speed 9.0 rpm
