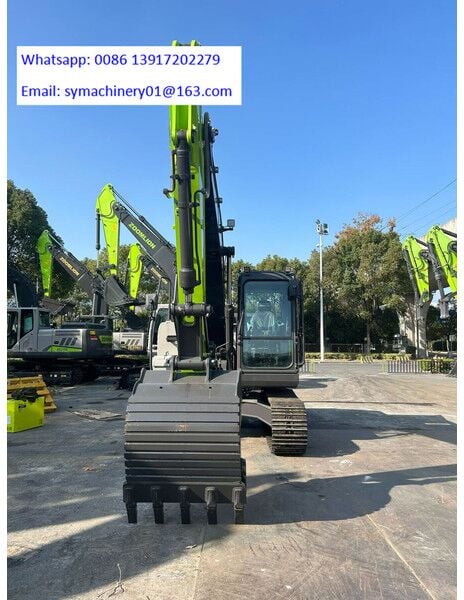

2026 Zoomlion ZE135G Crawler Excavator

Zoomlion ZE135G | 13,5 t | 12 months warranty
Location: Shanghai, China

Machine Overview:
2026 Zoomlion ZE135G tracked excavator in new condition with 13,5 t net weight. Powered by a Cummins diesel engine with 121 hp, with working range and hydraulic specifications supplied.

Key Features:
- 2026 Zoomlion ZE135G tracked excavator
- New condition
- 13,5 t net weight
- Cummins diesel engine
- 121 hp power output
- 0.6 m³ bucket volume
- 12 months warranty

Technical Data
Engine:
- Engine: Cummins
- Engine model: Cummins QSF4.5
- Fuel: diesel
- Rated power: 89 kW / 2200 rpm
- Power output: 121 hp
- Emission standard: China Non-road Stage IV

Hydraulic System:
- System type: Positive Flow Control, Dual Variable Main Pump
- Main pump flow: 2×126 L/min
- Main system pressure: 34.3 MPa
- Swing pressure: 27.5 MPa
- Swing speed: 12 rpm
- Travel speed: Low 3.0 km/h / High 5.4 km/h
- Gradeability: 70%

Work Area:
- Max digging radius: 8,420 mm
- Max digging depth: 5,505 mm
- Max digging height: 8,465 mm
- Max dumping height: 6,050 mm
- Bucket volume: 0.6 m^3

Dimensions / Transport:
- Length: 7,7 m
- Width: 2,49 m
- Height: 2,84 m
- Overall dimension: 7700×2490×2835 mm

Undercarriage:
- Track gauge: 1,990 mm
- Track shoe width: 500 mm
- Track rollers each side: 7 pcs
- Top rollers each side: 1 pc

Documentation & Compliance:
- Warranty: 12 months
