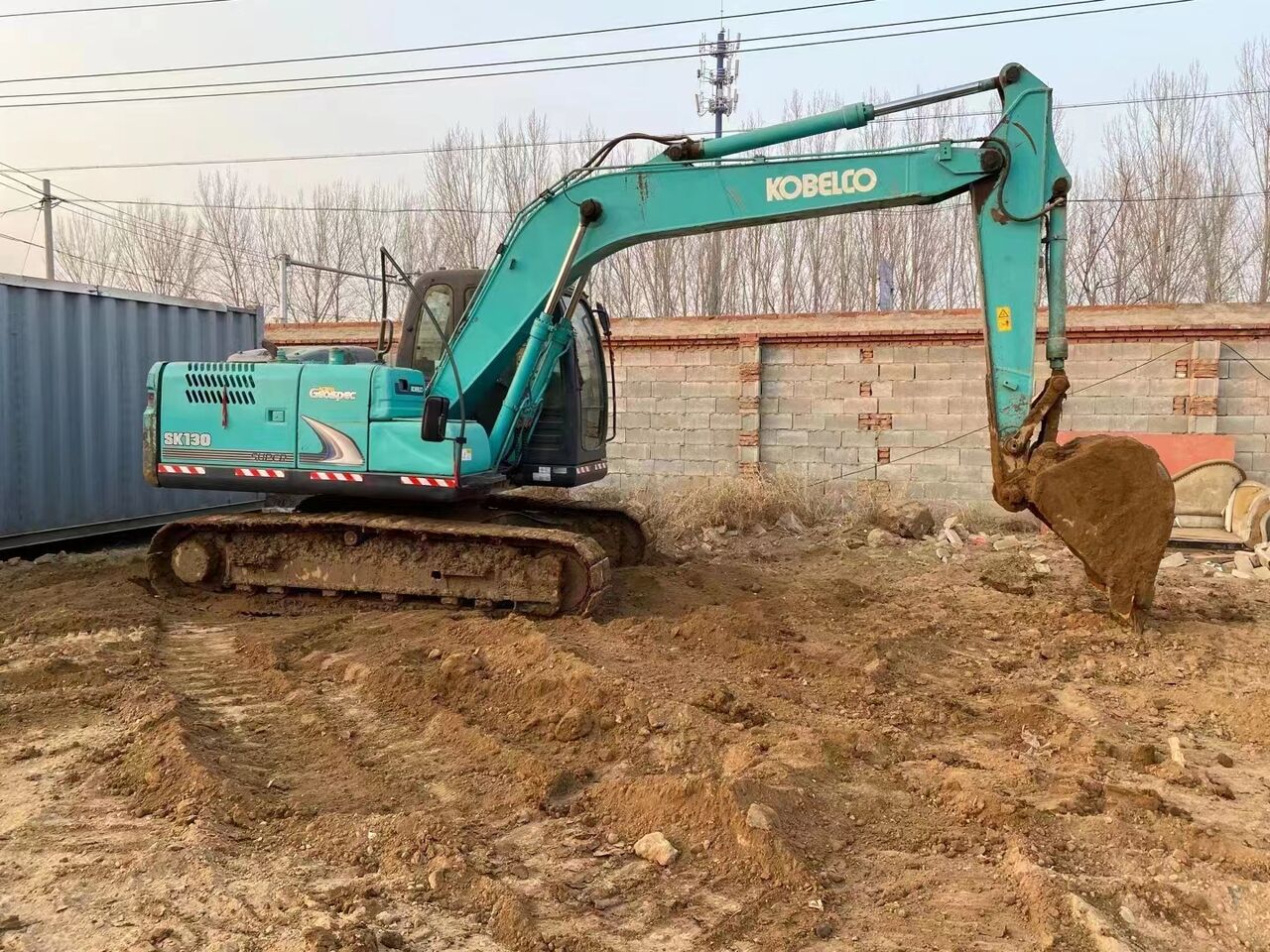

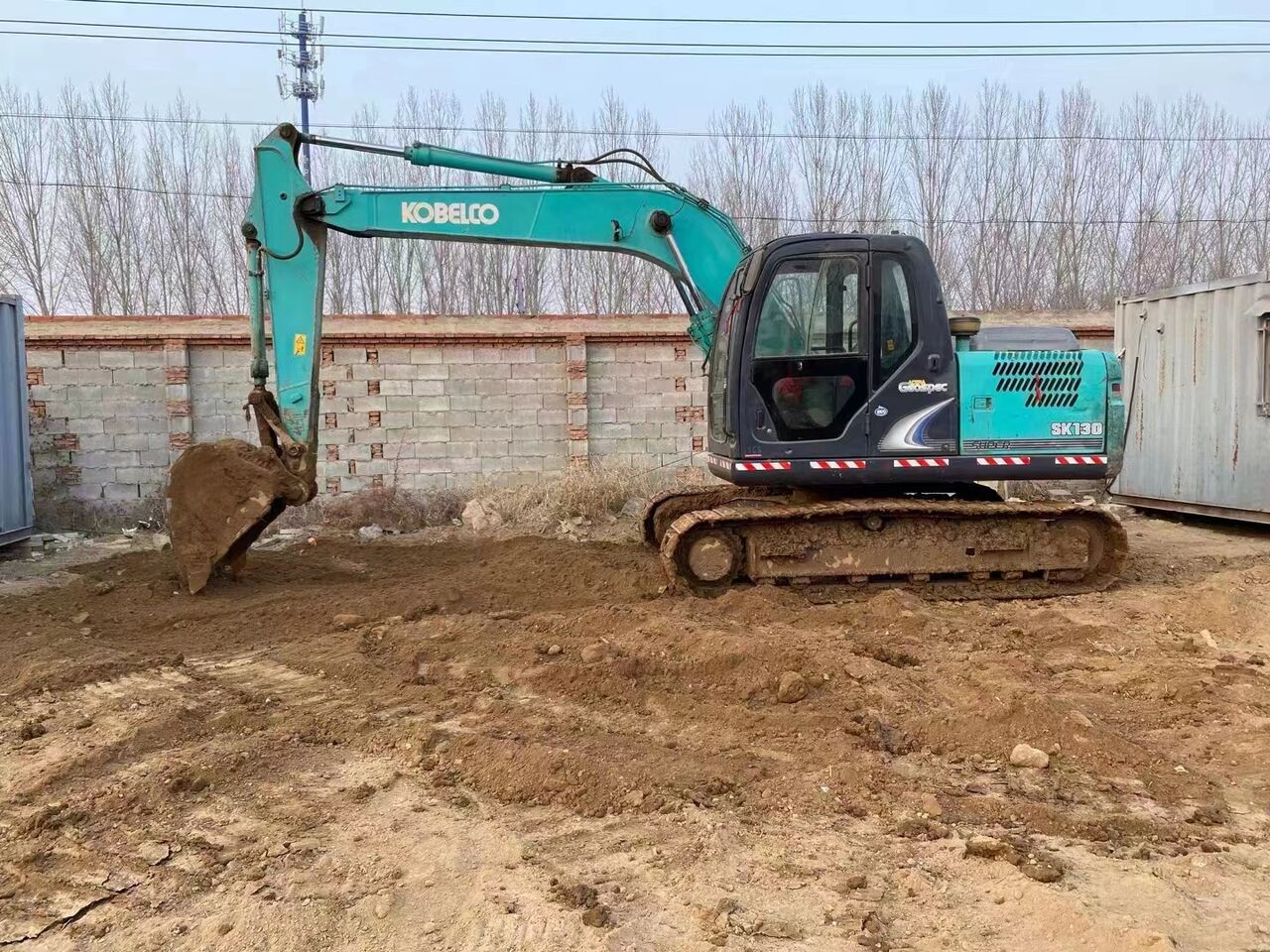

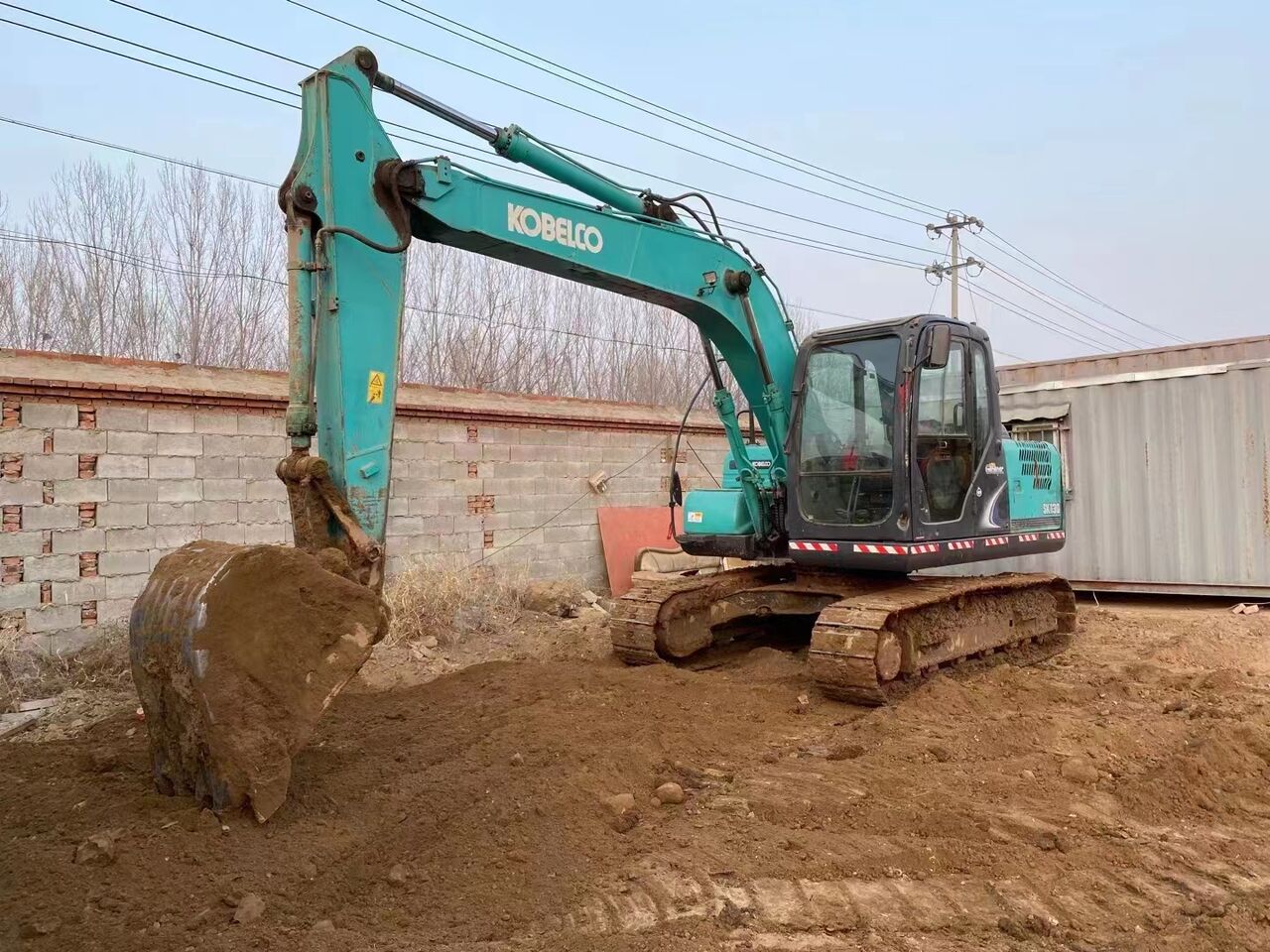

2024 Kobelco SK130-8 Crawler Excavator

Kobelco SK130-8 | 13 ton Crawler Excavator | 2000 hours
Location: Shanghai, China | Availability: 5 units available

Machine Overview:
The Kobelco SK130-8 is a 13-ton crawler excavator built for earthmoving, municipal works, and infrastructure projects. Powered by a Mitsubishi D04FR-KDP2TAAC turbocharged diesel engine with 99 hp, it delivers reliable performance for medium to large earthwork tasks.

Key Features:
- Operating weight of 12,800 kg with a standard bucket capacity of 0.52 m³
- Mitsubishi 4-cylinder diesel engine, 4.249 L displacement, Tier 3 compliant
- Maximum digging depth of 5,520 mm and digging radius of 8,340 mm
- Bucket digging force of 90.1 kN and arm digging force of 64.4 kN
- Travel speeds of 3.4/5.6 km/h with 70% gradeability
- Fuel tank capacity of 275 L and hydraulic tank capacity of 101 L
- Tail swing radius of 2,190 mm for confined spaces

Technical Data

Engine:

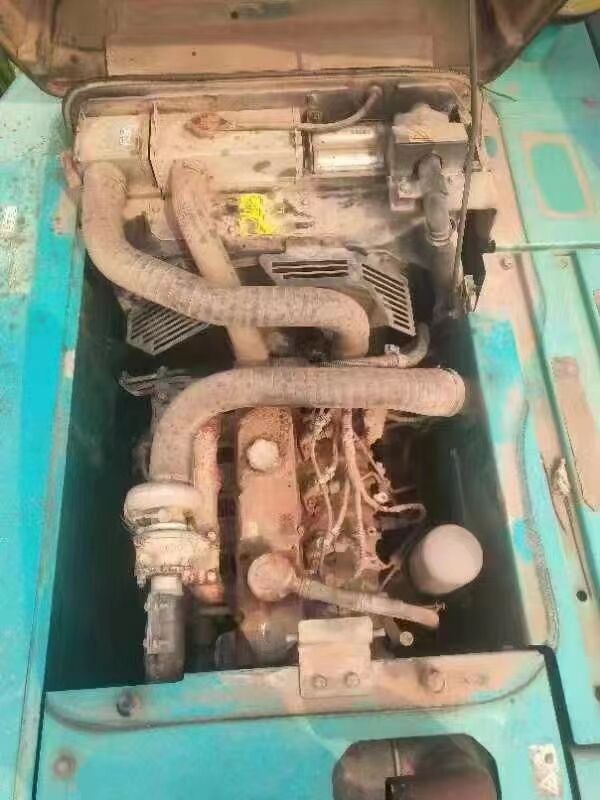

- Engine: Mitsubishi D04FR-KDP2TAAC
- Power output: 99 hp (74 kW) at 2000 rpm
- Displacement: 4,249 cc, 4 cylinders
- Emission class: Euro 3
- Fuel: Diesel

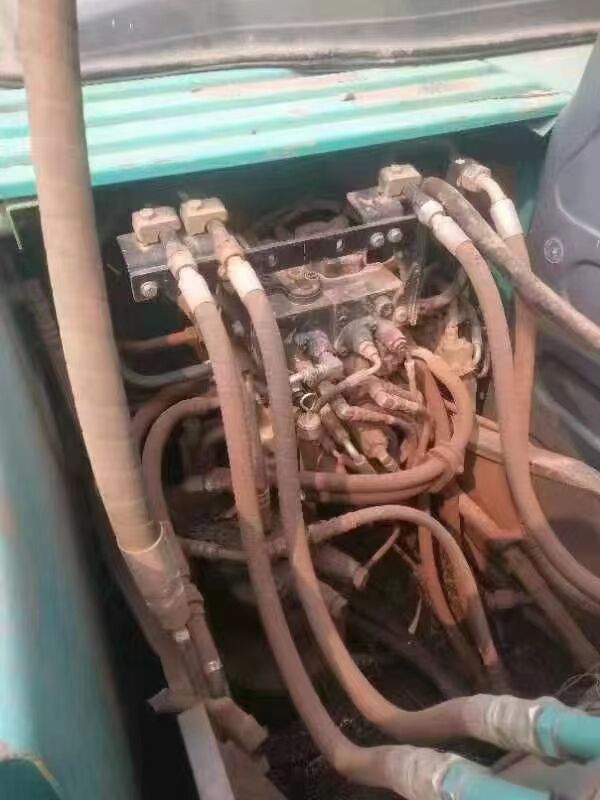

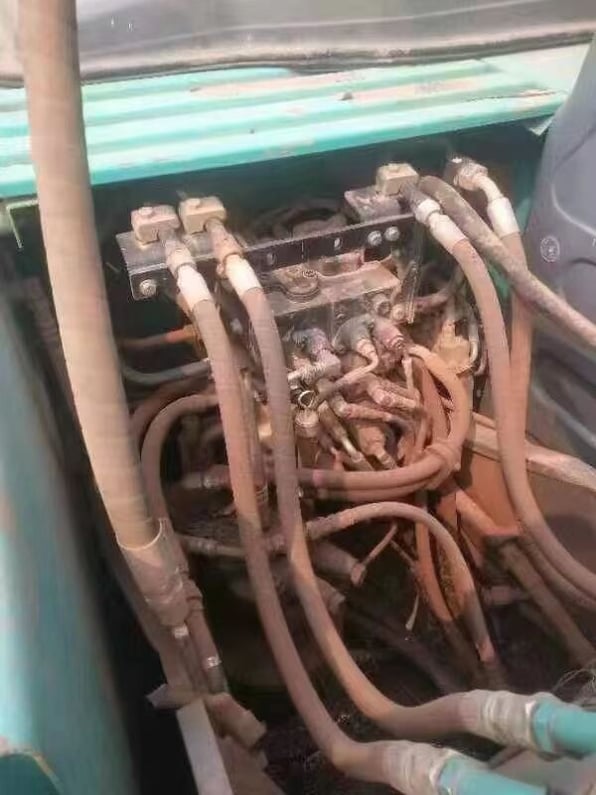

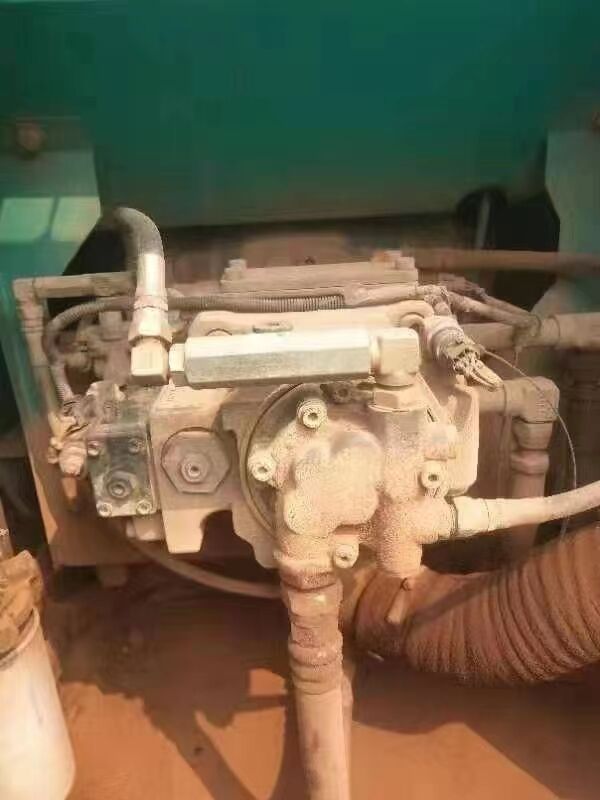

Hydraulic System:
- Hydraulic tank capacity: 101 L

Work Area:
- Maximum digging radius: 8,340 mm
- Maximum digging depth: 5,520 mm
- Bucket digging force: 90.1 kN
- Arm digging force: 64.4 kN
- Standard bucket capacity: 0.52 m³

Dimensions / Transport:
- Transport length: 7.79 m, width: 2.49 m, height: 2.71 m
- Tail swing radius: 2,190 mm

Documentation & Compliance:
- Year of manufacture: 2024
- Condition: Excellent
