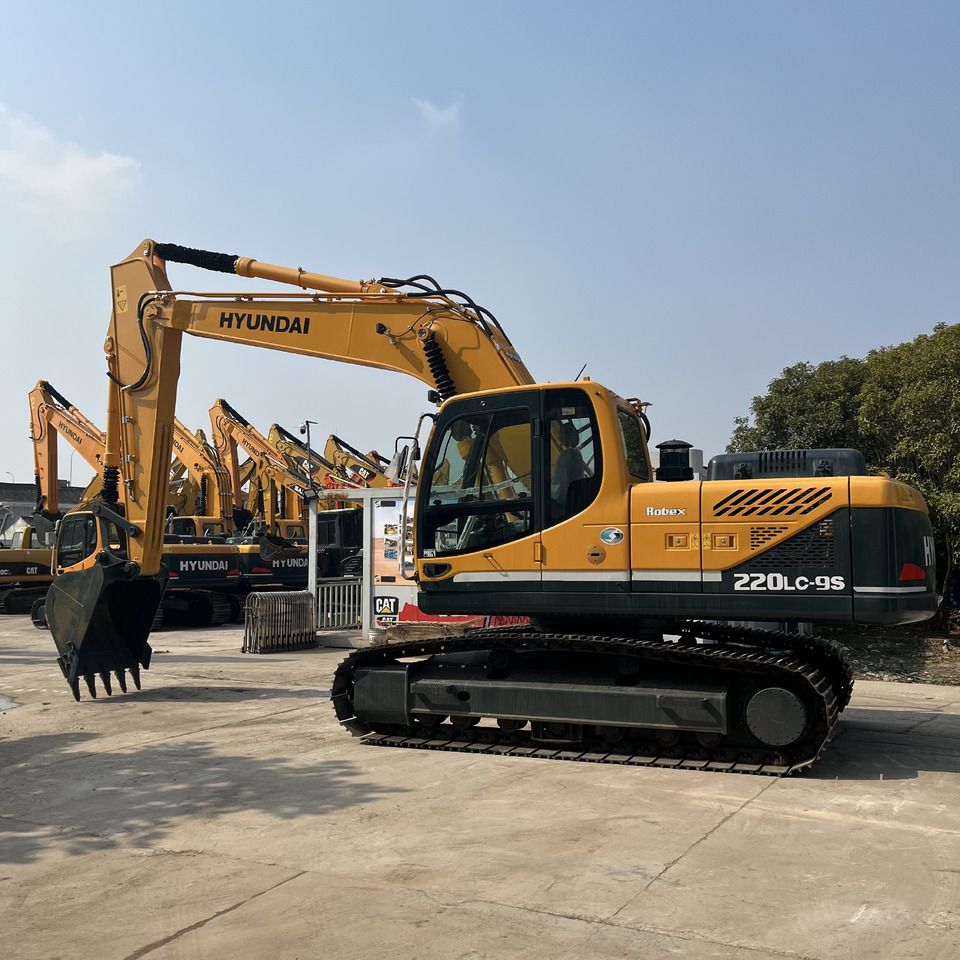

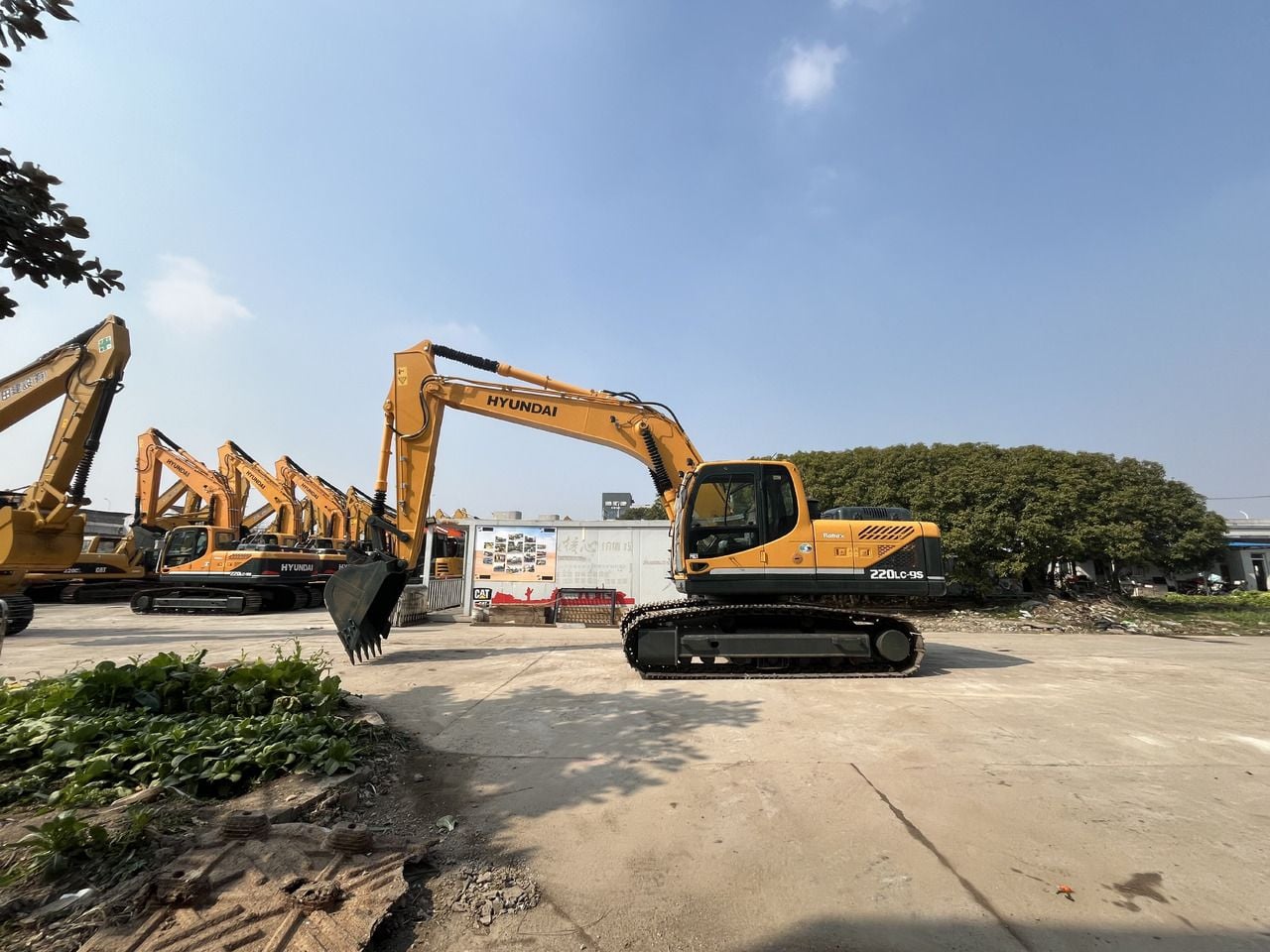

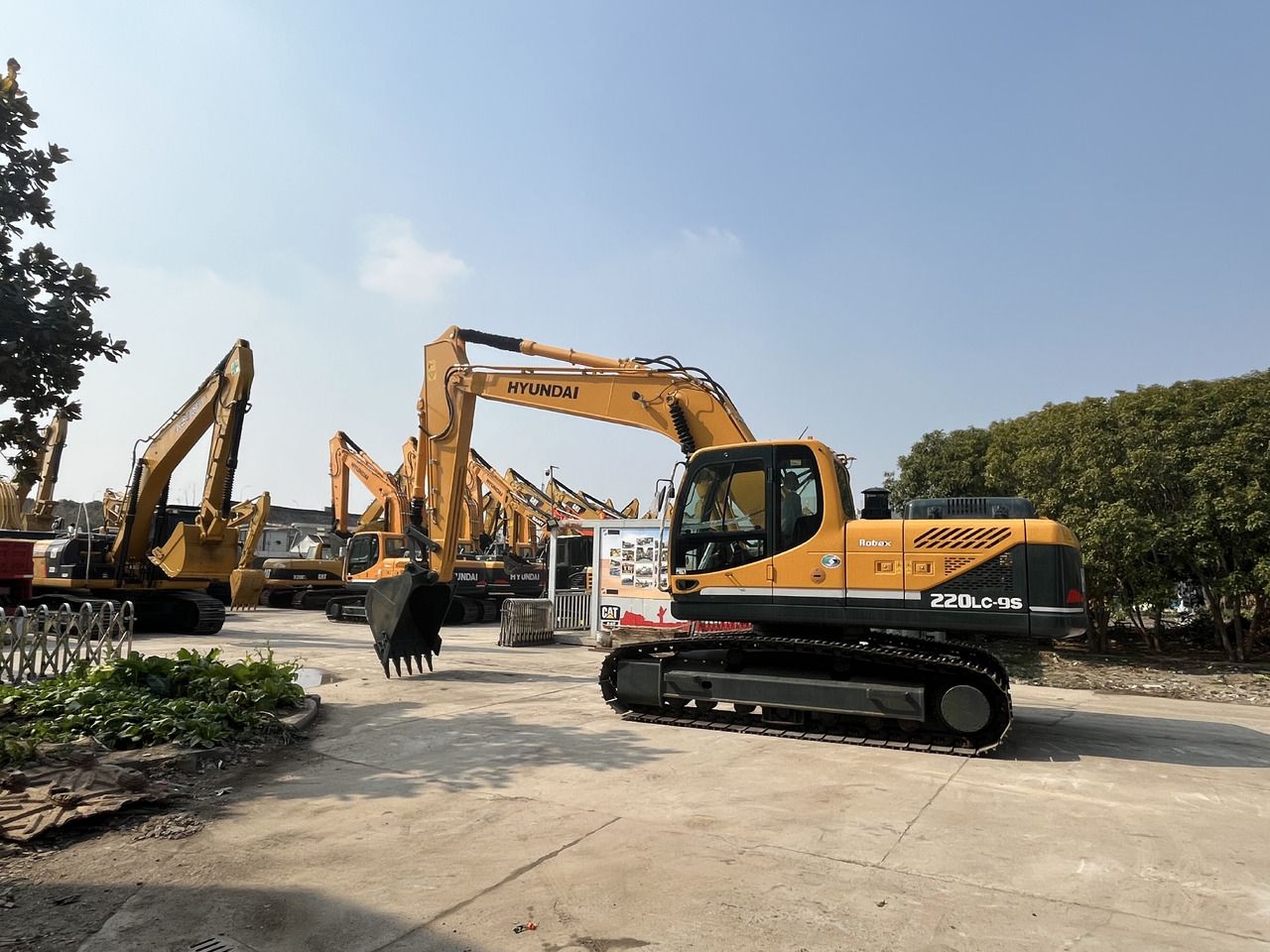

2023 Hyundai R220LC-9S Crawler Excavator

Hyundai R220LC-9S | 21.8 t

Location: Shanghai, China | Availability: 16 units available

Machine Overview:
The Hyundai R220LC-9S is a crawler excavator powered by a Hyundai D6AC turbocharged, intercooled engine delivering 173 hp. It has an operating weight of 21.8 t and a standard bucket capacity of 1.0 – 1.2 m³, with a bucket force of 158 kN.

Key Features:
- Engine: Hyundai D6AC, 173 hp at 2,000 rpm, 6 cylinders, 6.55 L displacement, turbocharged, intercooled
- Operating weight: 21.8 t
- Bucket capacity: 1.0 – 1.2 m³
- Bucket force: 158 kN; stick force: 112 kN
- Maximum digging depth: 6,480 mm
- Maximum reach: 9,900 mm
- Hydraulic system pressure: 34.3 MPa; pump flow: 2 × 220 L/min
- Fuel tank capacity: 400 L

Technical Data

Engine:
Hyundai D6AC, 6 cylinders, 6,550 cc, 173 hp, Euro 2, manual gearbox.

Hydraulic System:
Pressure 34.3 MPa, pump flow 2 × 220 L/min.

Work Area:
Maximum digging depth 6,480 mm, maximum reach 9,900 mm.

Undercarriage:
Hydraulic suspension, 4x4, track width 2,380 mm, disc/drum brakes.

Attachments & Equipment:
Bucket, hydraulic hammer, counterweight.

Documentation & Compliance:
2023 year model, Euro 2.
