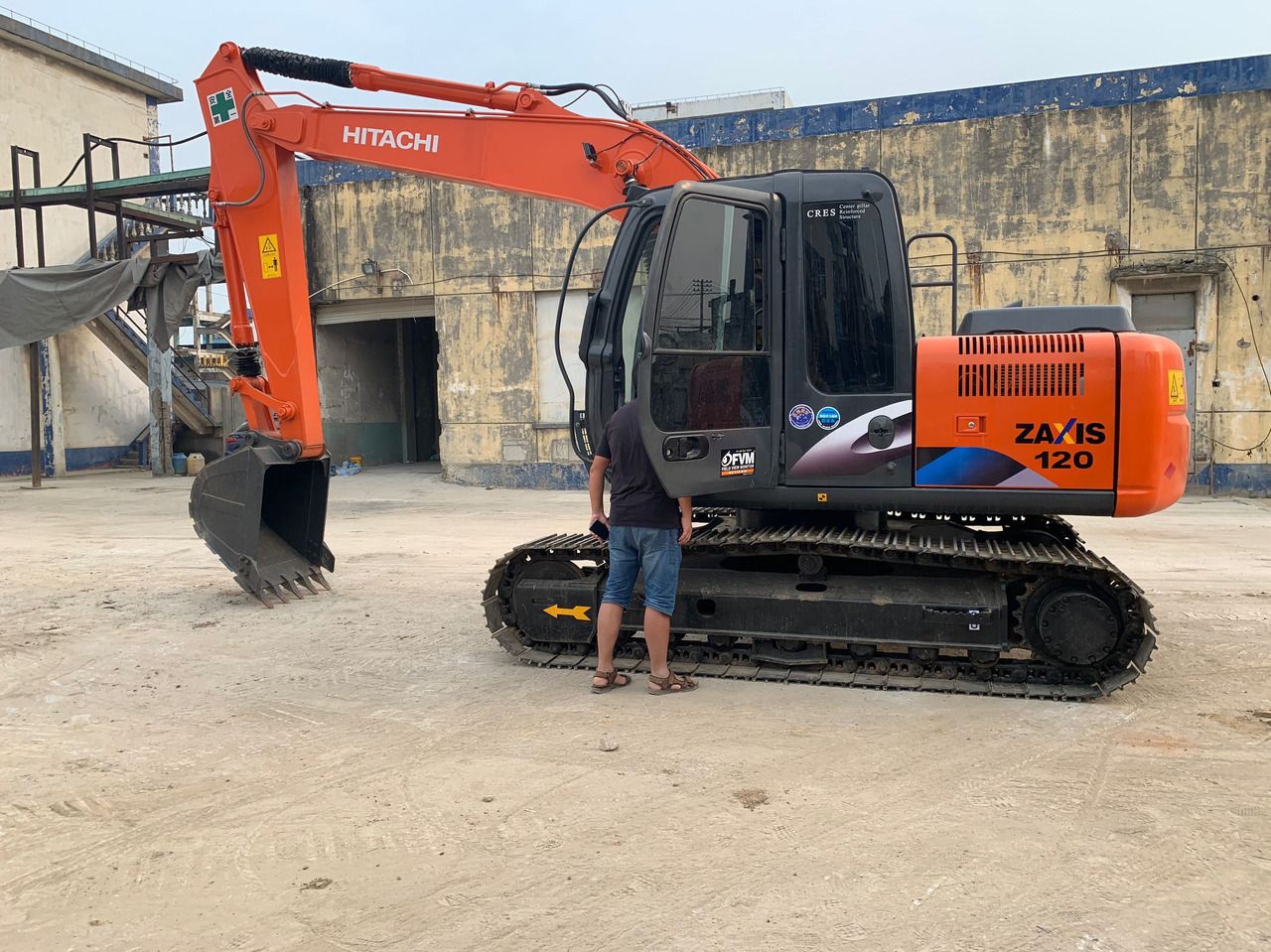

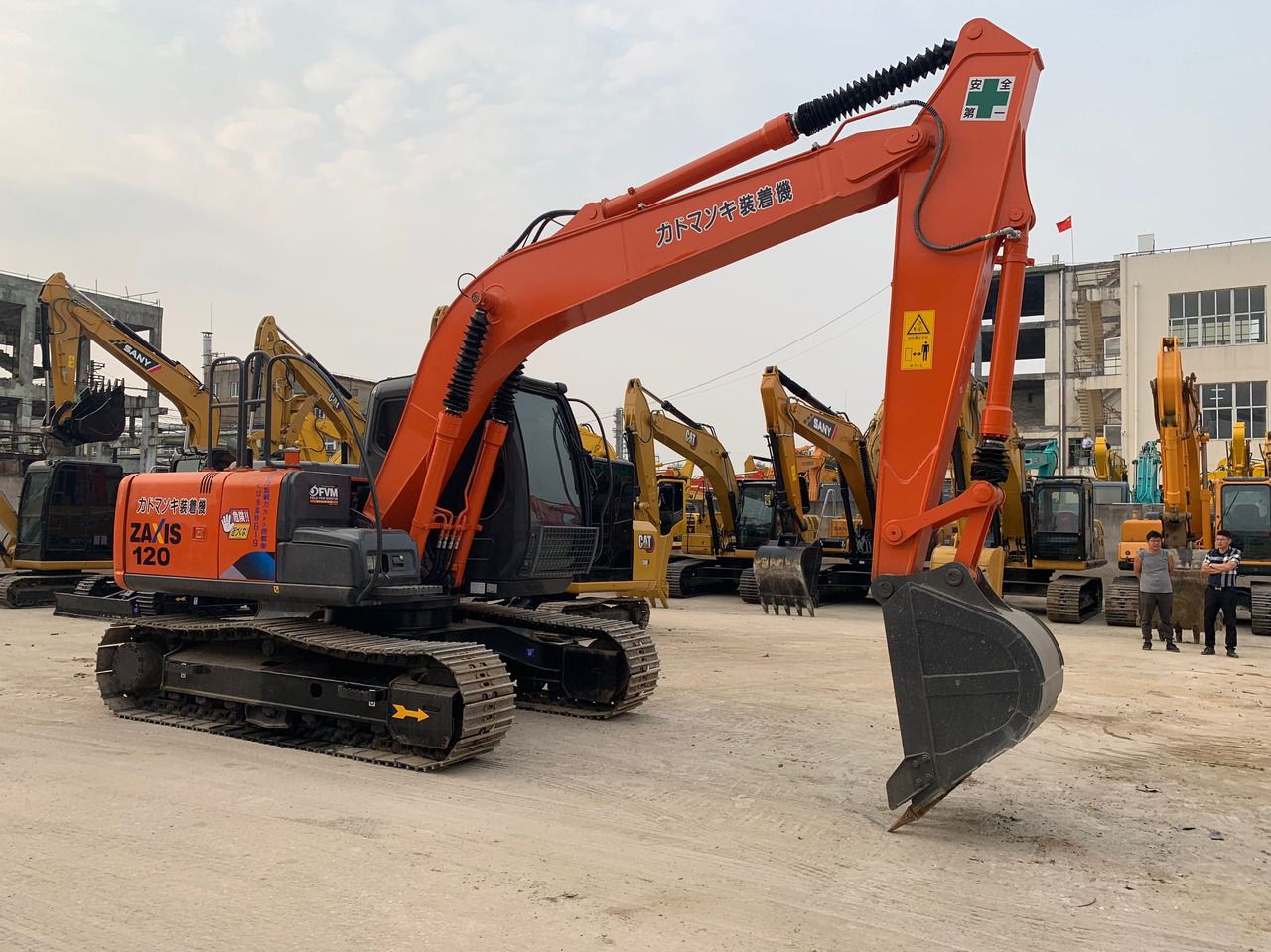

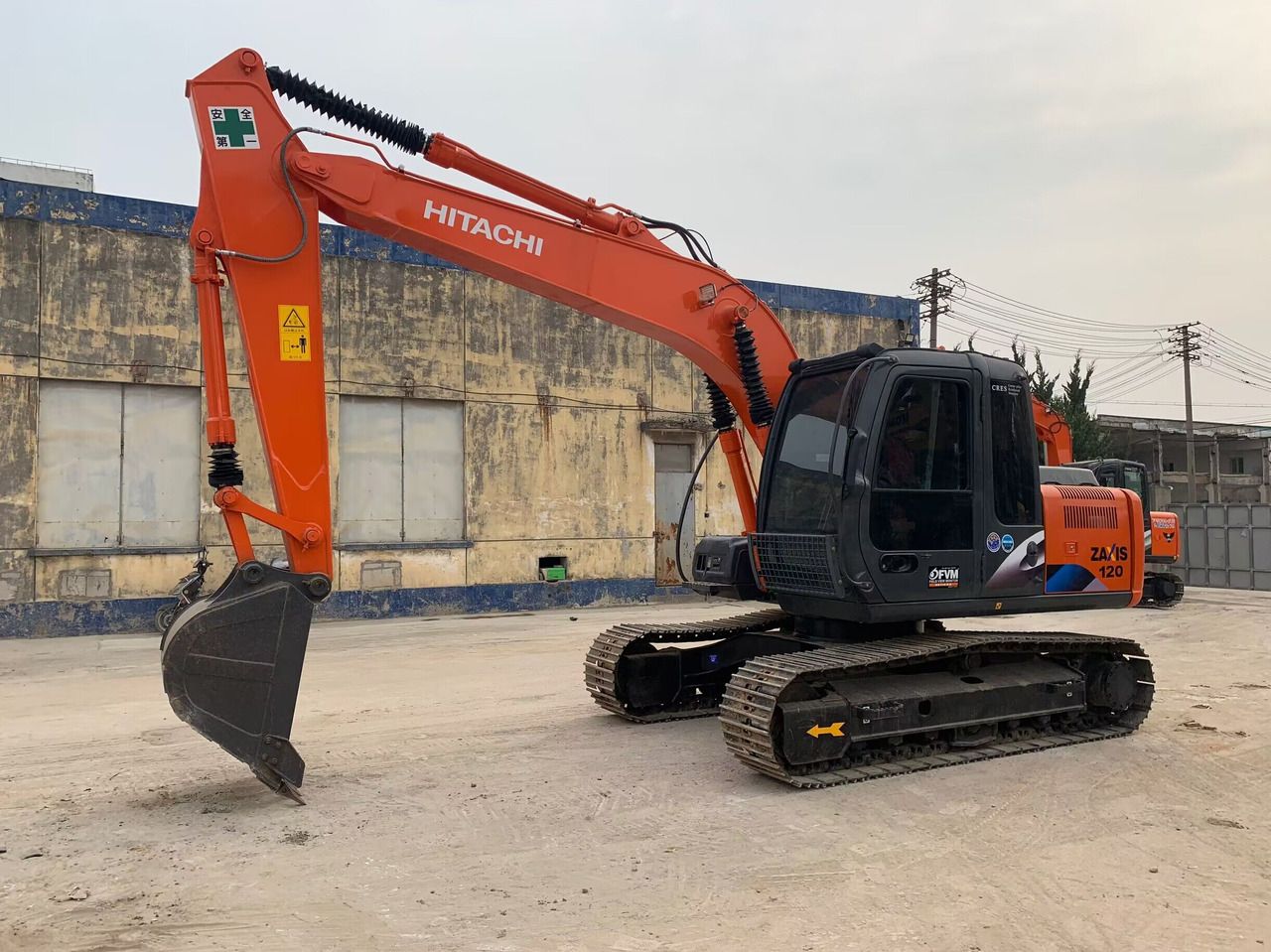

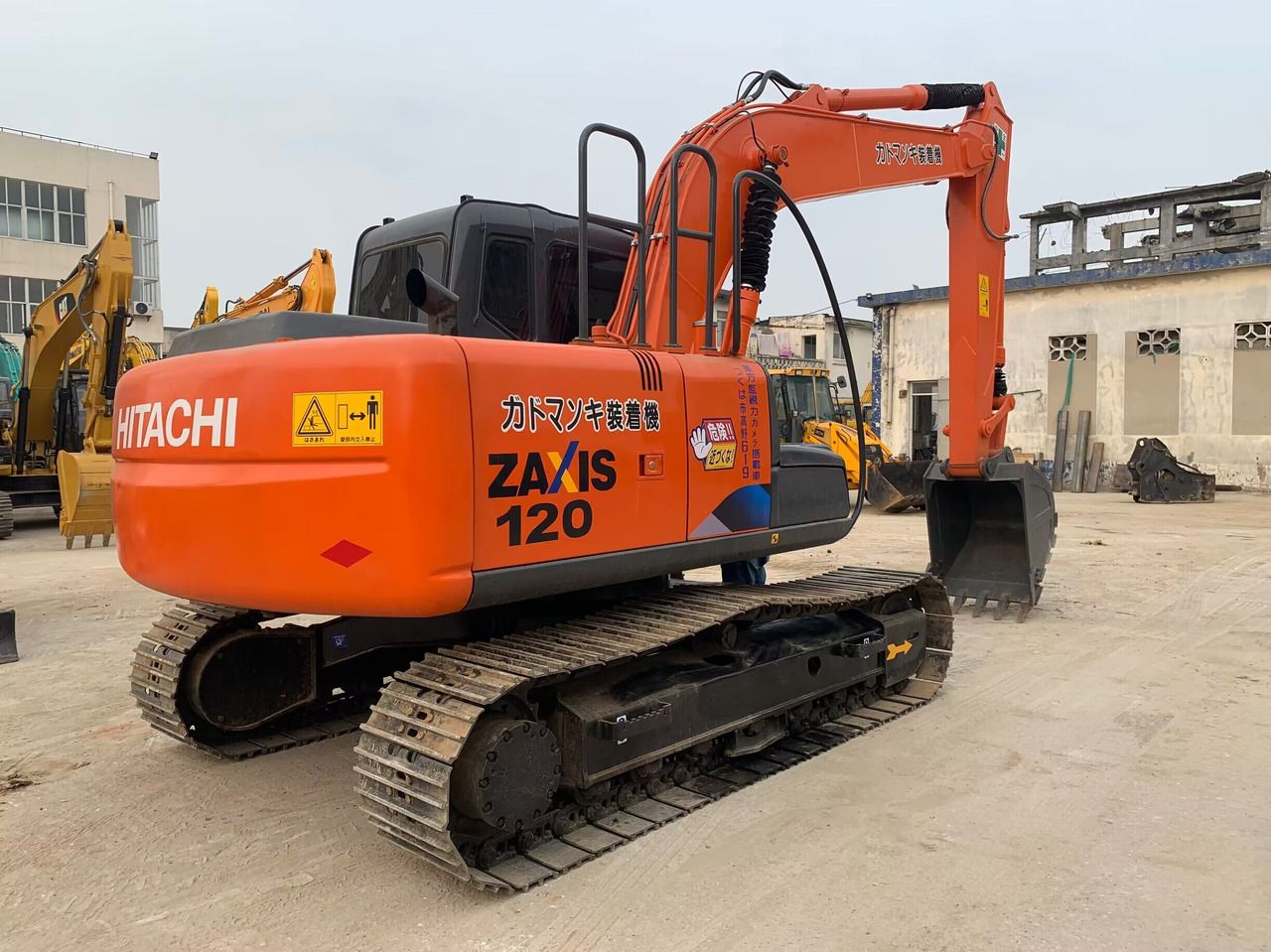

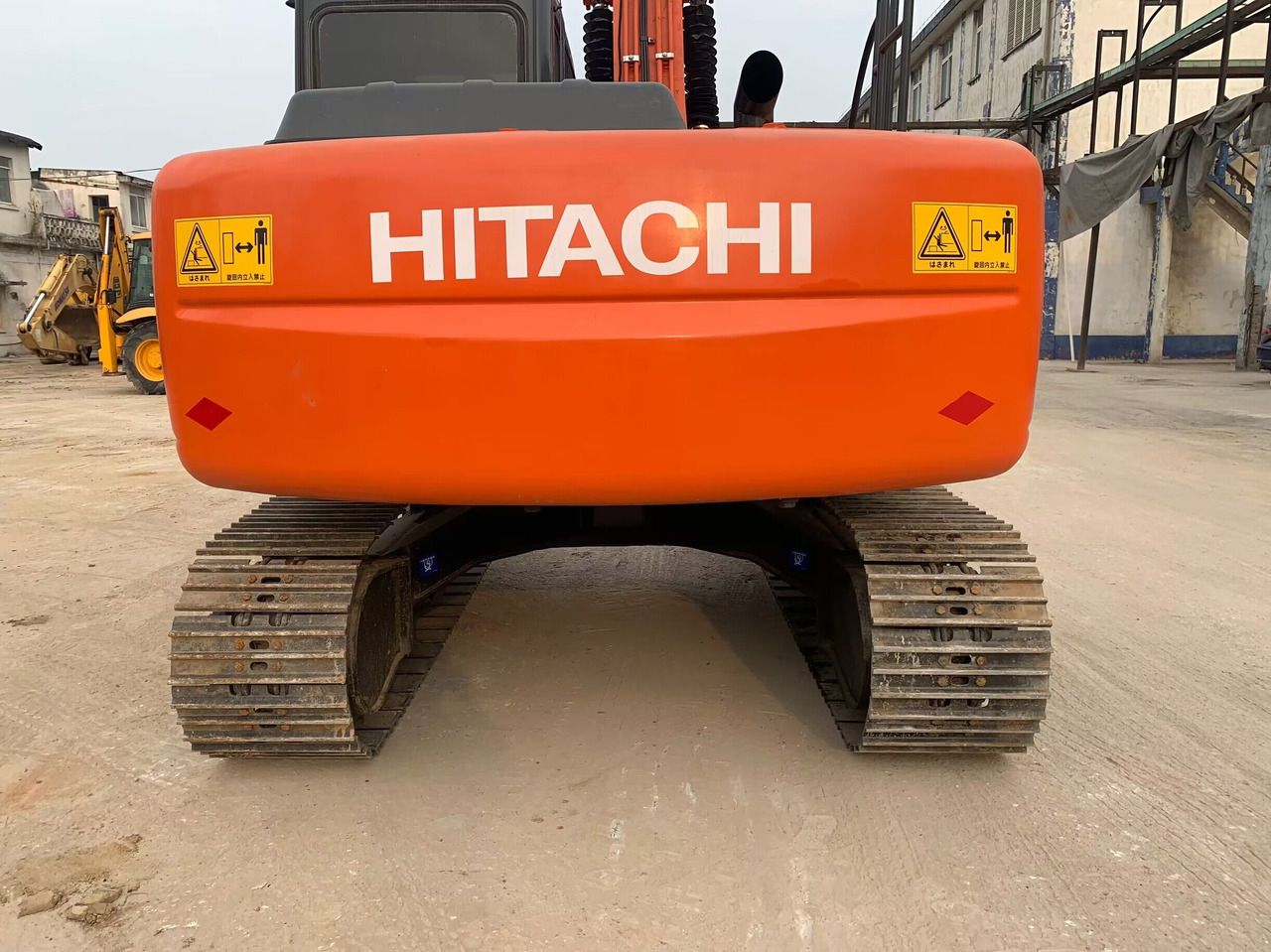

2023 Hitachi ZX120 Crawler Excavator

Hitachi ZX120 | 12.3 t Crawler excavator
Location: Shanghai, China | Availability: 4 units available

Machine Overview:
The Hitachi ZX120 is a 12.3-ton crawler excavator powered by an Isuzu 4JJ1X 4-cylinder turbocharged diesel engine delivering 70 kW (94 hp) at 2000 rpm. It features a standard bucket capacity of 0.52 m³ and is equipped with the HIOS III hydraulic system. The machine offers a maximum digging depth of 5280 mm and a loading height of 6000 mm. The operator station includes air conditioning and ROPS/FOPS certified cab.

Key Features:
- Isuzu 4JJ1X engine, 4-cylinder, turbocharged, intercooled
- HIOS III hydraulic system for precise control
- Maximum digging depth: 5280 mm
- Maximum loading height: 6000 mm
- ROPS/FOPS certified cab with air conditioning
- Equipped with bucket and ripper

Technical Data:
Engine:
- Model: Isuzu 4JJ1X
- Displacement: 3000 cc
- Net power: 70 kW (94 hp) at 2000 rpm
- Emission class: Euro 3

Work Area:
- Bucket capacity: 0.52 m³
- Max digging depth: 5280 mm
- Max loading height: 6000 mm

Undercarriage:
- Track width: 450 mm
- Suspension: hydraulic

Attachments & Equipment:
- Bucket, ripper

Documentation & Compliance:
- ROPS/FOPS certified cab
- Euro 3 emission standard
