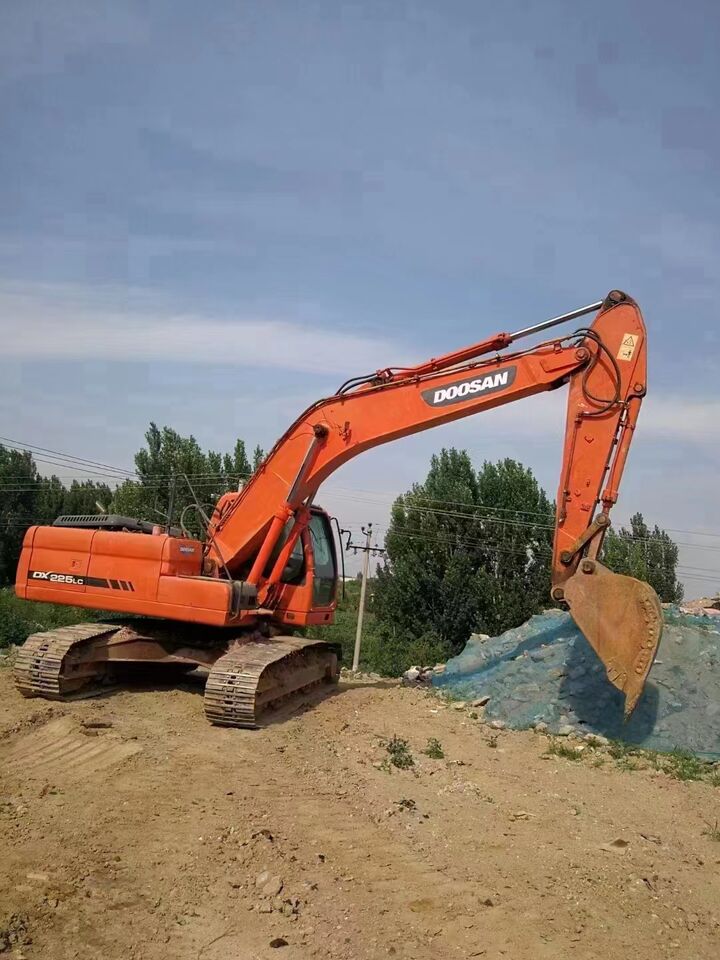

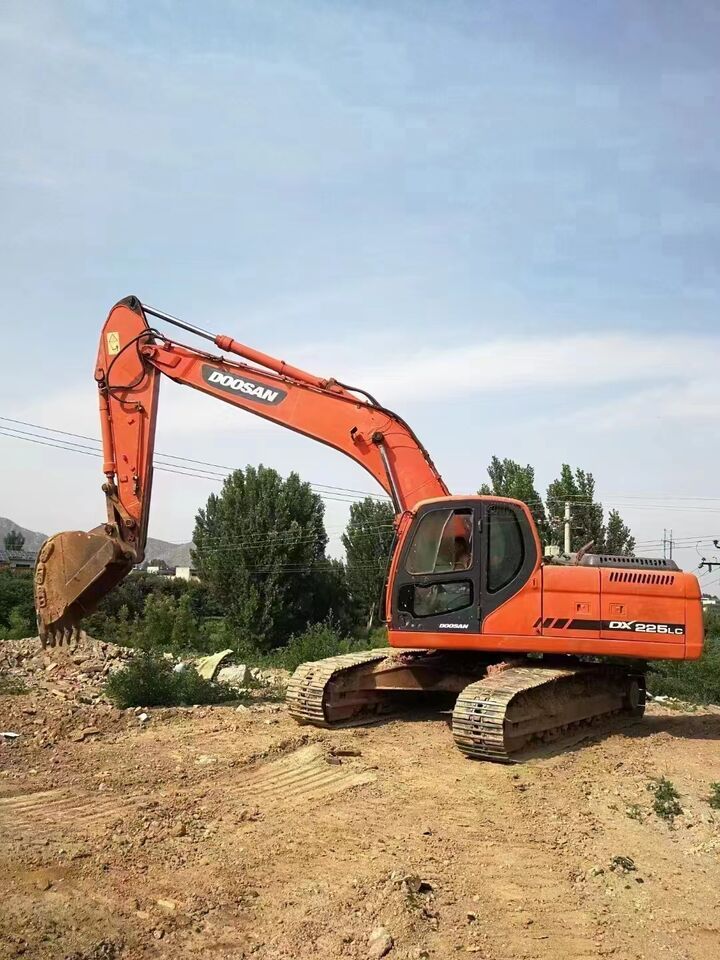

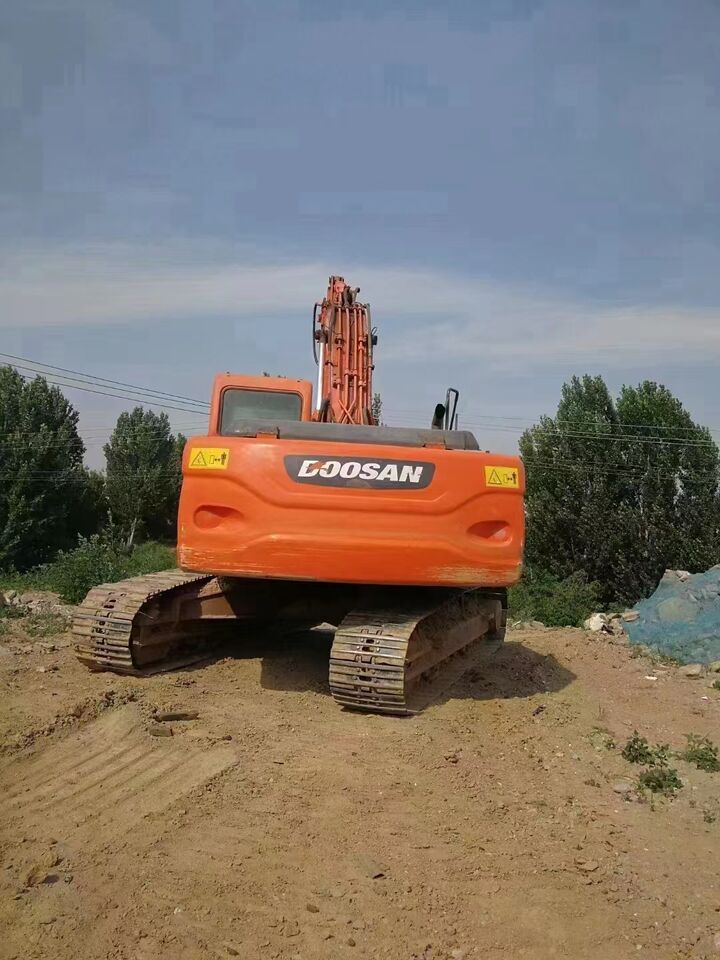

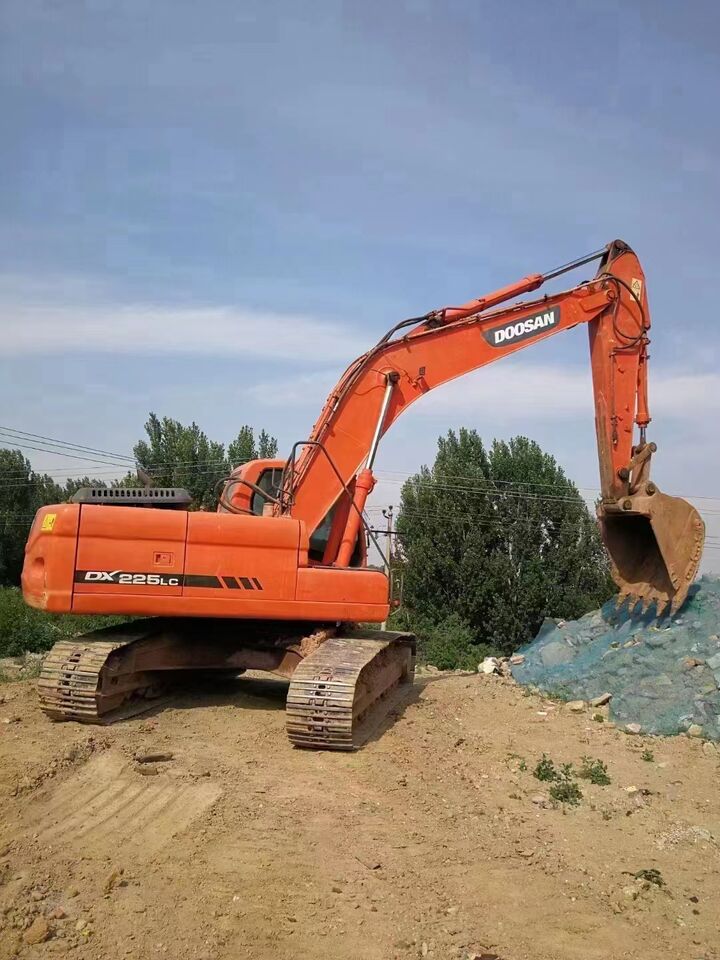

2022 Doosan DX225LC Crawler Excavator

Doosan DX225LC | 21.8 t | 2000 hours
Location: Shanghai, China | Availability: 5 units available

Machine Overview:
2022 Doosan DX225LC 22-tonne hydraulic crawler excavator with 2000 hours. Powered by a Doosan DL06 engine delivering 148 hp (110 kW), meeting Euro 3 standards. Standard bucket capacity 1.05 m³. Delivers bucket digging force of 152 kN and arm digging force of 108 kN. Working dimensions: digging depth 6,592 mm, digging radius 9,873 mm, dump height 6,830 mm.

Key Features:
- 2022 year of manufacture
- 148 hp Doosan DL06 engine, 5890 cc, 6 cylinders
- 1.05 m³ bucket capacity
- Operating weight 21.8 t
- Digging depth: 6.59 m
- Digging radius: 9.873 m
- Dump height: 6.83 m
- Bucket digging force: 152 kN, arm digging force: 108 kN

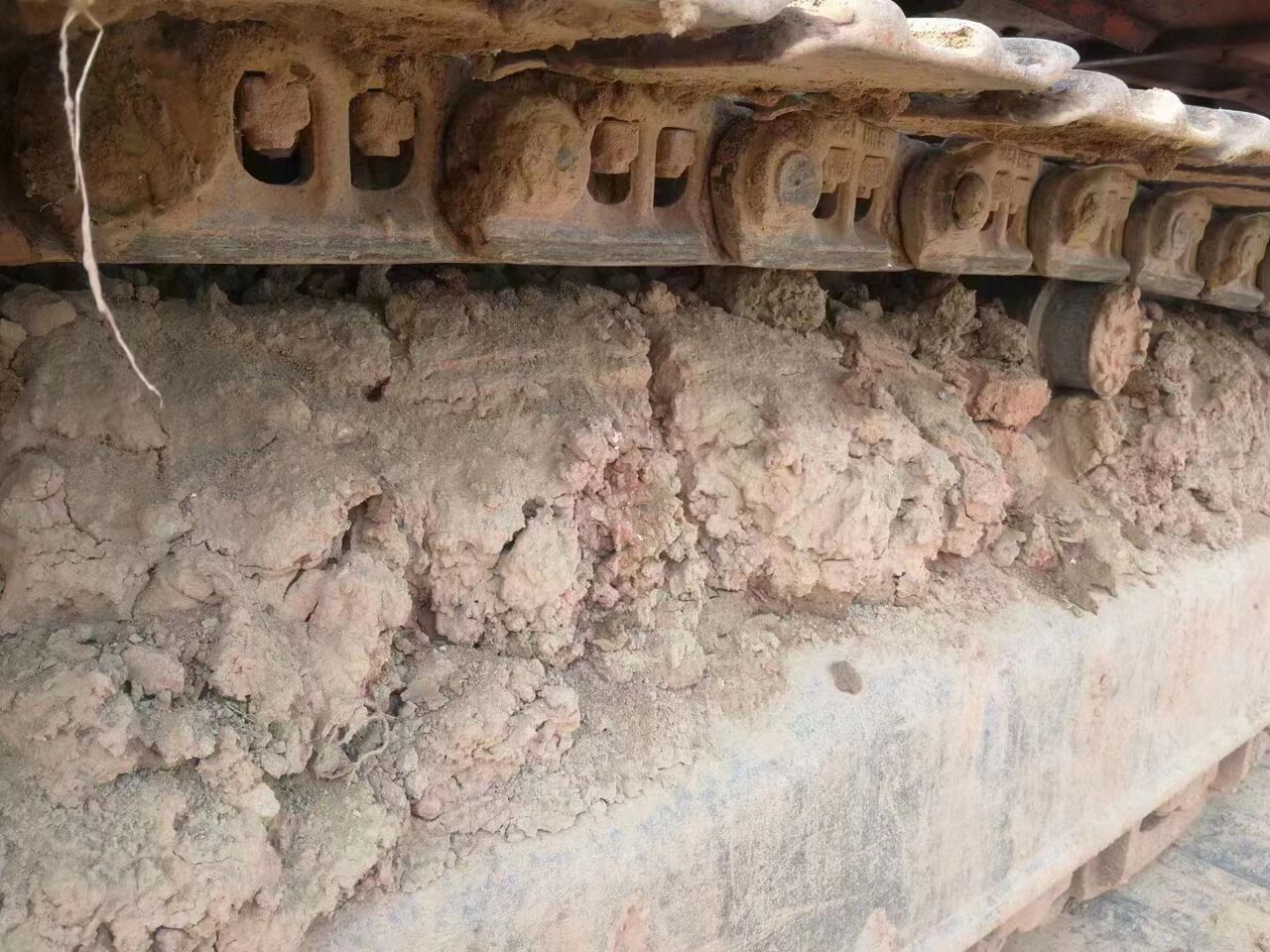

- Heavy-duty undercarriage
- Air conditioning, comfortable cab

Technical Data:
Engine:

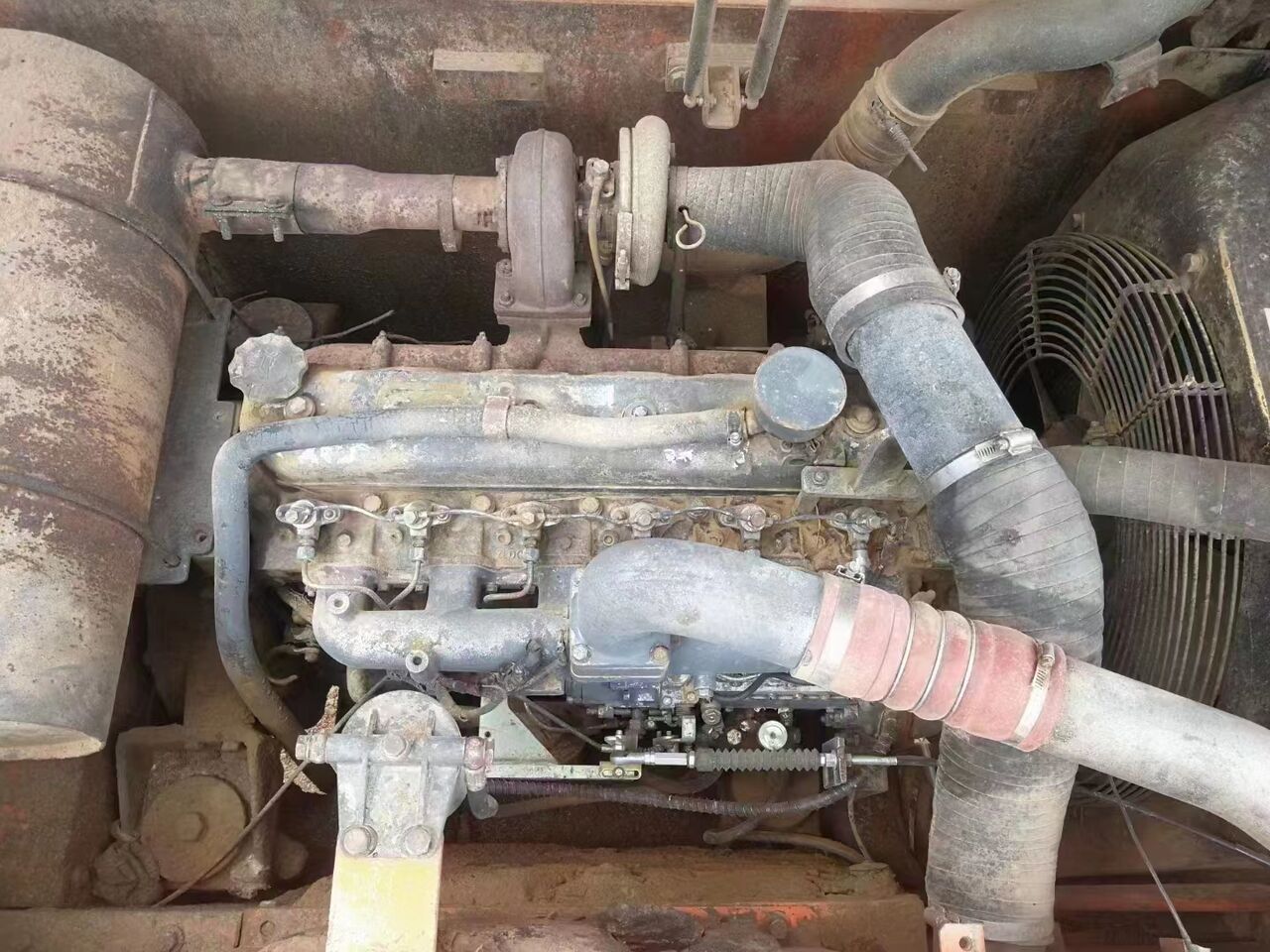

- Engine: Doosan DL06
- Power output: 148 hp
- Displacement: 5890 cc
- Cylinders: 6
- Emission class: Euro 3
- Fuel: diesel

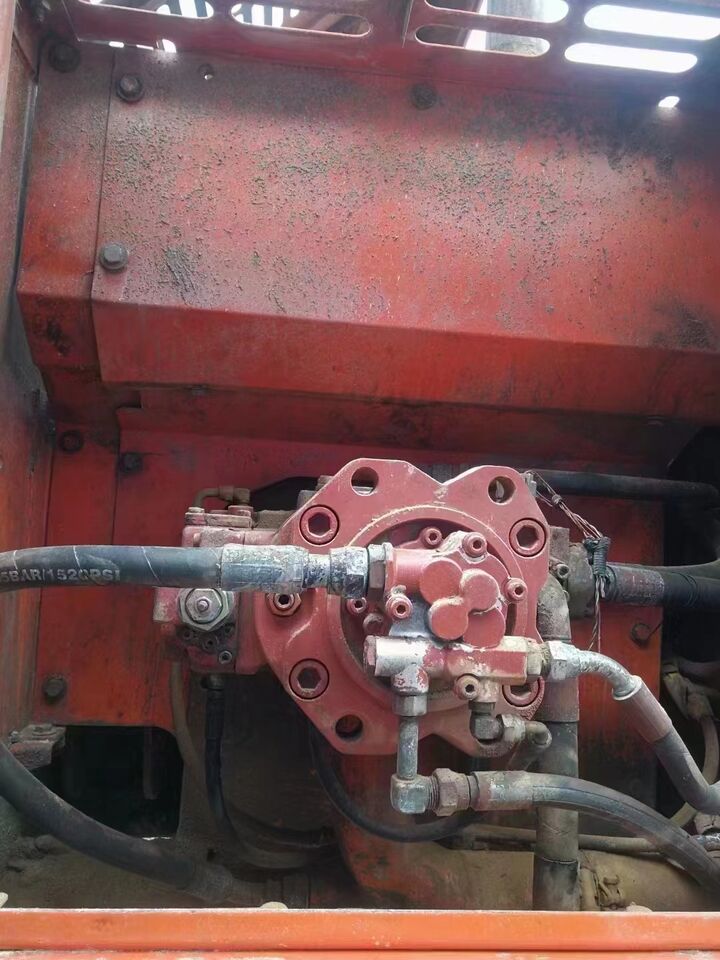

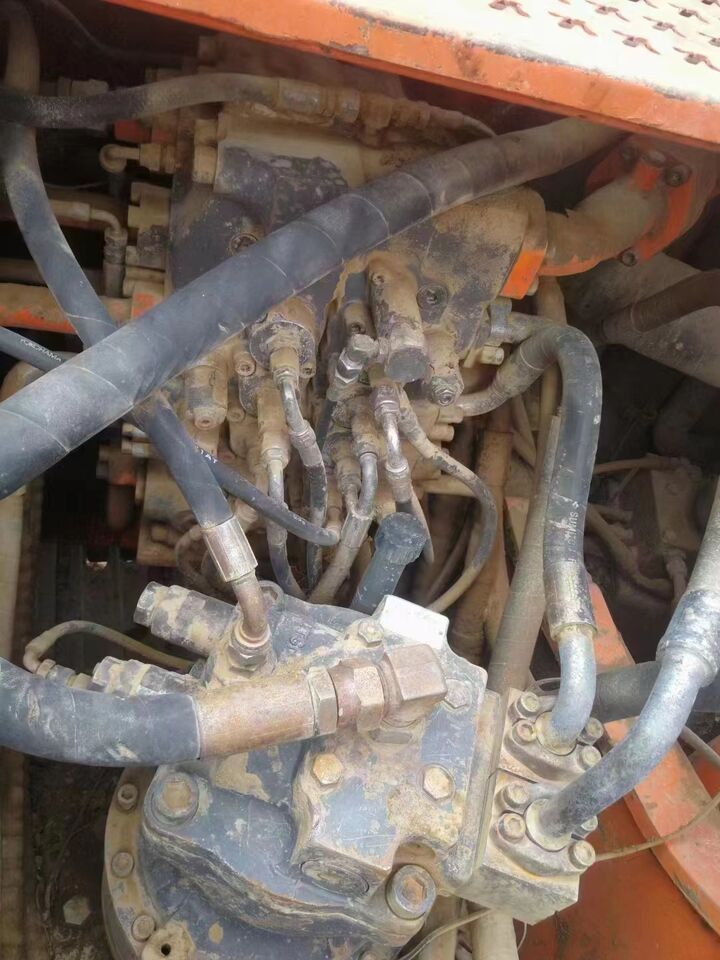

Hydraulic System:
- Hydraulic tank capacity: 195 L

Work Area:
- Max digging depth: 6.59 m
- Max digging radius: 9.873 m
- Max dump height: 6.83 m

Dimensions:
- Transport length: 9,506 mm
- Transport width: 2.99 m
- Transport height: 3,005 mm
