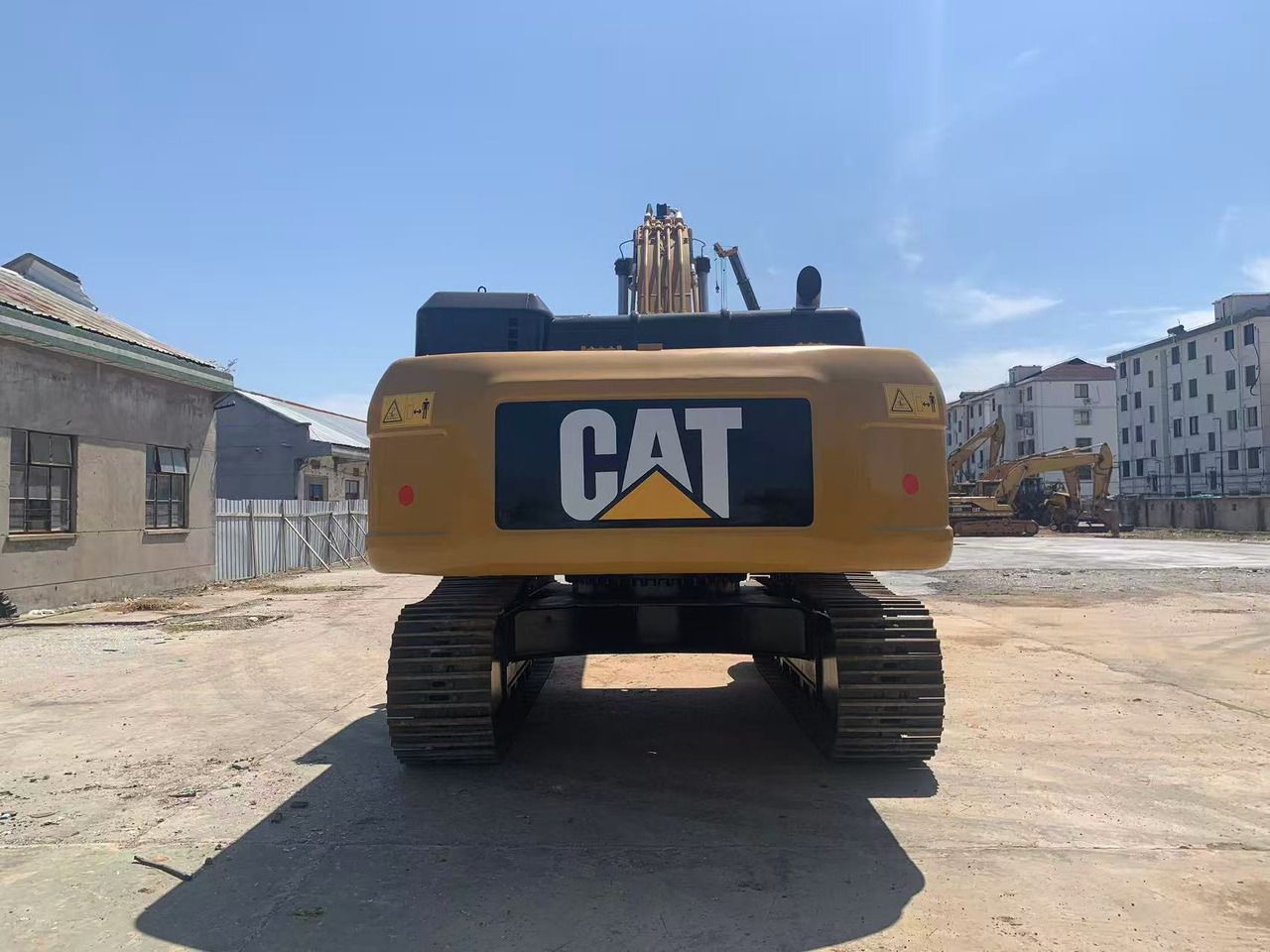

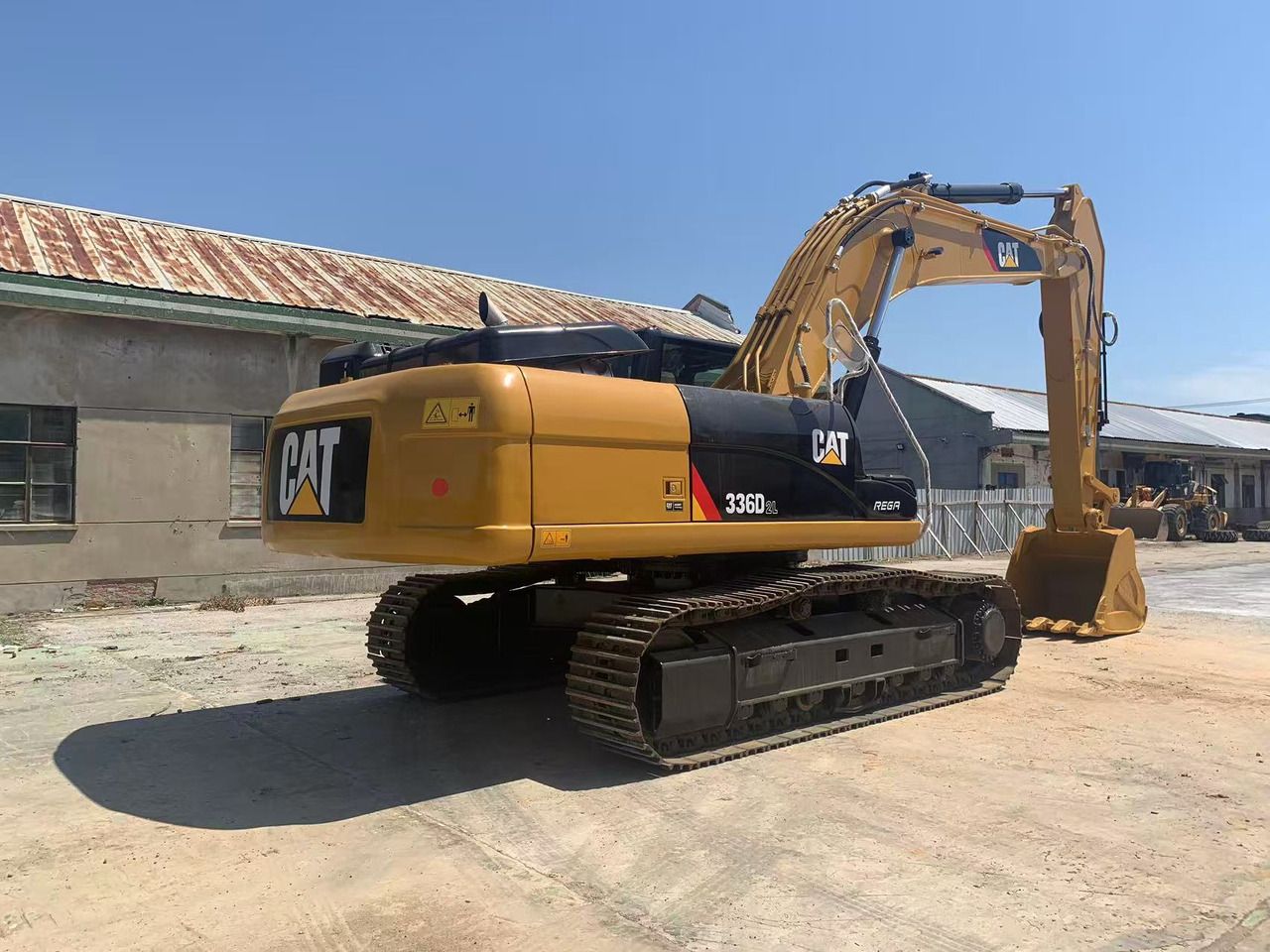

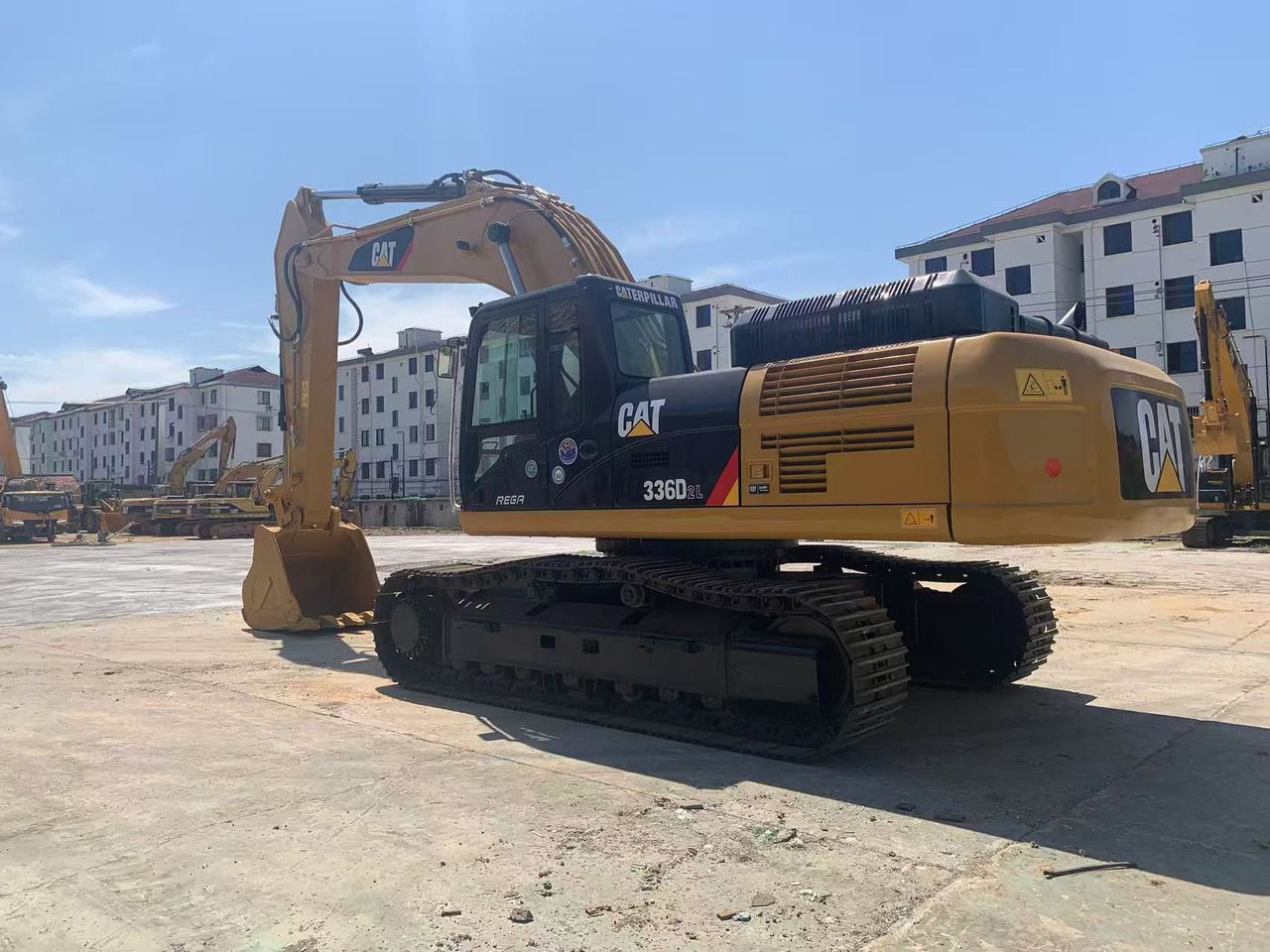

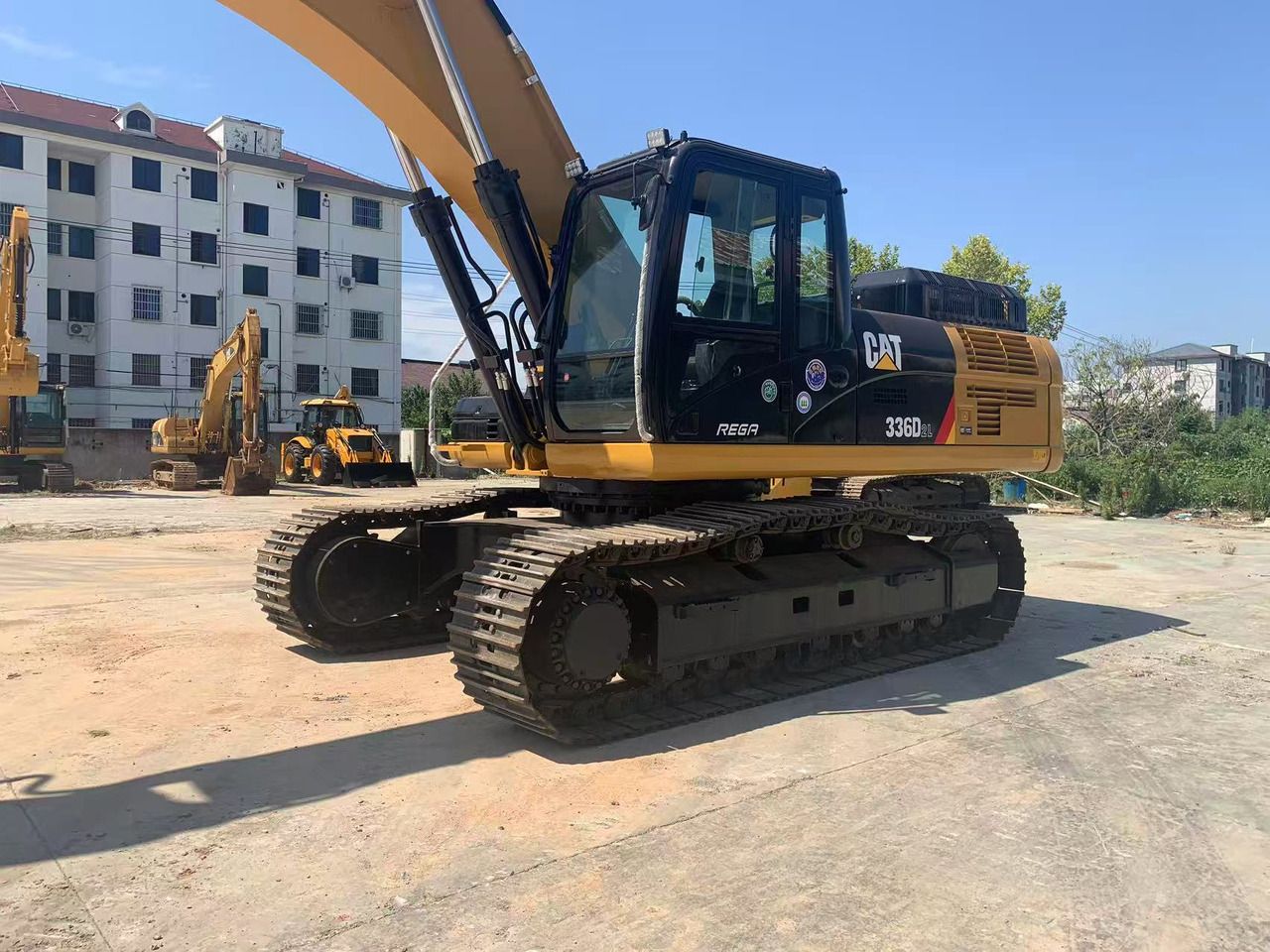

2022 Caterpillar 336D2 Crawler Excavator

Caterpillar 336D2 | 37.8 t Crawler Excavator | 2 units available

Location: Shanghai, China | Availability: 2 units available

Machine Overview:
The CAT 336D2L is a 36-ton-class crawler excavator with a Caterpillar C9.3 ACERT engine producing 296 hp. It features an operating weight of 37.8 t, a long heavy-duty undercarriage, and a standard bucket capacity of 1.9 m³. The machine is designed for heavy construction and mining applications.

Key Features:
- Engine: Caterpillar C9.3 ACERT, 6-cylinder, turbocharged, air-to-air intercooled diesel, 296 hp
- Standard bucket capacity: 1.9 m³
- Maximum digging depth: 7500 mm; ground reach: 10200 mm
- Bucket digging force: 220 kN; drawbar pull: 390 kN
- Advanced CLSS hydraulic system with dual axial piston pumps (2×270 L/min)
- ROPS/FOPS certified cab with air suspension seat
- Emissions: Euro 3

Technical Data

Engine:
- Model: Caterpillar C9.3 ACERT
- Type: 6-cylinder, inline, turbocharged, air-to-air intercooled diesel
- Displacement: 9.3 L
- Max torque: 1250 N·m

Hydraulic System:
- CAT Closed-Center Load-Sensing (CLSS) system
- Main pump: 2 × axial piston pumps, max flow 2 × 270 L/min

Work Area:
- Standard bucket capacity: 1.9 m³
- Maximum digging depth: 7500 mm
- Maximum reach at ground level: 10200 mm
- Arm length: 6.5 m

Dimensions / Transport:
- Transport length: 9850 mm
- Transport width: 3190 mm
- Transport height: 3250 mm

Undercarriage:
- Long heavy-duty undercarriage (D2L)
- Tail swing radius: 3100 mm (short tail)
- Track width: 2850 mm

Attachments & Equipment:
- Bucket, quick coupler, hydraulic hammer, counterweight

Documentation & Compliance:
- ROPS/FOPS certified cab
