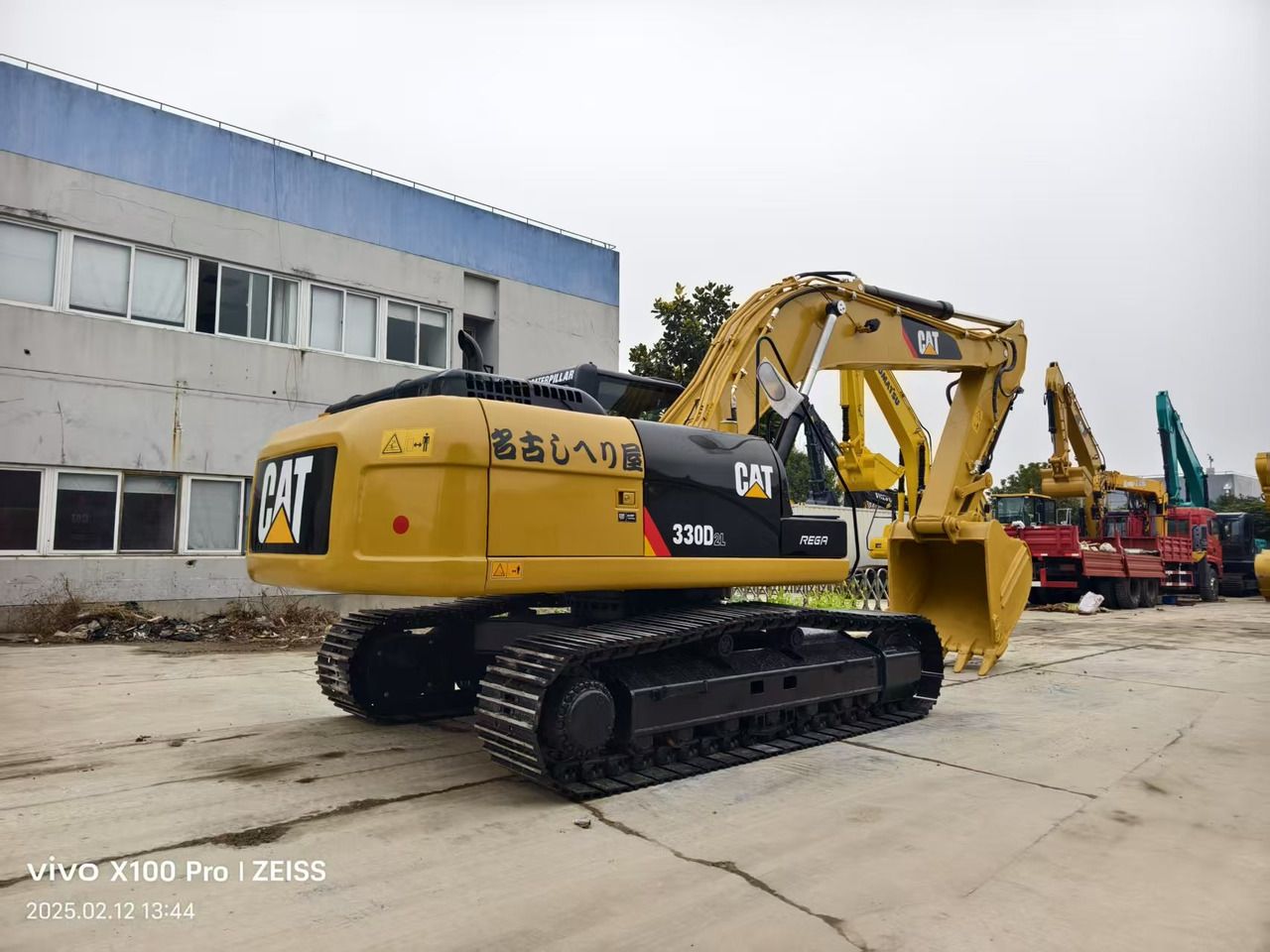

2023 Caterpillar 330D2L Crawler Excavator

Caterpillar 330D2L
Location: Shanghai, China | Availability: 10 units available

Machine Overview:
The Caterpillar 330D2L is a hydraulic crawler excavator with an operating weight of 28,955 to 30,115 kg. It is powered by a Cat C7.1 ACERT engine (6-cylinder, water-cooled, turbocharged) delivering 209 hp and meets Euro 2 emission standards. The machine offers a maximum digging depth of 7,290 mm and a digging radius of 10,720 mm. It is equipped with a bucket, hydraulic hammer, and counterweight.

Key Features:
- 2023 year of manufacture, excellent condition
- Operating weight 28,955 - 30,115 kg (approx. 30 t class)
- Cat C7.1 ACERT engine, 7.0 L displacement, 209 hp
- Maximum digging depth 7,290 mm
- Maximum digging radius 10,720 mm
- Standard bucket capacity 1.54 m³
- Swing speed 9.6 rpm, travel speed 5.3 km/h
- Equipped with bucket, hydraulic hammer, counterweight
- Euro 2 emission certified

Technical Data
Engine:
- Engine: Cat C7.1 ACERT (6-cylinder, water-cooled, turbocharged)
- Power: 209 hp
- Displacement: 7.0 L
- Cylinders: 6
- Fuel: Diesel
- Emission level: Euro 2

Work Area:
- Maximum digging depth: 7,290 mm
- Maximum digging radius: 10,720 mm
- Maximum lift height: 6,900 mm
- Arm length: 6,150 mm
- Bucket capacity: 1.54 m³

Dimensions / Transport:
- Length: 10.36 m
- Width: 3.19 m
- Height: 3.33 m
- Track width: 600 mm
- Fuel tank: 520 L

Attachments & Equipment:
- Bucket
- Hydraulic hammer
- Counterweight
