Caterpillar 329D Crawler Excavators for Sale

Browse 28 Caterpillar 329D Crawler Excavators machines on Machmon. Compare by model, location, and condition, then contact sellers using the enquiry options provided.

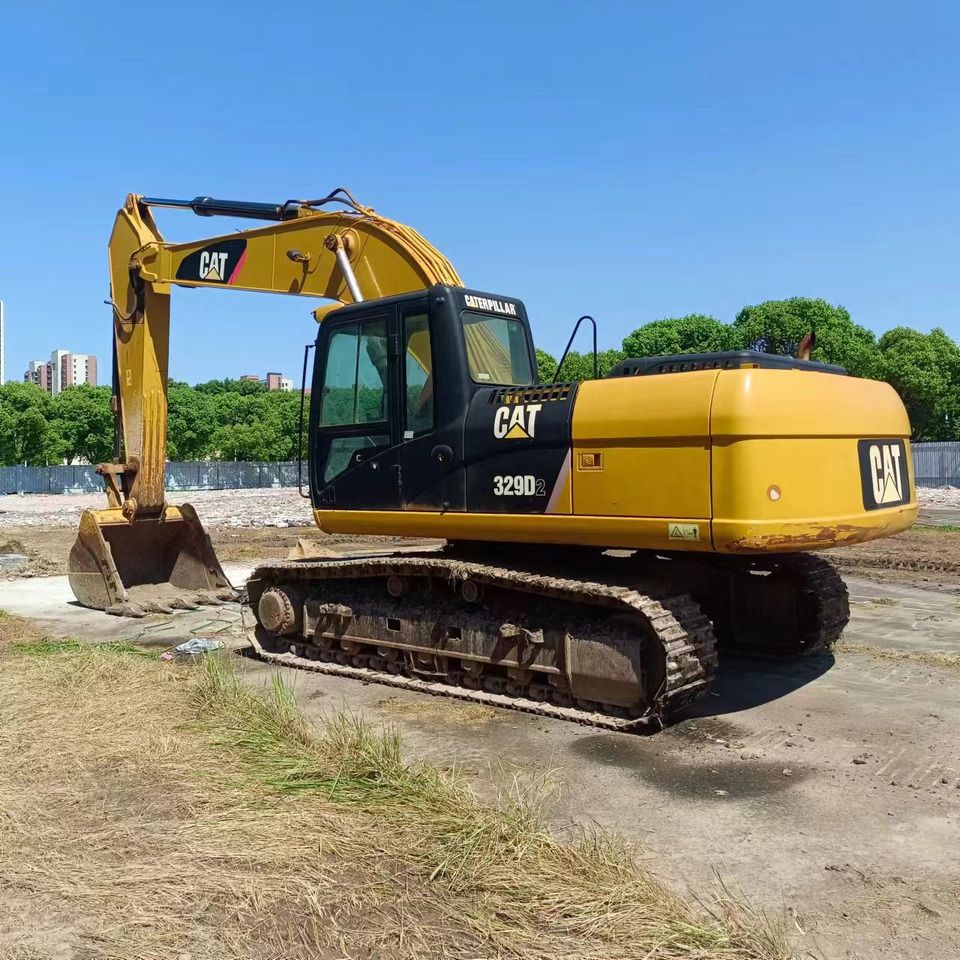

Caterpillar 329D · Crawler excavators

Caterpillar 329D

A 27-29 tonne class D Series crawler excavator with a Cat C7 ACERT engine, positioned for general mid-size earthmoving and material handling.

Key specifications

Net Flywheel Power: 152 kW (Cat C7 ACERT)
Operating Weight: approx. 26,900 kg standard undercarriage / 29,240 kg long undercarriage (configuration dependent)
Maximum Digging Depth: approx. 7,170 mm (R3.2CB2 stick)
Maximum Reach at Ground Level: approx. 10,600 mm (R3.2CB2 stick)
Bucket Digging Force: approx. 188 kN (ISO, R3.2CB2 stick)

Model overview

The Cat 329D is a mid-size hydraulic excavator from Caterpillar's D Series, powered by a Cat C7 engine with ACERT technology rated at 152 kW net flywheel power. Official Caterpillar specifications list operating weight of approx. 26,900 kg on the standard undercarriage (approx. 29,240 kg on the long undercarriage), with a maximum digging depth of approx. 7,170 mm and maximum reach at ground level of approx. 10,600 mm using the standard R3.2CB2 stick. Caterpillar positions the D Series around ACERT-technology fuel economy and an updated operator station.

At a glance

Generation / EmissionsD Series, Cat C7 ACERT technology

Undercarriage ConfigurationStandard vs. long undercarriage changes operating weight and stability figures

Boom/Stick ConfigurationReach, dig depth, and digging force vary by stick length (R3.2CB2, R2.65CB2, M2.5DB mass excavation)

Undercarriage / TracksCheck track and undercarriage wear on this age of machine before purchase

6885 machines · €277 - €1,700,000 · 1972 to 2026 · China, Netherlands, Germany

View all Caterpillar 329D listings Open filters

Specifications sourced from kellytractor.com (official manufacturer page).
