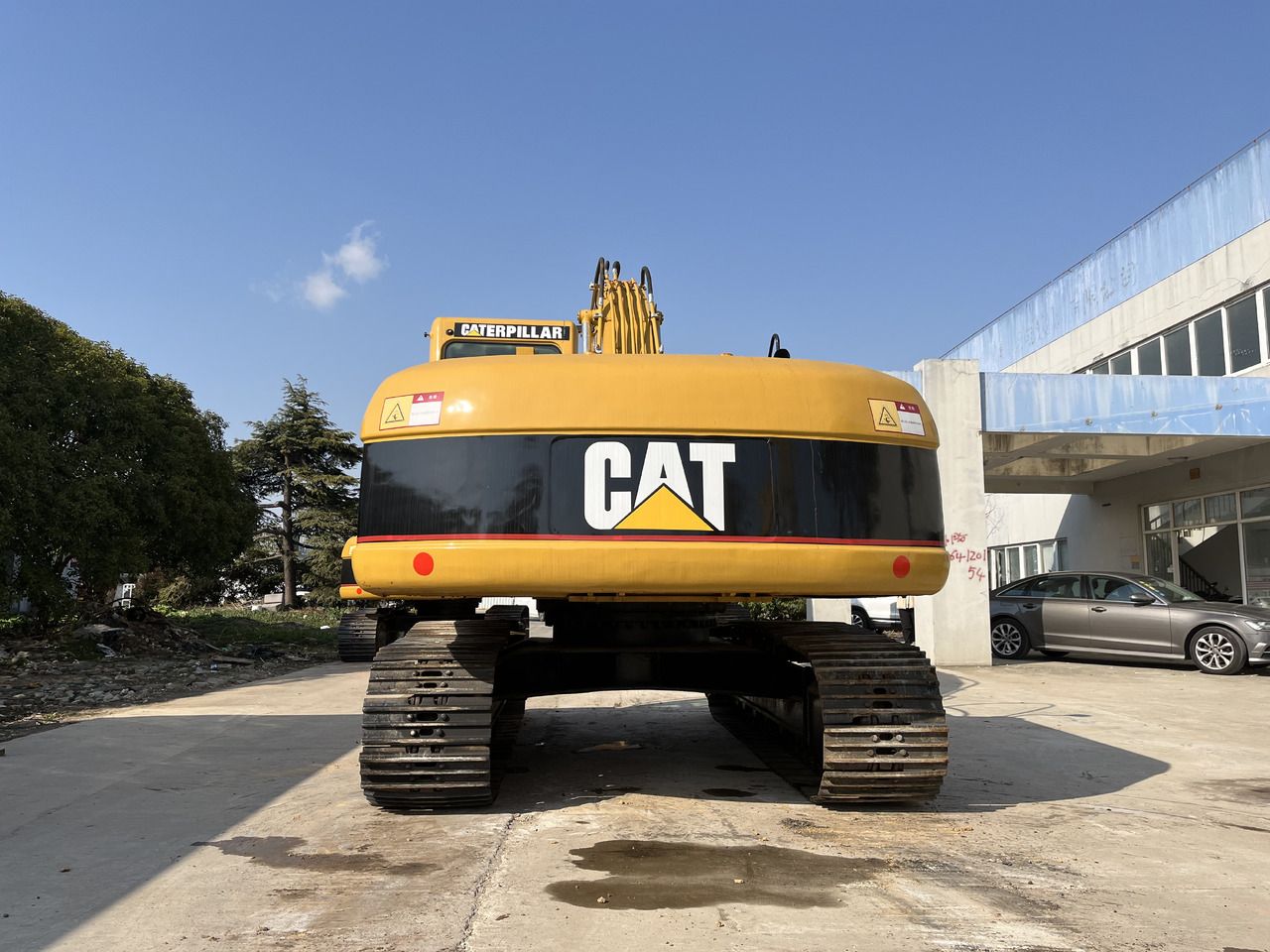

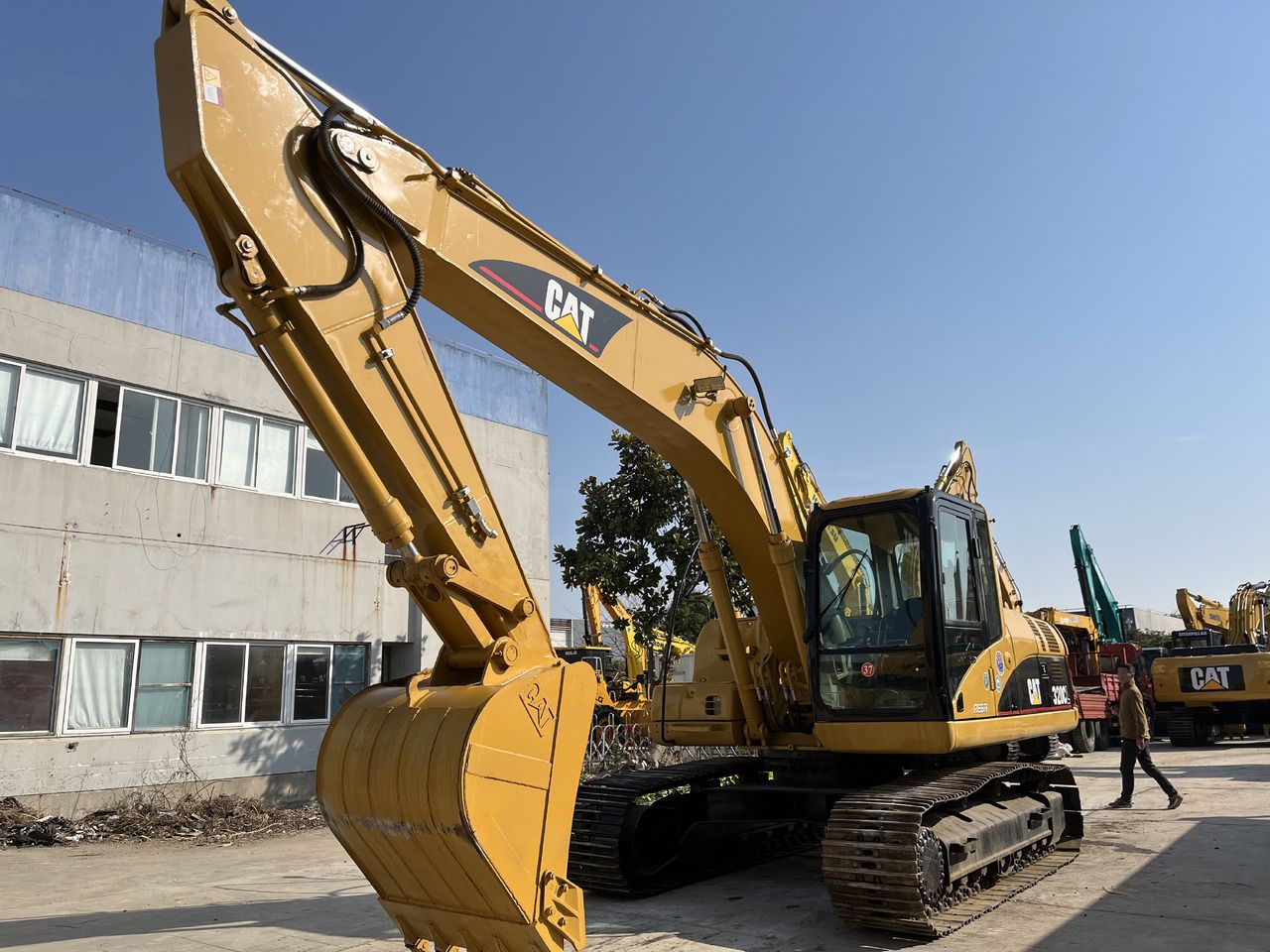

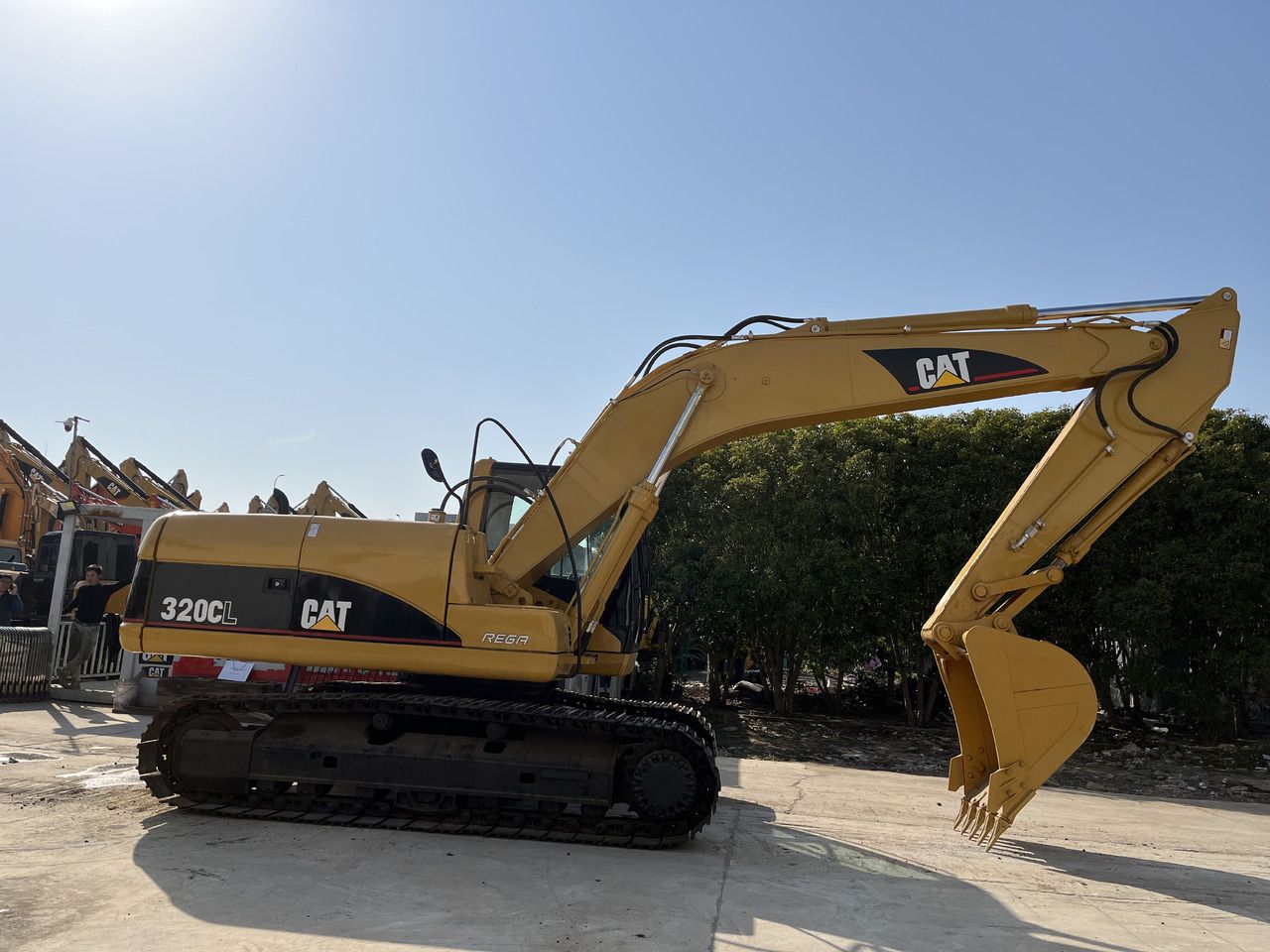

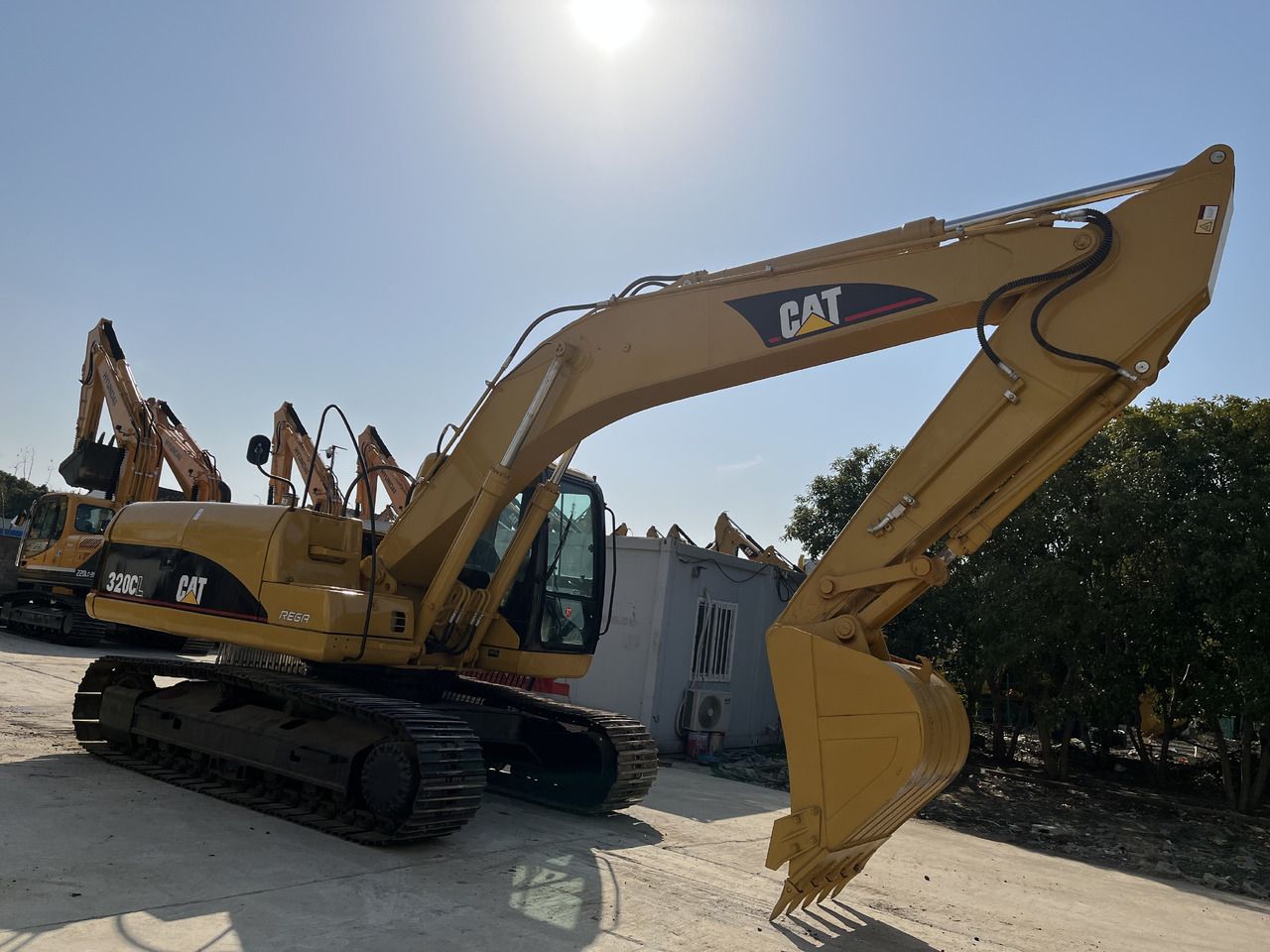

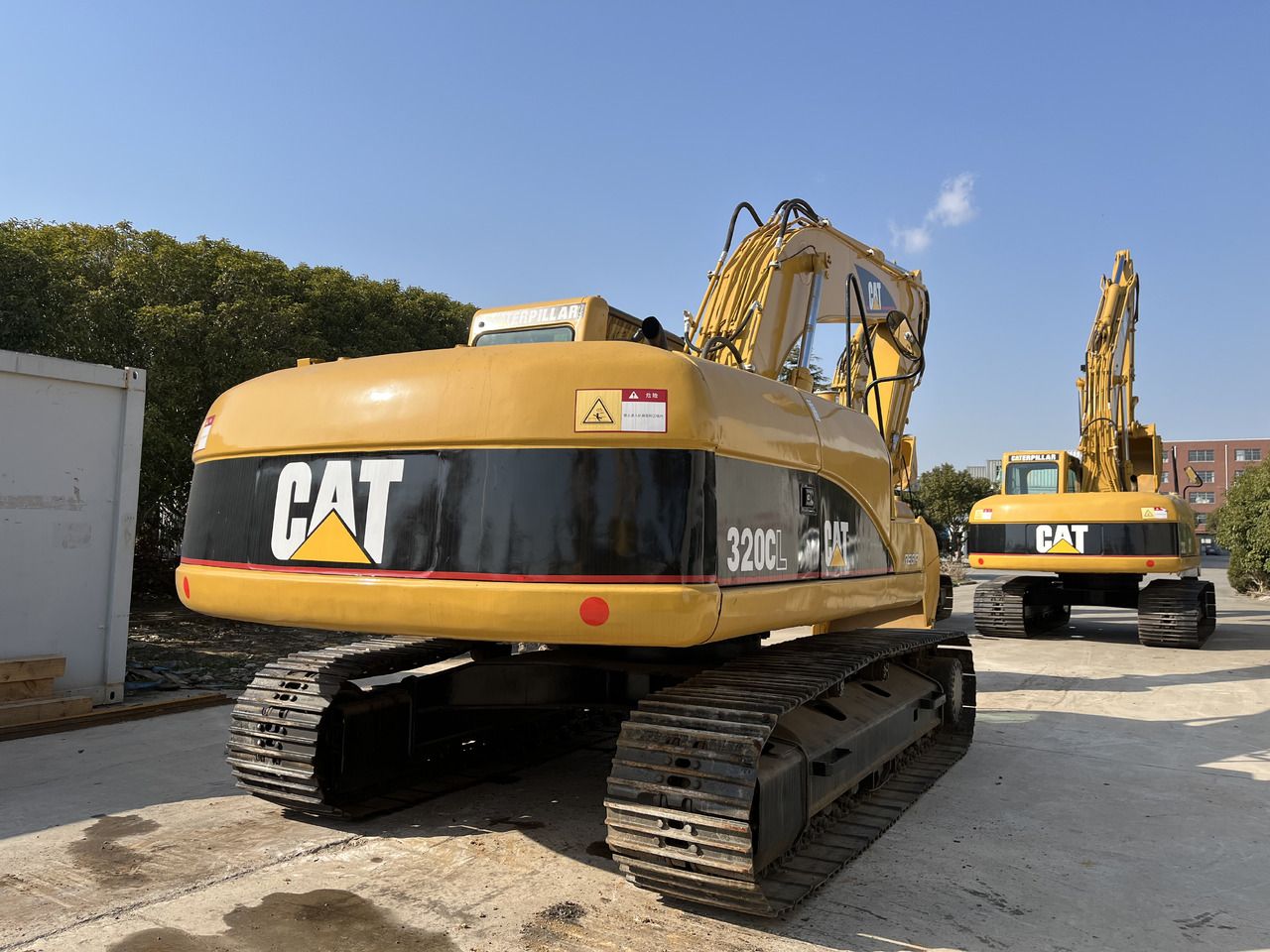

2016 Caterpillar 320CL Crawler Excavator

Caterpillar 320CL | 21.4 t
Location: Shanghai, China | Availability: In Stock

Machine Overview:
The Caterpillar 320CL is a 20-ton crawler excavator with an operating weight of 21,415 kg. It is powered by a CAT 3066ATAAC engine delivering 110 kW (148 hp) and meets Euro 2 emission standards. The machine offers a maximum digging depth of 6,550 mm and a digging radius of 9,710 mm. It is equipped with a bucket, quick coupler, hydraulic hammer, and counterweight.

Key Features:
- 2016 year of manufacture, excellent condition
- Operating weight 21.4 tonnes
- CAT 3066ATAAC engine, 6.4 L displacement, 148 hp
- Maximum digging depth 6,550 mm
- Maximum digging radius at ground level 9,710 mm
- Swing speed 11.5 rpm, travel speed 3.4/5.5 km/h
- Equipped with bucket, quick coupler, hydraulic hammer, counterweight
- Euro 2 emission certified

Technical Data
Engine:
- Engine: CAT 3066ATAAC
- Power: 148 hp (110 kW) at 1800 rpm
- Displacement: 6.4 L
- Cylinders: 6
- Fuel: Diesel
- Emission level: Euro 2

Work Area:
- Maximum digging depth: 6,550 mm
- Maximum digging radius at ground level: 9,710 mm
- Maximum lift height: 6,670 mm
- Bucket capacity: 0.8 - 1.2 m³

Dimensions / Transport:
- Length: 9.44 m
- Width: 2.99 m
- Height: 3.04 m
- Track width: 2,380 mm
- Fuel tank: 320 L
- Hydraulic tank: 120 L

Attachments & Equipment:
- Bucket
- Quick coupler
- Hydraulic hammer
- Counterweight
