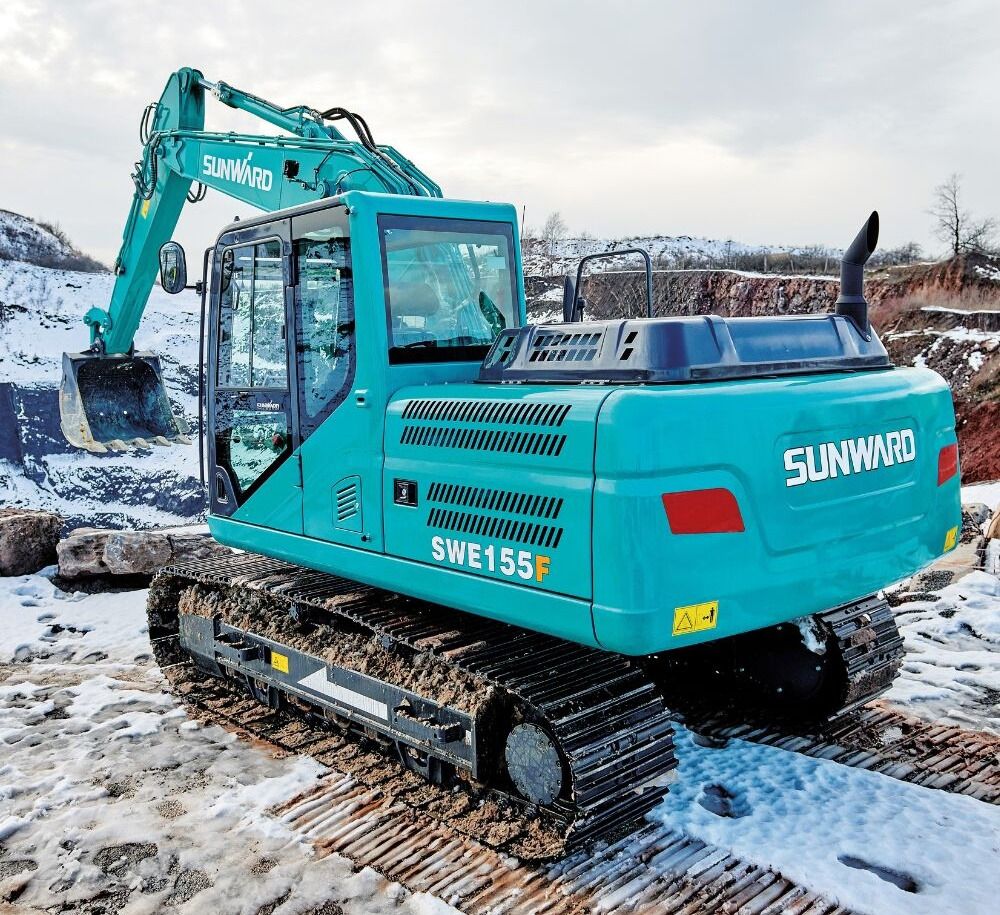

2024 Sunward SWE155F Crawler Excavator

Sunward SWE155F | 15.6 t Crawler Excavator | 3 years or 3000 engine hours warranty
Location: Riga, Latvia

Machine Overview:
New Sunward SWE155F crawler excavator with 15.6 t total weight, Cummins diesel engine, heated cab with air conditioning, standard bucket and 600 mm metal tracks. The machine is supplied with a standard boom and hydraulic outlets on the boom.

Key Features:
- New 2024 crawler excavator
- 15.6 t total weight
- Cummins QSF3.8 diesel engine
- 93kW/2200rpm engine power / 126 hp

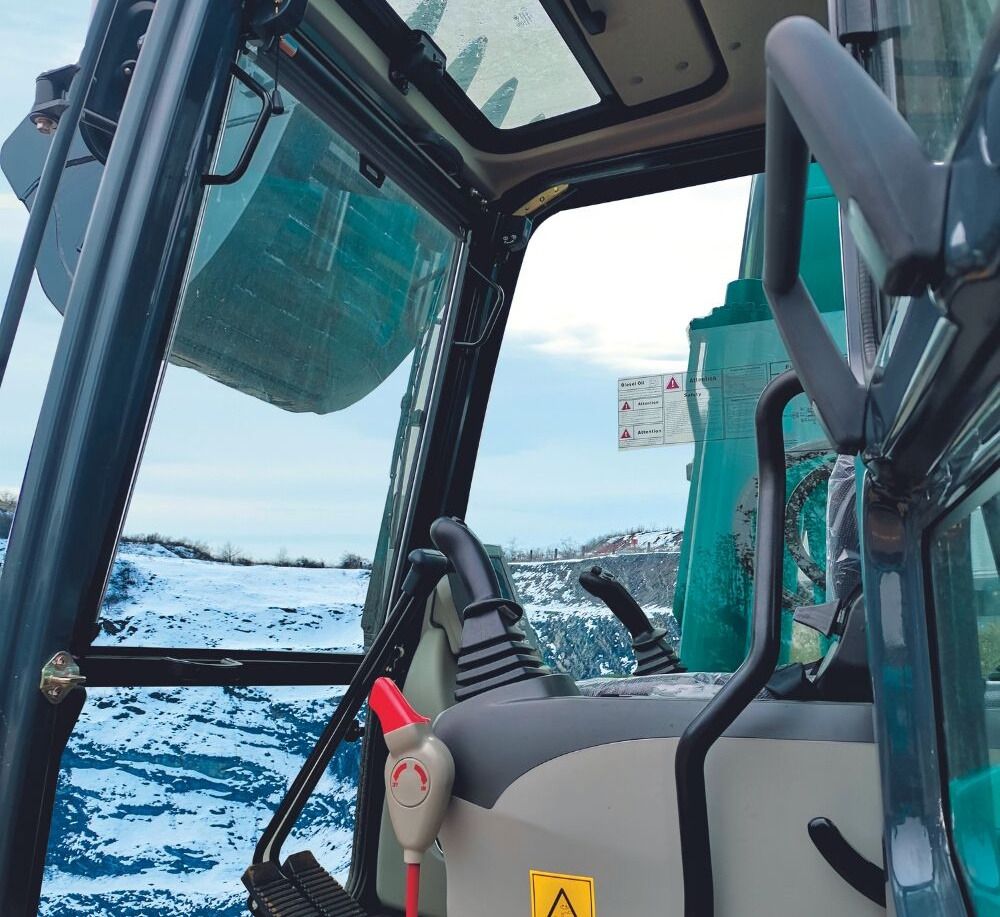

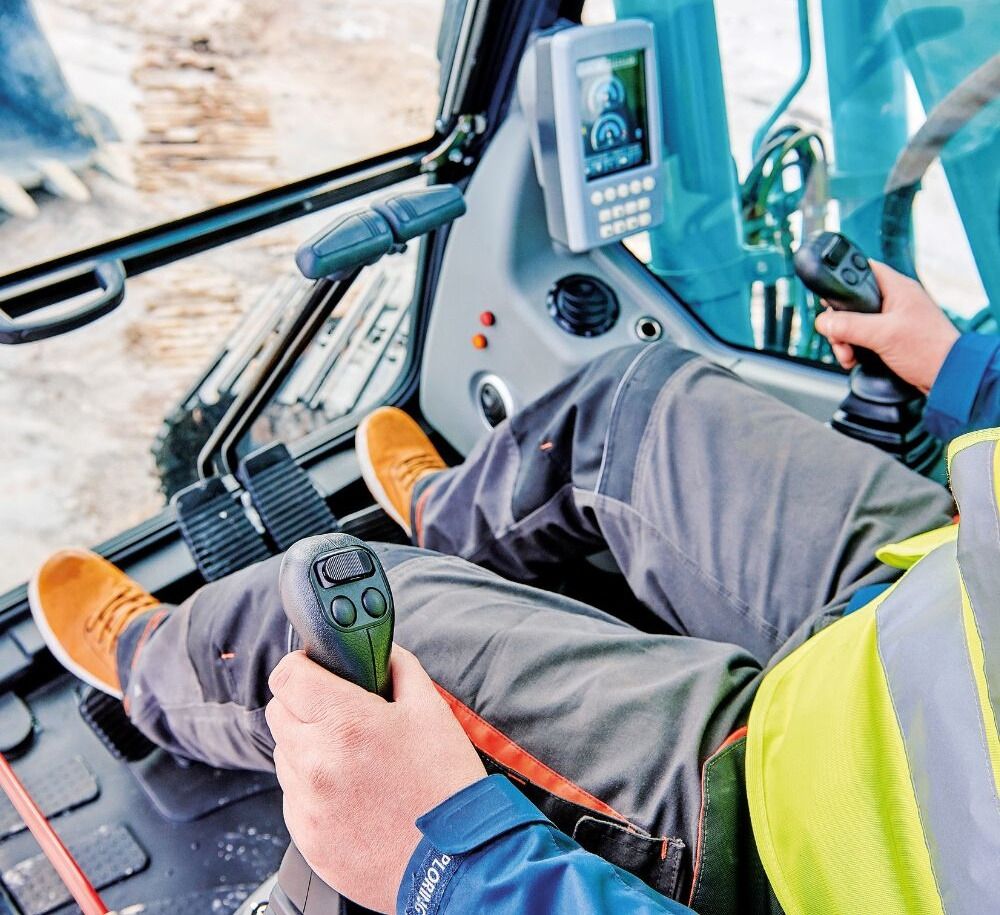

- Heated cab with air conditioning
- Standard 1m3 bucket
- 600 mm metal tracks
- Hydraulic outlets on boom

Technical Data

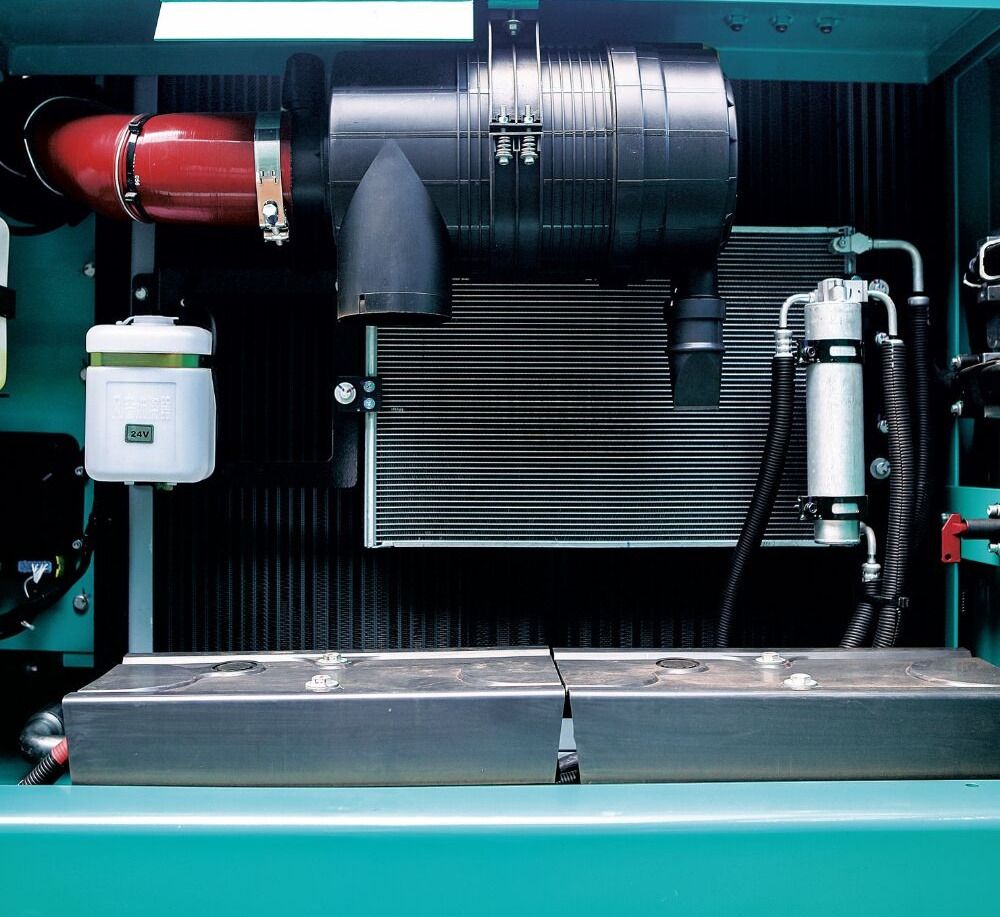

Engine:
- Engine: Cummins QSF3.8
- Type: 4-cylinder, water-cooled
- Displacement: 3.8 L
- Power: 93kW/2200rpm / 126 hp
- Fuel: diesel
- Emission class: Euro 5

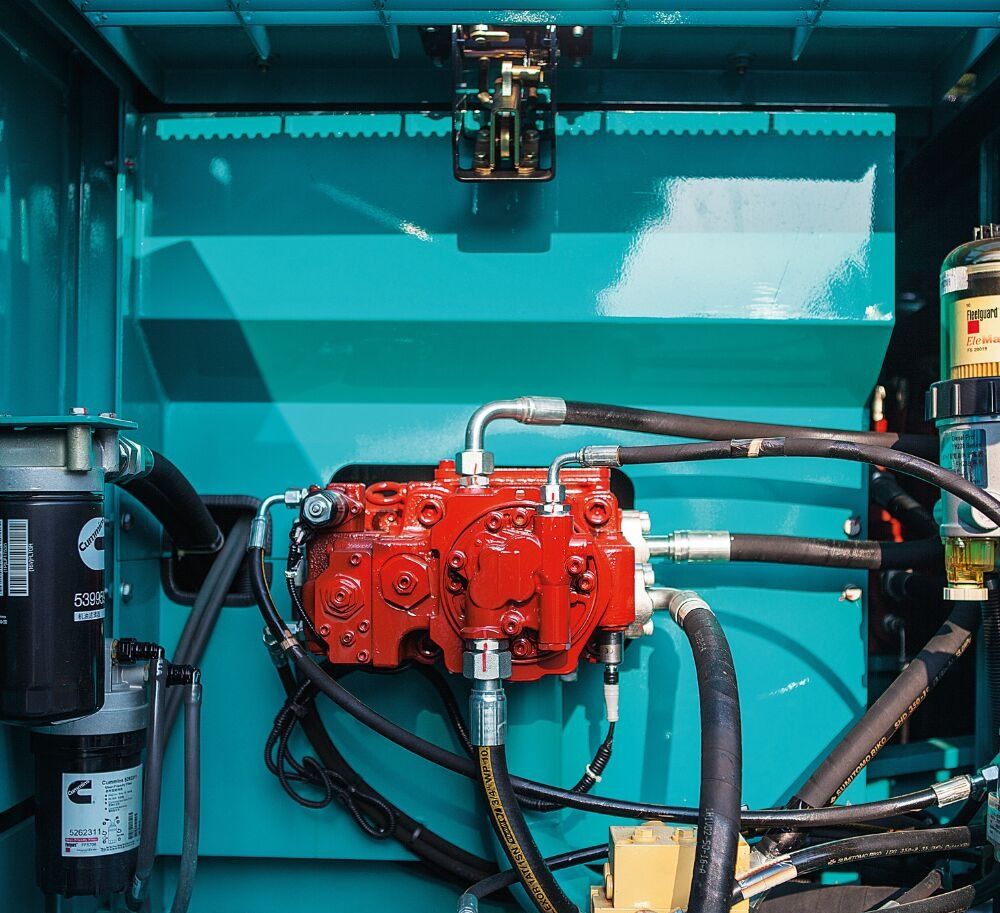

Hydraulic System:
- Type: 2 piston pumps
- Flow: 2x126.4 L/min
- Working pressure: 31.4/34.3 Mpa
- Hydraulic oil tank: 150L

Work Area:
- Max. digging depth: 5525mm
- Max. vertical digging depth: 5000mm
- Max. reach: 8370mm
- Max. reach at ground level: 8225mm
- Max. loading height: 6200mm
- Bucket digging force: 100 kN

Dimensions / Transport:
- Transport length: 7825mm
- Transport width: 2600mm
- Transport height: 2825mm
- Tail swing radius: 2355mm
- Counterweight clearance: 940mm

Undercarriage:
- Track width: 600 mm
- Travel speed: 5.5/3.2 km/h

Attachments & Equipment:
- Standard bucket
- Standard boom
- Hydraulic outlets on boom
- Optional hydraulic couplers, grabs and roto-tilts available

Documentation & Compliance:
- Warranty: 3 years or 3000 engine hours
