Berger Kraus BK4000KJS | with Warranty
Location: Kassel, Germany | Availability: In Stock

Machine Overview:

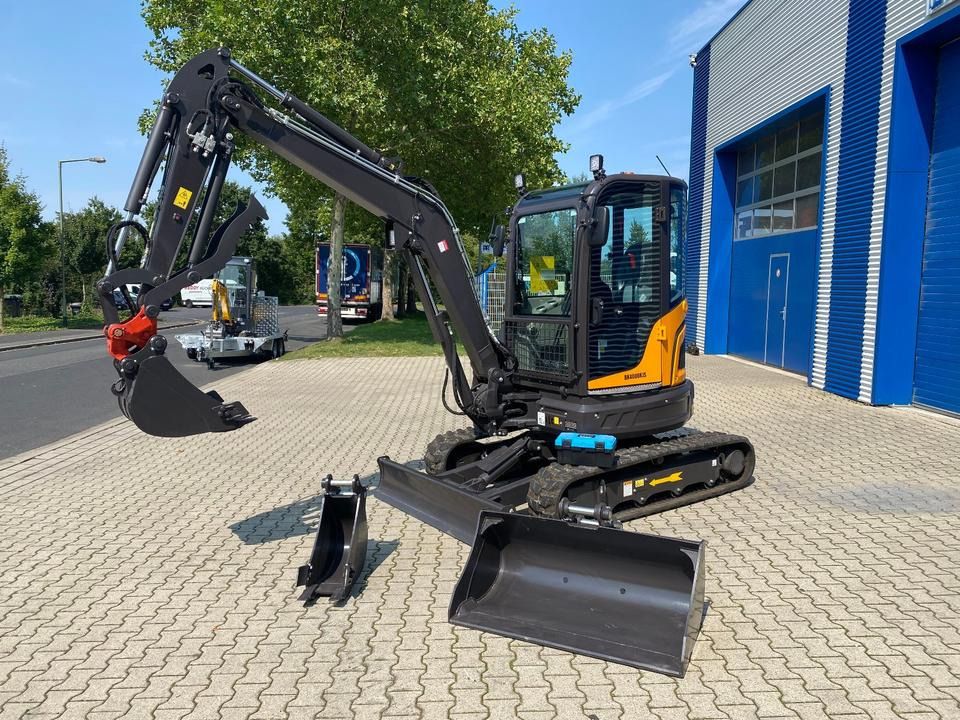

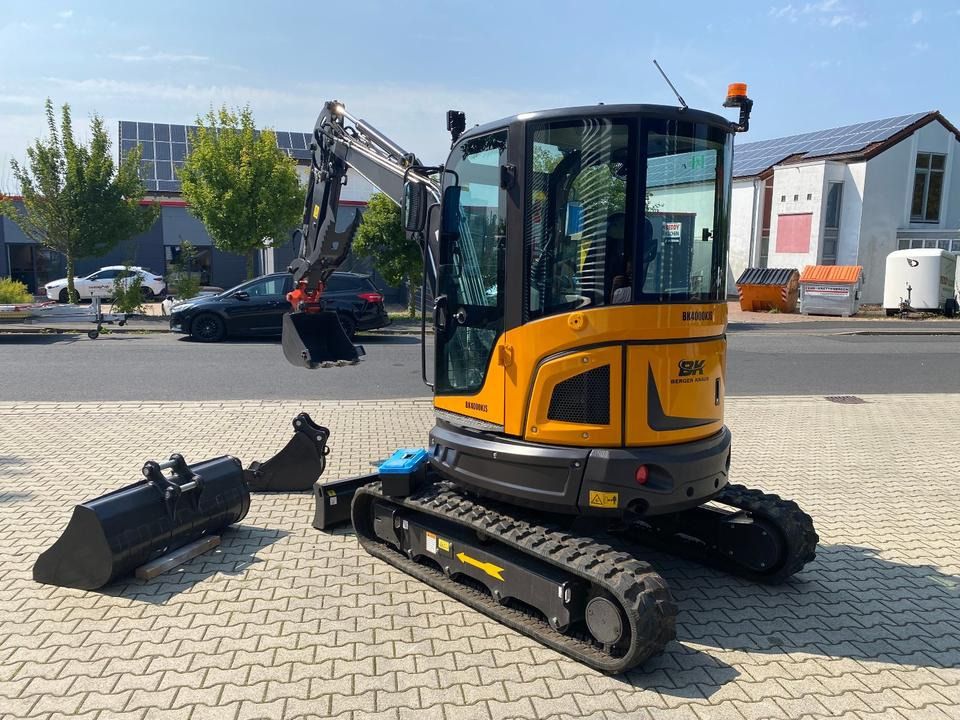

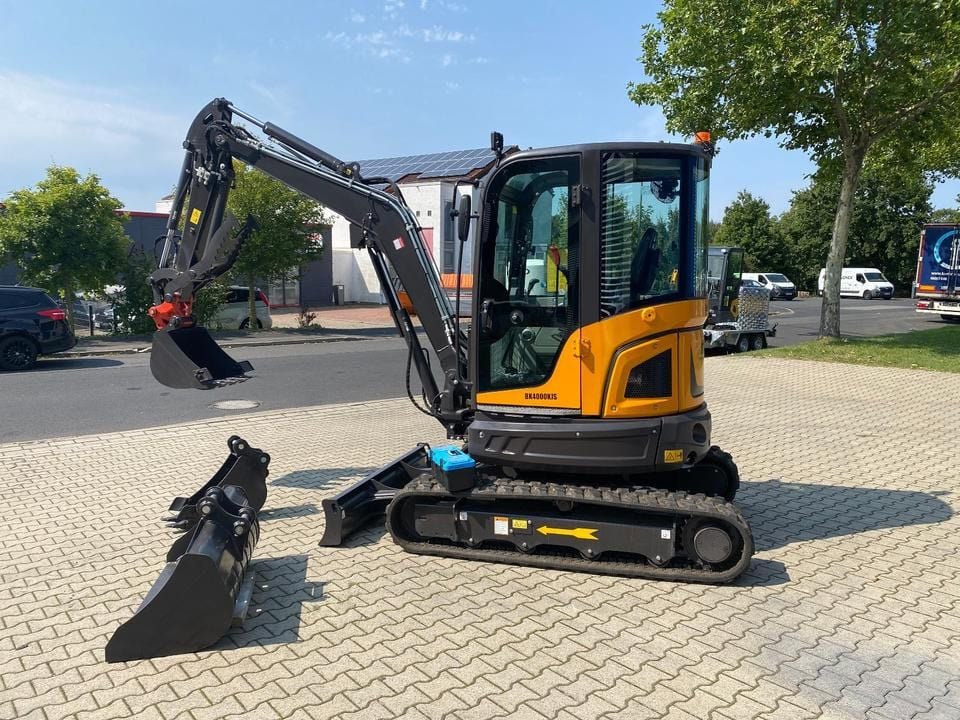

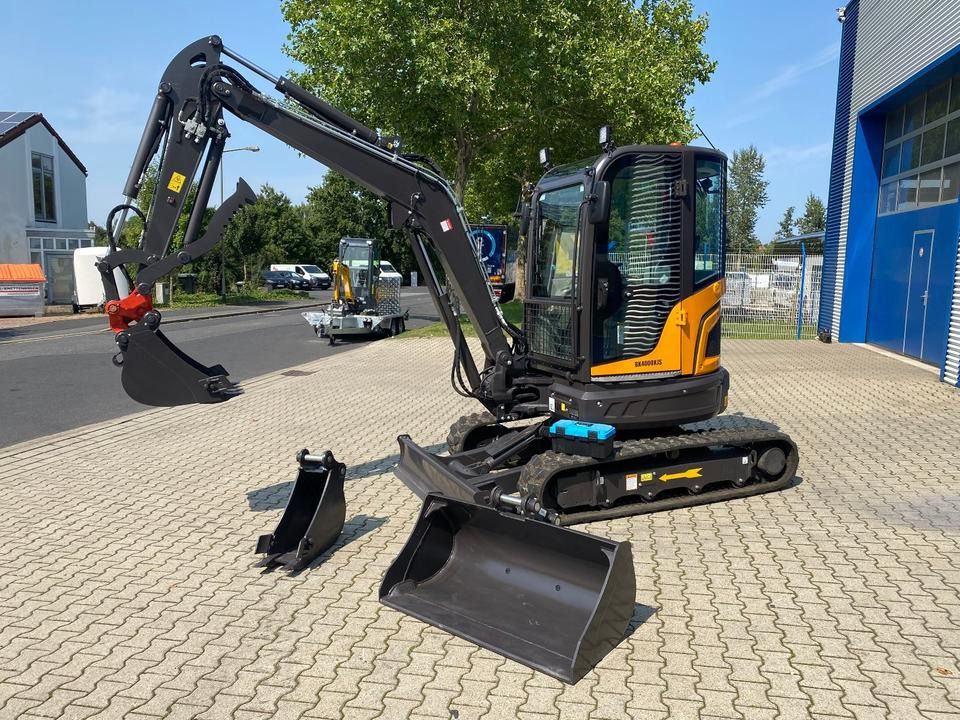

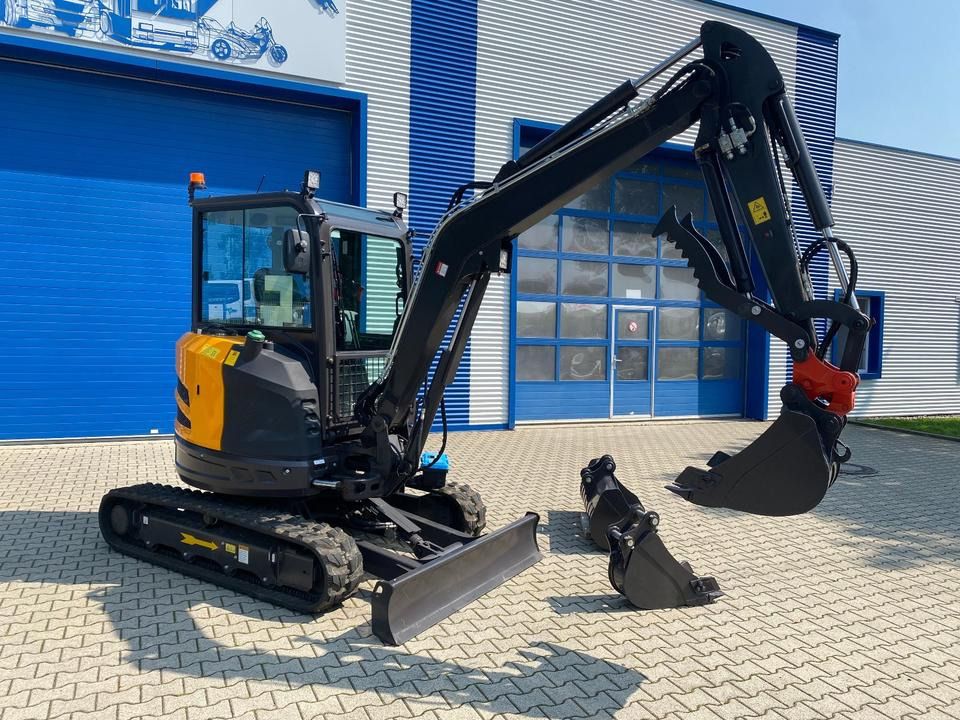

Berger Kraus BK4000KJS excavator with enclosed cab, Kubota Euro 5 diesel engine, swing arm, hydraulic joysticks and hydraulic quick coupler. Designed for fencing work, digging foundations, utility connections and landscaping work. Demonstration machine with up to 5 operating hours.

Key Features:
- Enclosed cab with air conditioning, heating, blower and radio
- Kubota D1703-M 3-cylinder water-cooled diesel engine
- 18,5 kW rated power at 2200 U/min
- Hydraulic quick coupler for changing attachments from the cab
- Travel speed two stages: 2,3 km/h / 3,6 km/h
- Bucket digging force: 27,6 kN
- Boom digging force: 20,4 kN
- Includes bucket package and pre-mounted excavator thumb

Technical Data

Engine:
- Engine: KUBOTA D1703-M, 3-cylinder, water-cooled (diesel), Euro 5
- Rated power: 18,5 kW / 2200 U/min
- Displacement: 1647ccm³
- Fuel tank: 60 L
- Engine oil capacity: 7 L

Hydraulic System:
- Pressure: 220 MPa
- Main pump: TAIFENG piston 99,9 L/min
- Swing motor: HENGLI
- Travel motor: final drive with HENGLI hydraulic motor
- Hydraulic oil tank: 50 L

Work Area:
- Max. digging reach: approx. 5460mm
- Max. digging depth: approx. 3265mm
- Max. dumping height: approx. 3670mm
- Max. reach height: approx. 5120mm
- Minimum turning radius: approx. 2345mm
- Swing radius: 360°

Dimensions / Transport:
- Dimensions: 5045 × 1800 × 2555mm
- Total track length: 2225mm
- Undercarriage width: 1800mm
- Ground clearance: 580mm

Undercarriage:
- Track width: 300mm

Attachments & Equipment:
- Excavator thumb pre-mounted
- Hydraulic quick coupler
- Buckets: 1200mm, 500mm and 200mm
- Tool box

Documentation & Compliance:
- CE supplied
- Invoice showing VAT
- German operating / repair manual
- Warranty/guarantee according to statutory requirements
