Berger Kraus BK1350JSR
Location: Kassel, Germany | Availability: In Stock

Machine Overview:

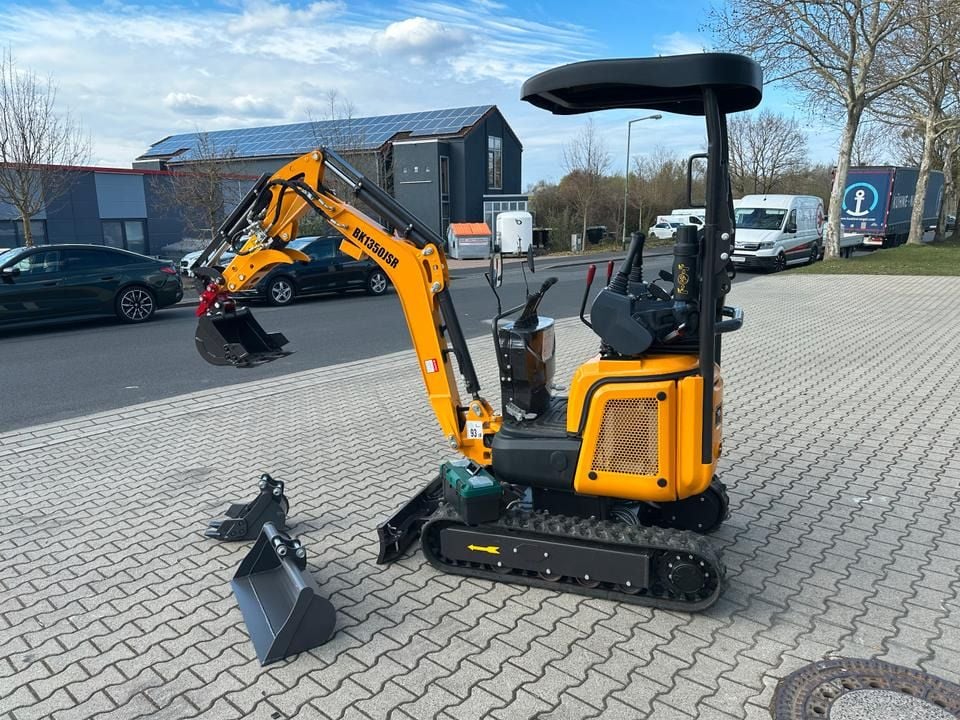

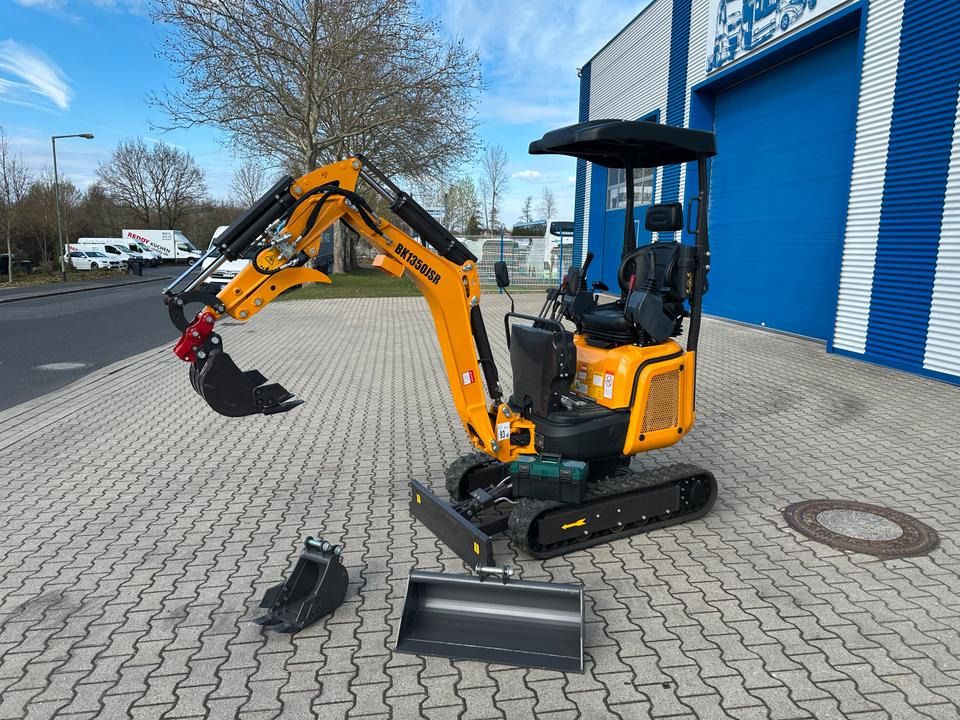

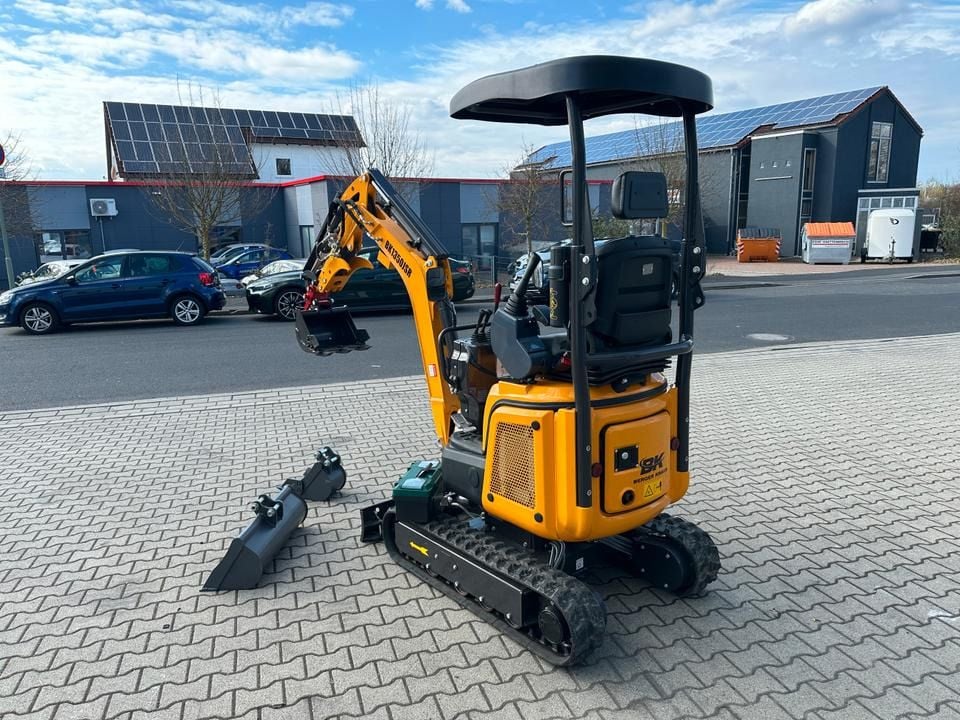

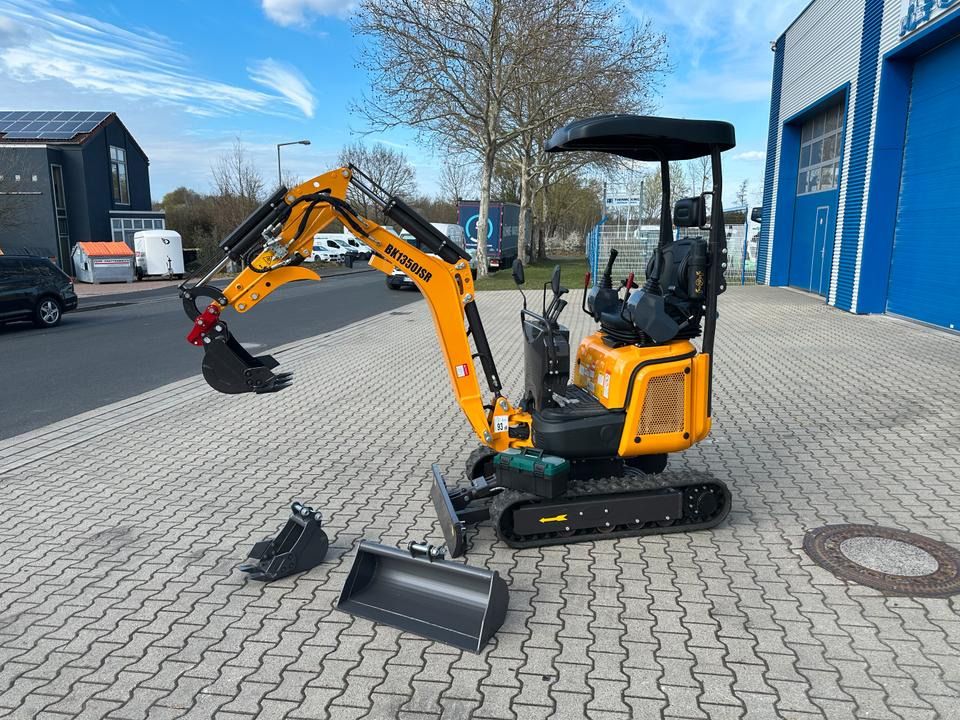

Berger Kraus BK1350JSR mini excavator with swing arm, adjustable undercarriage and Kubota Euro 5 D722 diesel engine. Supplied with a bucket package and up to a maximum of 5 operating hours stated for demonstration use.

Key Features:
- Operating weight: 1295kg
- Kubota Euro 5 D722 3-cylinder liquid-cooled diesel engine
- Adjustable undercarriage
- 2 travel speeds: 2 / 3,6 km/h
- Quick coupler and excavator thumb pre-mounted
- Bucket package included
- CE, VAT invoice and German operating / repair manual included

Technical Data

Engine:
- Engine: KUBOTA EURO 5 (D722) 3-cyl liquid cooled (diesel)
- Rated power: 10,2 kw (14PS) / 2500r / min
- Displacement: 719ccm³
- Fuel tank: 11L

Hydraulic System:
- Main pump: TAIFENG piston pump
- Oil flow: 45L/min
- Swing motor: EATON (USA)
- Travel motor: JINGKEN hydraulic motor
- Hydraulic oil tank: 15,3L

Work Area:
- Digging reach at ground level: approx. 3380mm
- Max. digging reach: approx. 3410mm
- Max. digging depth: approx. 2002mm
- Max. digging height: approx. 2980mm
- Max. dumping height: approx. 2170mm
- Minimum turning radius: approx. 1490mm
- Max. blade lift height: approx. 140mm
- Max. blade digging depth: approx. 200mm
- Slewing radius: 360 °

Dimensions / Transport:
- Overall dimensions (LxWxH): 3100x850(1000)x2320

Undercarriage:
- Total length of track: approx. 1435mm
- Undercarriage width: approx. 850-1000mm adjustable undercarriage
- Track width: approx. 180Mm
- Track height: 320mm

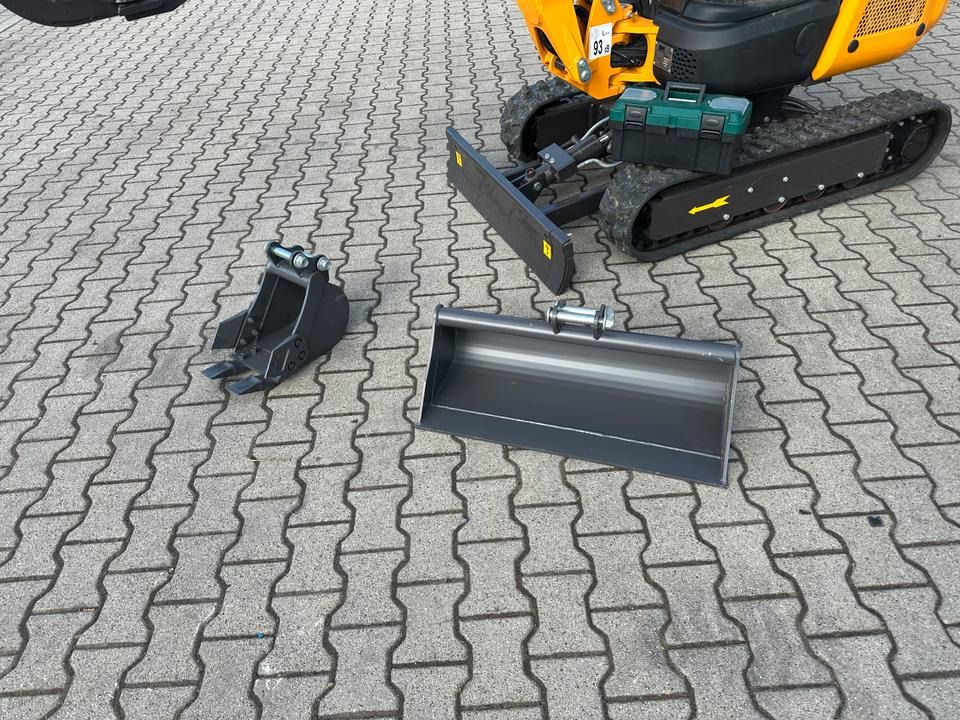

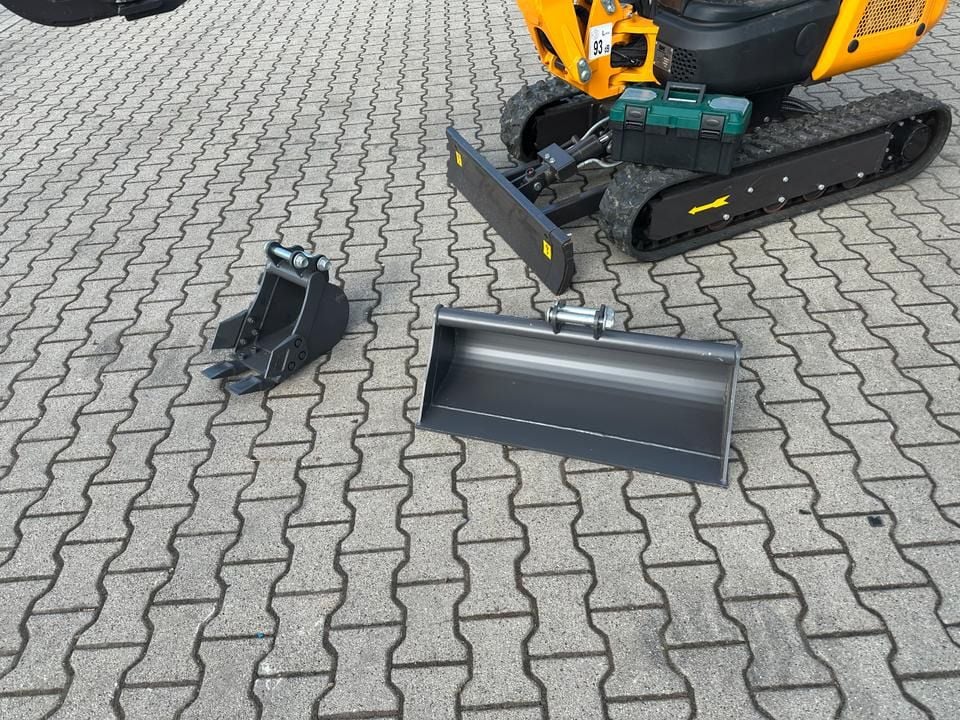

Attachments & Equipment:
- Quick coupler (Quick-Hitch), pre-mounted
- Excavator thumb, pre-mounted
- Bucket 800mm
- Bucket 200mm
- Bucket 380mm
- Tool box

Documentation & Compliance:
- CE included
- Invoice with VAT shown
- Operating / repair manual in German
