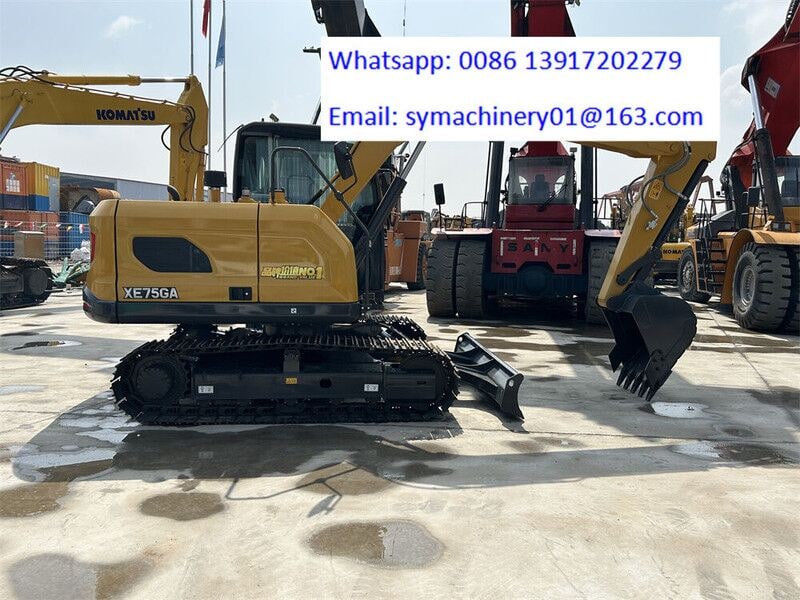

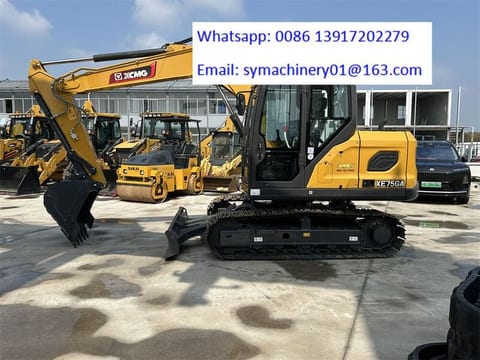

New 2026 XCMG XE75GA Mini Excavator

XCMG XE75GA | 7.7 t | 2 hours
Location: Shanghai, China

Machine Overview:
2026 XCMG XE75GA mini excavator with only 2 hours of operation. Powered by a Kubota V2607 diesel engine (49 hp), this 7.7 t machine features a 0.33 m³ bucket and a digging depth of 4.02 m.

Key Features:
- 2026 model year
- 2 hours of operation
- 7.7 t operating weight
- Kubota V2607 diesel engine, 49 hp
- 0.33 m³ bucket capacity
- Digging depth: 4.02 m
- Dumping height: 5.16 m
- 450 mm track width
- 170 L fuel tank

Engine:
- Engine: Kubota V2607-CR-TE4 (turbocharged, intercooled diesel)
- Rated power: 36 kW / 2,000 rpm (49 hp)
- Displacement: 2.615 L
- Cylinders: 4
- Fuel: diesel
- Fuel tank: 170 L

Hydraulic System:
- Pump type: Load-sensing variable piston pump
- Max flow: 160 L/min
- System pressure: 28 MPa

Work Area:
- Max digging radius: 6,260 mm
- Max digging depth: 4,020 mm
- Max vertical digging depth: 2,960 mm
- Max digging height: 7,085 mm
- Max dumping height: 5,160 mm
- Bucket digging force: 57 kN
- Arm digging force: 38 kN

Dimensions / Transport:
- Overall length: 6,185 mm
- Overall width: 2,265 mm
- Overall height: 2,645 mm
- Track length: 2,825 mm
- Track gauge: 1,800 mm
- Wheelbase: 2,195 mm
- Min. ground clearance: 385 mm
- Tail swing radius: 1,840 mm
- Track shoe width: 450 mm

Undercarriage:
- Travel motor: Piston hydraulic motor
- Swing motor: Piston hydraulic motor
- Reduction gear: Planetary reduction
- Track frame: X-frame, reinforced
- Rollers/idlers: Sealed and lubricated

Attachments & Equipment:
- Standard bucket: 0.33 m³
- Optional: breaker hammer, narrow bucket, quick coupler, rubber track pads, dozer blade

Documentation & Compliance:
- 12-month warranty
