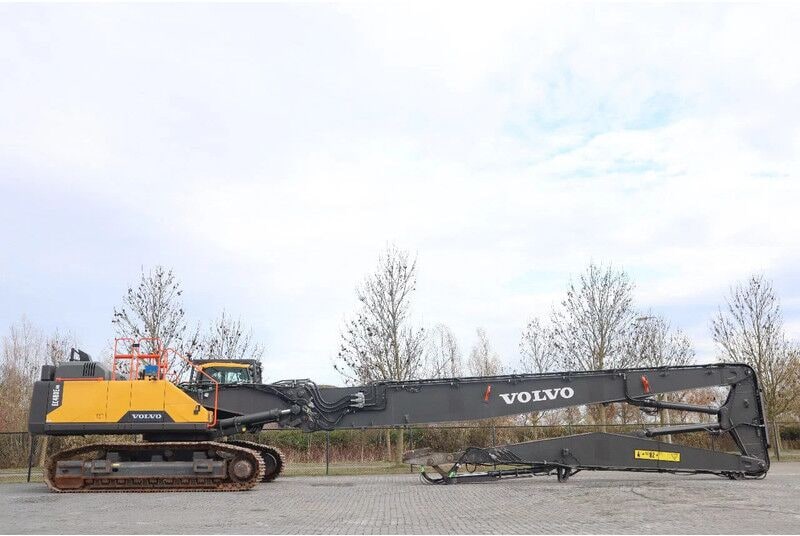

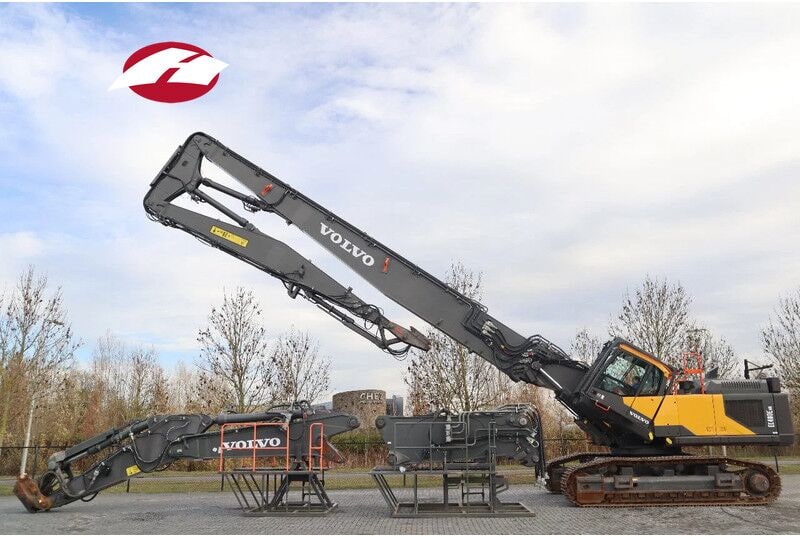

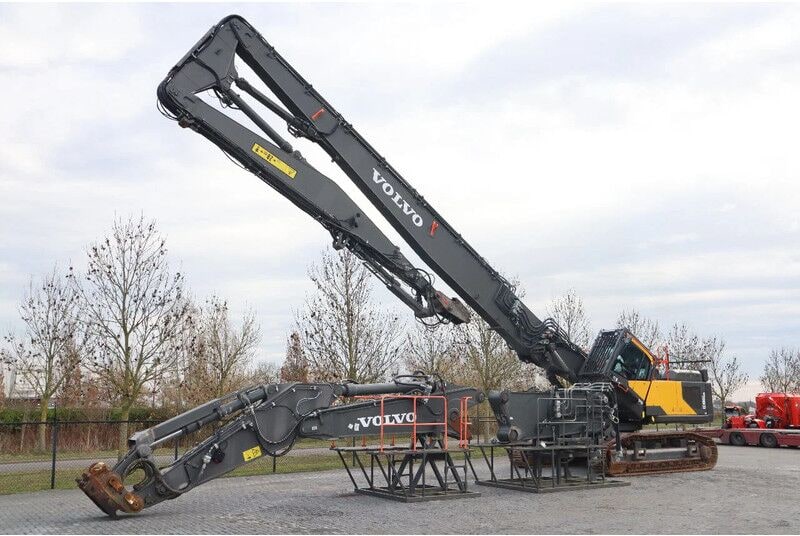

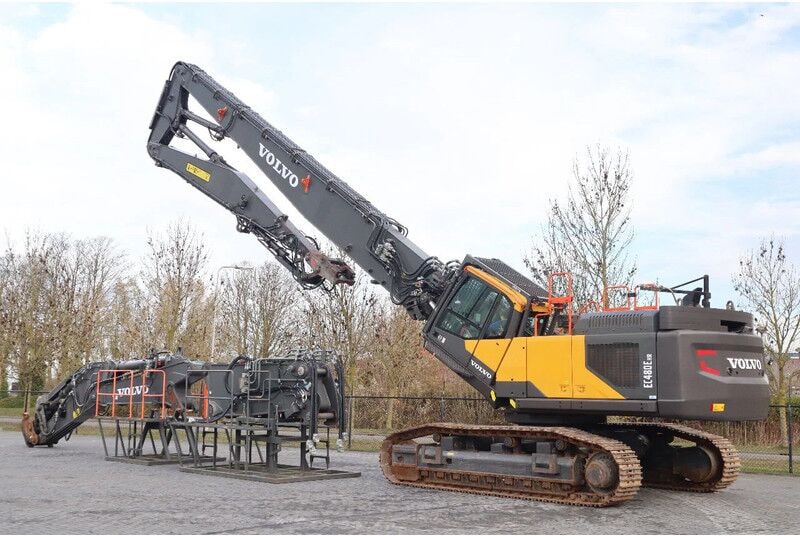

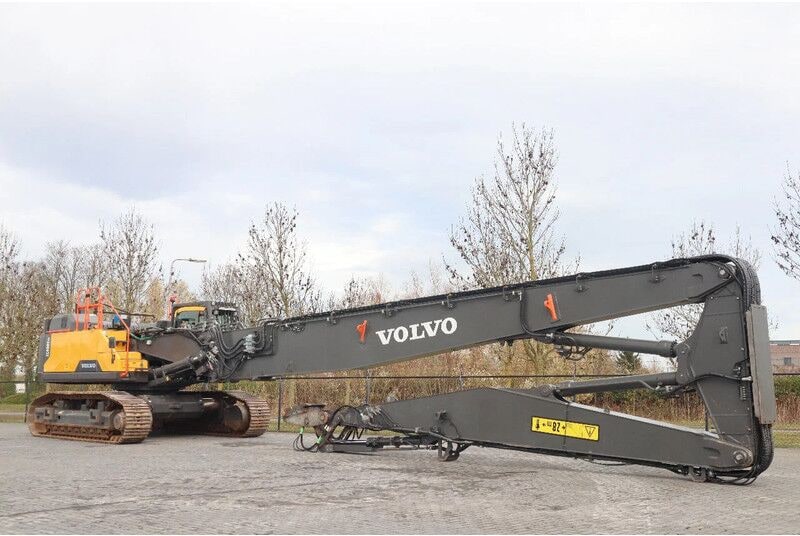

2021 Volvo EC480EHR Crawler Excavator

Volvo EC480EHR | 64.65 Ton | 2014 hours
Location: Marknesse, Netherlands

Machine Overview:
2021 Volvo EC480EHR demolition excavator with 2,014 hours, 64.65 Ton weight and extendable undercarriage. Equipped with a 28 m demolition boom, standard digging boom, boom extension, OilQuick equipment and hydraulic systems for demolition attachments.

Key Features:
- 2021 machine with 2,014 hours
- Volvo D13J 6-cylinder turbocharged engine
- 278kW / 378 HP power output
- Stage V emissions with Ad blue
- Hydraulic extendable undercarriage from 300 cm to 400 cm
- 28 m demolition reach with standard digging boom and boom extension
- Hammer, shear and rotation hydraulics
- Tilt cabin with front window and roof guard plus FOPS

Technical Data

Engine:
- Fuel: diesel
- Displacement: 12800 cc
- Engine cylinders: 6
- Power output: 378 hp

Hydraulic System:
- Hammer / shear / rotation hydraulics
- Hydraulic boom quick coupler with hydraulic fasters for changing booms

Work Area:
- Max reach: 28 m
- Main boom: 15.70 m
- Connection part: 2.50 m
- Stick: 8.50 m
- Boom extension length: 4.47 m
- Digging boom length: 8.79

Dimensions / Transport:
- Length: 20.5 m
- Width: 3.3 m
- Height: 3.9 m

Undercarriage:
- Hydraulic extendable undercarriage
- Width retracted: 300 cm
- Width extended: 400 cm
- Plate width: 600 mm
- Plate condition: 80%
- Sprocket condition: 75%
- Rolls condition: 75%
- Chain condition: 75%

Attachments & Equipment:
- Standard digging boom
- 28-meter boom
- 2x OilQuick
- Boom extension
- Hydraulic counterweight
- Water spray system
- Dynaset magnet generator
- Central lubrication
- Additional self-fueling diesel pump
- Extra counterweights
- LED working lights around the machine

Documentation & Compliance:
- CE mark: yes
- Emissions class: Stage V
- No welding or cracks on the booms reported
- No leaks or other problems discovered during testing

Shipping & Delivery:
- Worldwide delivery is possible
