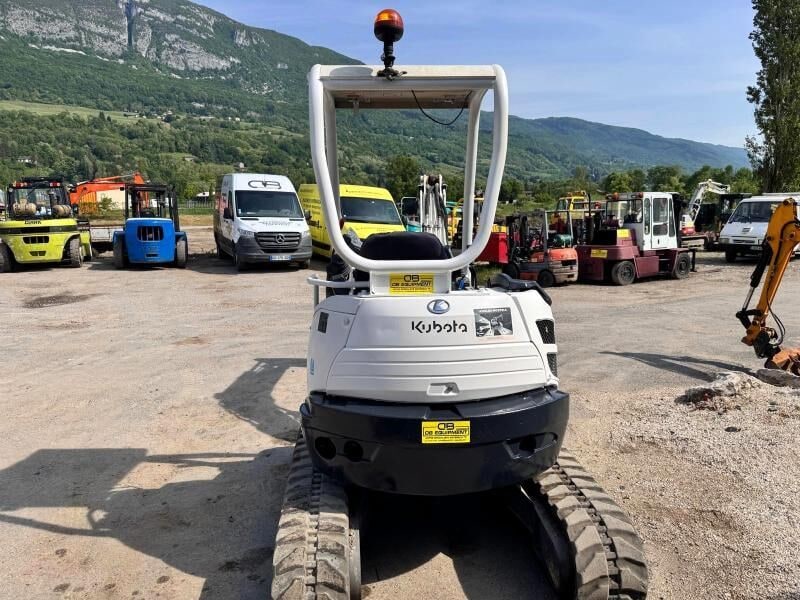

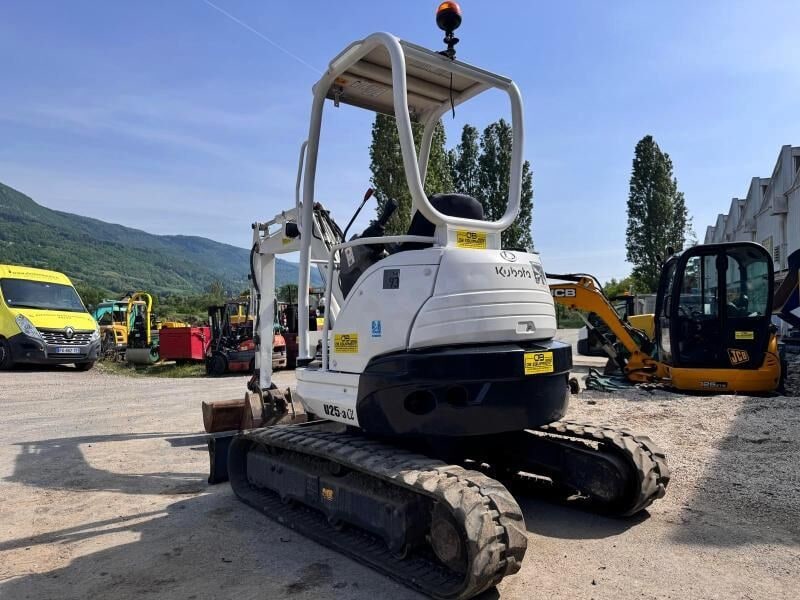

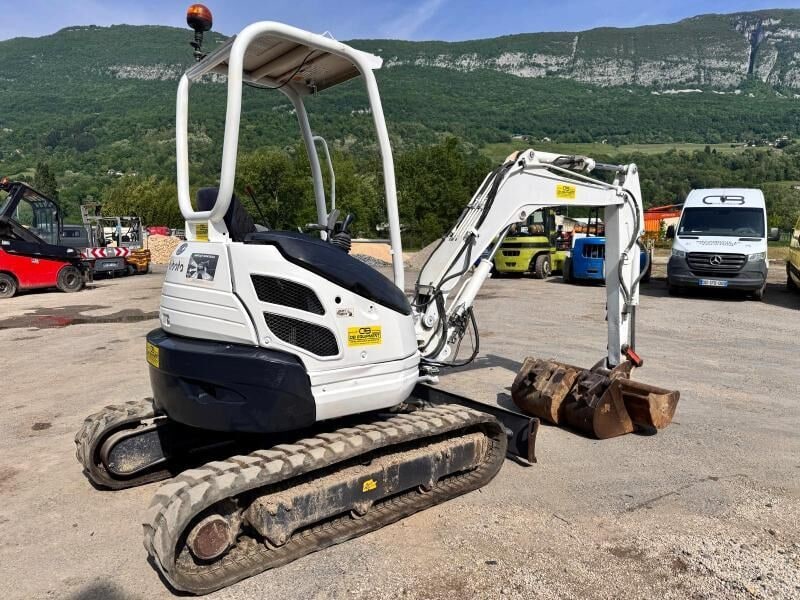

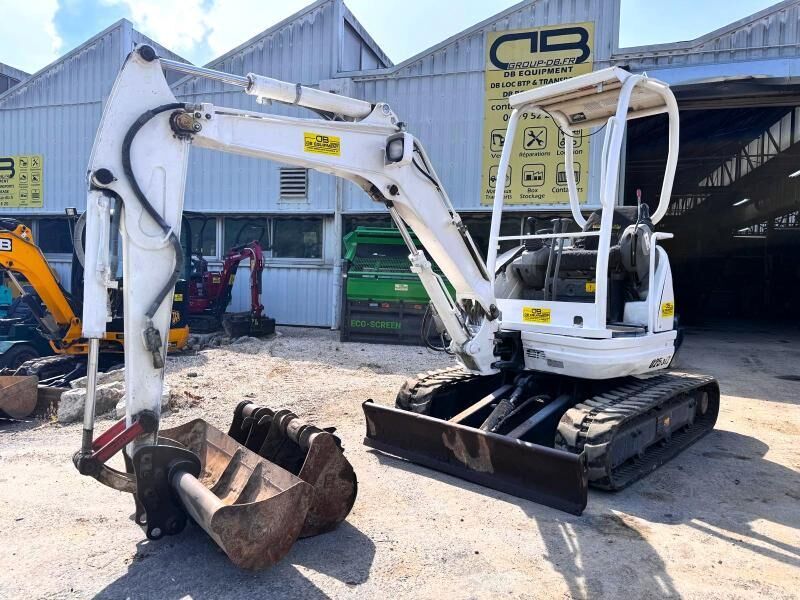

2010 Kubota U25-3EU Mini Excavator

Kubota U25 | 5035 hours
Location: Serrières-En-Chautagne, France

Machine Overview:
The Kubota U25-3EU is a 2.5-ton mini excavator from 2010 with 5,035 hours. Powered by a Kubota D1105-E2-BH diesel engine (15.5 kW / 21 hp), it features a canopy, offset boom, and auxiliary hydraulic line. The machine comes with three buckets (ditch-cleaning, digging, trenching) and a Morin M1 mechanical quick coupler. Rubber tracks (300 mm) provide good ground protection. Inspected tracks show ~20% wear, with good sprocket rings.

Key Features:
- 2010 model with 5,035 hours
- Kubota D1105-E2-BH 3-cylinder diesel, 15.5 kW / 21 hp
- Canopy protection
- Offset boom for jobsite versatility
- Three buckets: ditch-cleaning, digging, trenching
- Morin M1 mechanical quick coupler
- Auxiliary hydraulic line
- Rubber tracks with ~20% wear

Technical Data:
Engine:
- Kubota D1105-E2-BH, 3 cylinders, 1.123 L diesel
- Power: 15.5 kW / 21 hp
- Liquid cooling

Work Area:
- Max digging depth: 2,800 mm
- Max dumping height: 3,000 mm
- Max side reach: 4,210 mm

Hydraulic System:
- Variable-flow pumps: 28.8 L/min
- Pressure: 210 bar

Dimensions:
- Length: 3.77 m, Width: 1.60 m, Height: 2.36 m
- Operating weight: 2,460 kg
- Track width: 300 mm

Attachments & Equipment:
- 3 buckets: ditch-cleaning, digging, trenching
- Morin M1 quick coupler
- Blade
