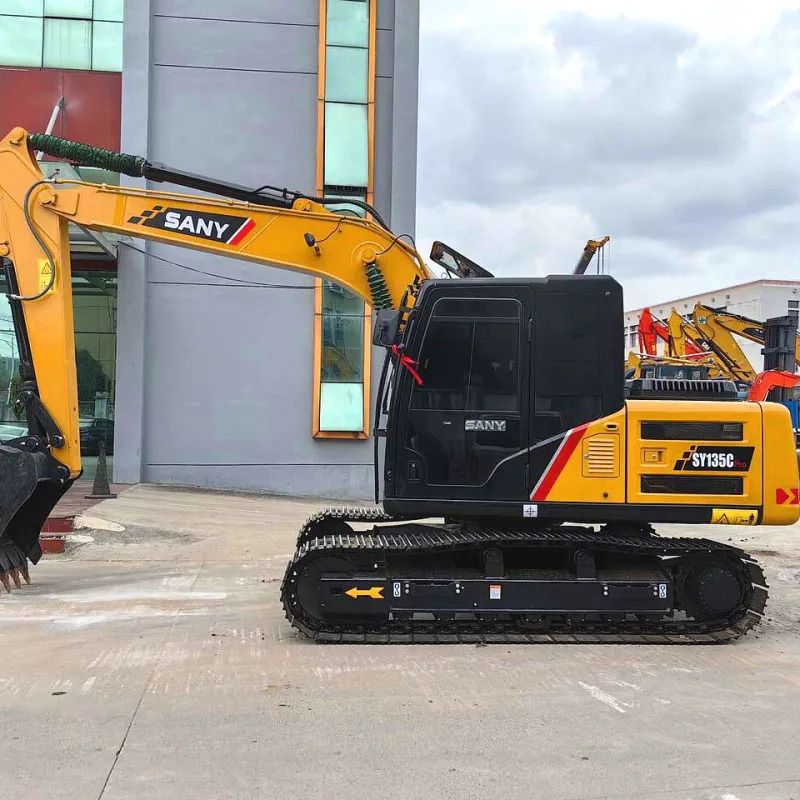

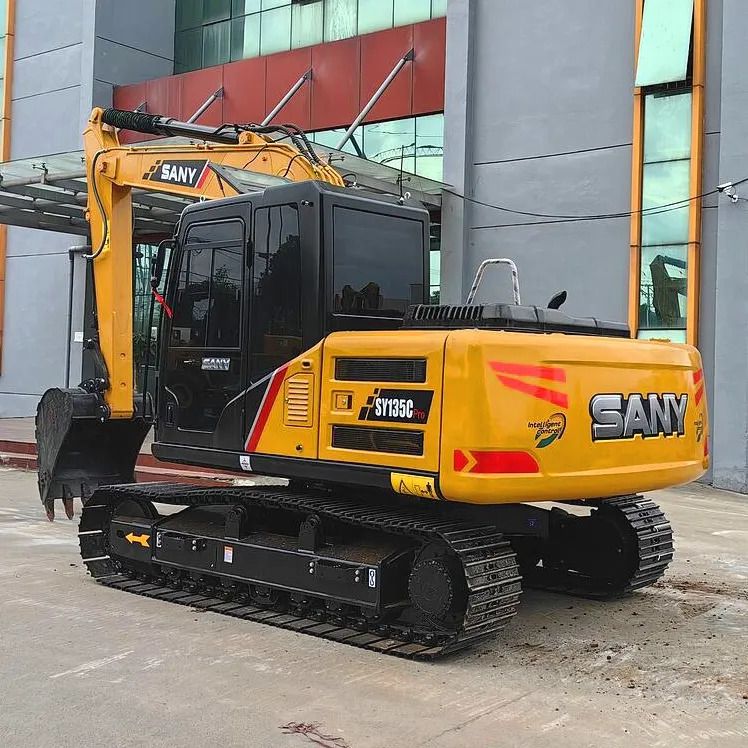

New 2026 Sany SY135C Crawler Excavator

Sany SY135C | Excavator
Location: Jinan, China | Availability: In Stock

Machine Overview:
Brand new mid-size excavator from SANY's SY series. Powered by an ISUZU FT4-4JJ1X engine, this machine combines compact dimensions with near 15-ton class capability for urban construction, utility work, and rental fleets.

Key Features:
- ISUZU FT4-4JJ1X engine delivering 78.5 kW (105.3 hp) gross power.
- Operating weight of 14,870 kg (32,783 lbs) for stability and performance.
- SANY's DOMCS positive-flow hydraulic control for improved fuel efficiency (up to 10% reduction).
- Wide heavy-duty undercarriage with steel tracks (600 mm shoe width) for stability.
- High auxiliary flow supports various attachments: breakers, grapples, tilt rotators.
- Maximum travel speeds of 3.4 mph (5.5 km/h) and grade capability of 35°.

Technical Data

Engine:
- ISUZU FT4-4JJ1X, 4-cylinder, 2.99 L displacement.
- Gross power: 105.3 hp (78.5 kW); Net power: 103.9 hp (77.5 kW).

Hydraulic System:
- Maximum operating flow: 63.9 gal/min (242.0 L/min).
- Maximum operating pressure: 4,975 psi (34.3 MPa).
- Primary auxiliary flow: 29.1 gal/min (110 L/min).
- Secondary auxiliary flow: 18.5 gal/min (70 L/min).

Work Area:
- Swing speed: 12 RPM.

Dimensions / Transport:
- Track shoe width: 600 mm (standard).
- Undercarriage: 7 track rollers per side, 1 carrier roller per side.
