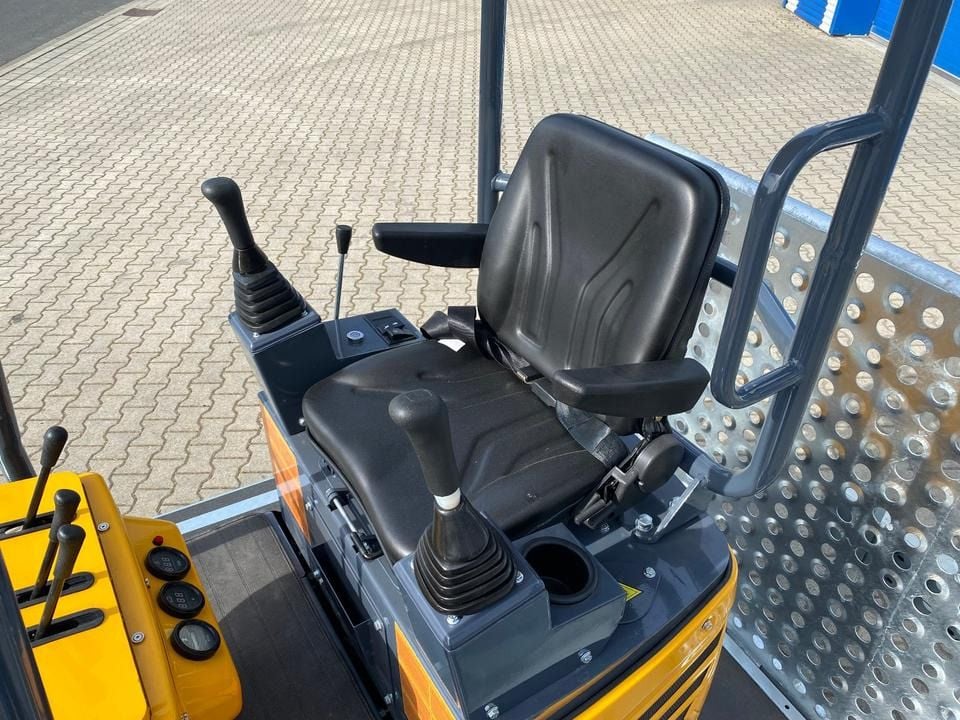

Berger Kraus BK1250JS WITH JOYSTICKS NEXT TO THE DRIVER’S SEAT Mini Excavator

Berger Kraus BK1250JS WITH JOYSTICKS NEXT TO THE DRIVER'S SEAT
Location: Kassel, Germany

Machine Overview:

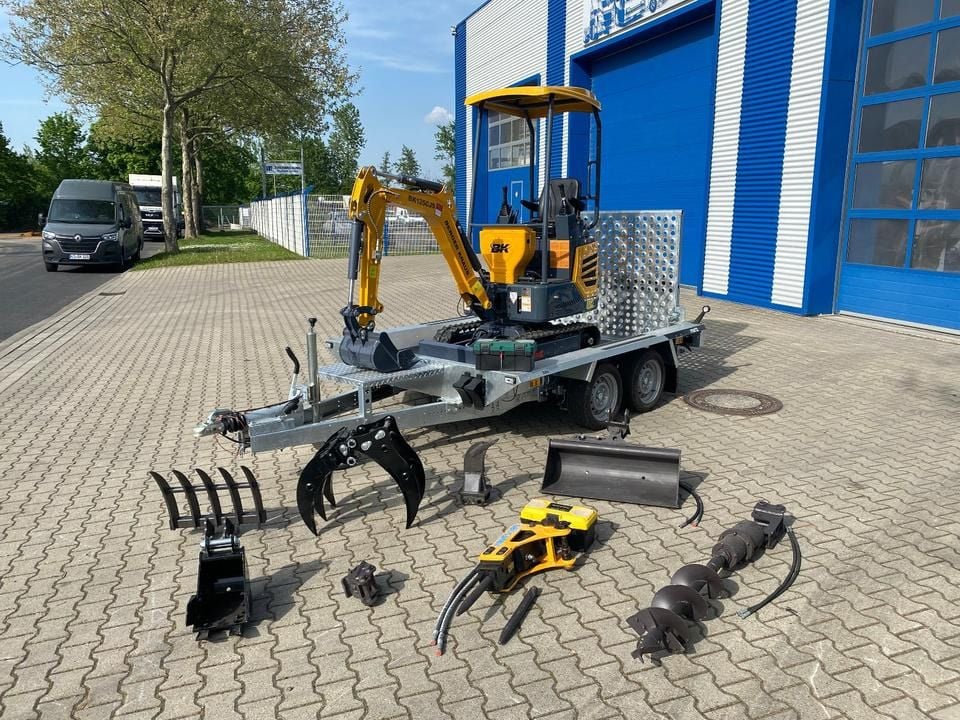

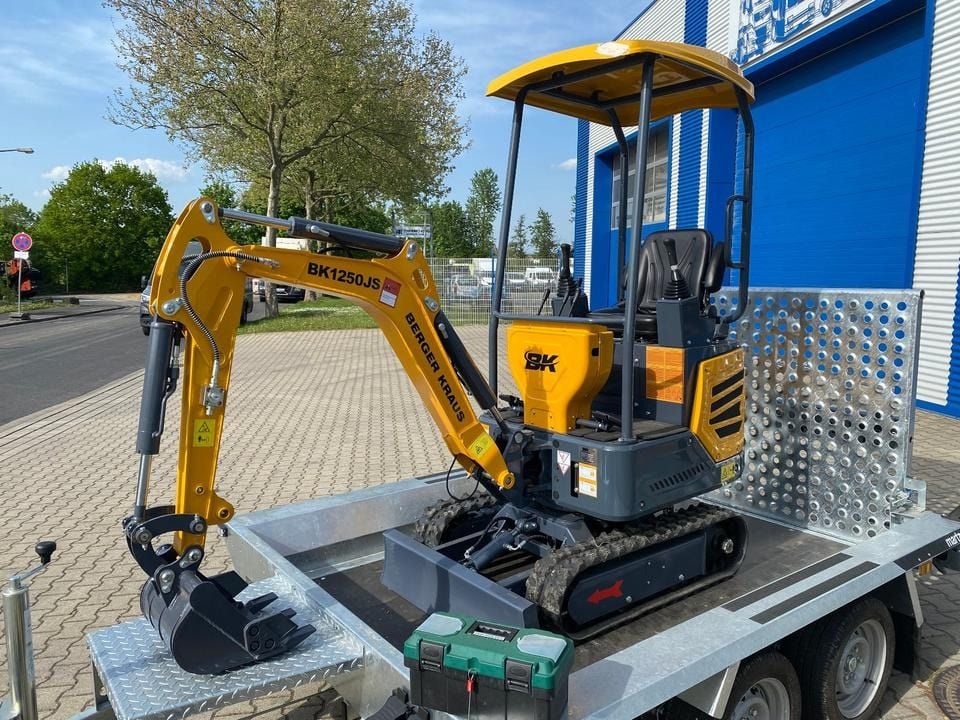

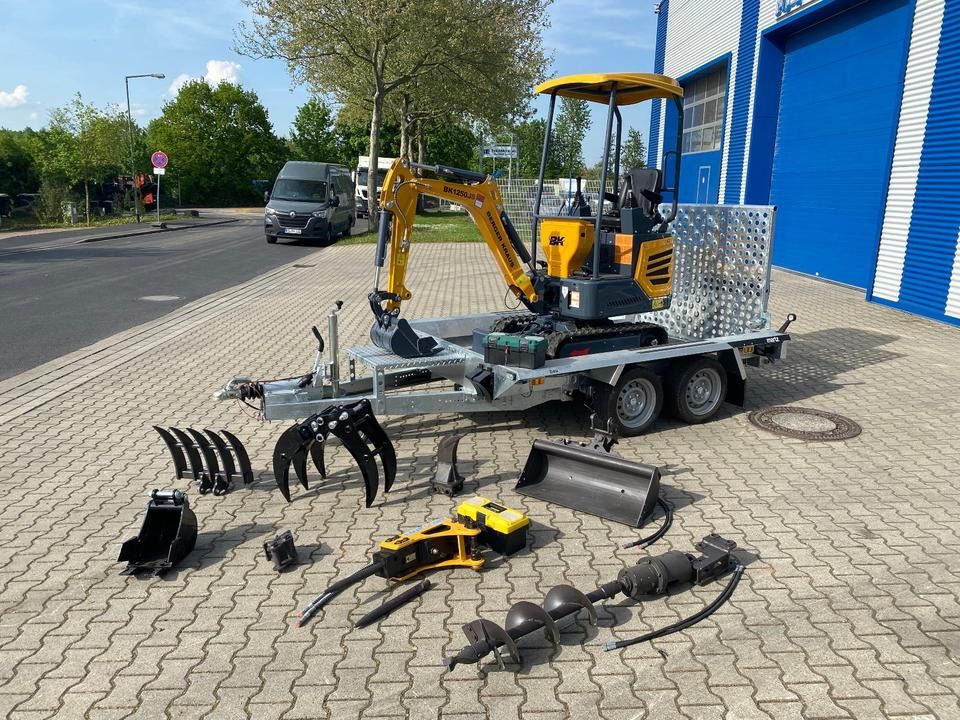

New mini excavator Berger Kraus BK1250JS with joysticks, including a 2-axle low-loader trailer and large accessory package. Weight 1100 kg. Powered by a Kubota D722/E711 (EURO 5) 3-cylinder liquid-cooled diesel engine, rated output 10.2 kW at 2500 rpm. Features a double gear pump, Eaton slew motor, and Zhenjiang undercarriage. Maximum digging depth 1.75 m. Includes quick coupler, hydraulic ditch cleaning bucket (800 mm), hydraulic breaker, buckets (200 mm and 380 mm), grapple, ripper tooth, rake, earth auger 20 cm, and tool box. Trailer has loading area 2600x1530 mm, permissible gross weight 2700 kg, empty weight 534 kg, payload 2166 kg. Sold as a demonstration vehicle with up to 5 operating hours. CE certificate, invoice with VAT, and manual in German included.

Key Features:
- Weight 1100 kg
- Kubota EURO 5 engine, 10.2 kW
- Max digging depth 1.75 m
- Includes 2-axle low-loader trailer
- Extensive accessory package
- CE certified with documentation
- Up to 5 operating hours

Technical Data
Engine:
- Engine: Kubota D722/E711, 3-cylinder, liquid-cooled diesel
- Rated output: 10.2 kW at 2500 rpm
- Displacement: 719 ccm

Hydraulic System:
- Main pump: Tianjin double gear pump (15 L + 7.5 L at 2500 rpm)
- System pressure: 16 MPa
- Slew motor: Eaton (USA)

Work Area:
- Max digging depth: 1750 mm
- Digging reach at ground level: 3030 mm
- Max digging reach: 2940 mm
- Max digging height: 2610 mm
- Max dump height: 1740 mm
- Max vertical digging depth: 1655 mm
- Min turning radius: 1490 mm
- Max blade lift height: 345 mm
- Max blade digging depth: 240 mm

Dimensions / Transport:
- Excavator dimensions: 2870 x 930 x 2285 mm
- Track width: 920 mm
- Total track length: 1230 mm
- Ground clearance: 132 mm
- Track gauge: 180 mm
- Slew radius: 784 mm
- Travel speed: 1.2 km/h
- Trailer loading area: 2600 x 1530 mm
- Trailer empty weight: 534 kg, payload: 2166 kg, permissible gross weight: 2700 kg

Undercarriage:
- Brand: Zhenjiang

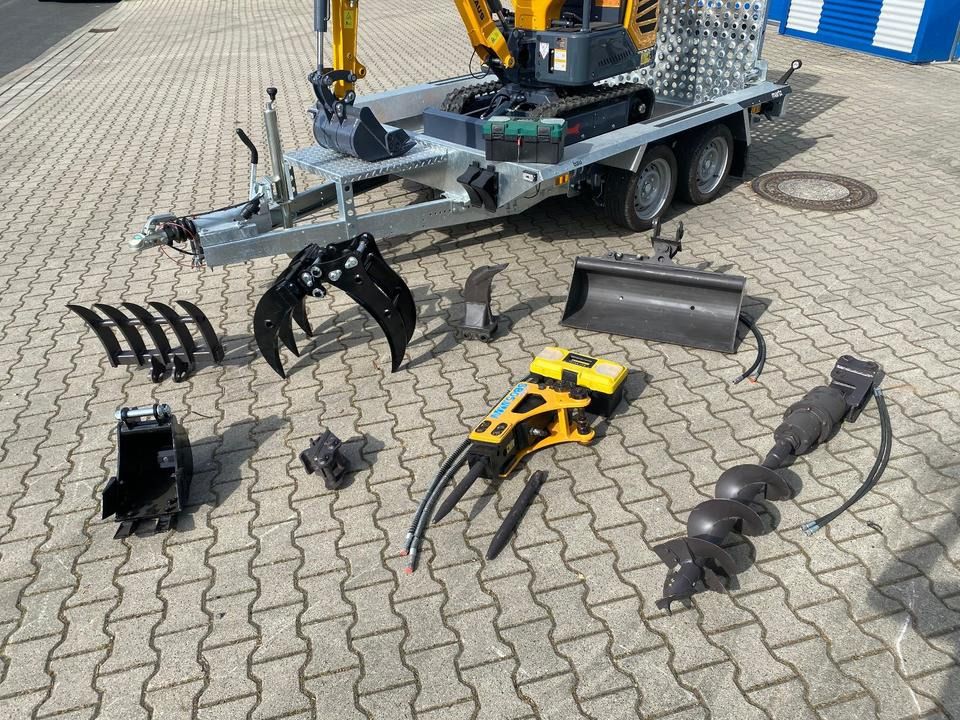

Attachments & Equipment:
- Quick coupler, hydraulic ditch cleaning bucket (800 mm), hydraulic breaker, bucket 200 mm, bucket 380 mm, grapple, ripper tooth, rake, earth auger 20 cm, tool box
