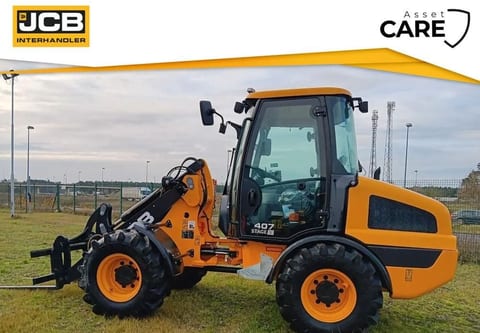

New 2024 JCB 407 Wheel Excavator

JCB 407 | Wheel Loader | Stage V | Torun, Poland

Location: Torun, Poland

Machine Overview:
New JCB 407 SV Stage V wheel loader from the authorized Polish distributor. Compact, maneuverable, and efficient for construction, agriculture, industry, and municipal work.

Key Features:
- JCB / Kohler 4-cylinder turbocharged diesel engine, 48 kW (64 HP), Stage V emission standard
- Hydrostatic 4x4 drive with oscillating articulation (±10°) and 40° steering angle
- Lift capacity: 1,663 kg; max horizontal unloading height: 2,991 mm
- Hydraulic quick coupler and pallet forks included
- ROPS/FOPS cabin with heating, adjustable seat, front/rear wipers, and work lights
- Reverse alarm, fire extinguisher, warning triangle, and beacon

Technical Data
Engine:
- JCB / Kohler diesel, 4-cylinder, turbocharged, 2.48 L, 48 kW (64 hp), Stage V
- Torque: 300 Nm

Hydraulic System:
- Gear pump: 60 L/min, max working pressure: 230 bar

Drive System:
- Hydrostatic drive on both axles, 4x4
- Travel speeds: 6 / 18 km/h; turning radius at wheel edge: 3,800 mm

Work Area:
- Max static load (front): 4,323 kg; max static load when turning (±40°): 3,326 kg
- Max horizontal unloading height: 2,991 mm; unloading height (bucket 45°): 2,489 mm; fork lift height: 3,012 mm; forks below ground level: 84 mm

Dimensions / Transport:
- Fluid capacities: hydraulic & drive 70 L, fuel 80 L, front axle 4.4 L, rear axle 6.05 L
- Pneumatic tyres, wet disc service brake, parking brake

Attachments & Equipment:
- Hydraulic loader quick coupler, pallet forks, front and rear work lights, reversing alarm, fire extinguisher, warning triangle, beacon, operator's manual

Documentation & Compliance:
- Stage V compliant; factory warranty (FACTORY WARRANTY)
