2026 Sany SY75C Mini Excavator

Sany SY75C | 7.5 t Midi Excavator | with Warranty
Location: Shanghai, China

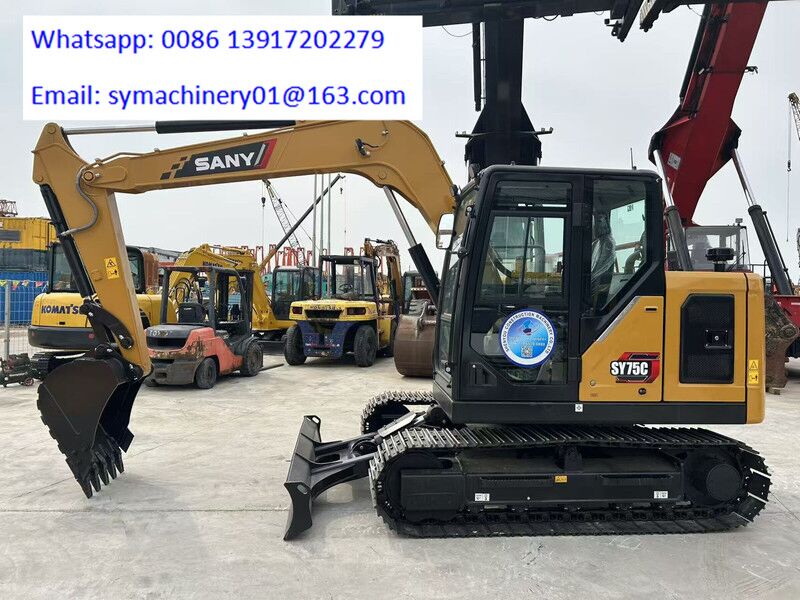

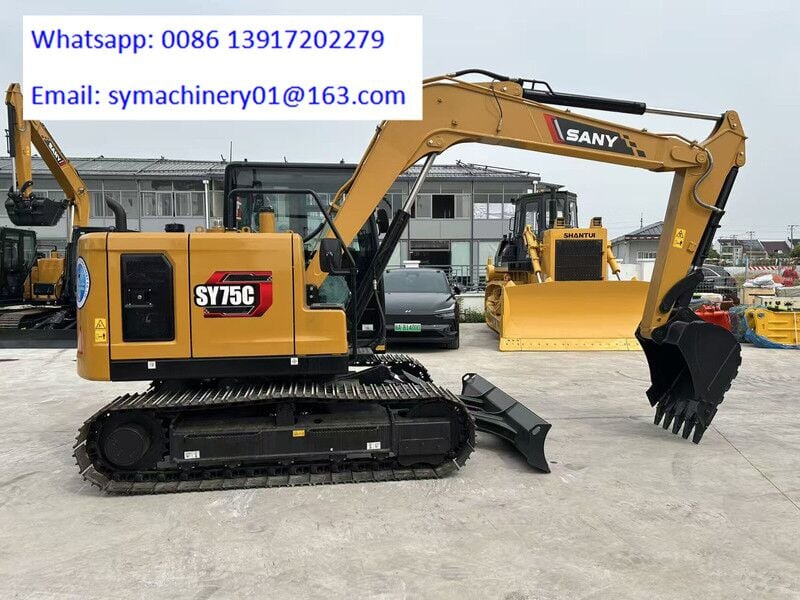

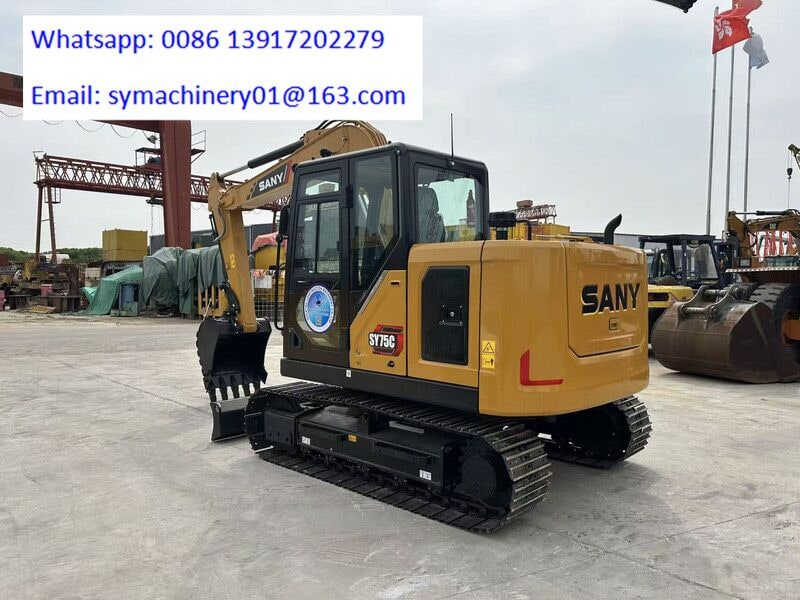

The Sany SY75C is a 2026 midi excavator with a net weight of 7.5 tonnes. It is equipped with an Isuzu 4JG3X engine rated at 75 hp, meeting China Stage IV emission standards. The machine includes a 0.3 m³ bucket and comes with a 12-month warranty.

Key Features:
- Year of manufacture: 2026
- Net weight: 7.5 t
- Bucket capacity: 0.3 m³
- Digging depth: 4020 mm
- Max digging radius: 6240 mm
- Max dumping height: 5155 mm
- 12-month warranty

Technical Data
Engine:
- Engine model: Isuzu 4JG3X
- Rated power: 55kW / 2000rpm (75 hp)
- Displacement: 2.179L

Hydraulic System:
- Hydraulic tank capacity: 120L

Work Area:
- Bucket digging force: 56kN
- Arm digging force: 38kN
- Max digging radius: 6240 mm
- Max digging depth: 4020 mm
- Max digging height: 7060 mm
- Max dumping height: 5155 mm

Dimensions / Transport:
- Overall dimensions (L×W×H): 6120×2220×2720 mm
- Fuel tank capacity: 150L

Undercarriage:
- Travel speed (High/Low): 4.4/2.4 km/h
- Gradeability: 35°

Attachments & Equipment:
- Standard bucket capacity: 0.3 m³
