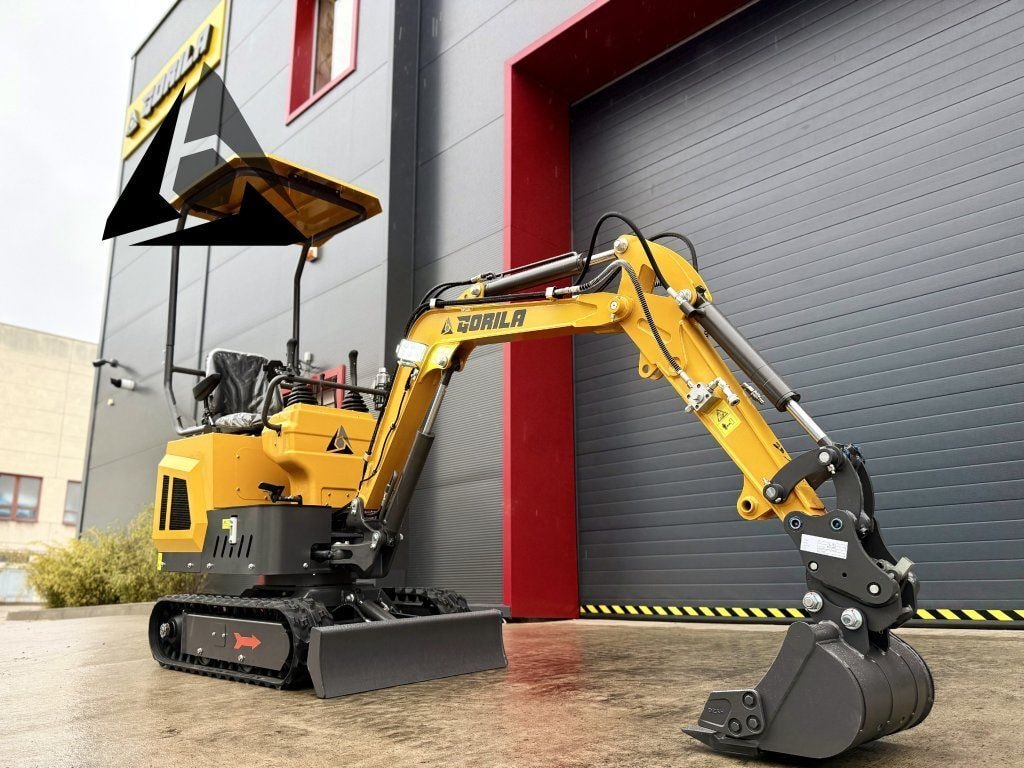

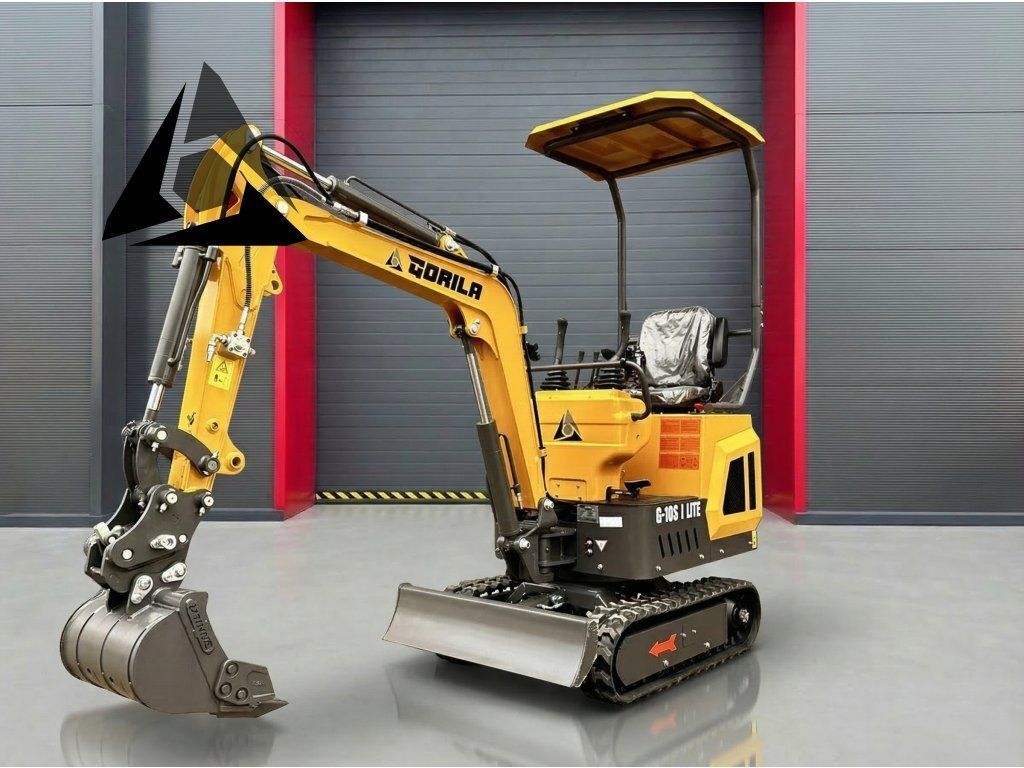

2026 Gorila G10S I LITE Mini Excavator

Gorila G10S I LITE | 1 t Mini Excavator
Location: Hořice, Czech Republic

Machine Overview:
2026 Gorila G10S I LITE mini excavator, hobby model. Powered by a KOOP 192F diesel engine with 9 hp. Operating weight 1 t, with offset digging capability.

Key Features:
- 1 t operating weight
- 9 hp KOOP 192F engine
- Max digging depth 1.69 m
- Max digging height 2.45 m
- Transport length 2.87 m, width 0.93 m
- Hydraulic tank 18 L, working pressure 16 MPa
- Track width 180 mm
- Offset digging capability

Technical Data:
Engine:
- KOOP 192F, 9 hp, 499 cc displacement

Hydraulic System:
- Gear pump, working pressure 16 MPa, tank 18 L

Work Area:
- Max digging height: 2.45 m
- Max dumping height: 1.71 m
- Max vertical digging depth: 1.69 m
- Max ground excavation distance: 2.94 m

Dimensions / Transport:
- Transport length: 2.87 m
- Transport width: 0.93 m
- Transport height: 2.213 m (1.99 m with roof removed)
- Track length: 1.2 m
- Blade width: 0.937 m

Undercarriage:
- Track width: 180 mm
- Distance between track centers: 746 mm

Attachments & Equipment:
- Bucket, blade

Documentation & Compliance:
- New model 2026
